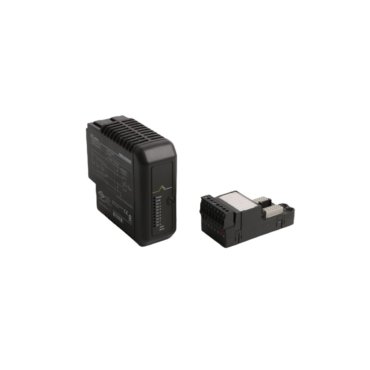

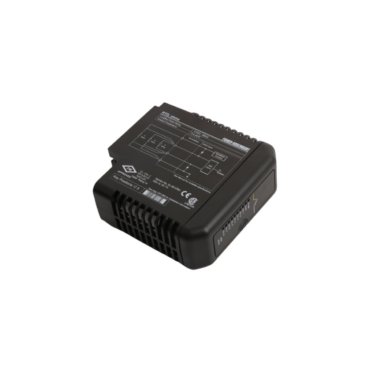

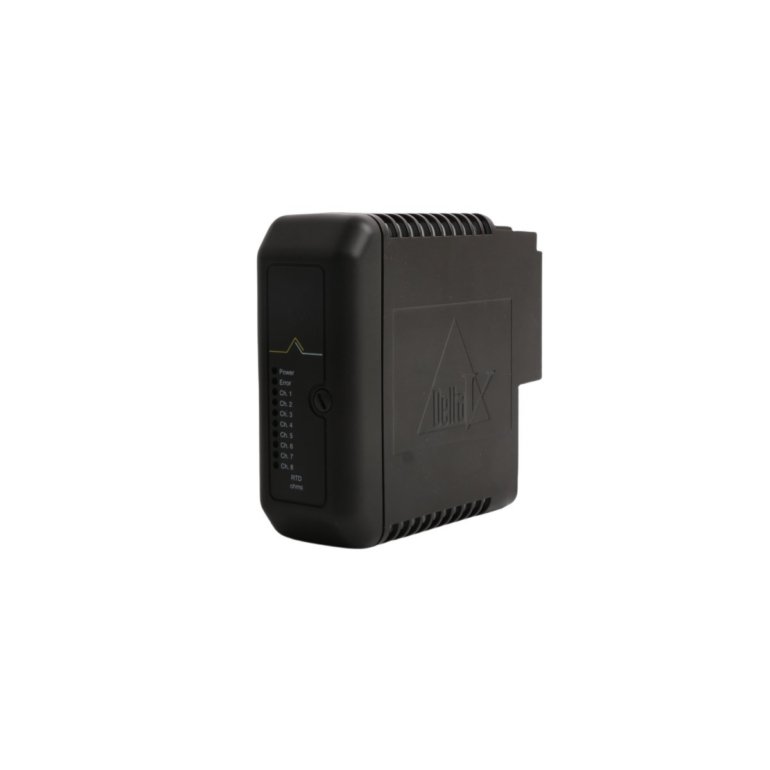

Emerson KJ3002X1-BF1 12P1732X072 VE4003S6B1 Analog Input Card RTD

The Emerson KJ3002X1-BF1 serves as a high-precision interface for Resistance Temperature Detectors (RTD) within the DeltaV ecosystem. This VE4003S6B1 module specifically converts low-level resistance signals into digital temperature data. Consequently, the Distributed Control System (DCS) gains accurate insights into thermal process variables. It supports multiple RTD types to ensure broad compatibility with existing field sensors. Furthermore, the card processes data in real time to facilitate immediate control response. This capability remains essential for maintaining thermal stability in sensitive industrial reactions.

System Architecture and Reliability

This 12P1732X072 card features a modular hardware design for rapid installation and replacement. It integrates seamlessly into the DeltaV M-series I/O carrier. Moreover, the module provides robust signal isolation to prevent ground loop interference. The hardware includes advanced onboard diagnostics to detect sensor wiring faults immediately. This proactive monitoring helps maintenance teams reduce unplanned system downtime. Additionally, the rugged housing protects internal circuits from high-frequency electrical noise. It operates reliably in demanding environments with significant temperature fluctuations.

Technical Specifications

• Manufacturer: Emerson Process Management
• Model Number: KJ3002X1-BF1
• Part Number: 12P1732X072
• Series Designation: DeltaV M-series / VE4003S6B1
• Input Type: 8-Channel RTD Analog Input
• Weight: 0.2 kg
• Form Factor: 16.8 x 8.7 x 4.4 cm
• Origin: USA
• Compliance: HS Code 8537101190
• System Environment: DCS Control Network

Industry-Specific Applications

Operators in the petrochemical industry rely on this module for reactor temperature oversight. It also performs critical monitoring in high-pressure steam systems within power plants. Furthermore, the card supports precise thermal regulation in large-scale chemical synthesis. Because the module scales easily, it accommodates both small skids and massive plant expansions. The 12P1732X072 hardware maintains calibration accuracy over long operational cycles. Thus, it provides a dependable foundation for asset protection and process safety.
