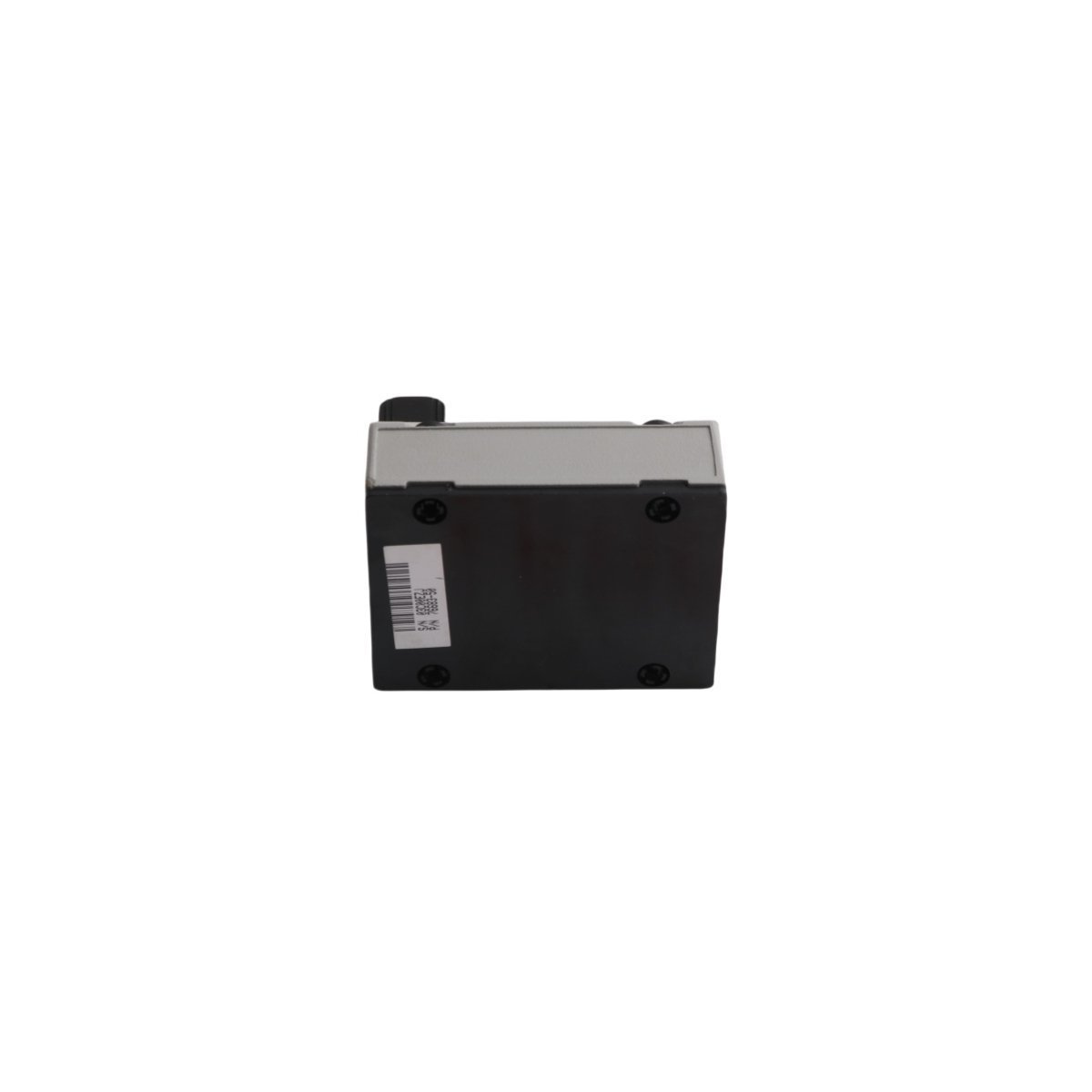

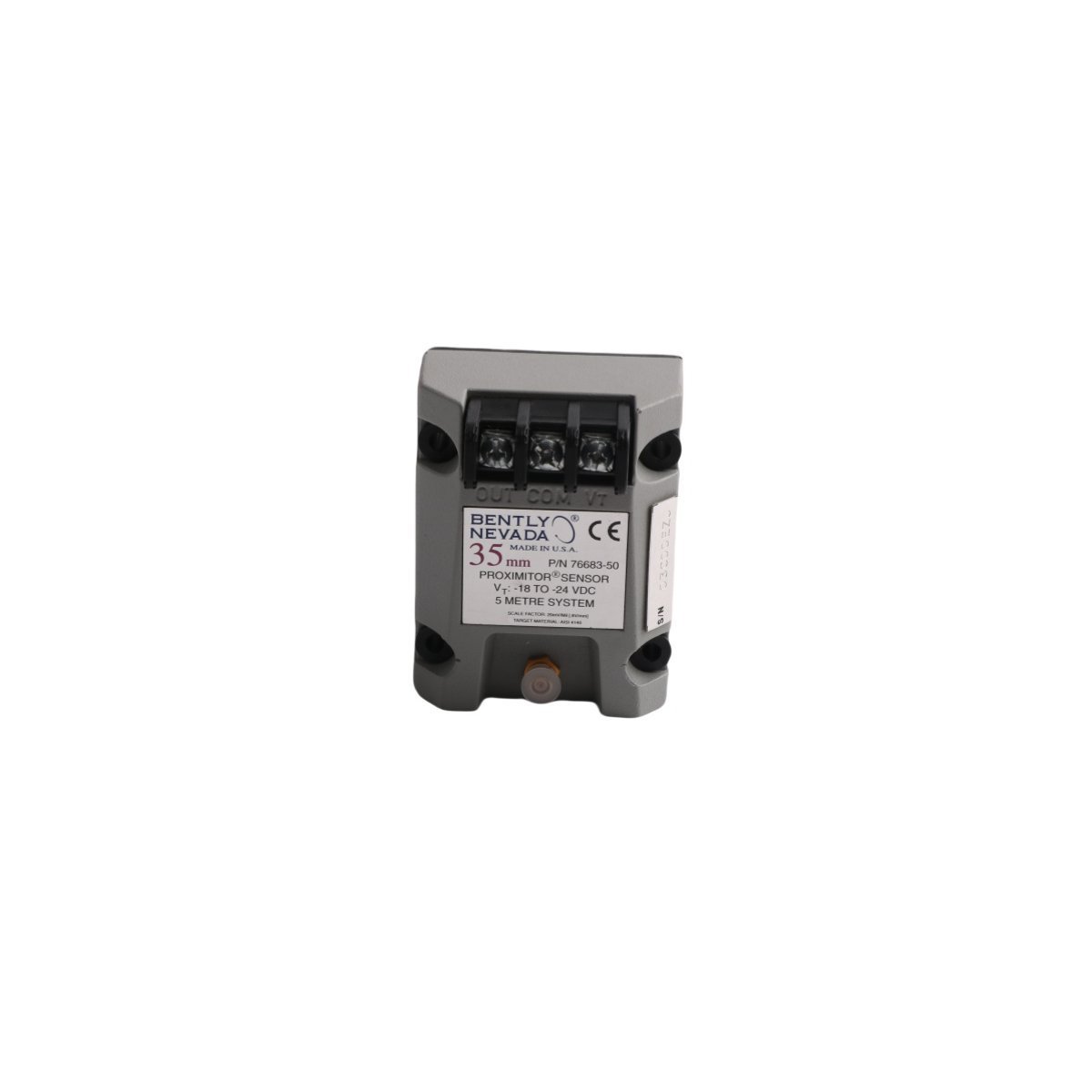

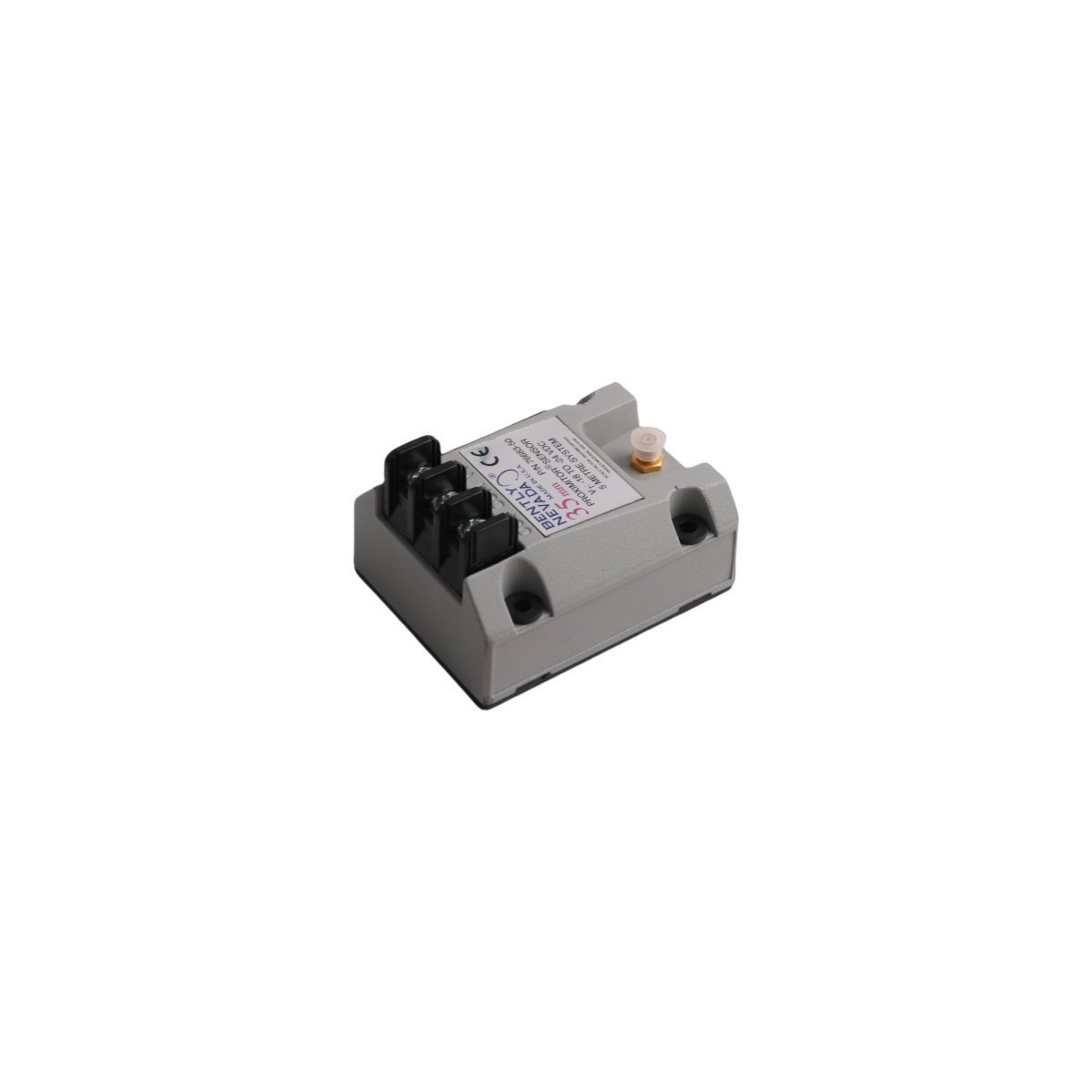

Bently Nevada 76683-50 Proximity Sensor

The Bently Nevada 76683-50 serves as a specialized 35mm Proximitor Sensor within the 3300 series machinery protection ecosystem. This device functions by generating a high-frequency radio frequency (RF) signal to detect the position of a target surface without physical contact. By measuring the changes in eddy current loss, the sensor provides an exceptionally accurate voltage output proportional to the distance between the probe tip and the observed shaft. Consequently, this technology allows for the continuous monitoring of radial vibration and axial thrust position on large-scale rotating equipment where standard 8mm probes lack the necessary measurement range.

Essential Technical Specifications

The 76683-50 is engineered to provide high-linearity performance in demanding industrial architectures.³ The following table summarizes its core hardware characteristics:

Reliability in Severe Industrial Environments

Industrial facilities often expose instrumentation to high temperatures and significant electromagnetic interference. To counter these challenges, Bently Nevada utilizes advanced signal conditioning electronics that maintain measurement integrity despite external noise. The 76683-50 features a rugged housing designed to withstand the vibration and thermal cycling common in power generation and manufacturing sectors. Because the sensor lacks mechanical moving parts, it offers a maintenance-free service life, which significantly reduces the total cost of ownership for machinery protection programs.
