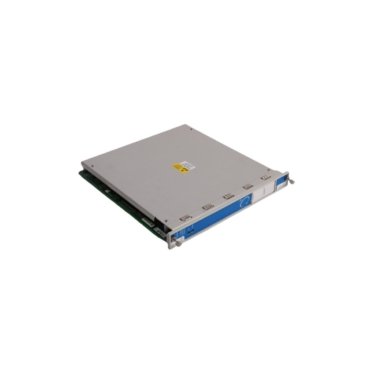

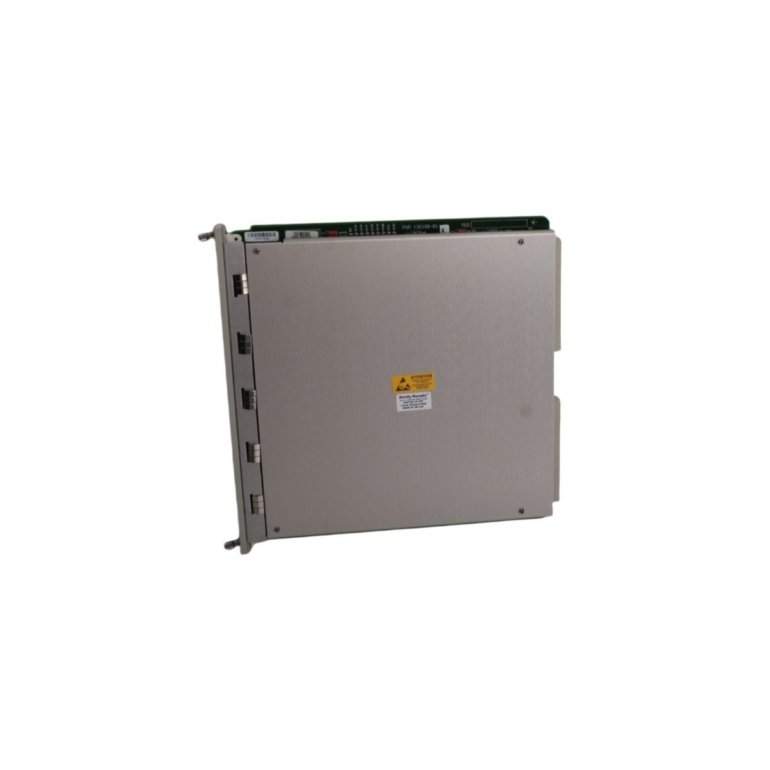

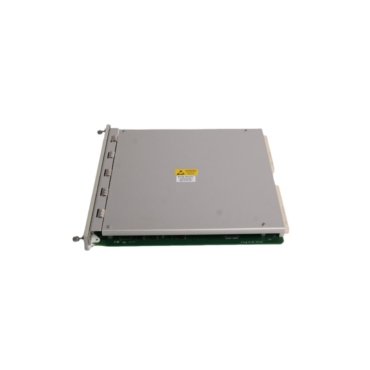

The Bently Nevada 3500/92 Communication Gateway facilitates seamless data integration between the 3500 Monitoring System and external control platforms. This module acts as a high-speed bridge, translating internal rack data into industry-standard protocols. It supports Modbus RTU and Modbus TCP/IP communication for real-time monitoring.
Unlike the 3500/90, which provides similar functions, the 3500/92 offers enhanced Ethernet connectivity and internal redundancy. It collects static and dynamic data from all rack modules. This ensures that Distributed Control Systems (DCS) receive accurate machinery health information.
Industrial Applications
The 3500/92 module serves critical machinery in the power generation and hydrocarbon processing sectors. It monitors steam turbines, centrifugal compressors, and large electric motors. Engineers rely on this gateway to feed Condition Monitoring Software and Plant Information (PI) systems. This integration supports predictive maintenance and reduces unplanned downtime.
Hardware Specifications
| Feature | Details |
| Model Number | 3500/92 |
| Part Number | 136180-01 (Standard) |
| Protocol Support | Modbus RTU / Modbus TCP/IP |
| Interface Ports | RS232 / RS422 / RS485 / Ethernet |
| System Compatibility | Bently Nevada 3500 Series |
| Mounting | 3500 Rack Rear I/O Module |
| Operating Temp | -30°C to +65°C |
Functional Characteristics
- Data Aggregation: The gateway gathers vibration, position, and temperature data from every monitor in the rack.
- Protocol Translation: It converts proprietary Bently Nevada signals into Modbus registers for third-party integration.
- Redundant Communication: Dual-port configurations allow for redundant paths to the host control system.
- High-Speed Throughput: Ethernet capabilities provide faster update rates compared to traditional serial connections.
- Configuration Flexibility: Users define register maps using the 3500 Rack Configuration Software.
