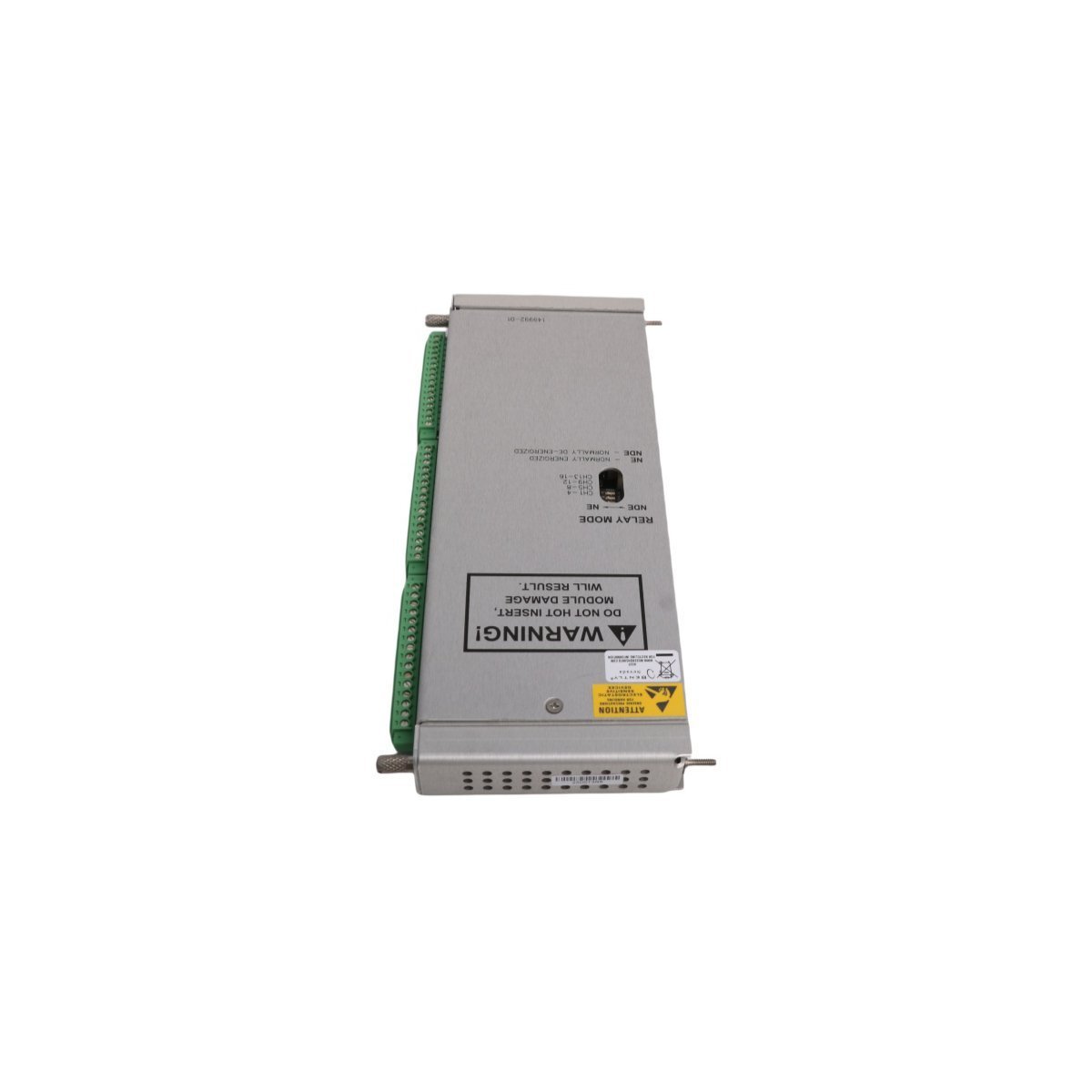

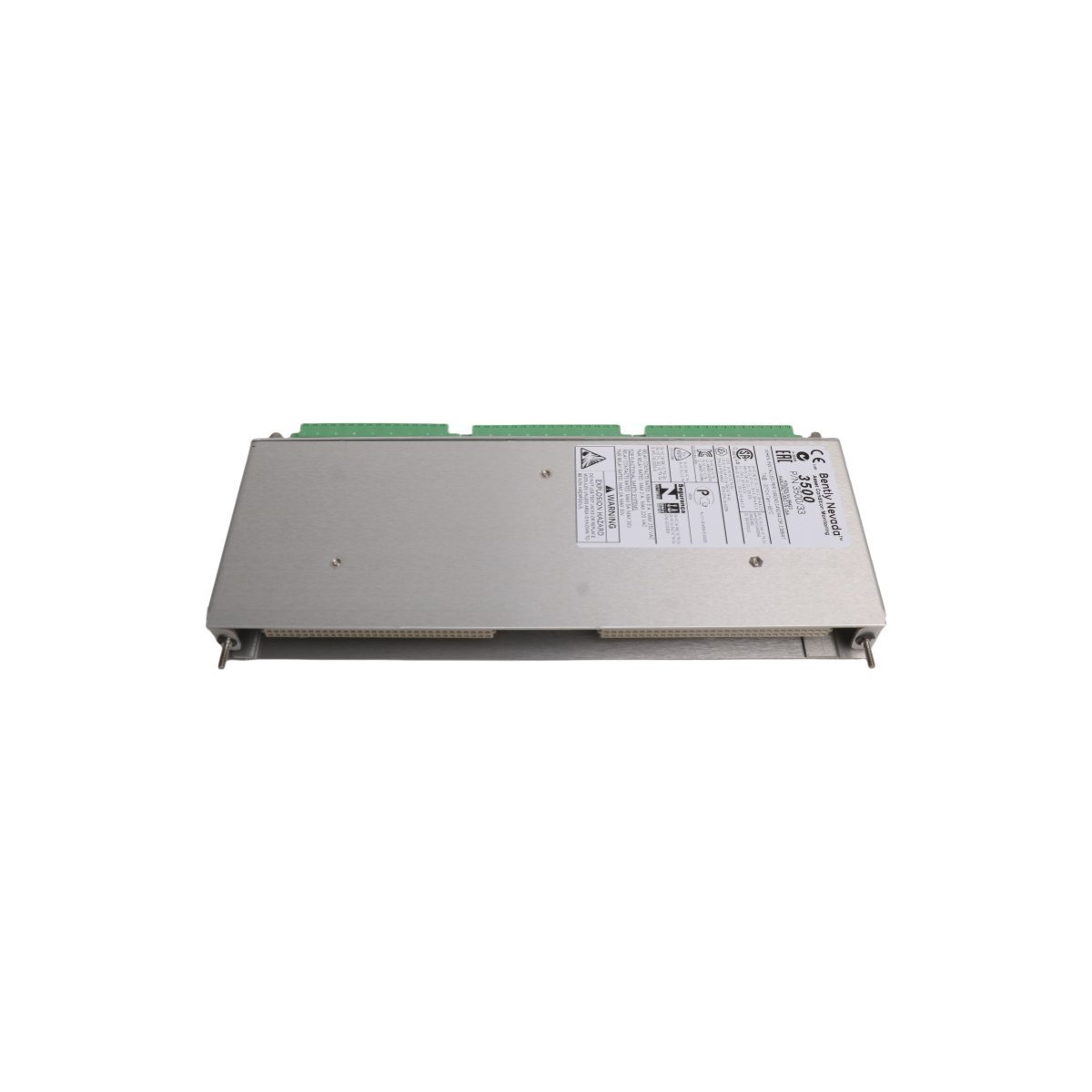

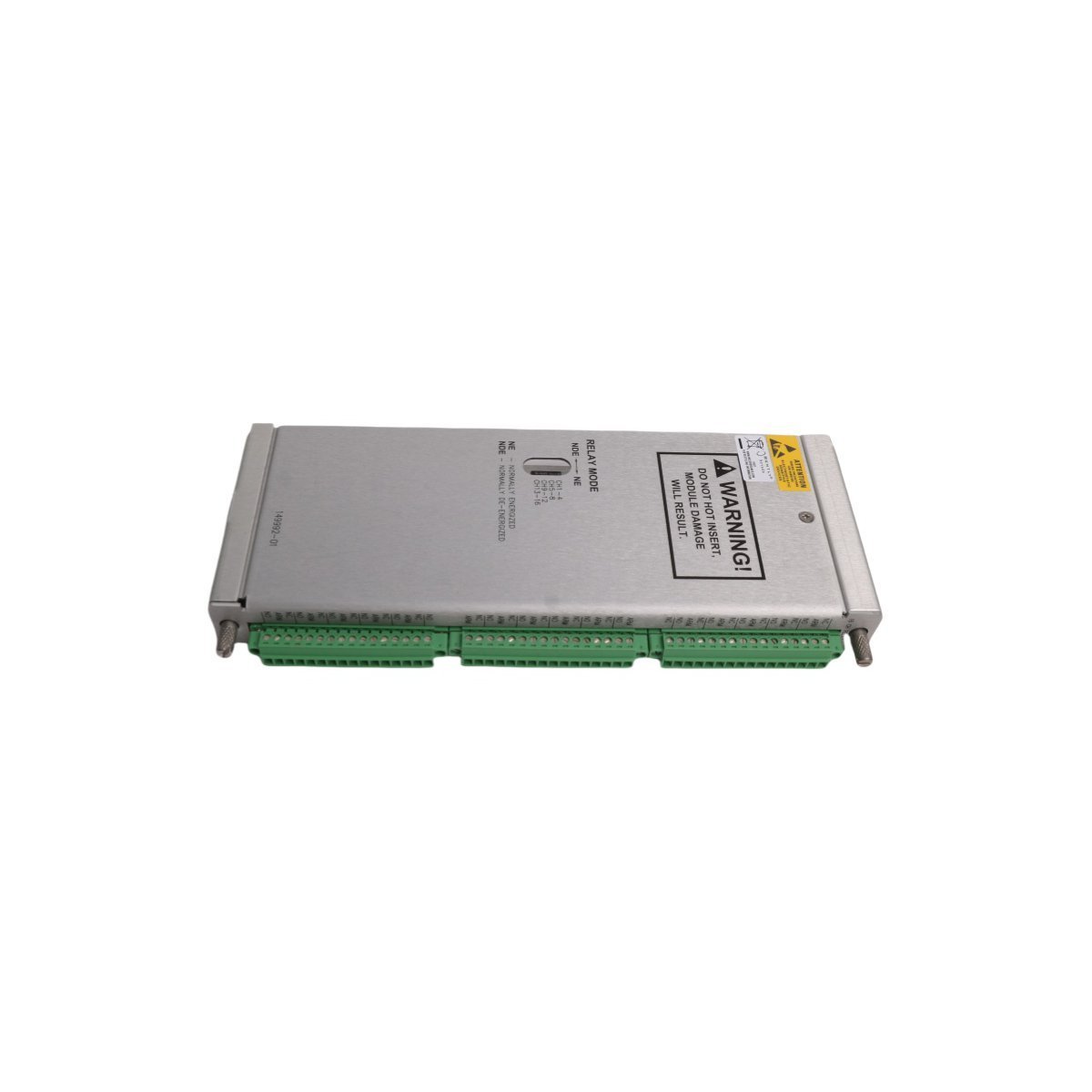

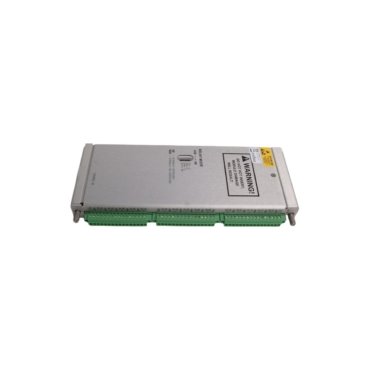

Bently Nevada 3500/33-03-00 149992-03 Spare 16-Channel Low Current Relay Output Module

The Bently Nevada 3500/33-03-00, part number 149992-03, is a high-density relay output module designed for the 3500 Machinery Protection System. This 16-channel component provides essential switching capabilities to interface the monitoring rack with external control systems and annunciators. It specifically handles low-current signals, making it ideal for triggering Alarms and Danger states within a distributed control system (DCS) or programmable logic controller (PLC).

Operational Function and Logic Control

The primary role of this module involves translating the internal logic of the 3500 rack into physical relay contact closures. Each of the 16 channels is fully programmable using the 3500 Rack Configuration Software. Operators can assign individual relays to respond to specific channel statuses or complex “And/Or” voting logic. This flexibility ensures that the system provides precise protective actions, such as machinery trips or status notifications, based on real-time vibration, position, or temperature data.

Technical Performance Characteristics

Engineered for continuous operation in demanding industrial environments, the 149992-03 emphasizes reliability and signal integrity. The module utilizes high-quality relay components to ensure consistent switching even after long periods of inactivity.

• Channel Density: 16 independent relay outputs
• Current Rating: Low current (specifically optimized for signal-level switching)
• Configuration: Software-programmable relay logic and voting
• Standard Compliance: Designed to meet API 670 machinery protection standards
• Operating Temperature Range: -30°C to +65°C (-22°F to +150°F)
• Mounting: Standard 3500 System Rack slot
• Weight: 0.50 kg

System Integration and Diagnostics

The 149992-03 includes built-in self-test functions to verify the health of the output circuitry. The 3500 system monitors the module for “not OK” conditions, ensuring that a hardware failure does not result in a missed protection event. Furthermore, the low current architecture minimizes heat generation within the rack, which extends the lifespan of adjacent sensitive monitoring electronics.
