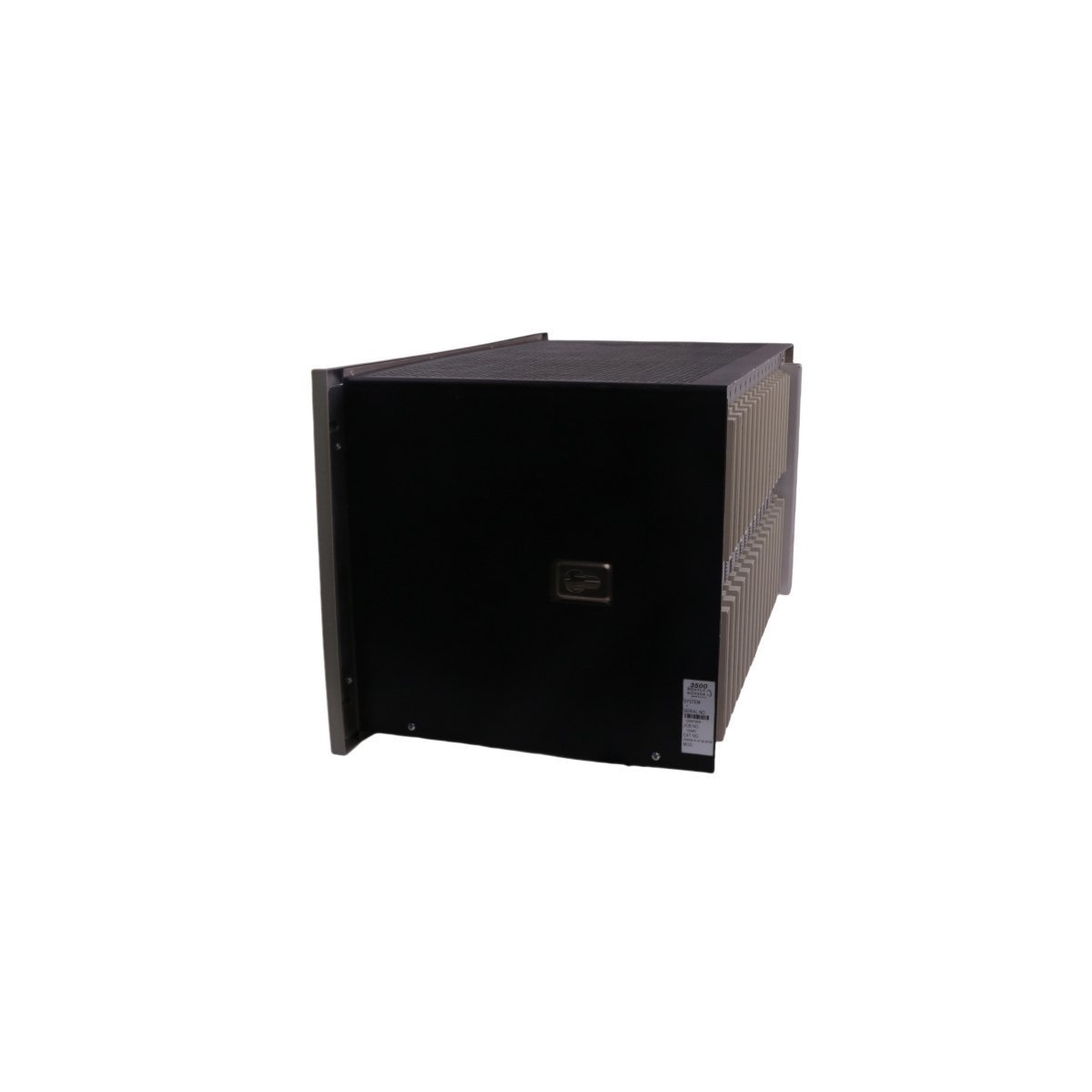

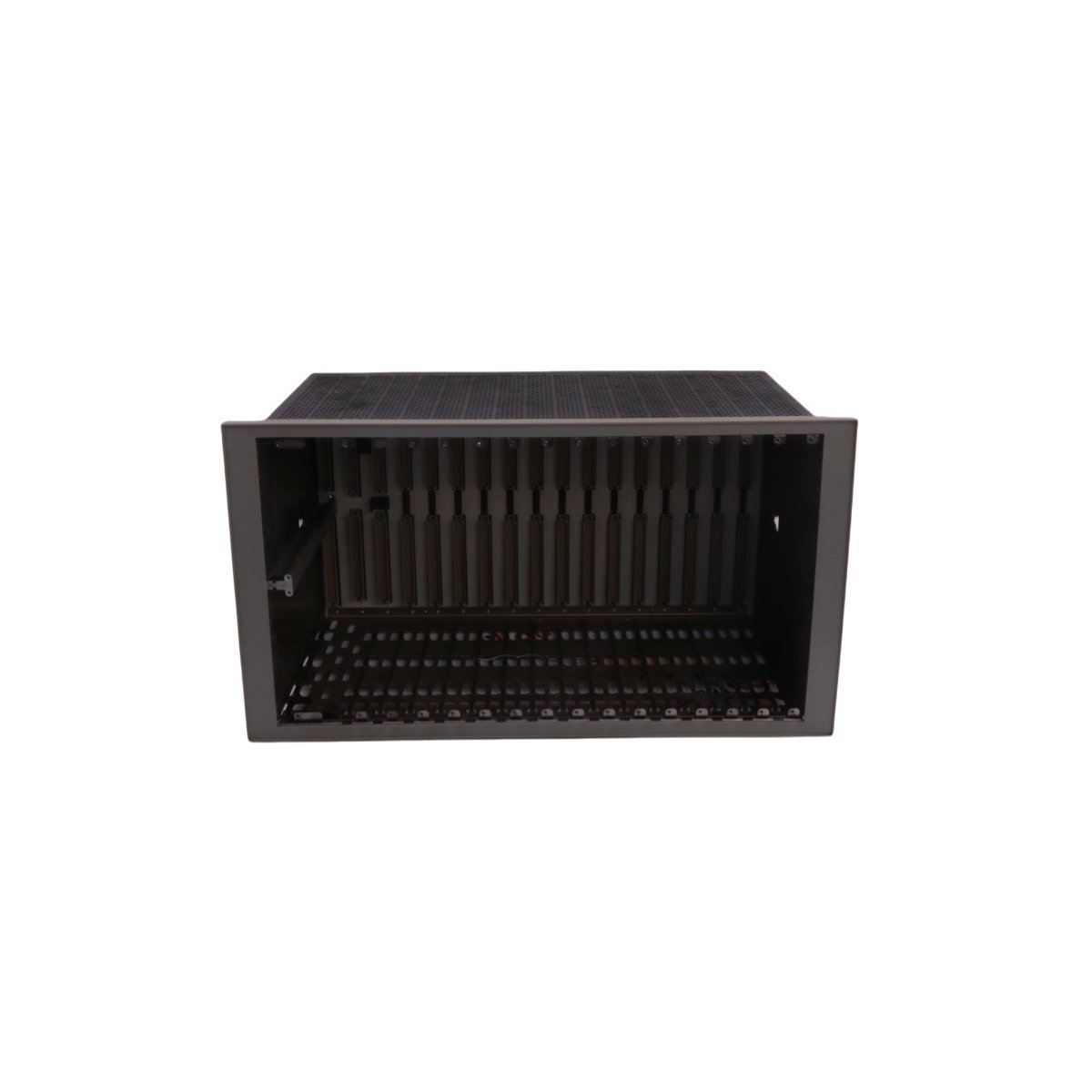

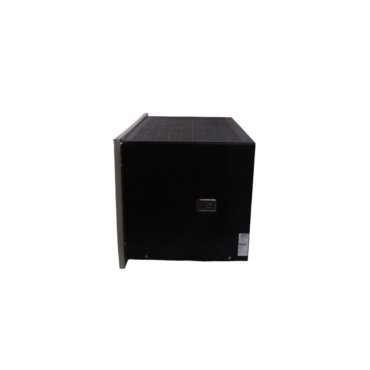

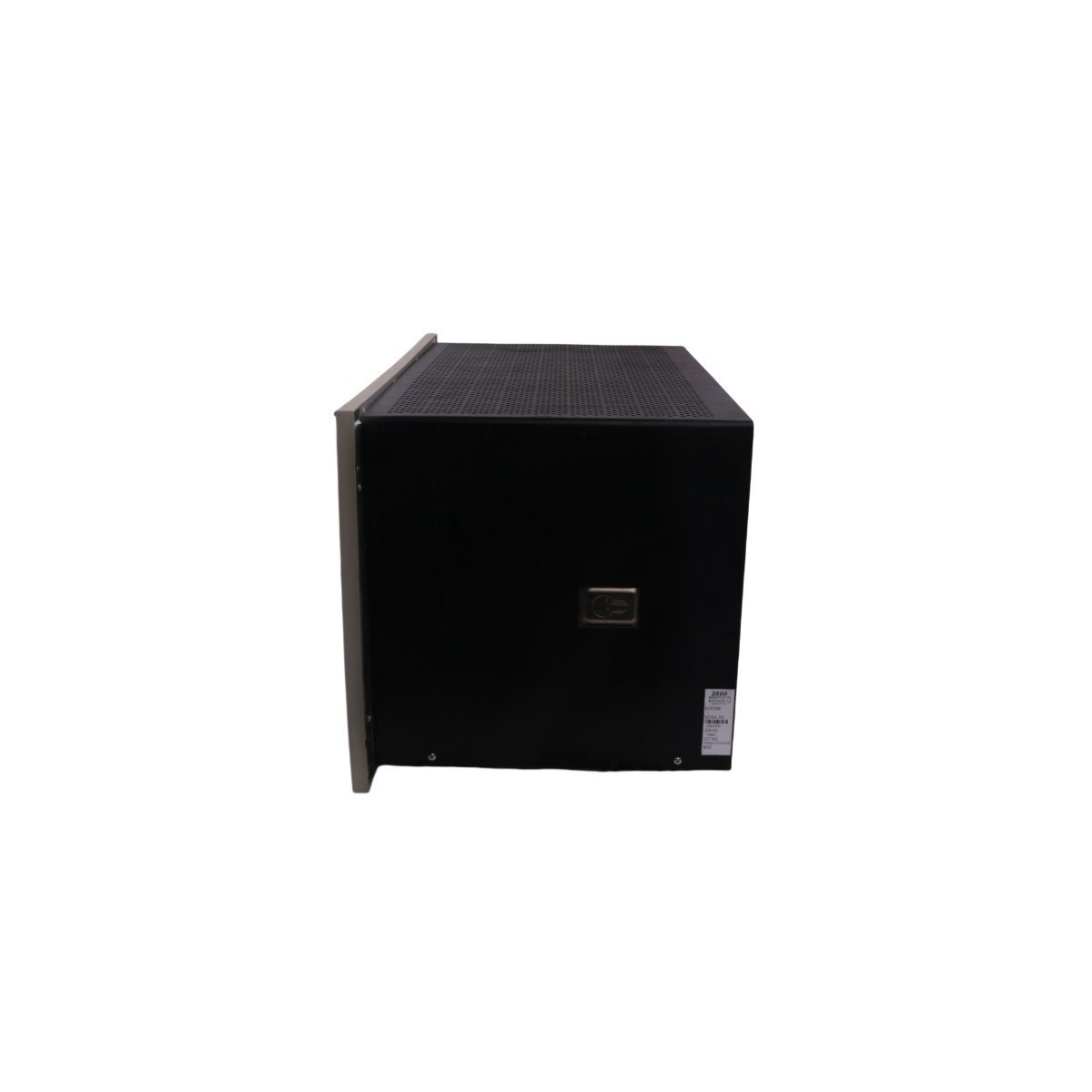

Bently Nevada 3500/05-01-01-00-00-00 System Chassis Rack

The Bently Nevada 3500/05-01-01-00-00-00 serves as the primary structural skeleton for the 3500 Machinery Protection System. This industrial-grade chassis houses various monitoring modules while providing a unified communication backplane. It ensures that every installed component receives stable power and data connectivity. Furthermore, the 19-inch rack format facilitates standardized integration into existing control cabinets. This chassis remains a fundamental element for facilities requiring high-density asset monitoring.

Functional Integration and Application

Maintenance engineers utilize this rack system to centralize machinery protection hardware. It supports a wide variety of monitoring modules for vibration, position, and temperature. The far-left positions specifically accommodate power supplies and the Rack Interface Module (RIM). Consequently, the remaining 14 slots provide ample space for diverse I/O and monitoring components. Common applications include protecting large-scale turbines, compressors, and motors in power generation or oil and gas plants.

Technical Characteristics and Performance

• Mounting Versatility: This specific configuration supports standard 19-inch EIA rack mounting for easy installation.
• Modular Capacity: The full-size chassis provides a total of 14 universal monitor slots.
• Power Distribution: Integrated backplane traces deliver high-current power to all installed modules efficiently.
• Redundant Support: The internal architecture allows for dual redundant power supplies to increase uptime.
• Structural Durability: Heavy-gauge metal construction protects internal electronics from mechanical stress.
• Rear Access: The design allows for straightforward wiring of I/O modules and terminal blocks.

Technical Specifications
