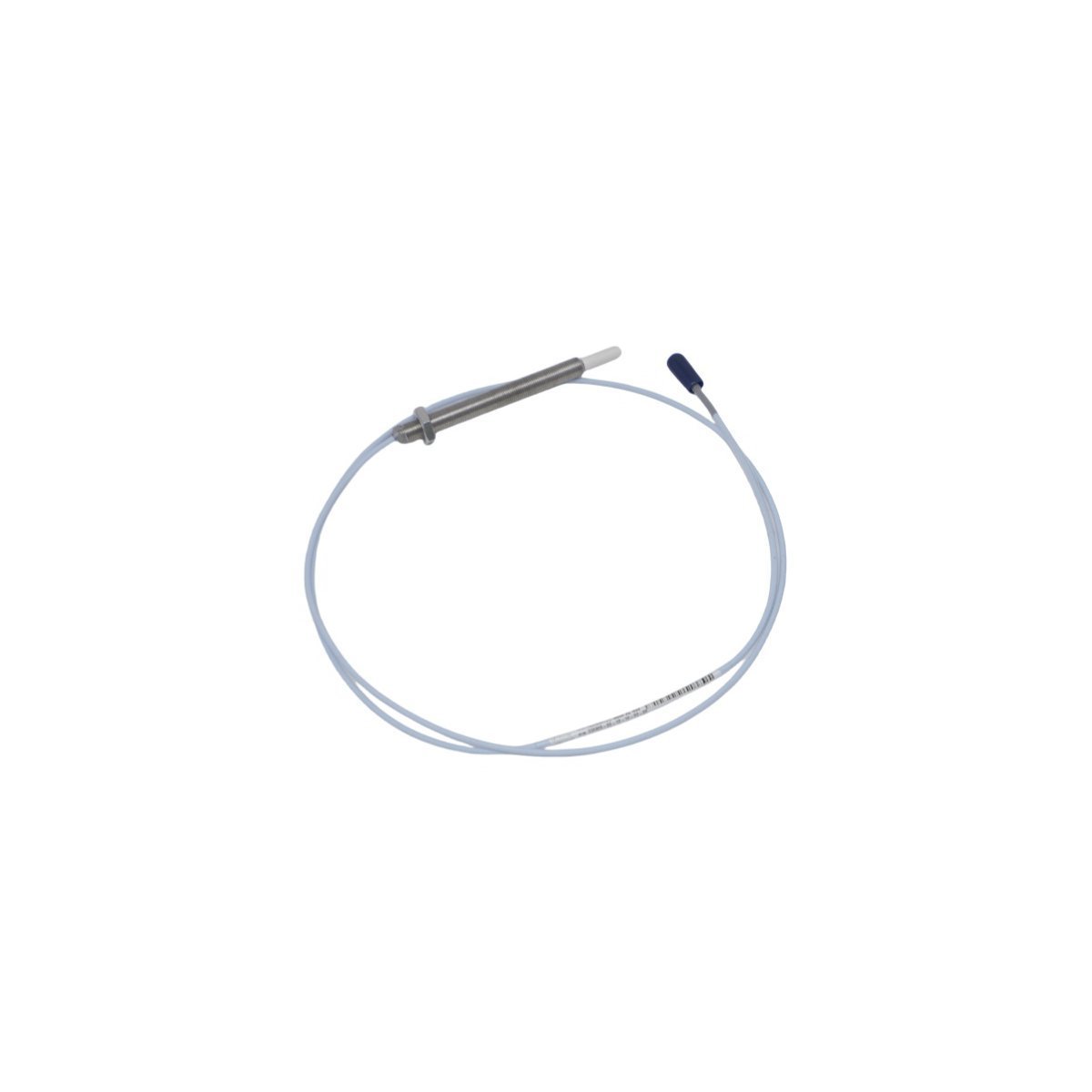

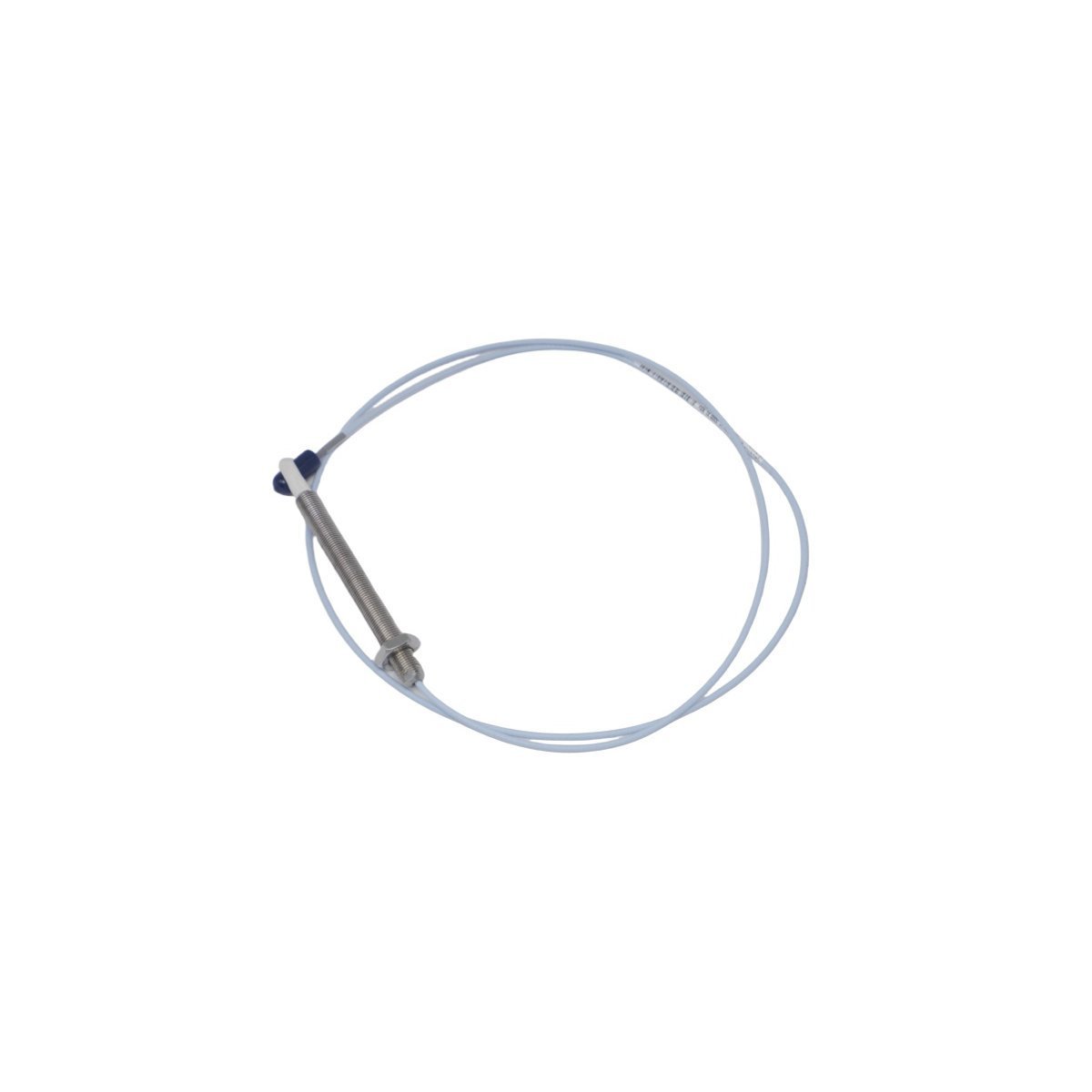

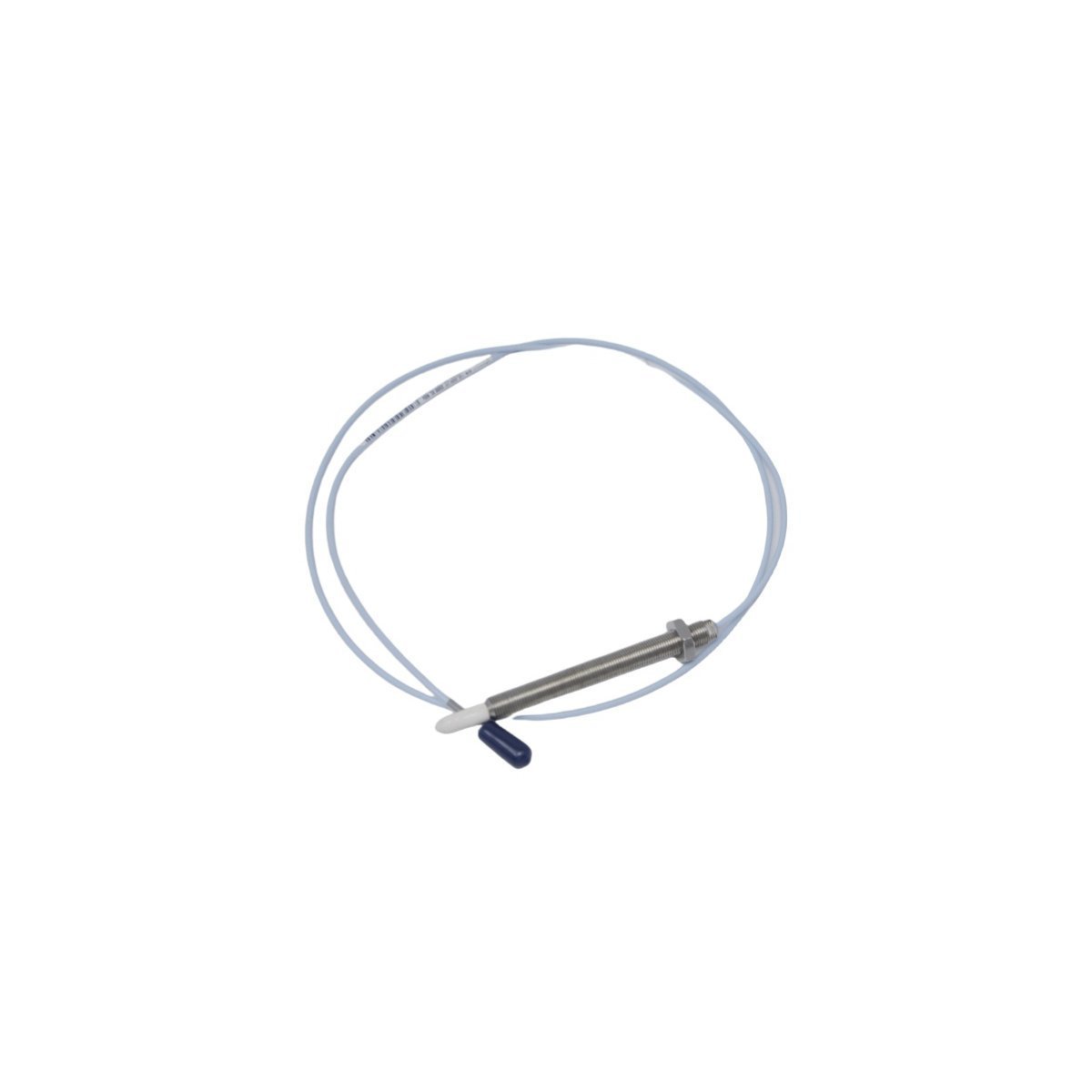

The Bently Nevada 330905-00-10-10-02-00 is a high-precision 3300 NSv (Narrow Side View) proximity probe engineered for machinery with severe spatial constraints. Unlike standard proximity sensors, the NSv series is specifically designed for applications where the probe must be installed in tight gaps or near metallic surfaces that would normally cause signal interference. This transducer provides critical non-contact displacement data, allowing for the continuous monitoring of shaft vibration and axial position in small centrifugal compressors, high-speed pumps, and various aero-derivative turbines.
Technical Configuration Specifications
- Mounting Thread: 3/8-24 UNF imperial thread
- Unthreaded Length: 1.0 inch
- Overall Case Length: 1.0 inch
- Total Cable Length: 1.0 meter (3.3 feet)
- Connector Construction: Miniature coaxial ClickLoc connector with gold plating for superior conductivity and moisture resistance
- Linear Range: Optimized for approximately 1.5 mm (60 mils)
- Protection Rating: IP67-rated probe tip for resistance against dust and water ingress
Asset Protection Applications
- Centrifugal Compressors: Monitoring radial vibration and thrust position in narrow bearing housings.
- Fluid-Film Bearings: Detecting subtle changes in shaft eccentricity and oil film thickness.
- Small Steam Turbines: Providing reference timing signals (Keyphasor) and vibration alerts.
- Industrial Pumps: Tracking axial movement to prevent internal component contact and mechanical seal failure.
