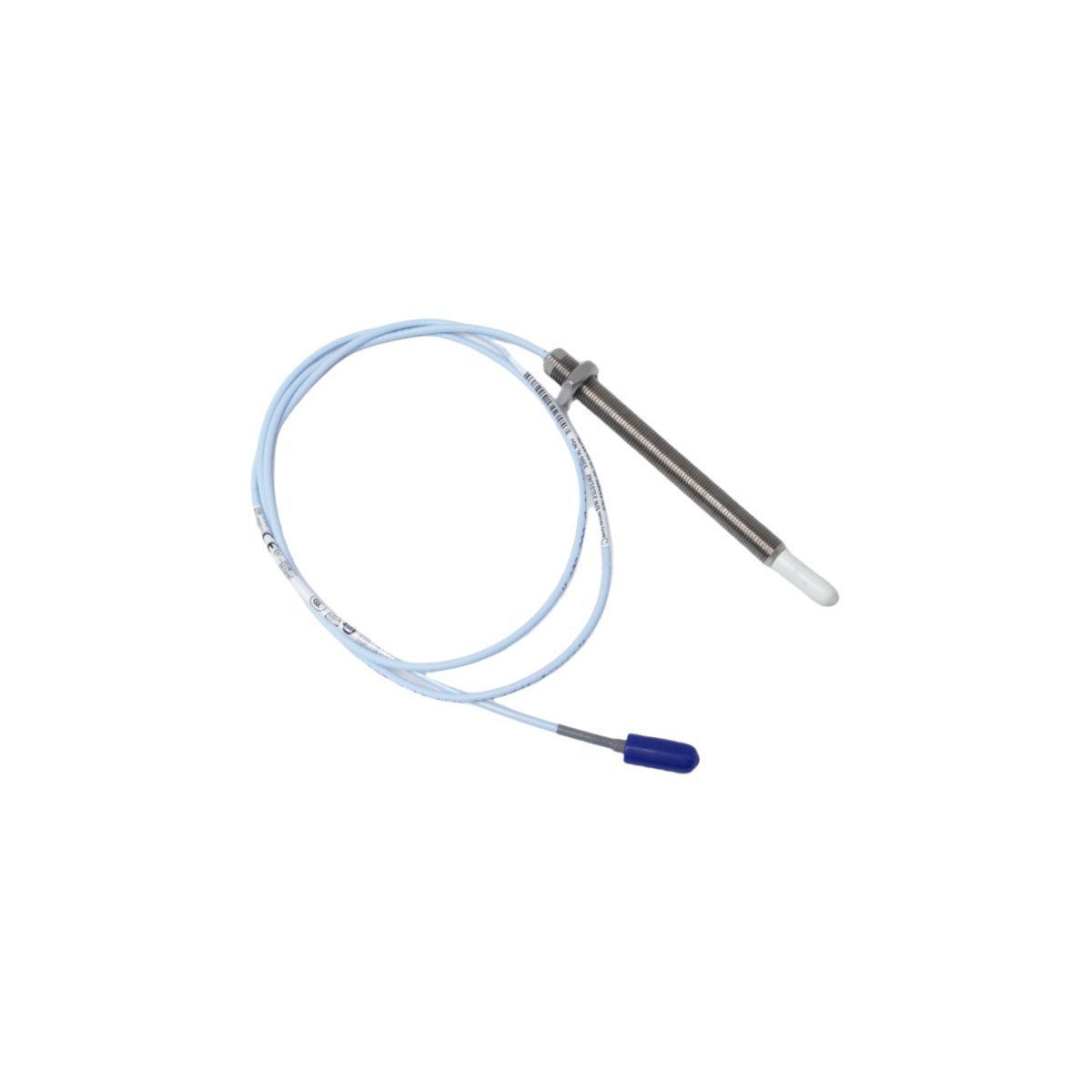

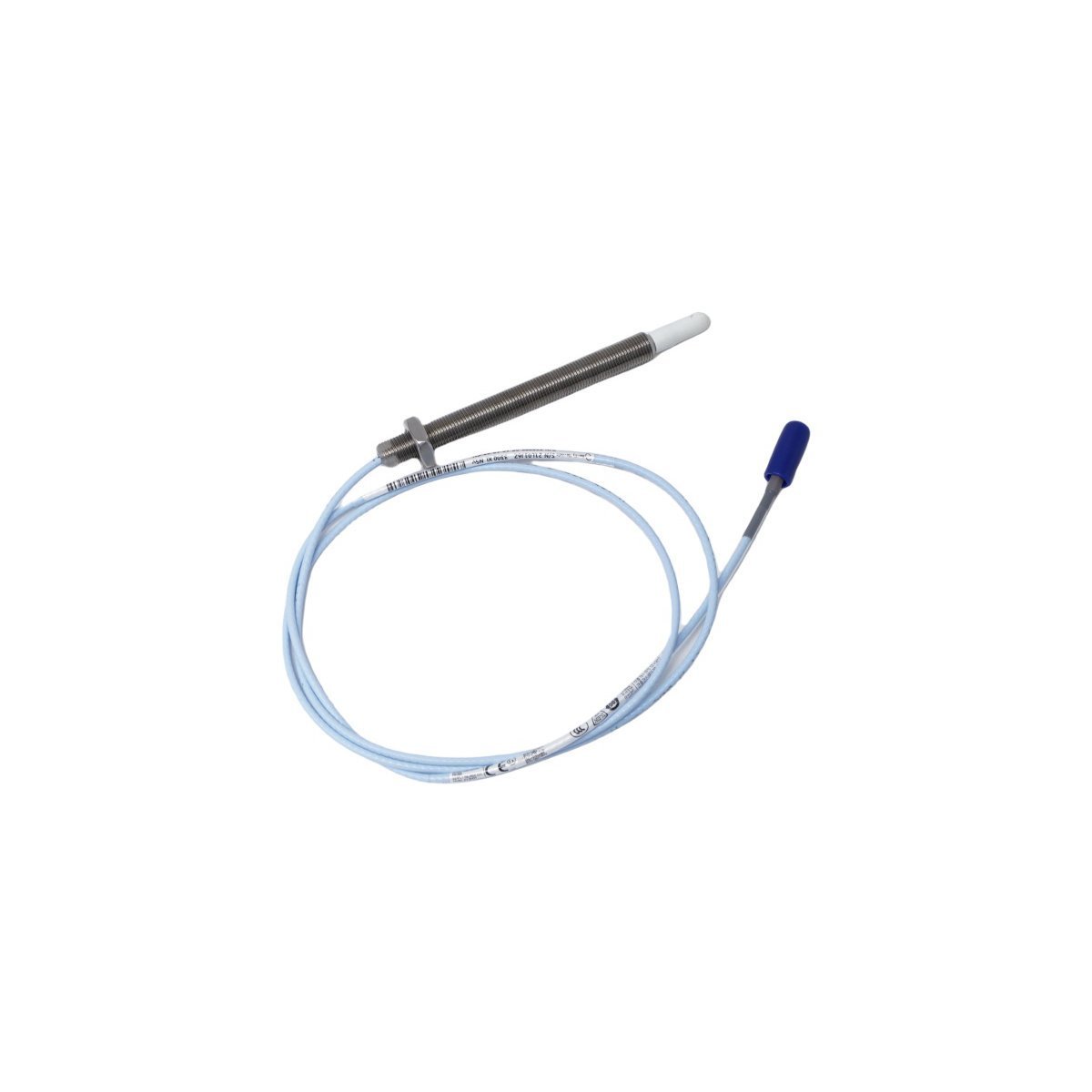

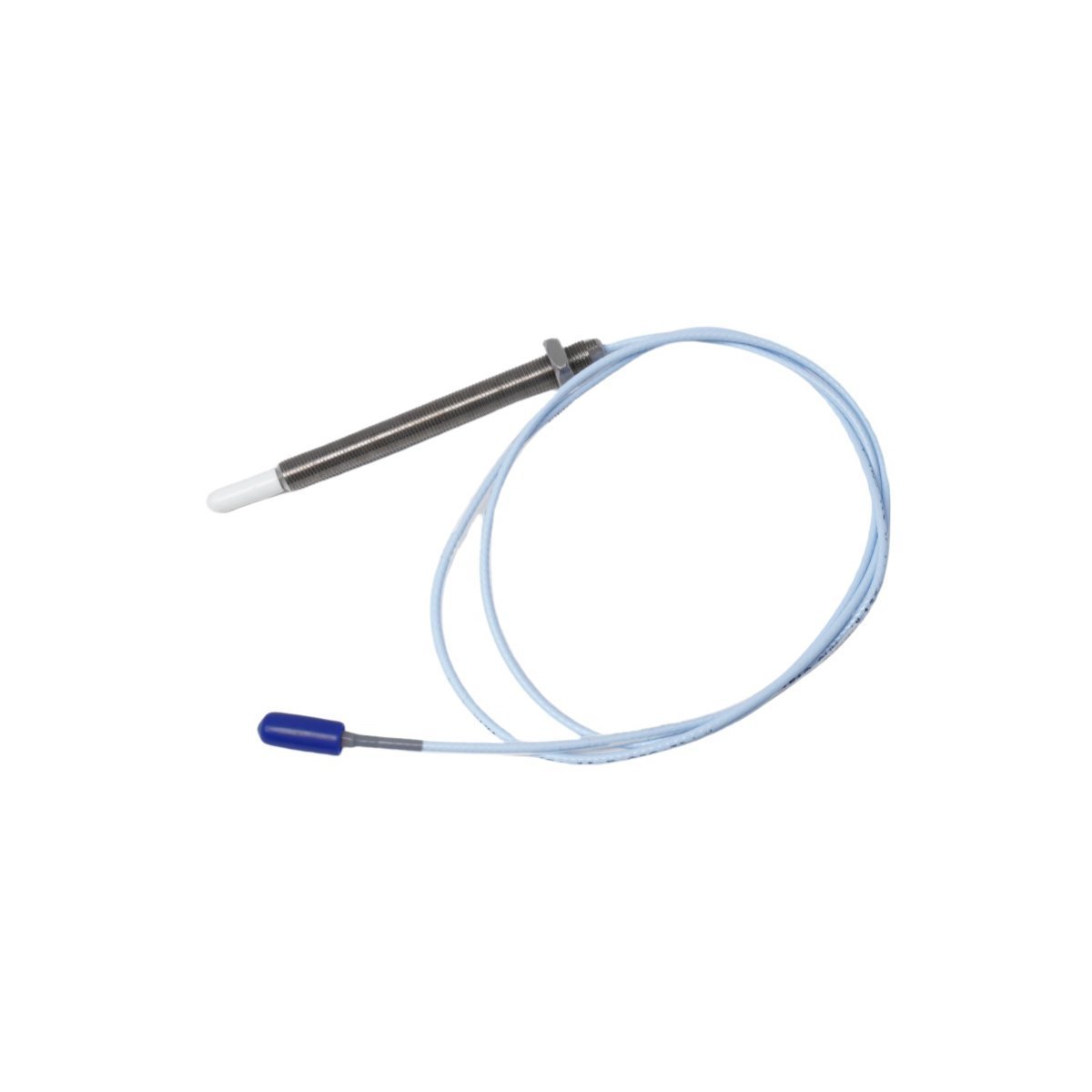

Bently Nevada 330905-00-10-05-02-05 3300 NSv Probe

The Bently Nevada 330905-00-10-05-02-05 belongs to the 3300 NSv proximity transducer line. This specialized system addresses monitoring challenges in confined machinery spaces. Standard probes often fail when metal objects reside too close to the probe tip. However, the NSv series uses a tighter magnetic field pattern. This design prevents side-view interference during vibration measurements. Consequently, engineers prefer this model for centrifugal compressors with very small shaft diameters. It also excels in applications involving restricted mounting clearances.

High-Performance Signal Integrity

Reliability remains a core feature of the 330905-00-10-05-02-05 proximity sensor. This probe delivers an output signal of 7.87 V/mm (200 mV/mil). This sensitivity matches the standard 3300 XL 8mm system. Furthermore, the internal electronics provide exceptional resistance against radio frequency interference. This shielding ensures accurate data even in electrically noisy plant environments. The system also features SpringLoc terminal strips. These connectors allow for secure wiring without using specialized tools.

Technical Parameters and Ordering Options

• Model Code: 330905-00-10-05-02-05
• Thread Type: 1/4-28 UNF English threads
• Unthreaded Length: 0.0 inches
• Overall Case Length: 1.0 inch
• Total Cable Length: 0.5 meter (1.6 feet)
• Connector Type: Miniature coaxial ClickLoc with connector protector
• Certification: Multiple hazardous area approvals included (Option 05)

Robust Construction for Industrial Use

Extreme temperatures and corrosive fluids often damage inferior sensors. Bently Nevada builds this probe using high-strength polyphenylene sulfide (PPS). This material withstands harsh chemicals and thermal cycling. The probe operates effectively between -34°C and +177°C. Additionally, the IP67 rating protects the unit from dust and liquid immersion. These safeguards prevent sensor drift and maintain long-term calibration. Such durability reduces the frequency of maintenance cycles for rotating assets.

System Integration and Applications

This probe serves as a vital component in modern condition monitoring strategies. It provides essential data for radial vibration and axial thrust position tracking. Additionally, it functions as a Keyphasor reference for phase measurements. Users can easily mount the associated Proximitor on DIN rails or panels. The system remains fully compatible with Bently Nevada 3500 and 2300 monitoring racks. This makes it a standard choice for power generation and oil refineries.
