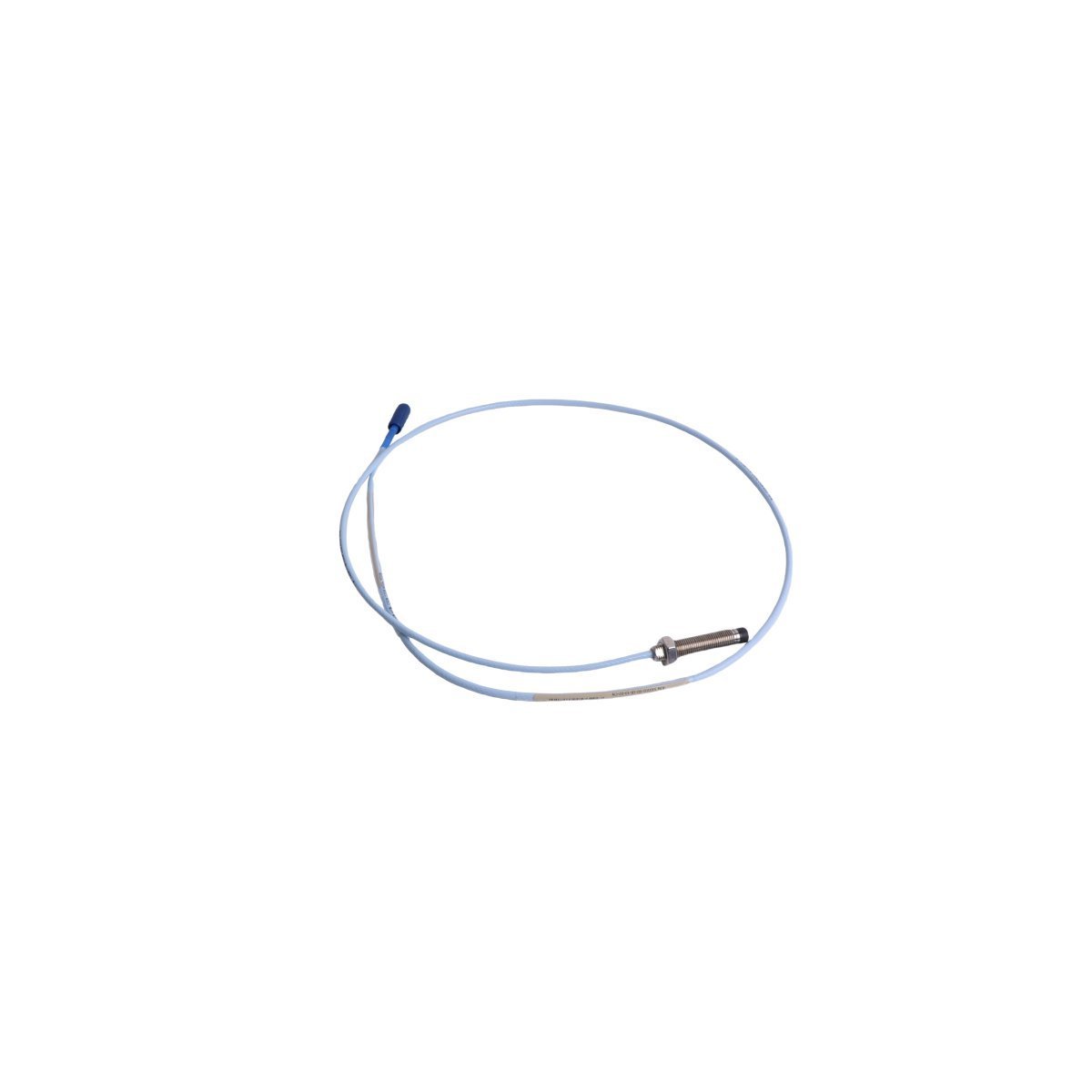

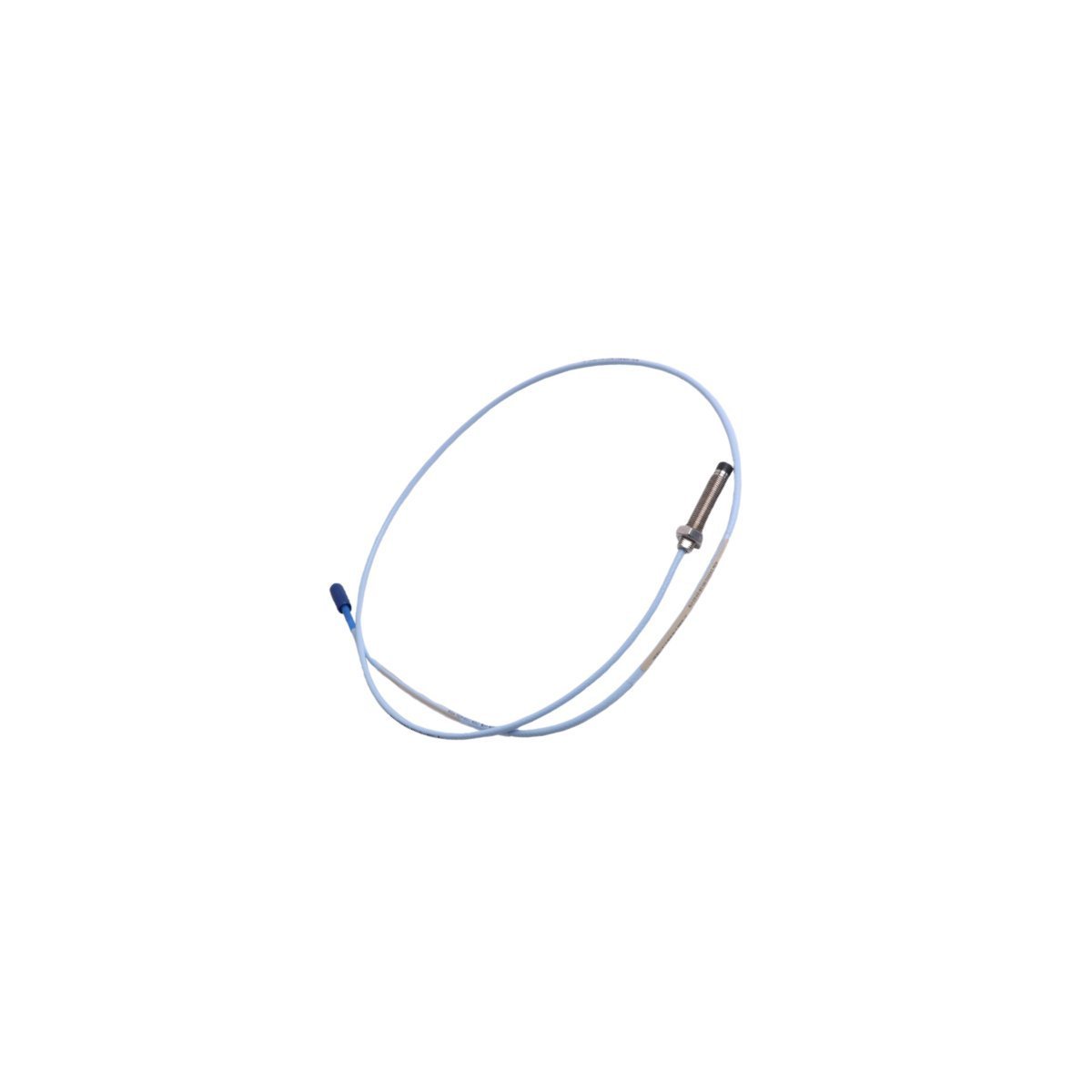

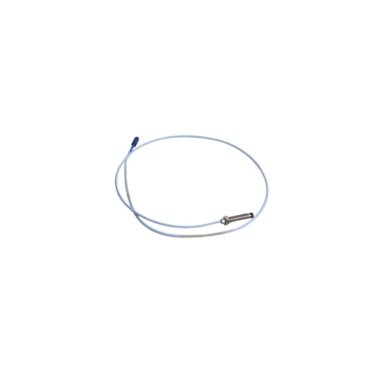

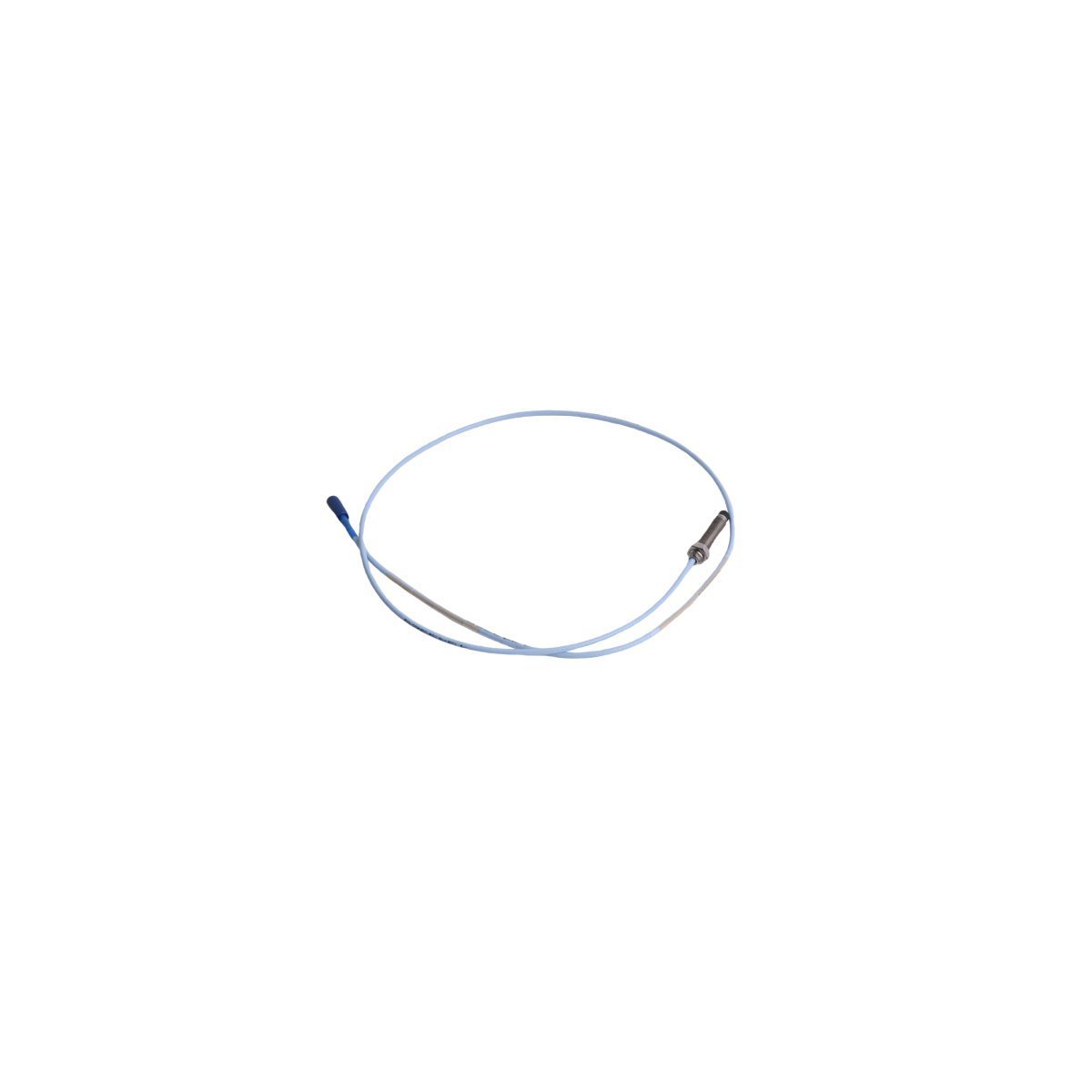

Bently Nevada 330905-00-05-05-02-CN NSv Probe

The Bently Nevada 330905-00-05-05-02-CN is a high-precision NSv (Narrow Side View) proximity probe designed specifically for applications where mechanical constraints prevent the use of standard 8mm sensors. This transducer thrives in environments with small shaft diameters or limited radial clearance, such as centrifugal pumps, small steam turbines, and specialized gearboxes. By utilizing a narrower magnetic field, the NSv probe minimizes “side-view” interference from surrounding metal surfaces. Consequently, maintenance engineers achieve accurate vibration and position readings even in the most cramped internal machine housings.

Detailed Model Configuration and Specifications

This specific 330905 model variant features a metric thread design and a customized length profile to suit precise installation requirements. The table below outlines the specific technical parameters for this hardware:

Optimized Performance in Confined Spaces

While standard probes require significant clearance to avoid signal distortion, the 330905 NSv series maintains a tightly focused sensing area. This characteristic proves invaluable when monitoring shafts smaller than 76 mm (3 inches) in diameter. Furthermore, the probe body consists of high-grade stainless steel, and the tip utilizes polyphenylene sulfide (PPS) for superior resistance to moisture and industrial lubricants. Because this probe maintains exceptional linearity even at close ranges, it provides a stable signal for both radial vibration and axial thrust measurements in high-speed, light-load machinery.
