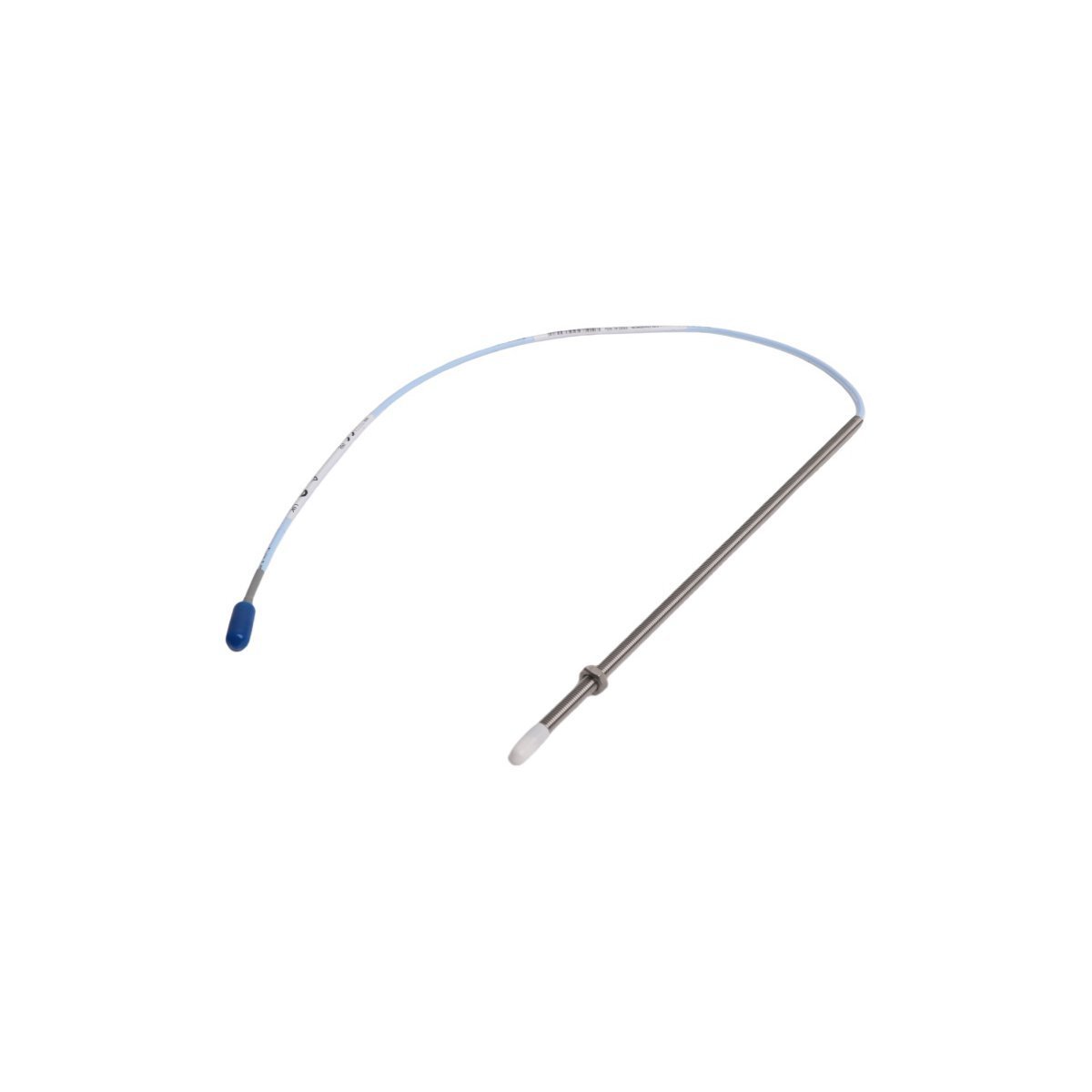

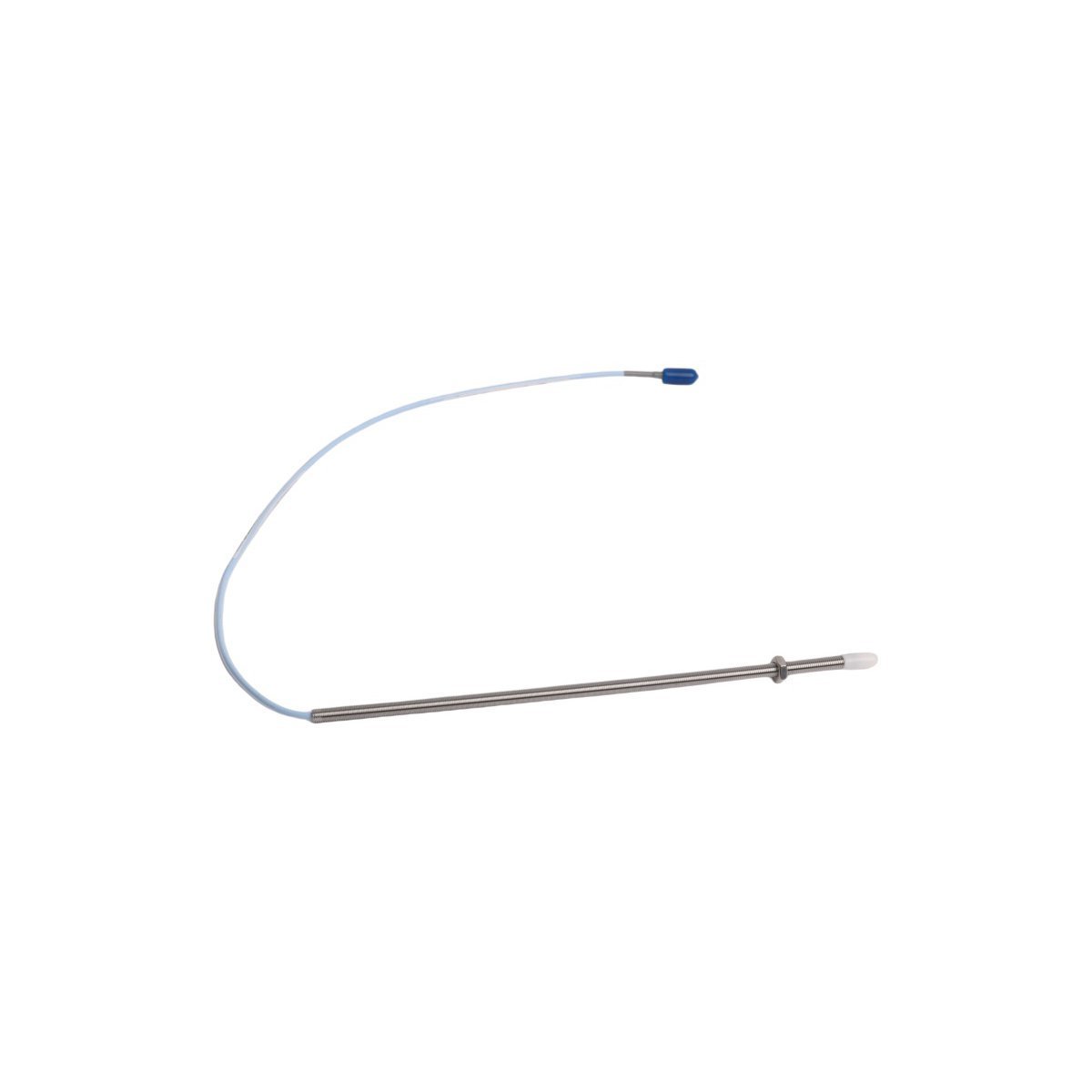

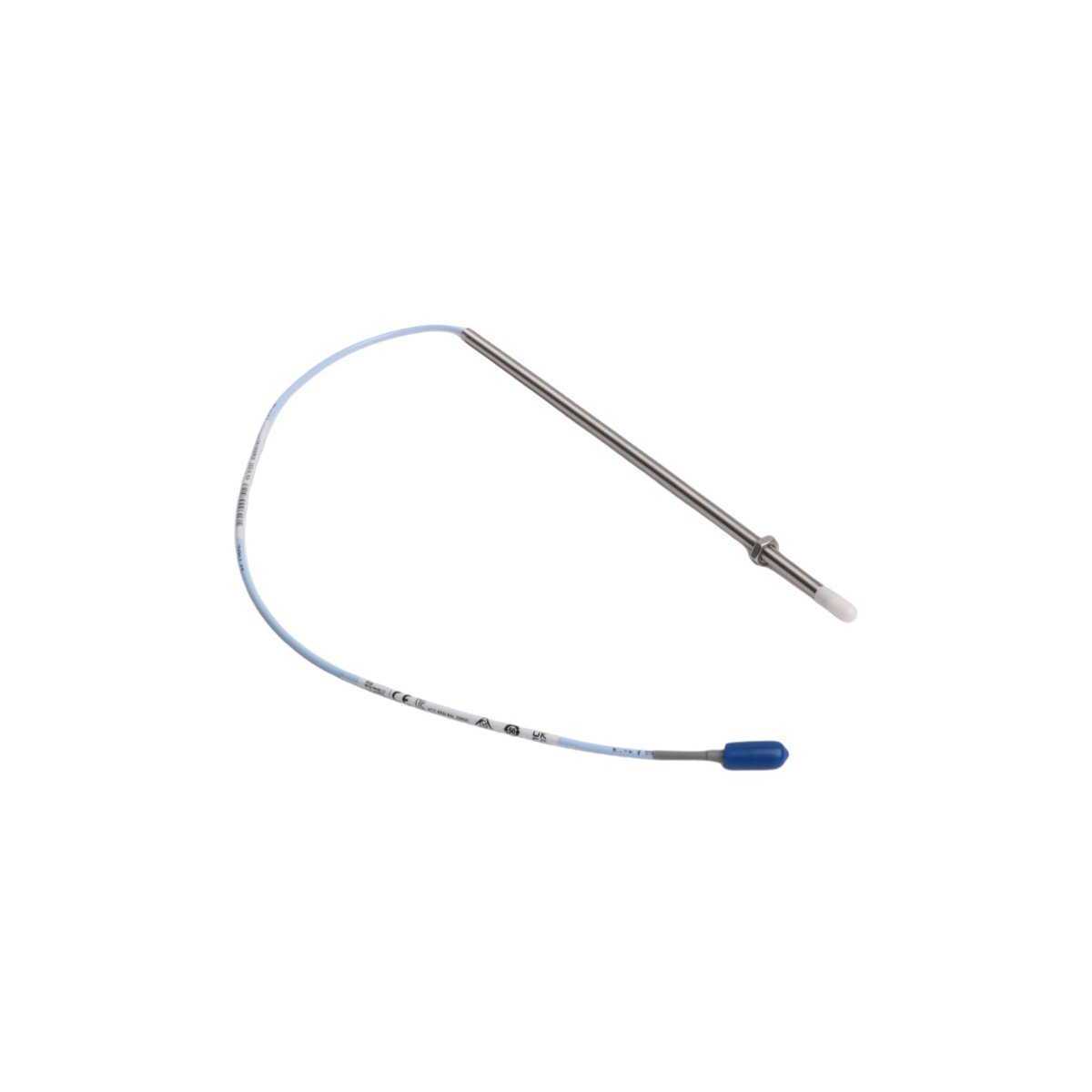

The Bently Nevada 330901-00-90-05-02-05 is a 3300 NSv series proximity probe designed for eddy current measurement in machinery installations with limited mounting space. It is a core component of the 3300 XL NSv Proximity Transducer System, used for precise non-contact displacement and vibration monitoring on rotating equipment.
Key Technical Characteristics
- Eddy current proximity probe for displacement measurement
- Optimized for compact and reduced-clearance installations
- Suitable for small-diameter shafts and flat metallic targets
- Supports radial vibration and axial thrust position monitoring
- Compatible with 3300 XL NSv Proximitor sensors
- Designed for continuous-duty industrial environments
Technical Specifications
| Parameter | Specification |
|---|
| Brand | Bently Nevada |
| Model Number | 330901-00-90-05-02-05 |
| Product Type | Proximity Probe |
| Series | 3300 NSv |
| Measurement Principle | Eddy Current |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | Approximately 1.5 mm |
| Application | Vibration, position, phase reference |
| System Compatibility | 3300 XL NSv Proximity System |
| Condition | New |
| Country of Origin | USA |
