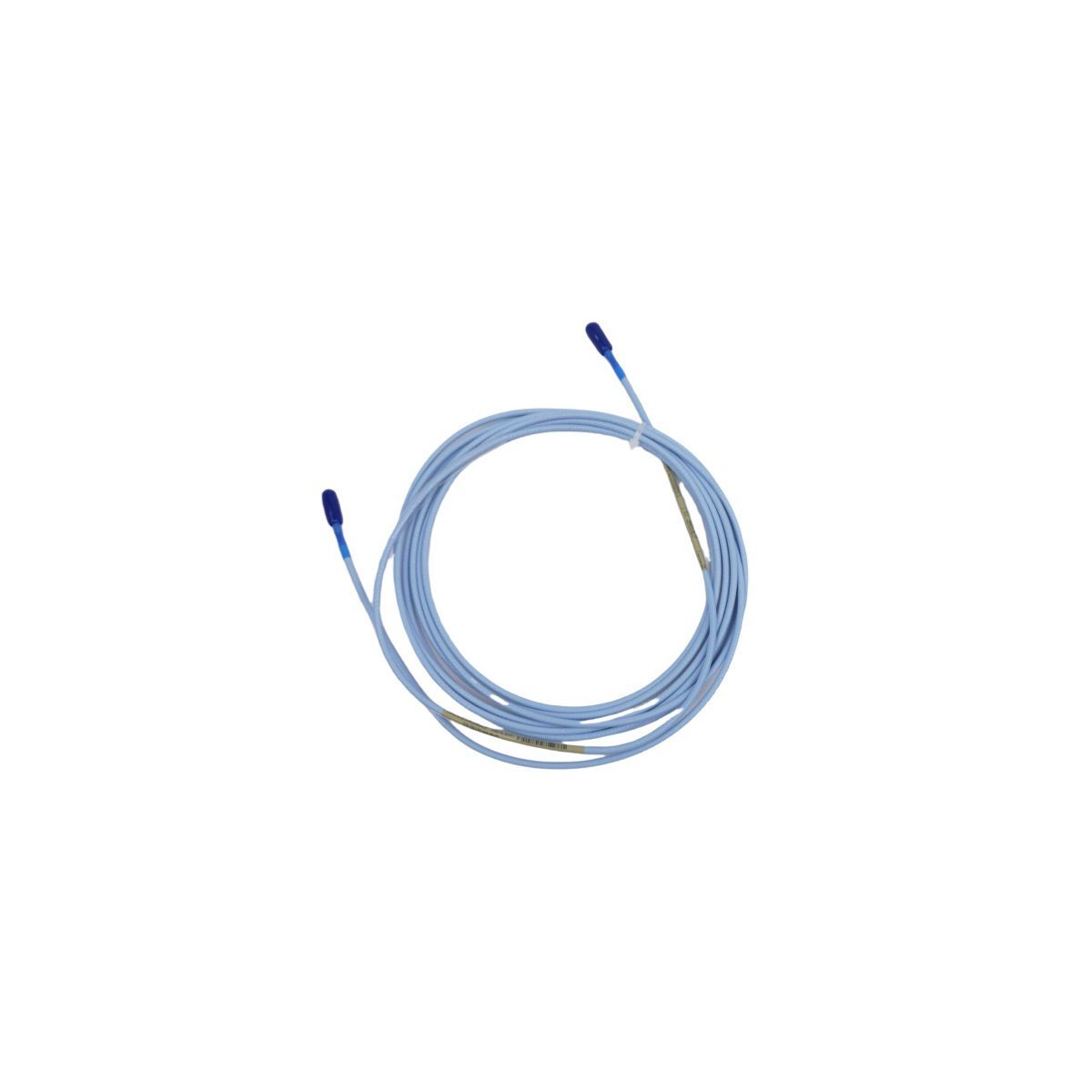

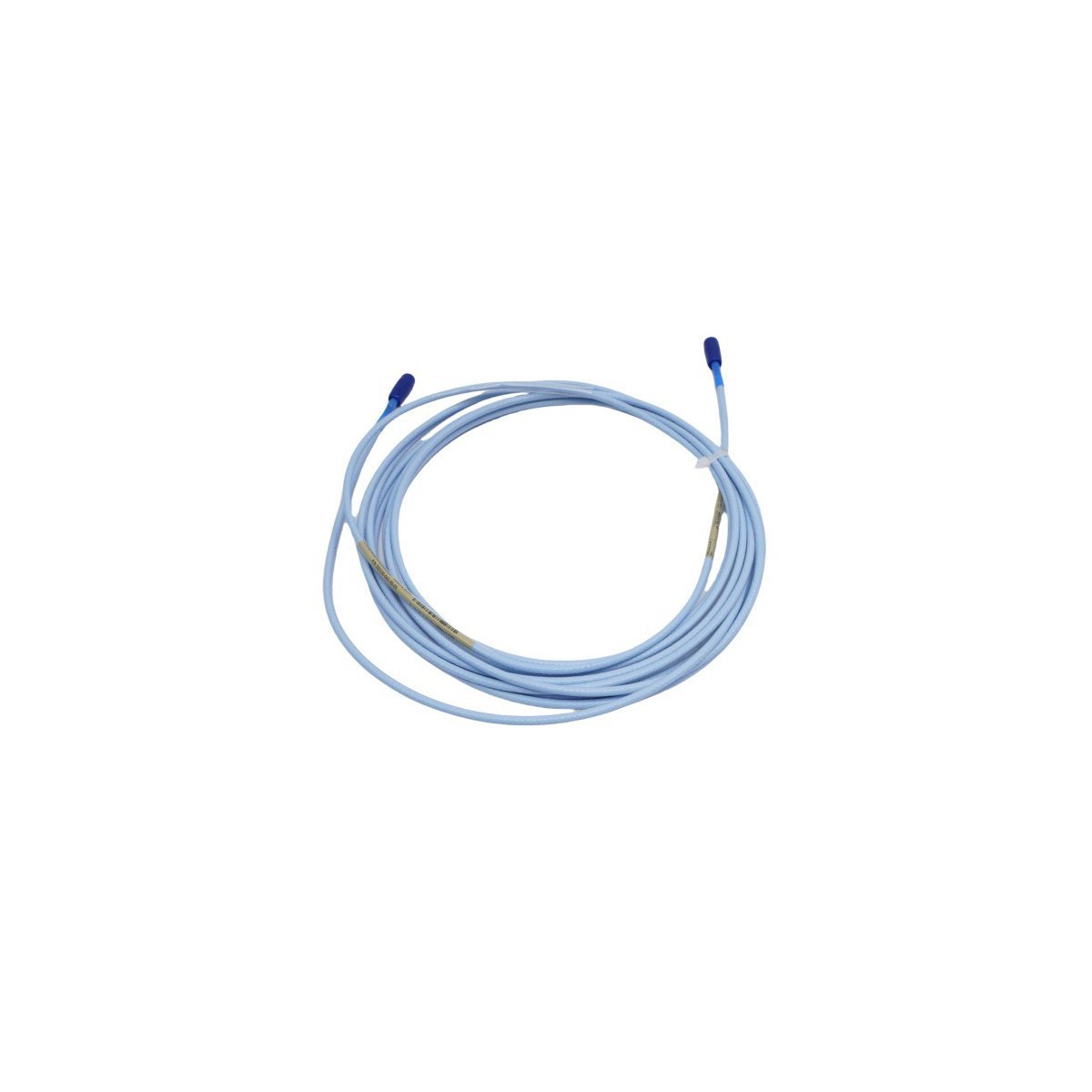

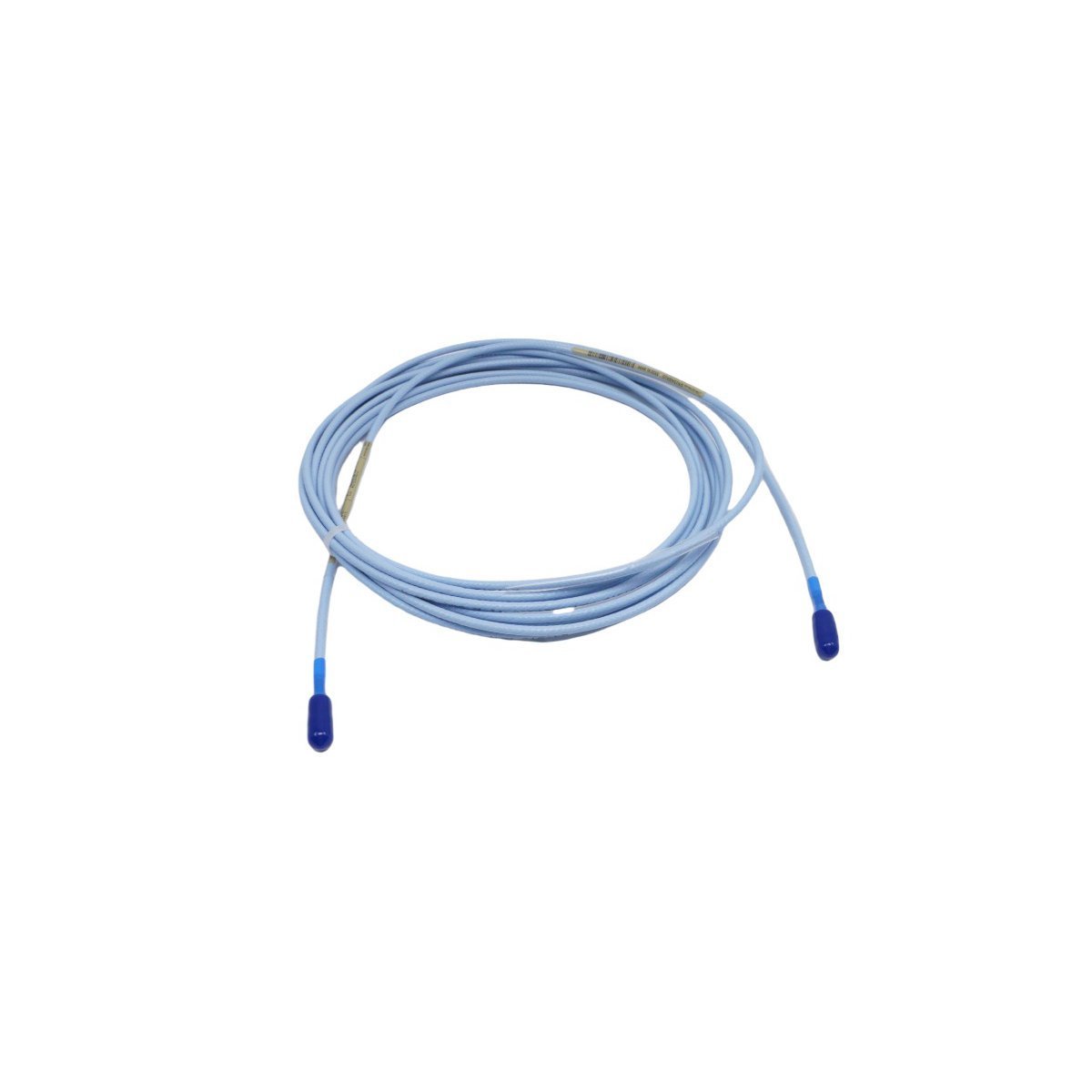

The Bently Nevada 330130-045-00-05 serves as a high-precision link within the 3300 XL 8mm Proximity Transducer System. This extension cable connects the proximity probe to the Proximitor sensor, ensuring the transmission of critical displacement data. It maintains electrical continuity and signal purity for monitoring rotating machinery. Plant operators rely on this cable to track shaft vibration and axial position in real time. The 330130-045-00-05 specifically supports Turbo Machinery Instrumentation (TSI) applications where accuracy is paramount. This cable ensures that the monitoring system receives a clear signal for reliable machinery protection.
Technical Construction and Durability
Advanced materials protect the 330130-045-00-05 against the rigors of heavy industrial environments. The cable features a coaxial design that minimizes electromagnetic interference (EMI) and signal noise. Furthermore, the FEP (Fluorinated Ethylene Propylene) insulation provides excellent resistance to corrosive chemicals and lubrication oils. This model utilizes gold-plated ClickLoc connectors to ensure a secure and vibration-resistant physical connection. These specialized connectors prevent accidental decoupling during intense machine operation. The robust outer jacket withstands extreme temperatures, making it suitable for gas turbines and steam compressors.
Technical Specifications
- Brand: Bently Nevada
- Model Number: 330130-045-00-05
- Cable Type: Standard Extension Cable
- System Compatibility: 3300 XL 8mm Proximity Transducer
- Total Length: 4.5 Meters (approx. 14.8 feet)
- Armor Option: No Armor (Standard Jacket)
- Connector Type: Miniature coaxial ClickLoc connectors
- Operating Temperature: -51°C to +177°C (-60°F to +351°F)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Weight: 0.2 kg
Asset Health and Performance Benefits
Predictive maintenance programs utilize the 330130-045-00-05 to help extend the lifespan of critical equipment. The stable signal transmission allows monitoring racks to identify misalignment or bearing degradation early. This early detection helps facilities avoid catastrophic failures and expensive repair costs. Additionally, the cable’s design simplifies the installation process in tight instrument panels and conduit runs. Its full compatibility with General Electric and Bently Nevada 3500 systems ensures a cohesive monitoring architecture. This reliability translates directly into higher plant productivity and reduced unplanned downtime for continuous process industries.
