Product Overview

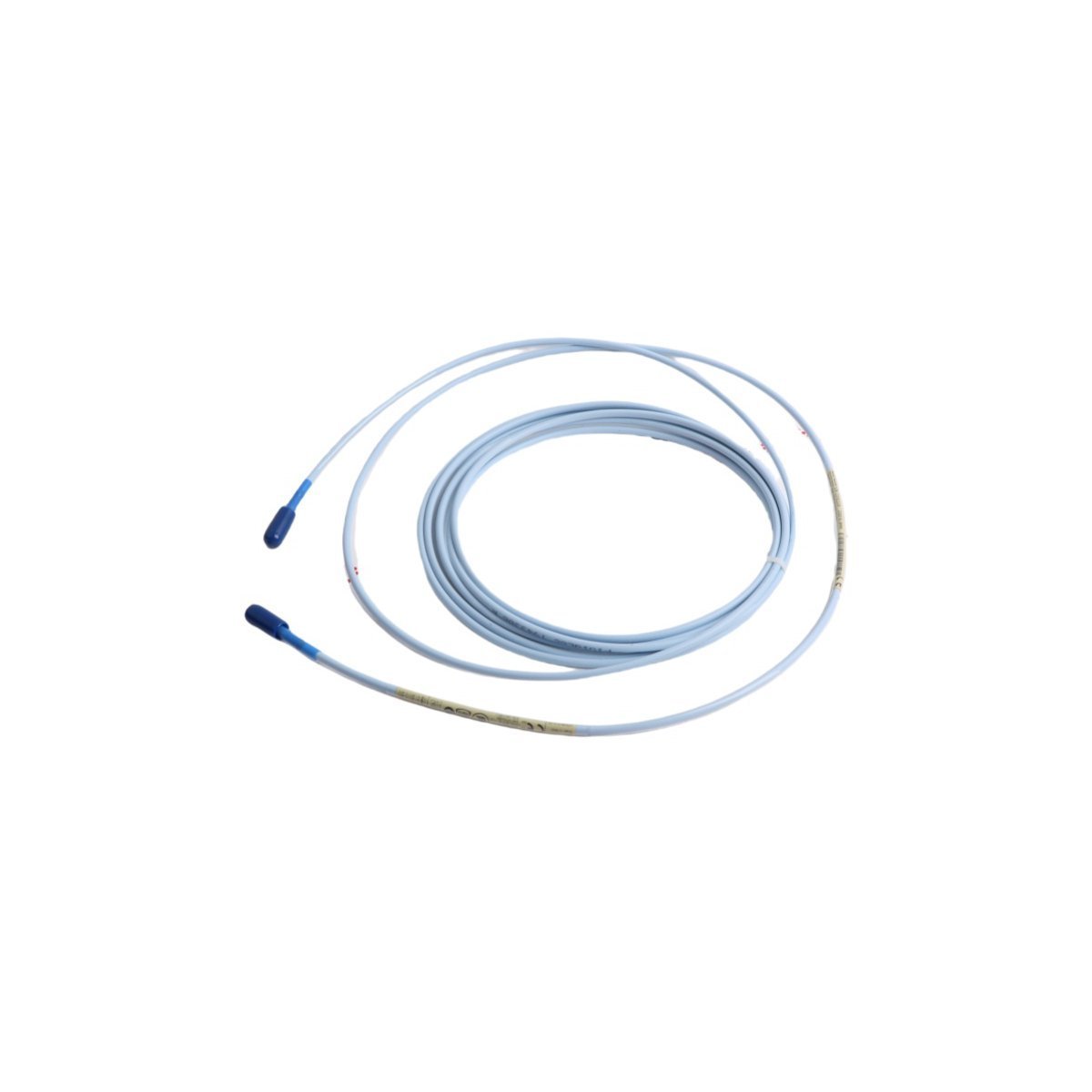

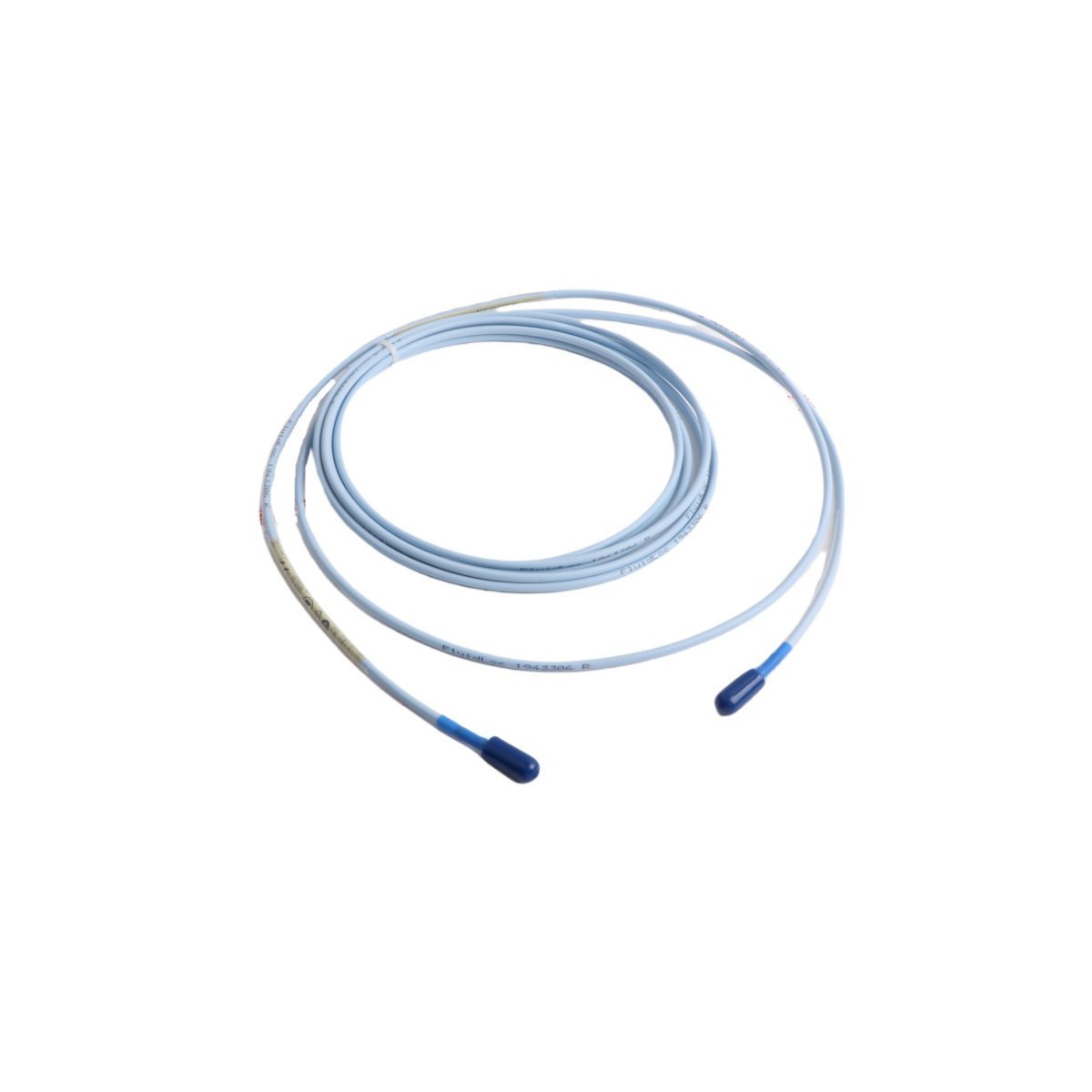

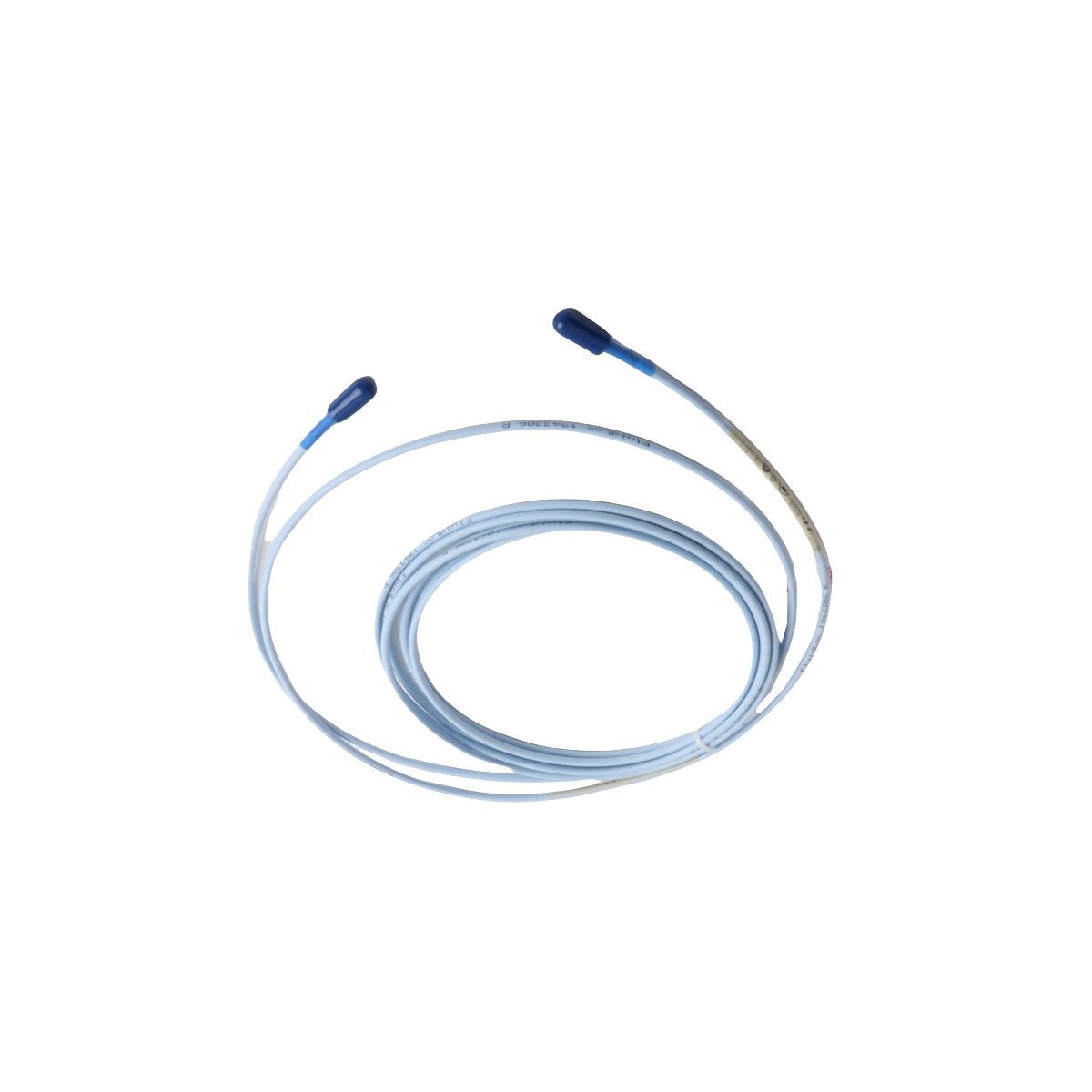

The Bently Nevada 330130-040-12-05 is an industrial-grade, 4-meter standard extension cable. This component is specifically designed to integrate seamlessly with the 3300 XL 8mm proximity transducer system. Consequently, the cable facilitates precise data transmission between the proximity probe and the Proximitor sensor. Ultimately, reliable vibration monitoring is successfully maintained across critical rotating machinery.
Key Technical Characteristics
Mechanical Integrity and Design
High physical durability is achieved through advanced engineering methods. In particular, the cable design incorporates a proprietary CableLoc mechanism. Therefore, a secure connection is maintained by providing 330N (75 lbf) of pull strength. In addition to this, the integrated probe tip-to-body bonding is reinforced via the patented TipLoc molding method.
Environmental Protection
The internal elements are shielded from harsh operating conditions. To achieve this, connector protectors are included as standard equipment on this model to prevent environmental contamination. Furthermore, liquid migration through the cable interior is restricted by the optional FluidLoc feature. Accordingly, this protection is highly recommended when the assembly is deployed in environments prone to oil or fluid ingress.
Electrical Performance
Signals are preserved over the entire 4-meter length. Specifically, excellent conductivity and corrosion resistance are delivered by the gold-plated terminal connectors. As a result, signal degradation is eliminated, and subsequently, critical diagnostic information is accurately relayed to the main monitoring rack.
- Manufacturer: Bently Nevada
- Model Number: 330130-040-12-05
- Product Series: 3300 XL Proximity Transducer System
- Cable Type: Standard Extension Cable
- Cable Length: 4.0 meters (13.1 feet)
- Total System Length Options: Configured for 5-meter or 9-meter systems
- Net Weight: 0.14 kg (0.31 lbs)
- Physical Dimensions: 18.0 x 18.0 x 1.5 cm
