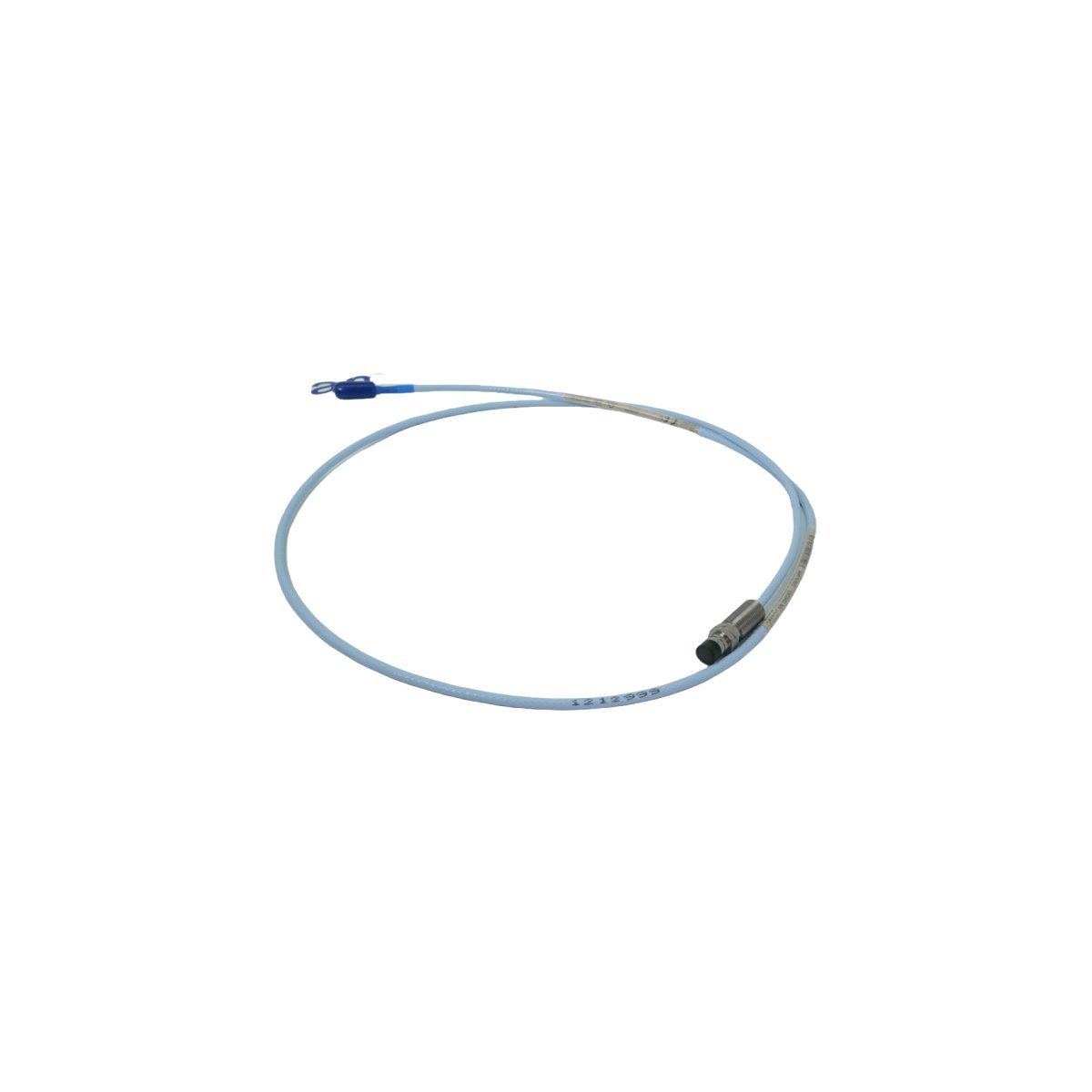

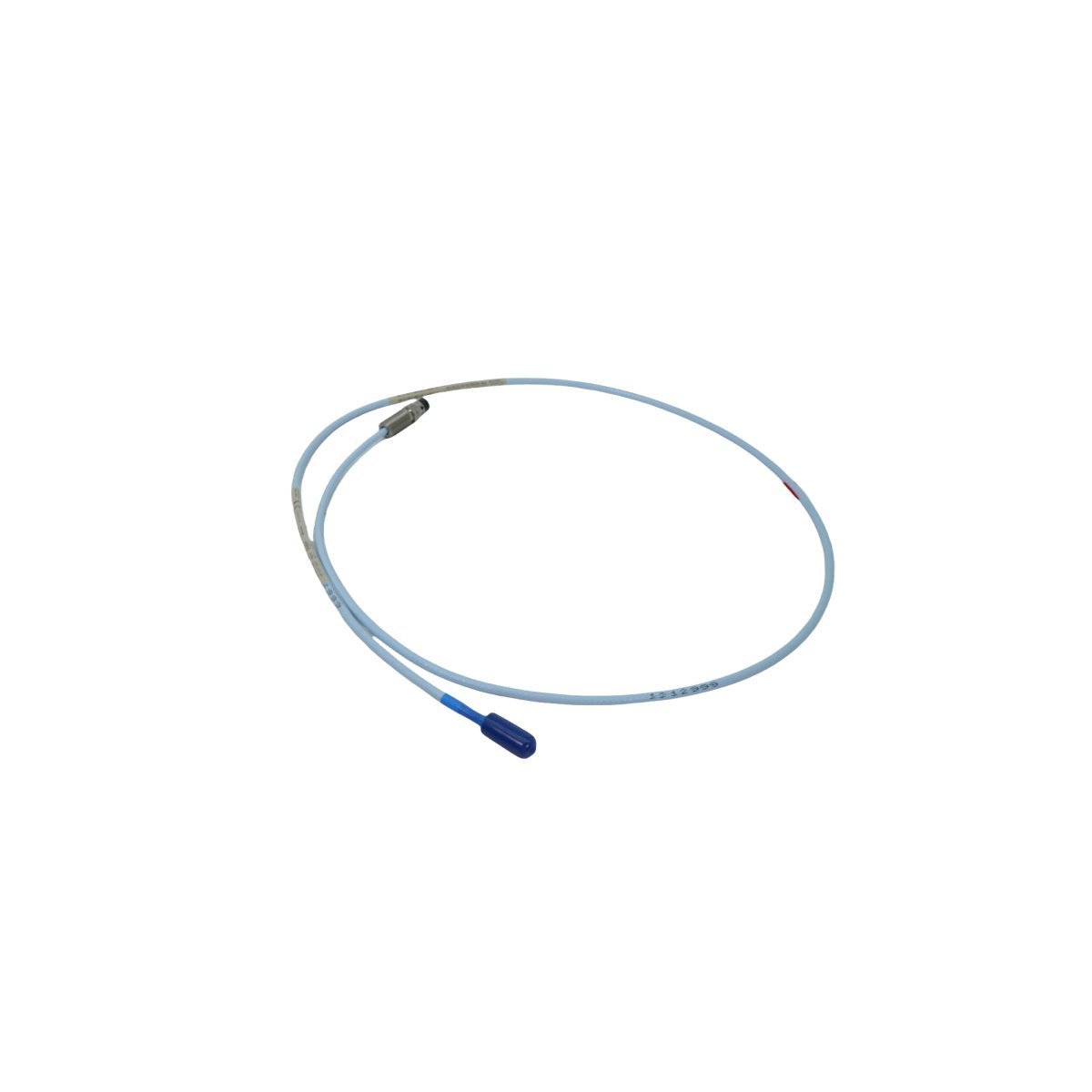

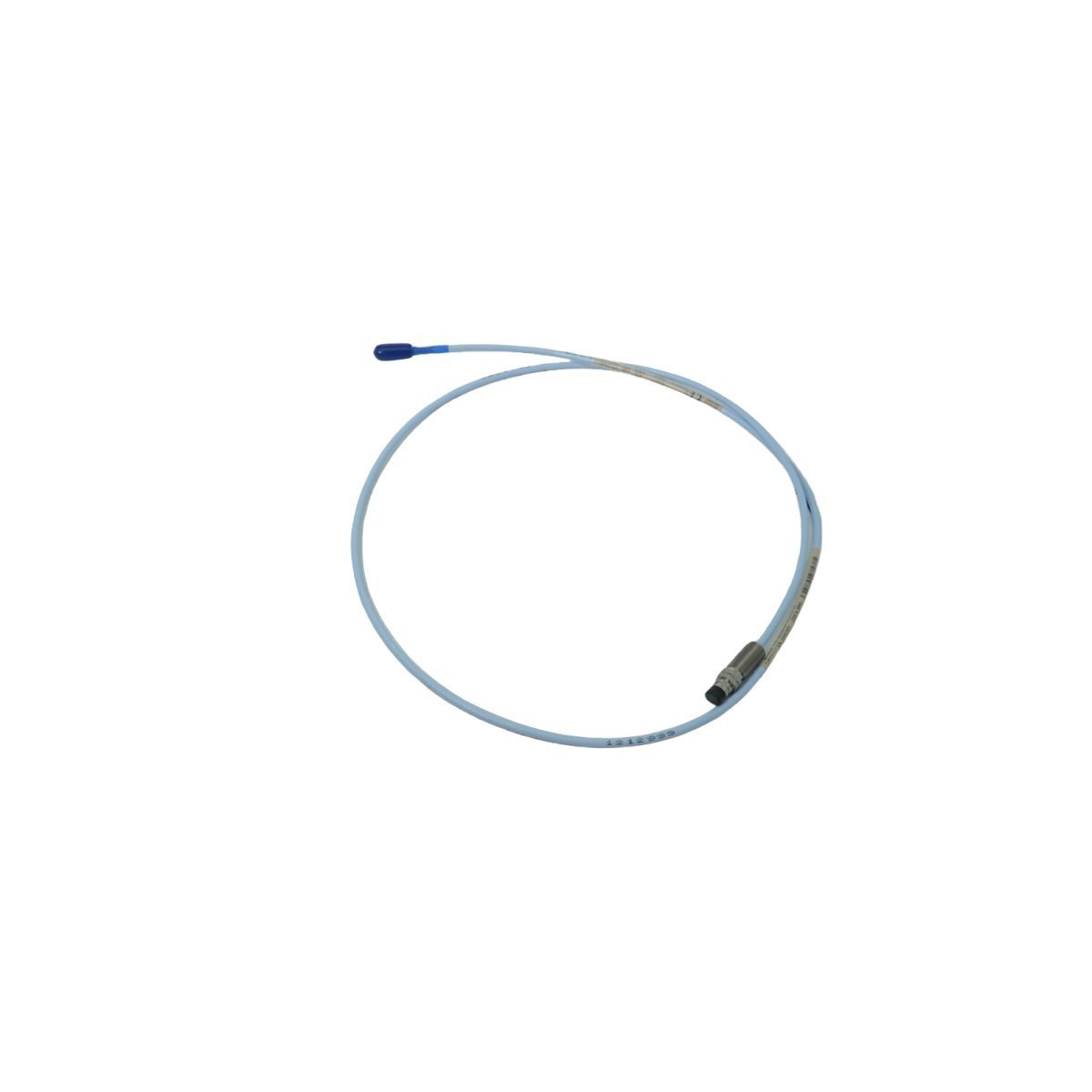

Bently Nevada 330106-05-30-10-02-CN Proximity Transducer

Technical Specifications

• Brand: Bently Nevada
• Model Number: 330106-05-30-10-02-CN
• Transducer Type: 3300 XL 8mm Proximity Probe
• Unthreaded Length: 0.5 inches
• Overall Case Length: 3.0 inches
• Total Length: 1.0 meter (3.3 feet)
• Connector: Miniature coaxial ClickLoc connector
• Agency Approval: CN (includes regional certifications)
• Scale Factor: 7.87 V/mm (200 mV/mil) when used with 3300 XL Proximitor
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)

The Bently Nevada 330106-05-30-10-02-CN serves as a foundational sensor within the 3300 XL 8mm Proximity Transducer System. This eddy current probe measures the distance between the probe tip and the target shaft with extreme precision. Consequently, it provides essential data for tracking radial vibration and axial position on high-speed rotating assets. By converting physical displacement into an electrical signal, the probe allows monitoring systems to detect early mechanical instability. This proactive sensing capability ensures that operators can identify shaft misalignment or rotor imbalance before damage occurs.

Engineering Excellence for Industrial Environments

Bently Nevada engineered the 330106 series to perform reliably in the most demanding industrial settings. The probe tip consists of high-strength Polyphenylene Sulfide (PPS), which resists chemical corrosion and moisture penetration. Furthermore, the 3300 XL design offers improved thermal stability over its predecessors, maintaining signal accuracy across wide temperature ranges. The “-CN” suffix indicates compliance with specific regional standards, often including certifications for hazardous area installations. This rugged construction allows the probe to thrive near turbines, compressors, and large-scale industrial pumps without signal degradation.
