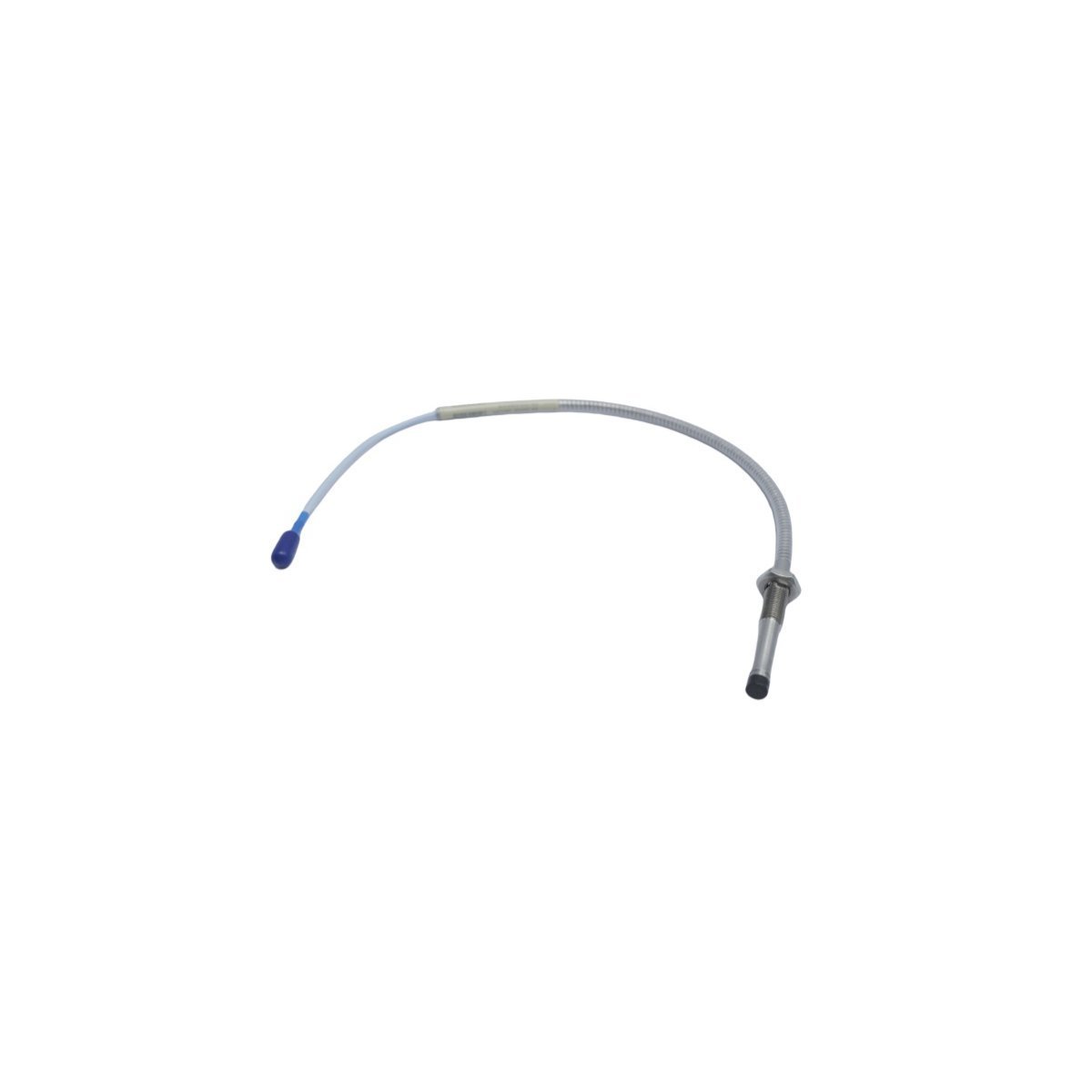

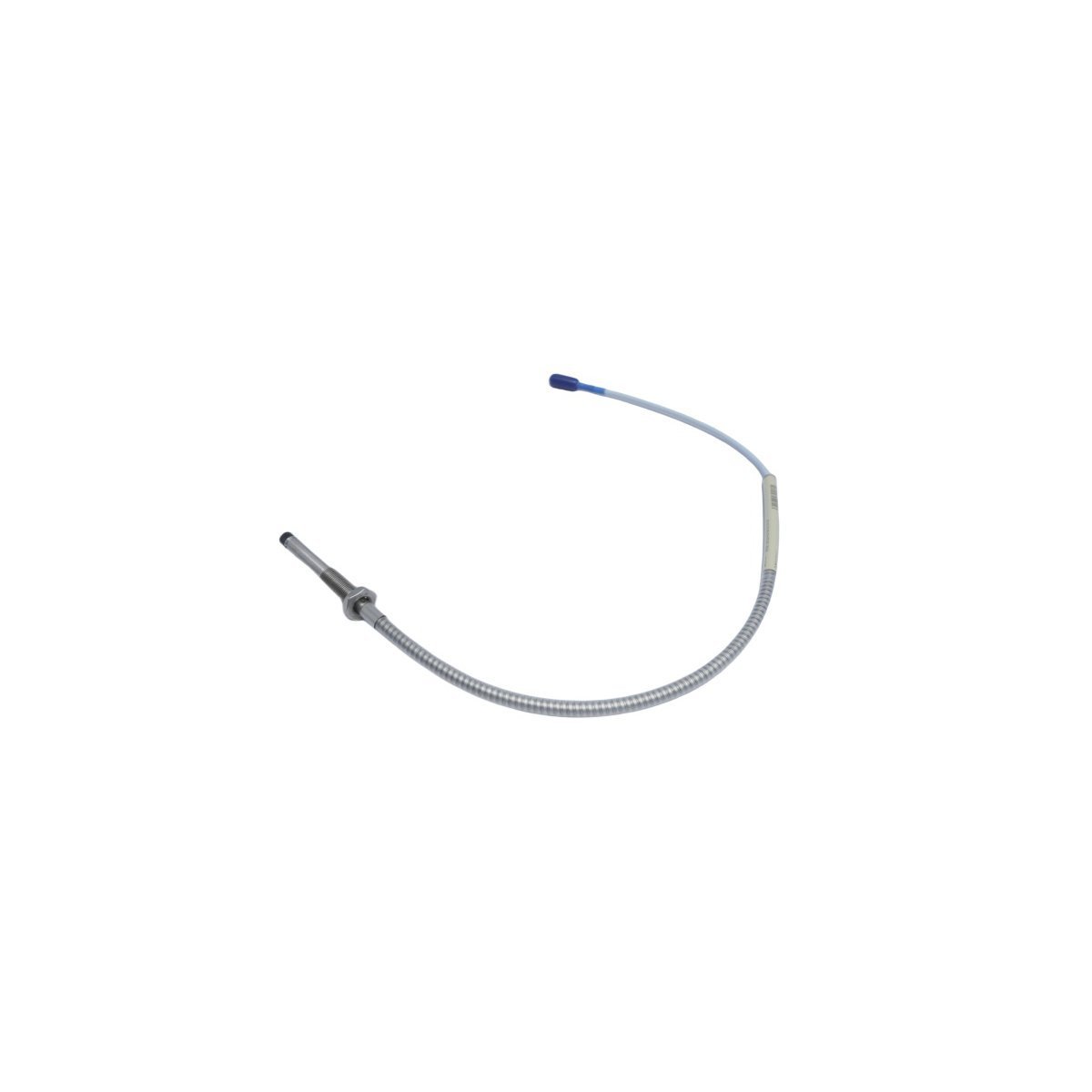

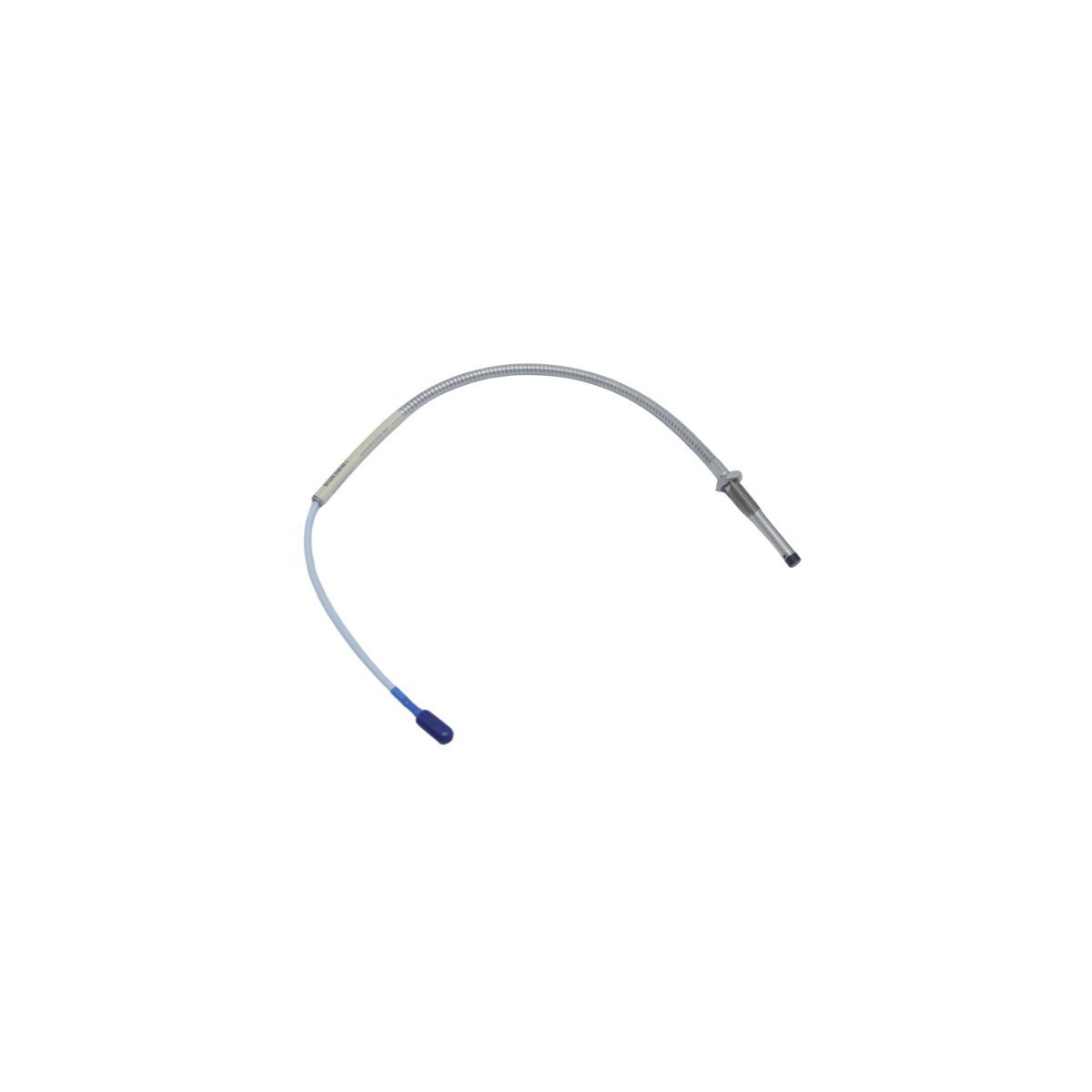

Bently Nevada 330104-03-06-05-02-00 Proximity Probe

The Bently Nevada 330104-03-06-05-02-00 belongs to the 3300 XL 8mm Proximity Transducer System. This specific model features a reverse mount design, which technicians typically use in applications where the probe must be installed from the inside of a machine housing. It operates on eddy current technology to track non-contact displacement. By measuring the gap between the probe tip and a rotating shaft, the system provides vital vibration and axial position data.

System Functionality

This transducer delivers a consistent linear output of 7.87 V/mm (200 mV/mil). This high-resolution signal allows for the early detection of mechanical imbalances, bearing wear, or shaft misalignment. Consequently, operators can implement proactive maintenance schedules. This approach significantly lowers the risk of catastrophic machinery failure and optimizes the Overall Equipment Effectiveness (OEE).

Hardware Configuration

The 330104-03-06-05-02-00 part number corresponds to a specific physical architecture. These parameters ensure the sensor fits specialized industrial housings:

• Thread Type: 3/8-24 UNF threads.
• Case Length: 0.6 inches.
• Total Length: 0.5 meters (1.6 feet).
• Connector Type: Miniature coaxial ClickLoc connector.
• Agency Approvals: Multiple approvals (Standard) for hazardous area use.

Design and Durability

The probe utilizes a polyphenylene sulfide (PPS) tip. This material remains stable even when exposed to high-pressure environments and reactive industrial lubricants. Furthermore, the stainless steel case resists corrosion, making it suitable for chemical plants and offshore platforms. The ClickLoc connector system provides a secure, vibration-resistant electrical path. This design choice prevents signal loss in high-vibration zones and simplifies the replacement of individual components.

WordPress Product Short Description

The Bently Nevada 330104-03-06-05-02-00 is a 3300 XL 8mm reverse mount proximity probe with a 0.6-inch case and 0.5-meter cable. This specialized non-contact sensor provides laboratory-grade precision for monitoring shaft vibration and position in high-speed turbines and industrial compressors.
