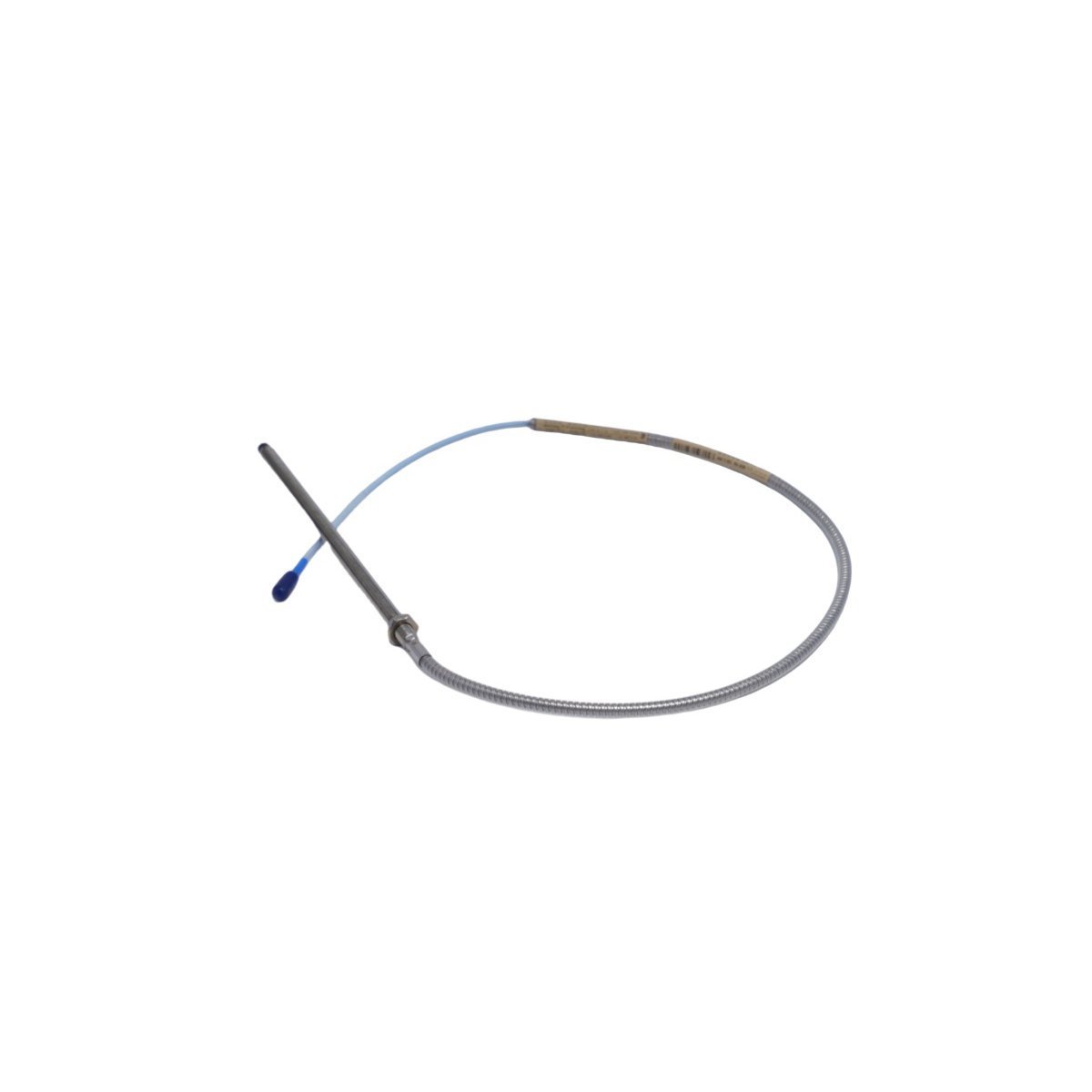

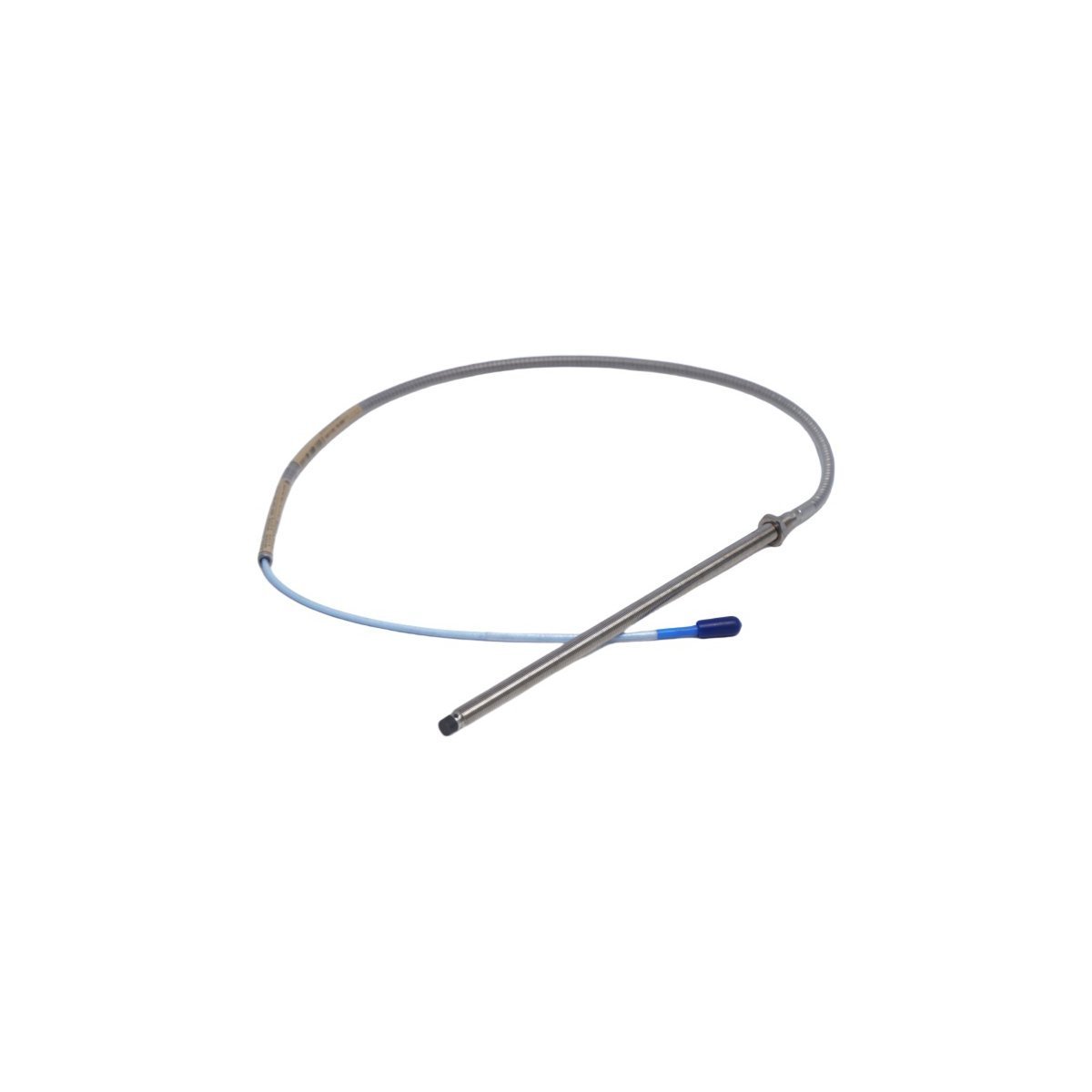

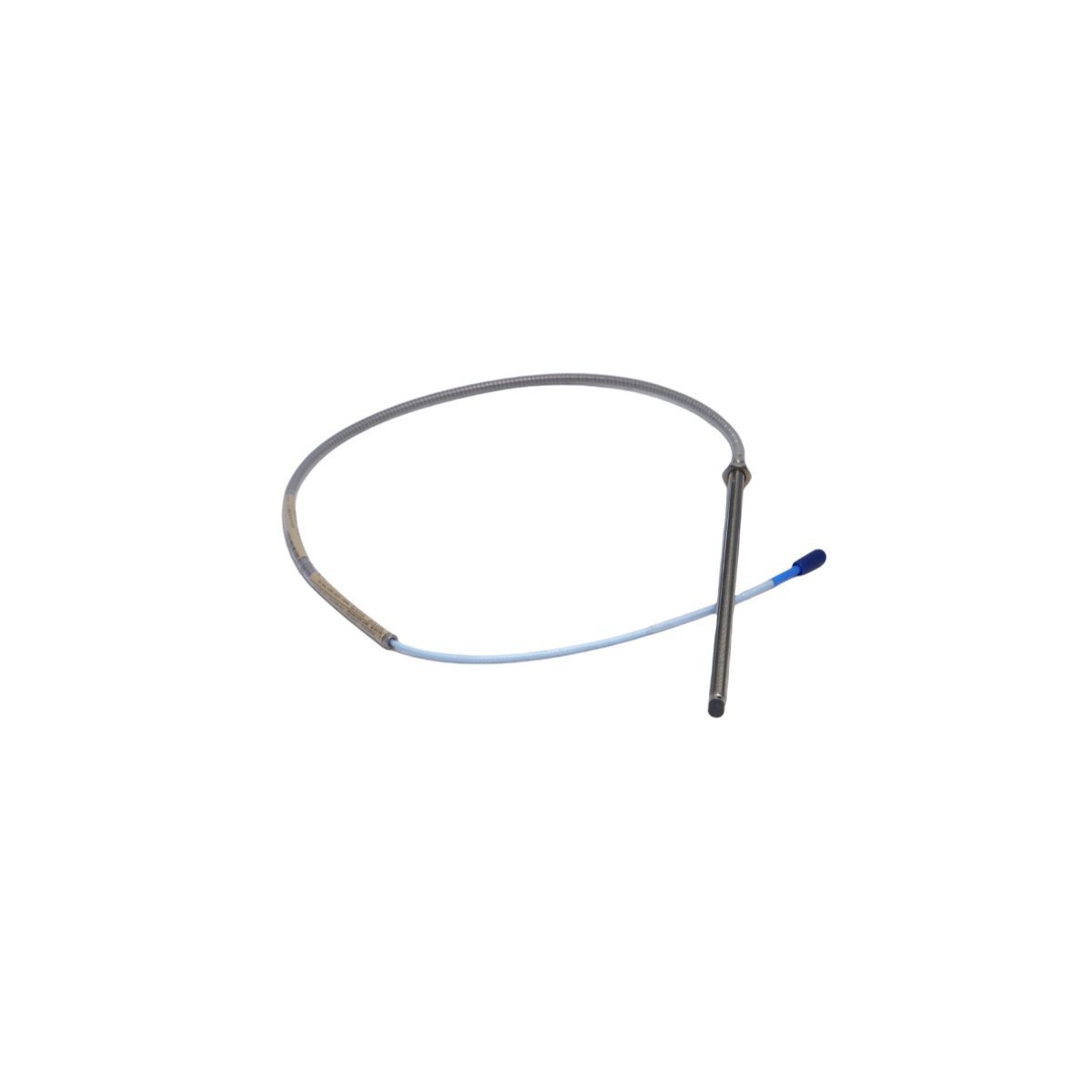

Bently Nevada 330104-00-25-10-02-05 Proximity Probe

Technical Specifications Summary

The Bently Nevada 330104-00-25-10-02-05 is a specialized non-contact displacement sensor within the 3300 XL 8mm Proximity Transducer System. This eddy current probe tracks shaft vibration and axial position in critical rotating machinery. Because it utilizes non-contact technology, the sensor eliminates physical wear while providing high-resolution data. It delivers a standard scale factor of 7.87 V/mm (200 mV/mil) when paired with a compatible 3300 XL Proximitor.

Functional Performance

This probe excels in detecting mechanical imbalances, bearing wear, and shaft misalignment before they cause equipment failure. The 330104-00-25-10-02-05 maintains exceptional signal stability across a wide frequency range. Furthermore, the probe tip features a high-performance polyphenylene sulfide (PPS) material. This allows the sensor to operate reliably in environments containing reactive lubricants, high pressure, and extreme moisture.

Hardware Configuration

The specific part number 330104-00-25-10-02-05 indicates a unique physical build designed for specific industrial mounting requirements:

• Unthreaded Length: 0.0 inches (fully threaded).
• Overall Case Length: 2.5 inches.
• Total Length: 1.0 meter (3.3 feet).
• Connector Type: Miniature coaxial ClickLoc connector.
• Agency Approval: Multiple Approvals (Standard).

Core Technical Characteristics

Engineers designed the 3300 XL series for maximum durability in heavy industry. The probe includes built-in temperature compensation, ensuring accuracy from -51°C to +177°C. Additionally, the gold-plated ClickLoc connectors provide a secure, vibration-proof connection. These features minimize signal drift and reduce the need for frequent recalibration. The rugged stainless steel case further protects the internal electronics from mechanical stress and corrosion.
