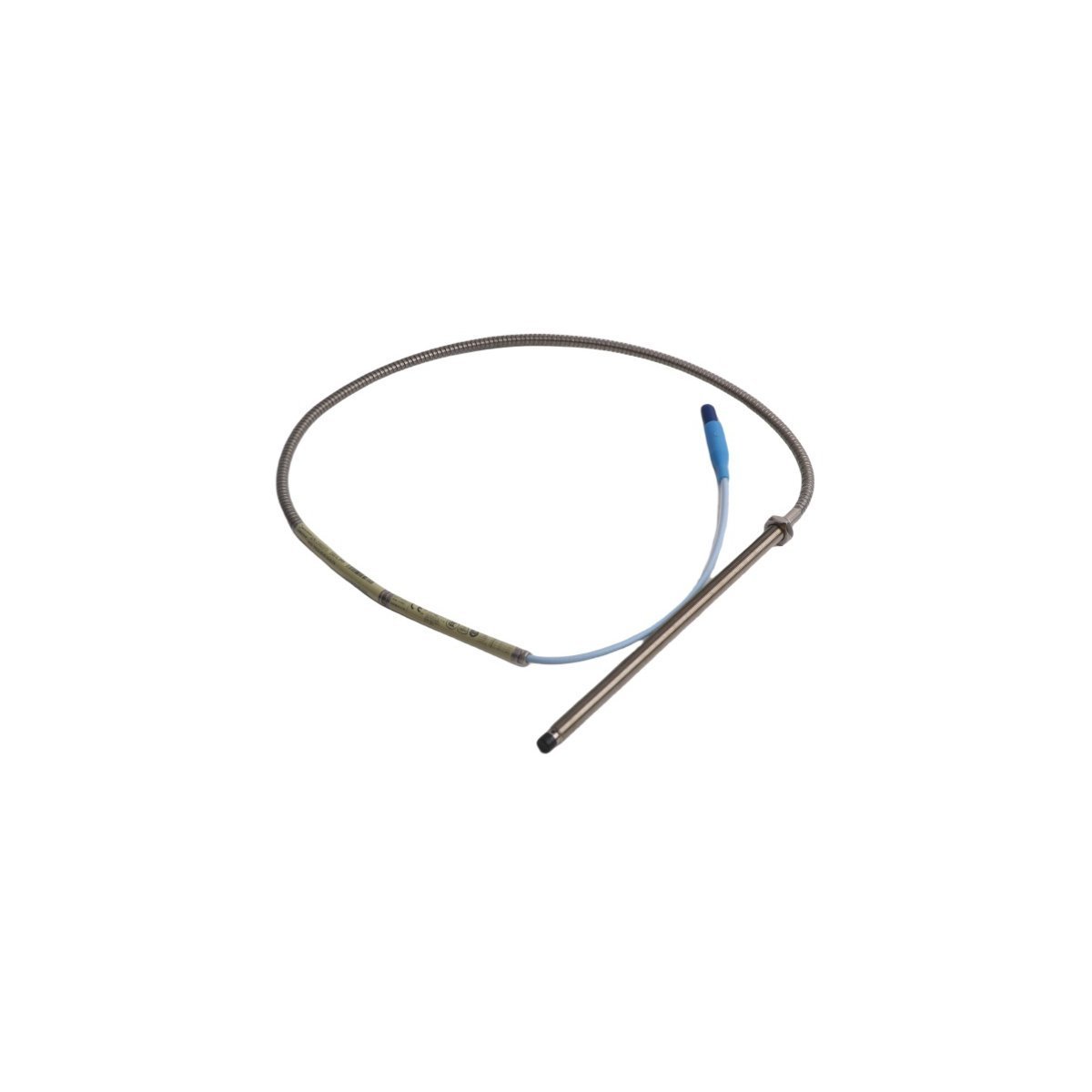

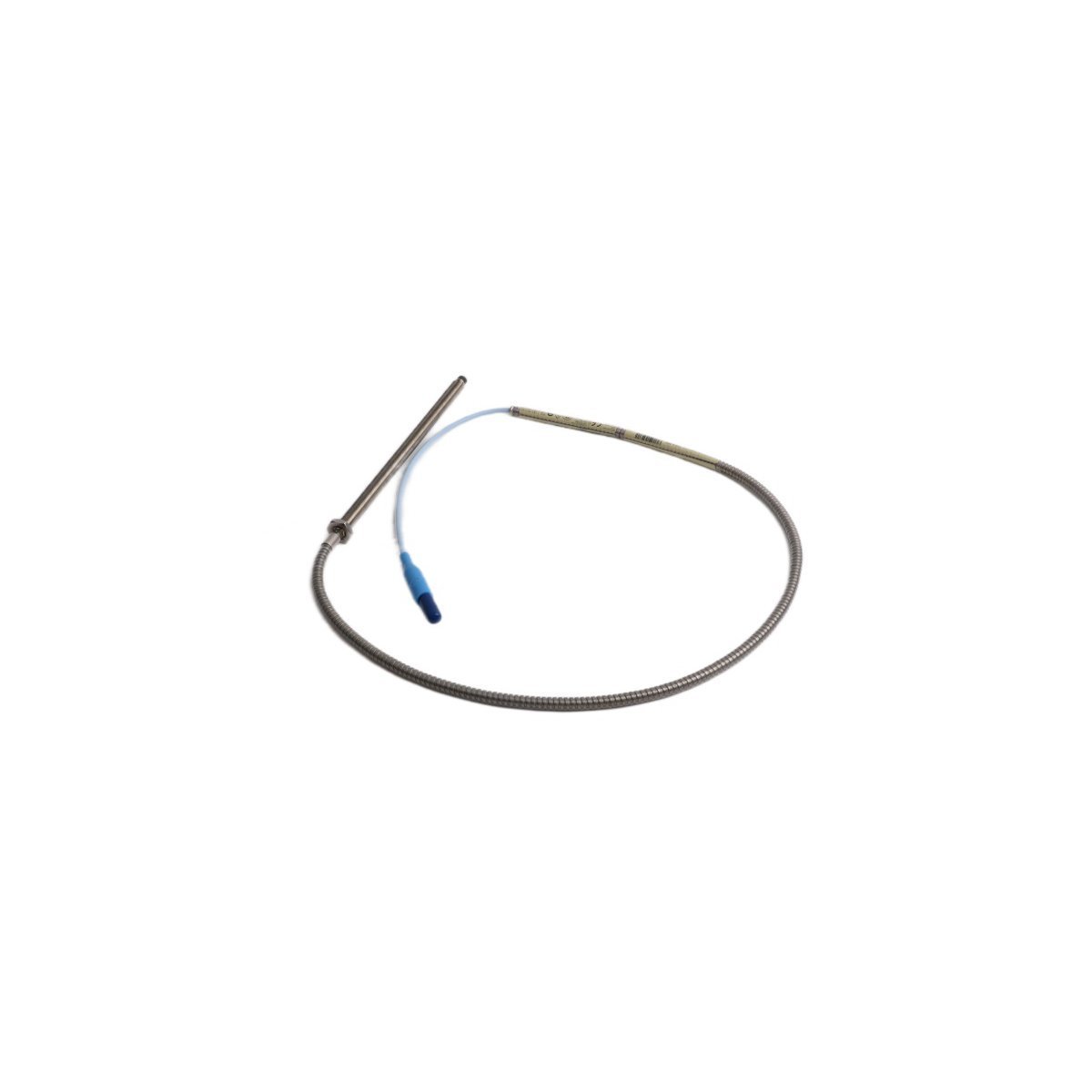

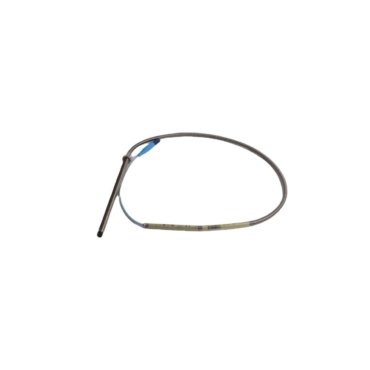

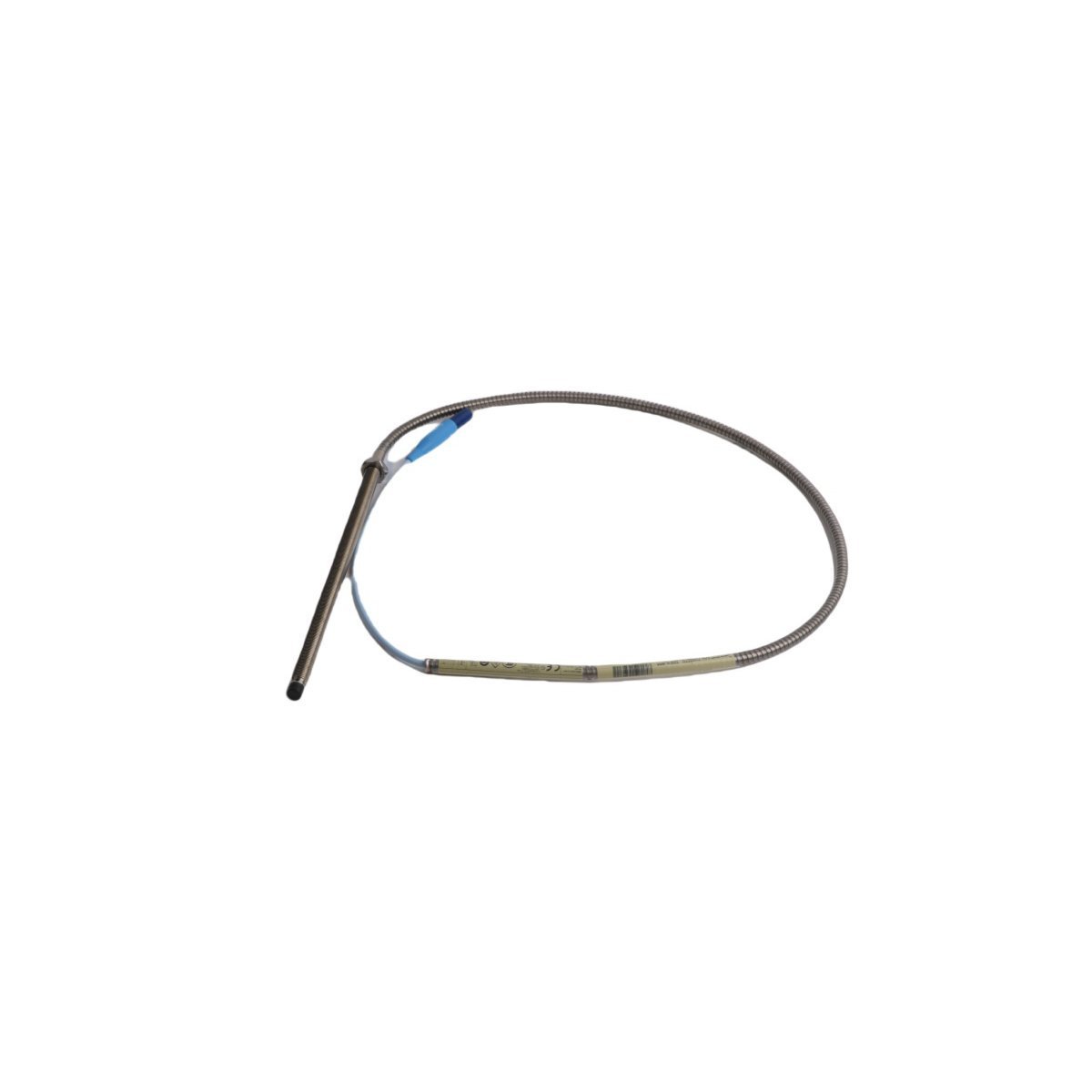

The Bently Nevada 330104-00-20-10-01-CN is a precision-engineered eddy current sensor designed for non-contact displacement monitoring. As a core component of the 3300 XL series, this probe detects shaft vibration, axial position, and speed in critical rotating machinery. It transforms physical distance changes between the probe tip and the target material into a proportional electrical signal. This data allows for the early detection of mechanical wear, preventing costly equipment failure in high-speed industrial environments.
Advanced Construction and Material Resilience
Engineers developed the 3300 XL 8mm probe to withstand the most aggressive industrial climates. The probe tip features high-performance polyphenylene sulfide (PPS), which provides excellent resistance to moisture and chemical corrosion. Furthermore, the stainless steel casing ensures structural integrity in high-vibration zones. This model includes specialized Teflon insulation on the lead-in cable, maintaining high dielectric strength and protecting signal quality from electromagnetic interference.
Technical Performance and Specifications
The 330104-00-20-10-01-CN follows a specific configuration for thread type, case length, and total length to meet diverse mounting requirements.
- Model Number: 330104-00-20-10-01-CN
- Thread Type: M10 x 1 metric thread
- Unthreaded Length: 0.0 mm
- Overall Case Length: 20 mm
- Total Length: 1.0 meter (3.3 feet)
- Connector Option: Miniature coaxial ClickLoc connector
- Agency Approval: CN (includes specific regional certifications for hazardous areas)
- Operating Temperature: -51°C to +177°C (-60°F to +350°F)
Reliability and Safety Compliance
The 330104-00-20-10-01-CN delivers superior signal stability across a wide temperature range. It minimizes thermal drift, ensuring that axial thrust measurements remain accurate during machine startup and shutdown cycles. This model complies with stringent international standards including CE and RoHS. The gold-plated ClickLoc connectors provide a secure, vibration-proof link to extension cables. These features collectively ensure that your machinery protection system receives clean, uninterrupted data for 24/7 asset monitoring.
