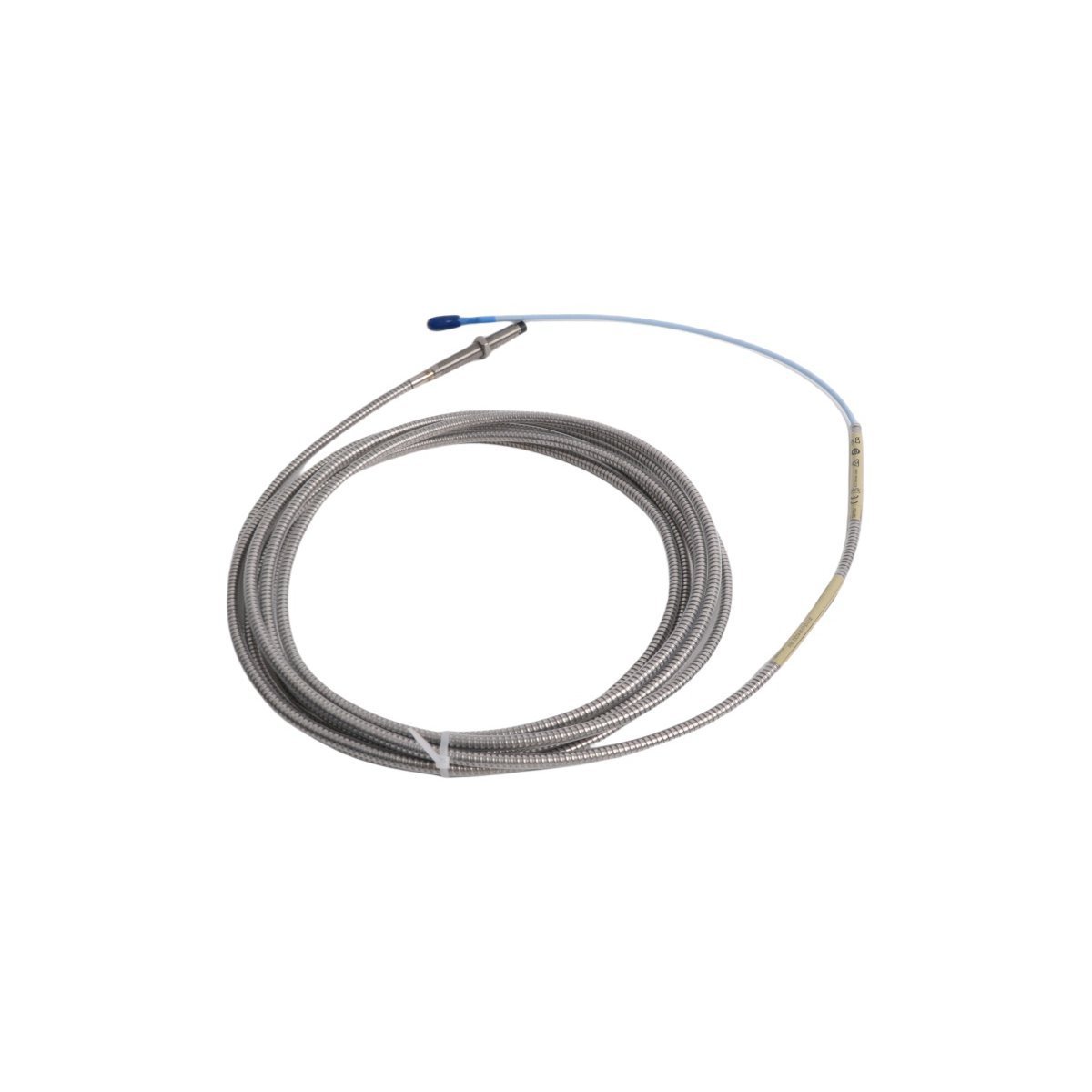

The Bently Nevada 330104-00-07-50-02-00 is a high-precision eddy current sensor designed for non-contacting displacement and vibration monitoring. As a core component of the 3300 XL 8 mm Transducer System, this probe detects the physical distance between its tip and a conductive target surface. It converts this gap into a proportional voltage signal, allowing for the precise measurement of both static position and dynamic rotor vibration in critical industrial machinery.
Technical Specifications
| Feature | Specification |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 0.7 inches |
| Total Cable Length | 5.0 meters (16.4 feet) |
| Connector Type | Miniature coaxial ClickLoc (Gold-plated) |
| Material | Polyphenylene sulfide (PPS) tip and FEP cable jacket |
| Linear Range | 2.0 mm (80 mils) |
| Pressure Rating | 50 psi (3.5 bar) maximum |
Mechanical Durability
To withstand the rigors of heavy industry, the probe employs a TipLoc molding process that bonds the tip to the probe body securely. Additionally, the FluidLoc cable prevents lubricating oil and other process fluids from leaking out of the machine through the cable’s interior. This ensures the 330104 model remains reliable in the presence of chemicals and high-pressure environments common in oil and gas or power plant operations.
