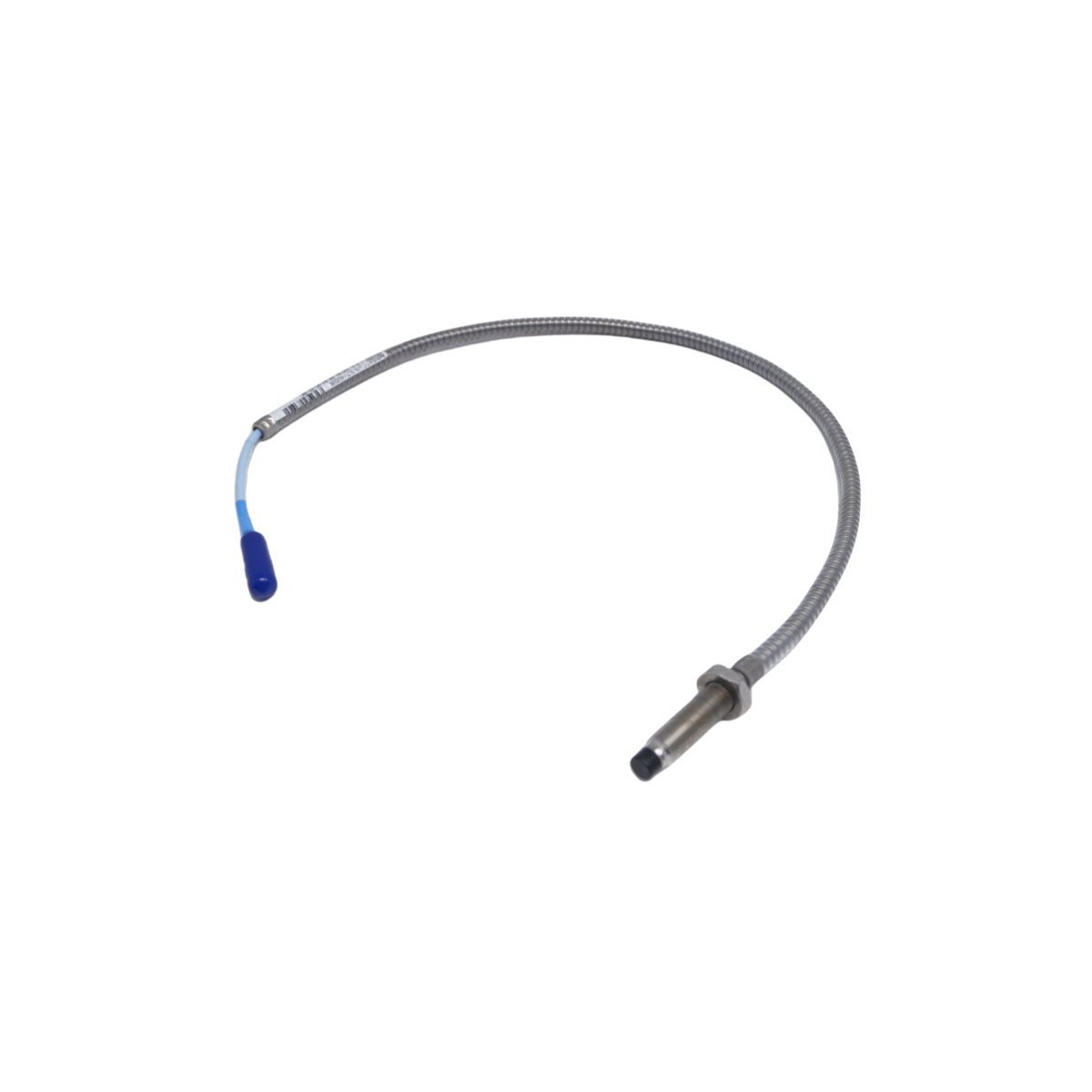

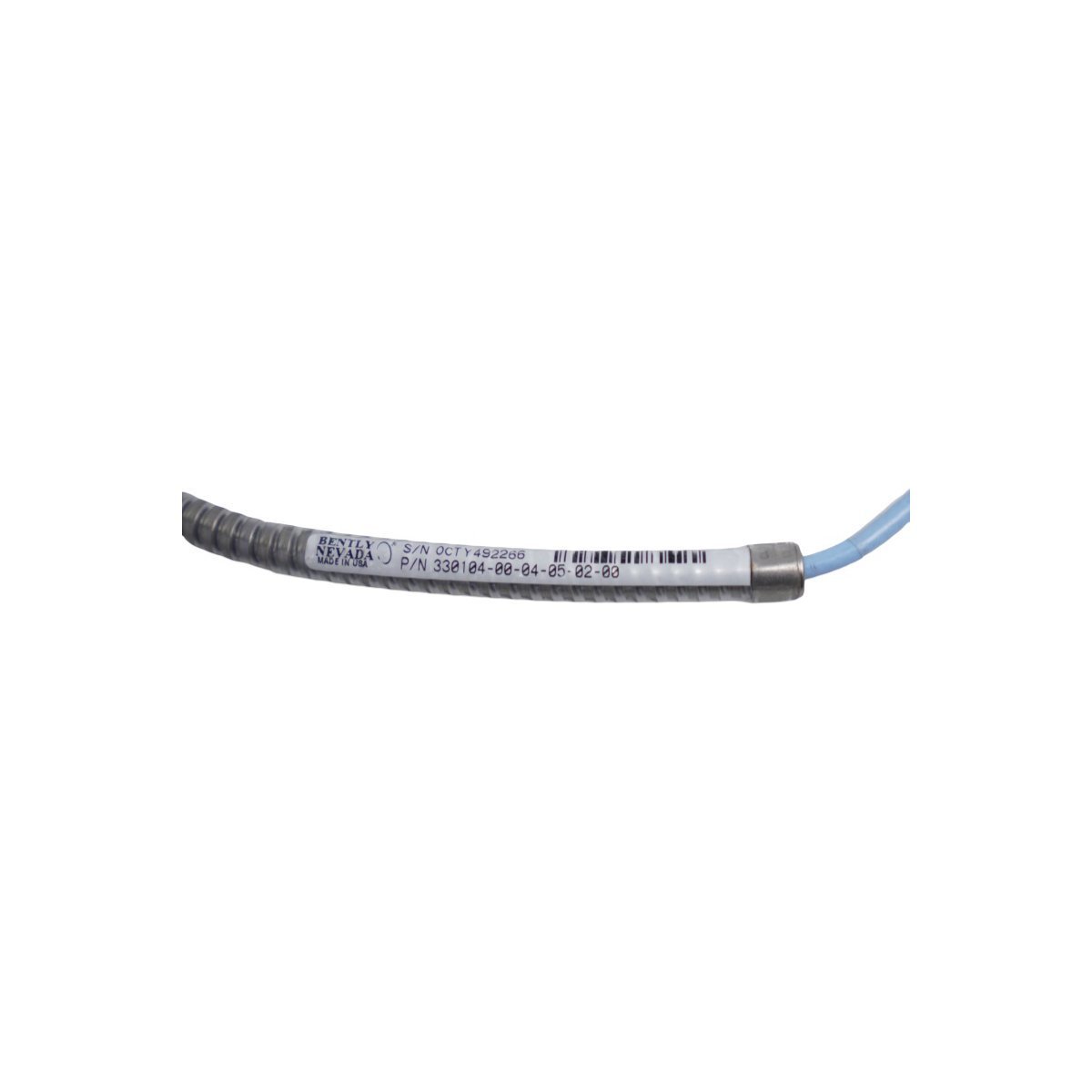

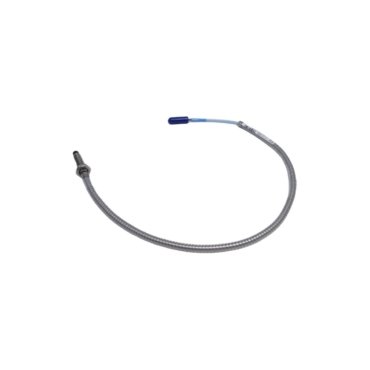

The Bently Nevada 330104-00-04-05-02-00 is a high-precision eddy current sensor designed for non-contacting displacement measurements in rotating machinery. As a core component of the 3300 XL 8mm Transducer System, this probe tracks shaft vibration and position with sub-micron accuracy. By converting the physical gap between the probe tip and the target material into a proportional electrical signal, it enables the 3500 Machinery Protection System to monitor critical parameters such as radial vibration, axial thrust, and phase reference
Configuration Details
- Model Series: 3300 XL 8mm Proximity Probe
- Thread Type: 3/8-24 UNF-2A Imperial Thread
- Unthreaded Length: 0.0 inches
- Overall Case Length: 0.4 inches
- Total Cable Length: 0.5 Meters (1.6 feet)
- Connector Option: Miniature coaxial ClickLoc connector
- Agency Approval: Standard
Core Industrial Applications
- Power Generation: Monitoring steam and gas turbine rotor dynamics and thermal expansion.
- Petrochemical Processing: Tracking centrifugal compressor vibration and bearing wear.
- Water Treatment: Evaluation of high-capacity pump shaft alignment.
- Heavy Manufacturing: Speed and position sensing for industrial motors and fans.
System Integration
The 330104-00-04-05-02-00 connects via its gold-plated ClickLoc connector to a 3300 XL extension cable, which then interfaces with a Proximitor Sensor. This chain provides a linear output of 7.87 V/mm (200 mV/mil), allowing for seamless integration into PLC, DCS, or dedicated Bently Nevada 3500 monitoring racks for real-time asset health diagnostics.
