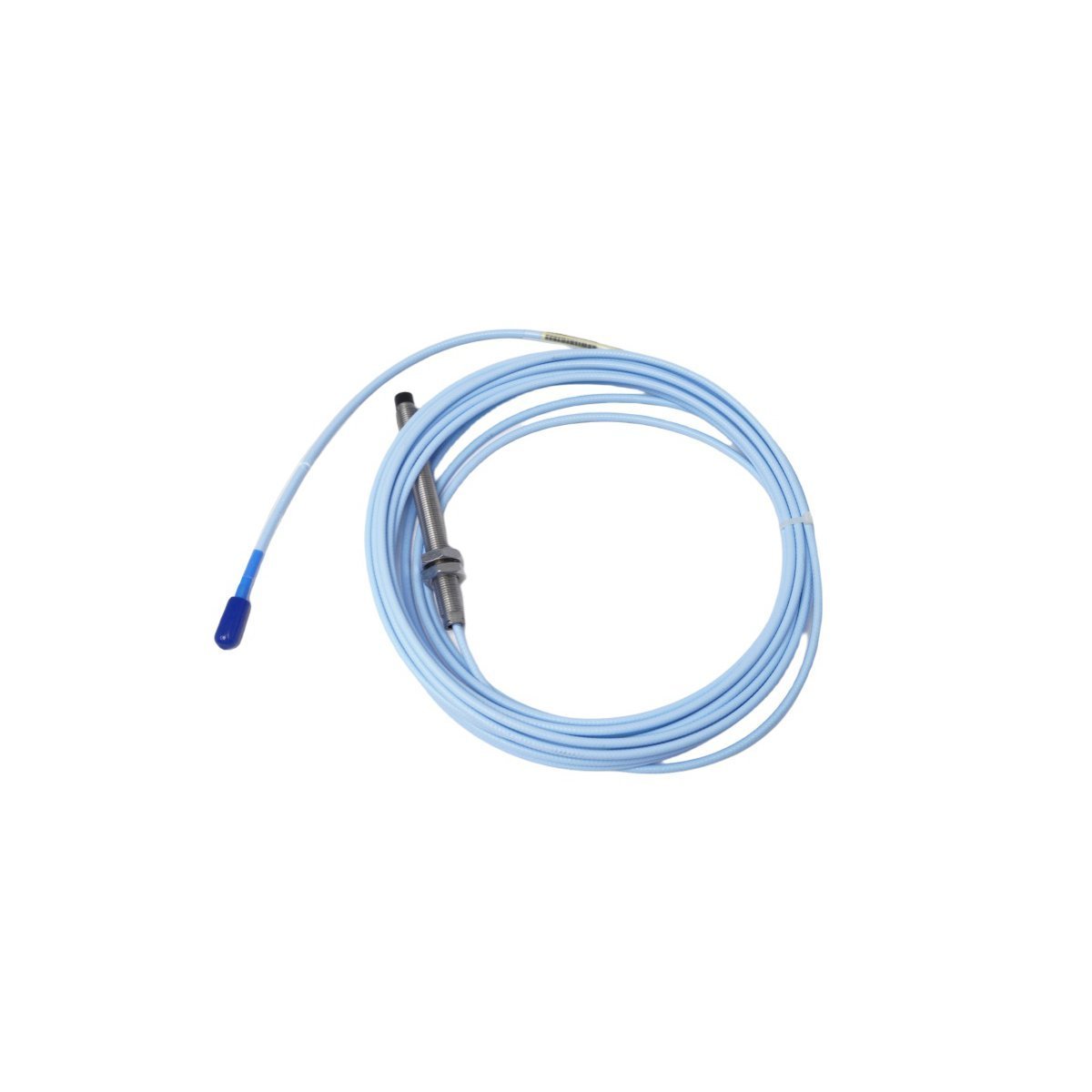

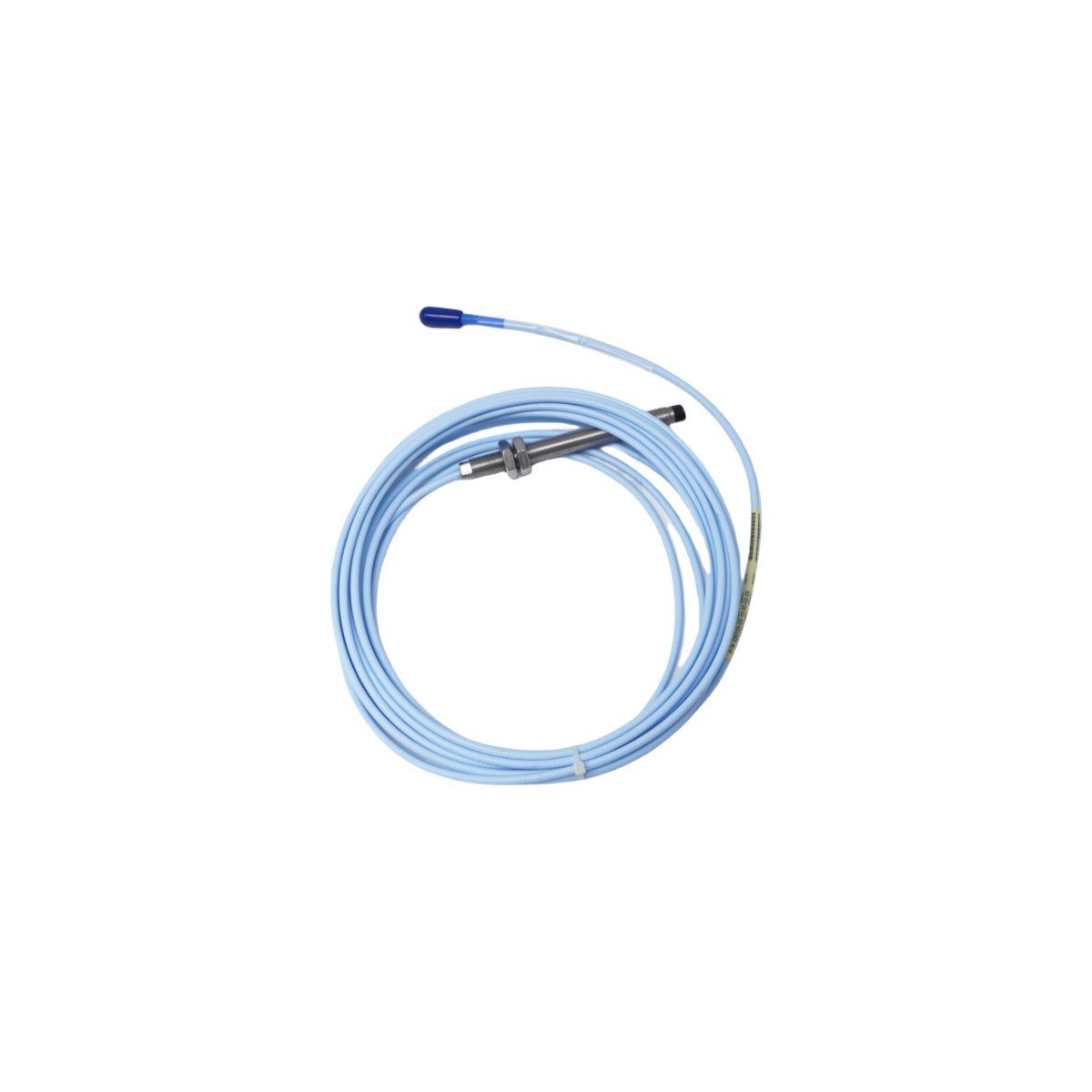

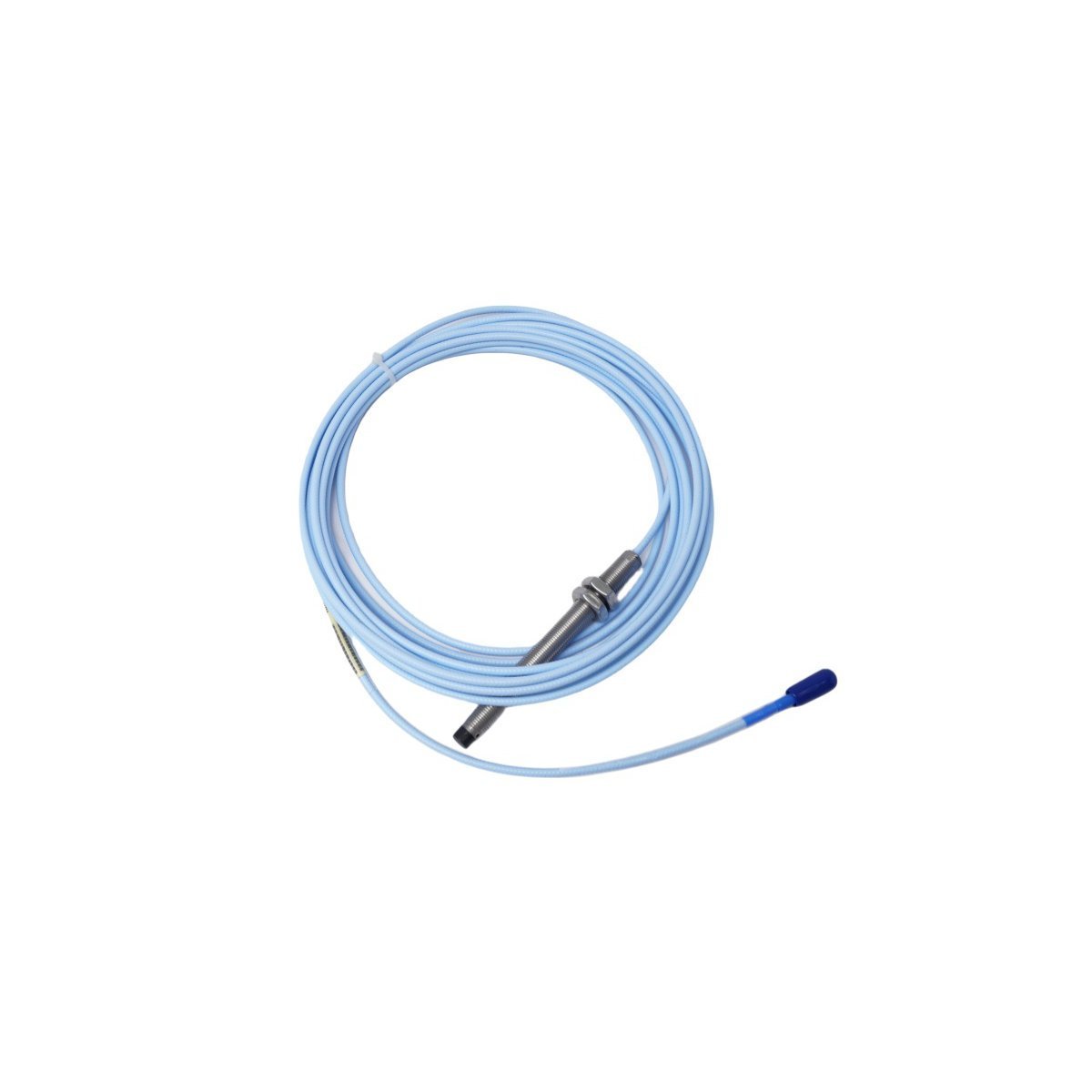

The Bently Nevada 330103-00-19-10-12-00 is a high-performance non-contacting displacement sensor designed for the 3300 XL 8 mm Transducer System. This eddy current probe measures the gap between the probe tip and a rotating shaft to provide critical data regarding radial vibration, axial thrust position, and speed. Engineered for integration with Turbine Supervisory Instrumentation (TSI), it offers a reliable solution for monitoring the mechanical health of high-speed rotating assets.
Model Configuration Specifications
The specific configuration of the 330103-00-19-10-12-00 model is identified by the following parameters:
- Model Series: 3300 XL 8 mm Proximity Probe
- Thread Type: M10 x 1 Metric Thread
- Unthreaded Length: 0 mm
- Overall Case Length: 190 mm
- Total Cable Length: 1.0 Meter (3.3 feet)
- Connector Type: Miniature coaxial ClickLoc connector
- Agency Approvals: Multiple hazardous area certifications (Standard)
- Cable Protection: Standard FluidLoc cable without armor
System Compatibility and Standards
The 330103-00-19-10-12-00 is fully compatible with Bently Nevada 3300 XL Proximitor Sensors and extension cables. It adheres to the American Petroleum Institute (API) 670 standard for machinery protection systems, ensuring it meets the rigorous safety and performance requirements of the global oil, gas, and power generation industries.
