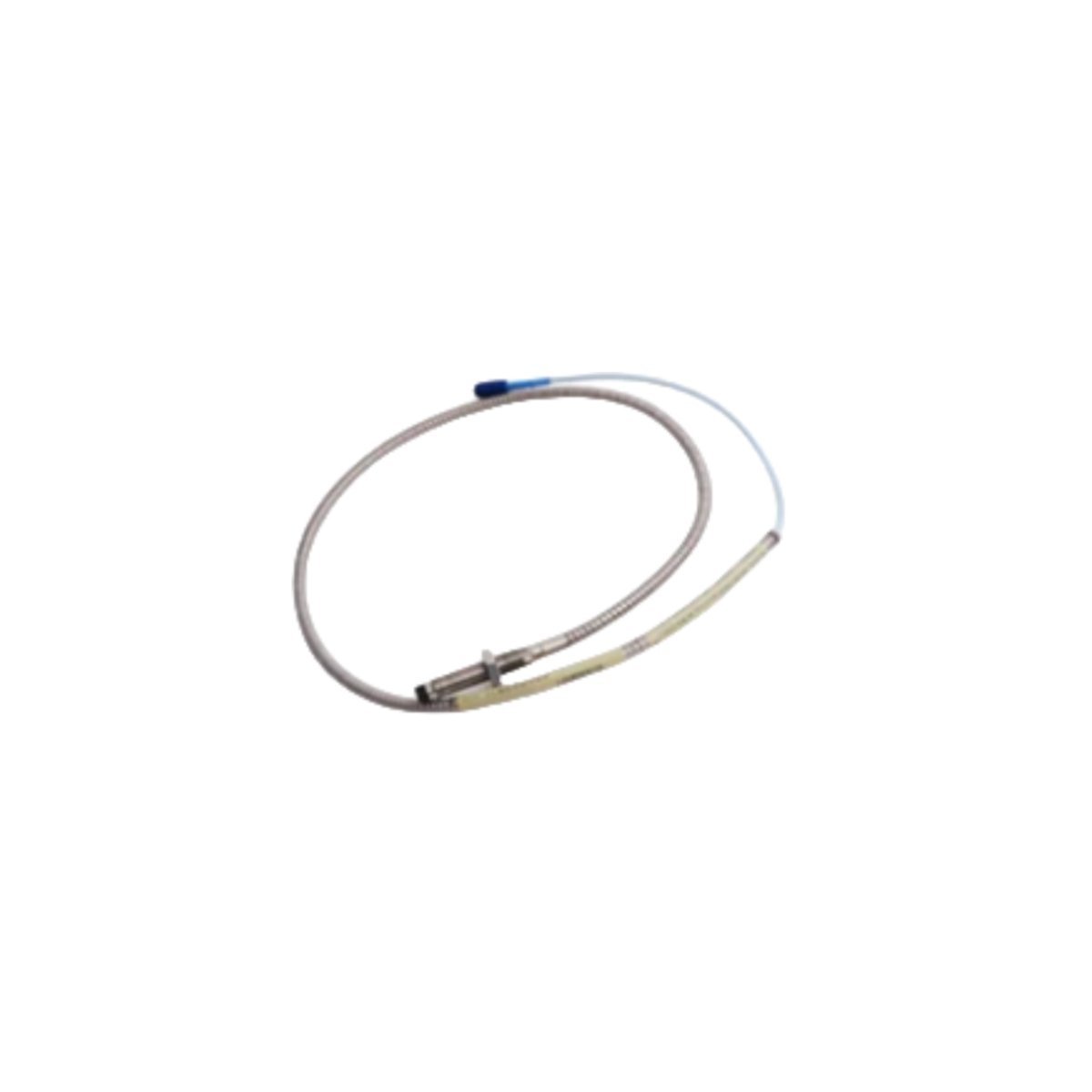

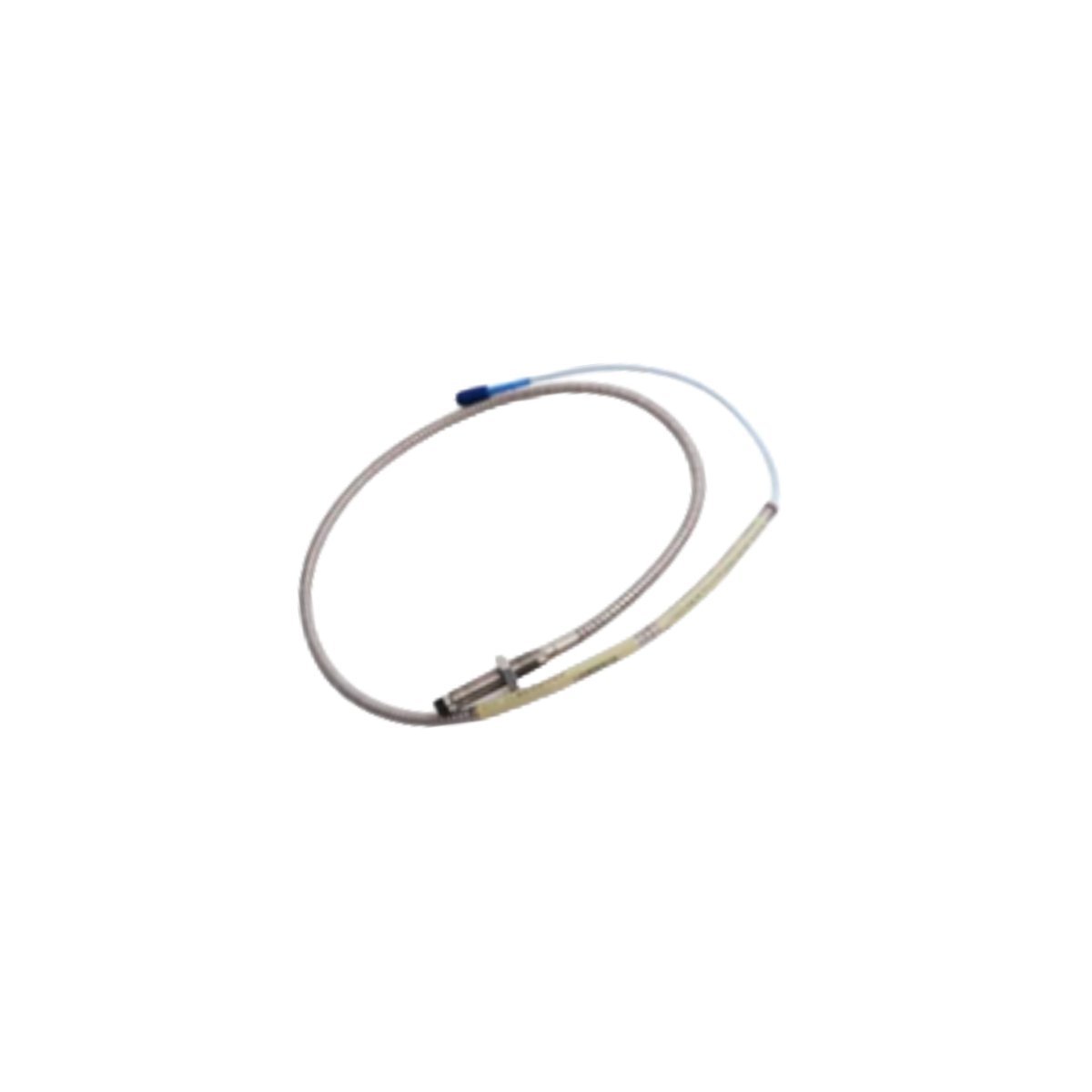

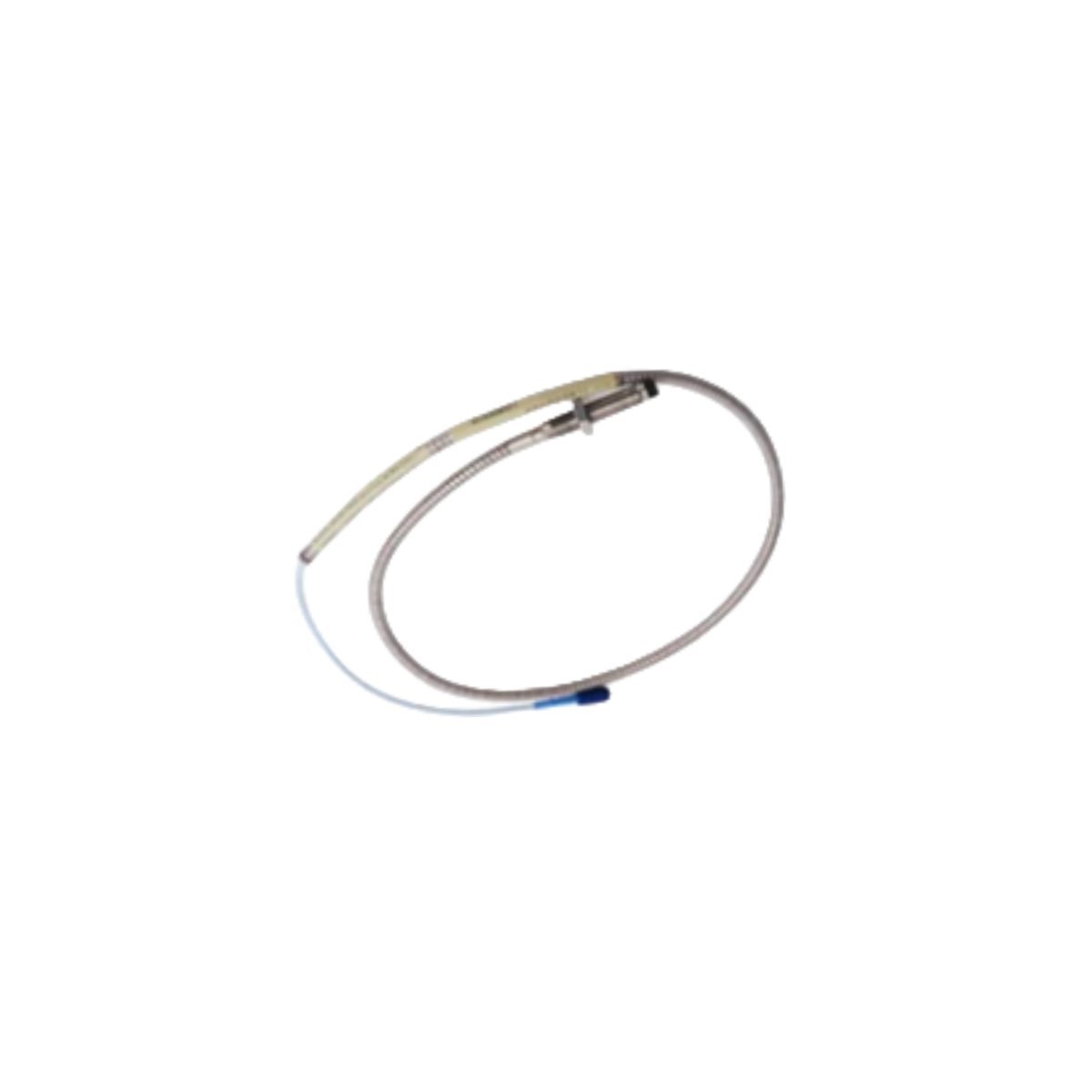

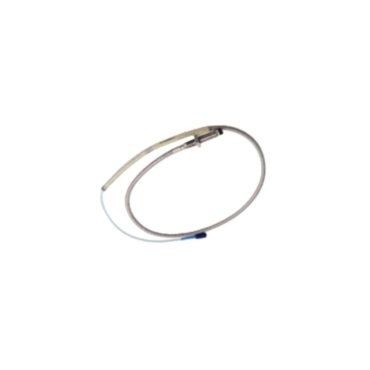

Bently Nevada 330103-00-12-10-02-CN 3300 XL 8 mm Proximity Transducer

The Bently Nevada 330103-00-12-10-02-CN is a high-precision, non-contact displacement sensor engineered for the 3300 XL series. This 8mm eddy current probe measures both static position and dynamic vibration of rotating shafts. It serves as a fundamental component in machinery protection systems. By tracking the distance between the probe tip and the target surface, it provides essential data for identifying mechanical issues. This includes early detection of shaft misalignment, rotor imbalance, and bearing degradation.

Core Applications and Compatibility

Engineers primarily utilize this transducer in Turbine Supervisory Instrumentation (TSI) for high-speed rotating assets. It integrates seamlessly with the Bently Nevada 3500 and 2300 monitoring systems. This compatibility allows for real-time diagnostics and automated protection. Common applications include:

• Monitoring radial vibration in centrifugal compressors and pumps
• Measuring axial thrust position in steam and gas turbines
• Detecting shaft eccentricity on large electric motors
• Serving as a high-speed Keyphasor reference for phase angle measurements

Technical Specifications Summary

WordPress Product Short Description

The Bently Nevada 330103-00-12-10-02-CN is a 3300 XL 8mm proximity probe with a 1.2-inch threaded case and a 1.0-meter cable. This rugged sensor provides precise vibration and displacement monitoring for critical industrial turbines, compressors, and motors.
