Technical Specifications Summary
| Feature | Specification |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330103-00-06-10-02-00 |
| Transducer Type | 3300 XL 8mm Proximity |
| Thread Size | 3/8-24 UNF |
| Overall Case Length | 0.6 inches |
| Unthreaded Length | 0.0 inches |
| Cable Length | 0.5 Meter (1.6 Feet) |
| Connector Type | ClickLoc Miniature Coaxial |
System Applications and Integration
The 3300 XL 8mm system is fully compatible with Bently Nevada 3500 and 2300 machinery protection racks. It plays a vital role in Turbine Supervisory Instrumentation (TSI) by tracking critical parameters. Maintenance teams rely on this hardware to optimize machine uptime and prevent catastrophic failures. Typical industrial use cases include:
- Radial vibration monitoring for fluid-film bearings
- Thrust position measurement in high-speed compressors
- Shaft eccentricity tracking for large electric motors
- Keyphasor signal generation for speed and phase reference
- Asset protection in oil refineries, gas plants, and power stations
WordPress Product Short Description

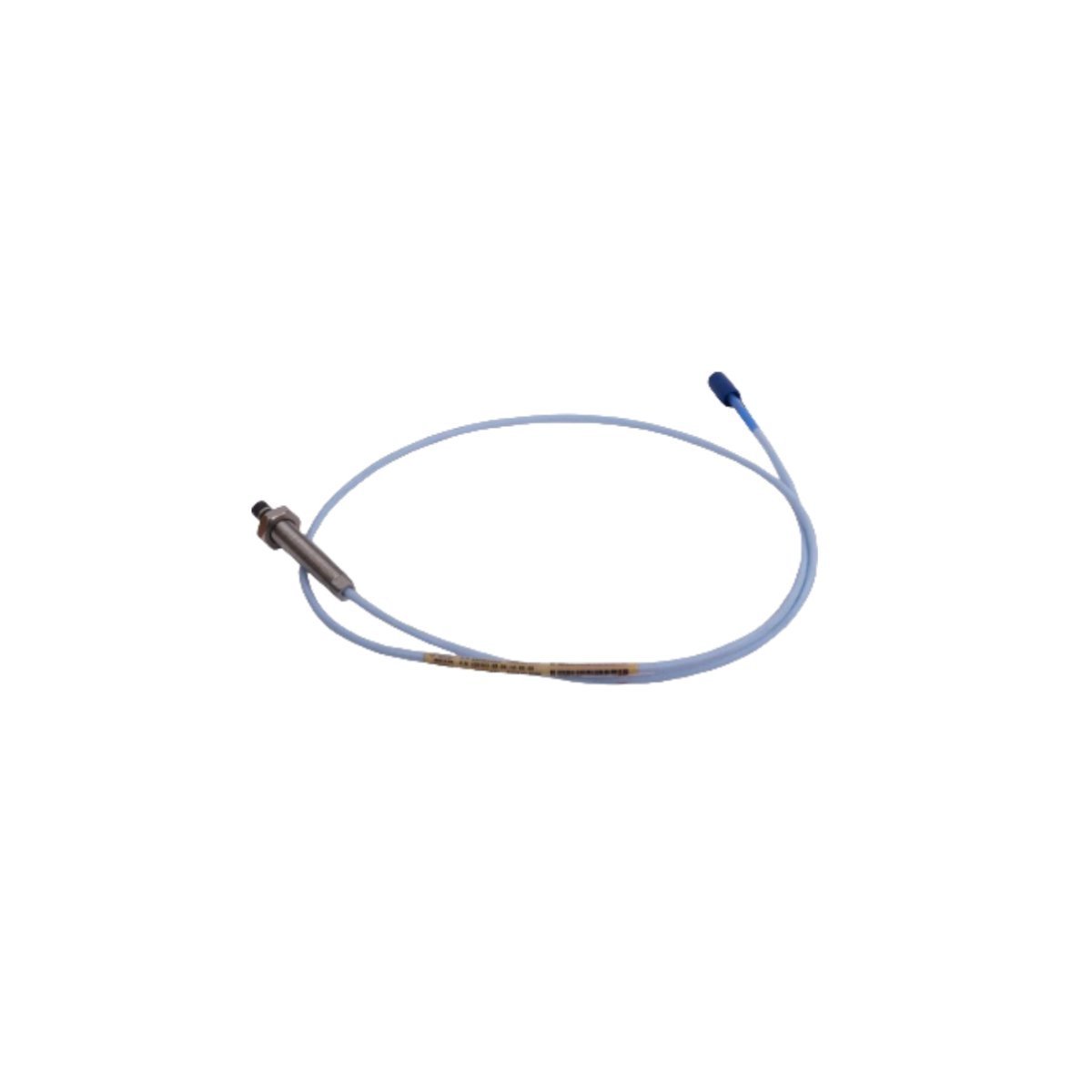

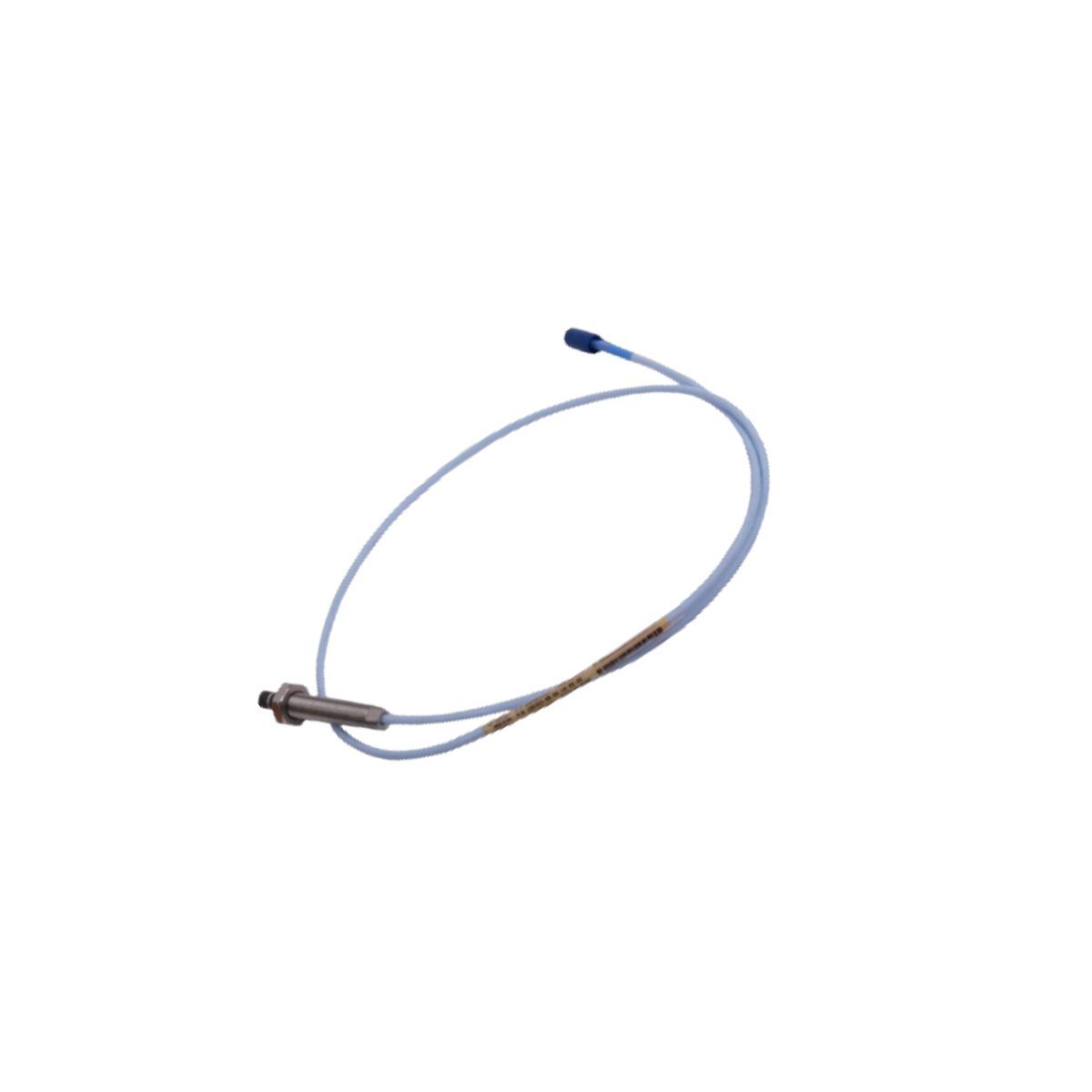

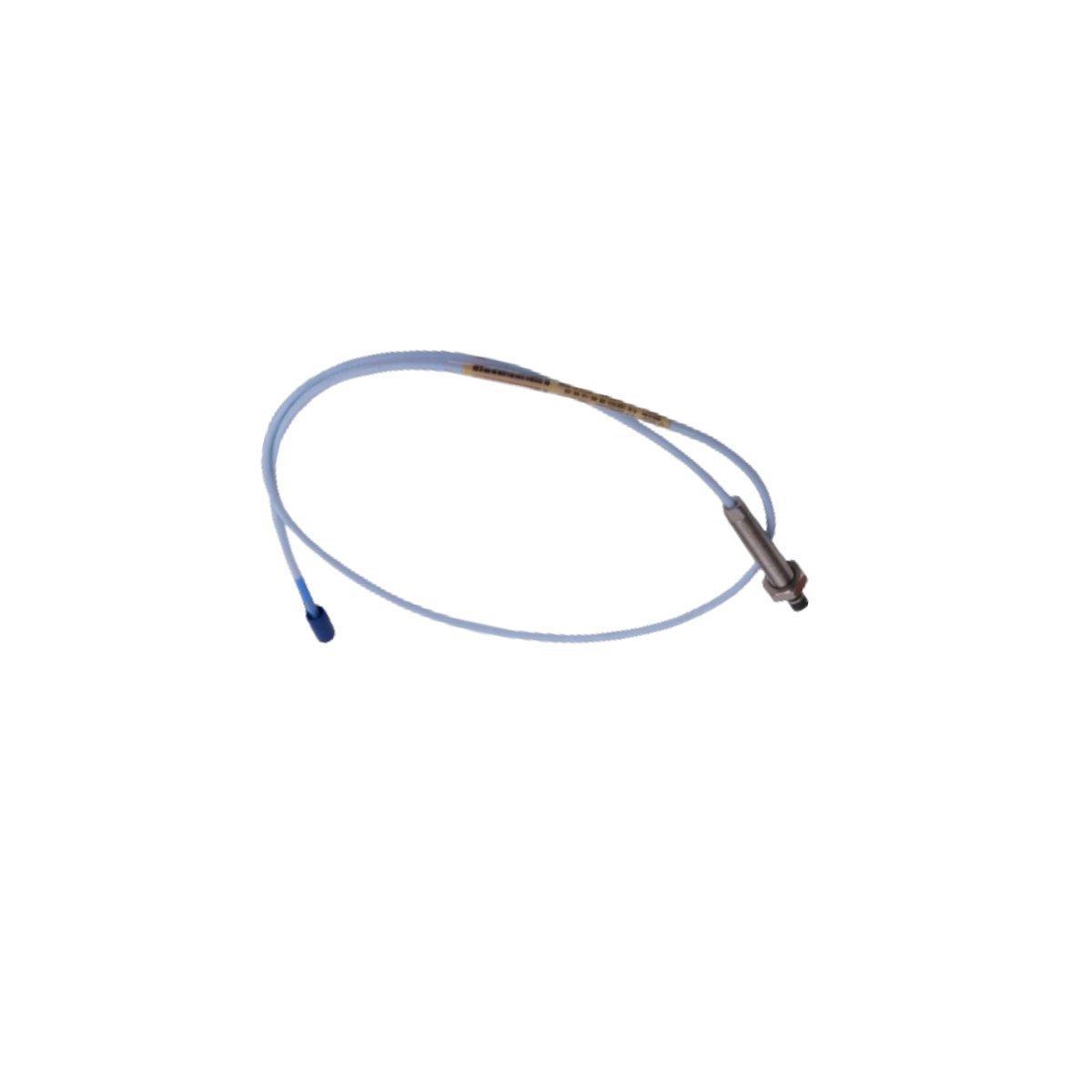

The Bently Nevada 330103-00-06-10-02-00 is a 3300 XL 8mm proximity probe with a 0.6-inch case and 0.5-meter cable. It provides precise, non-contact vibration and position monitoring for critical rotating machinery in demanding industrial
