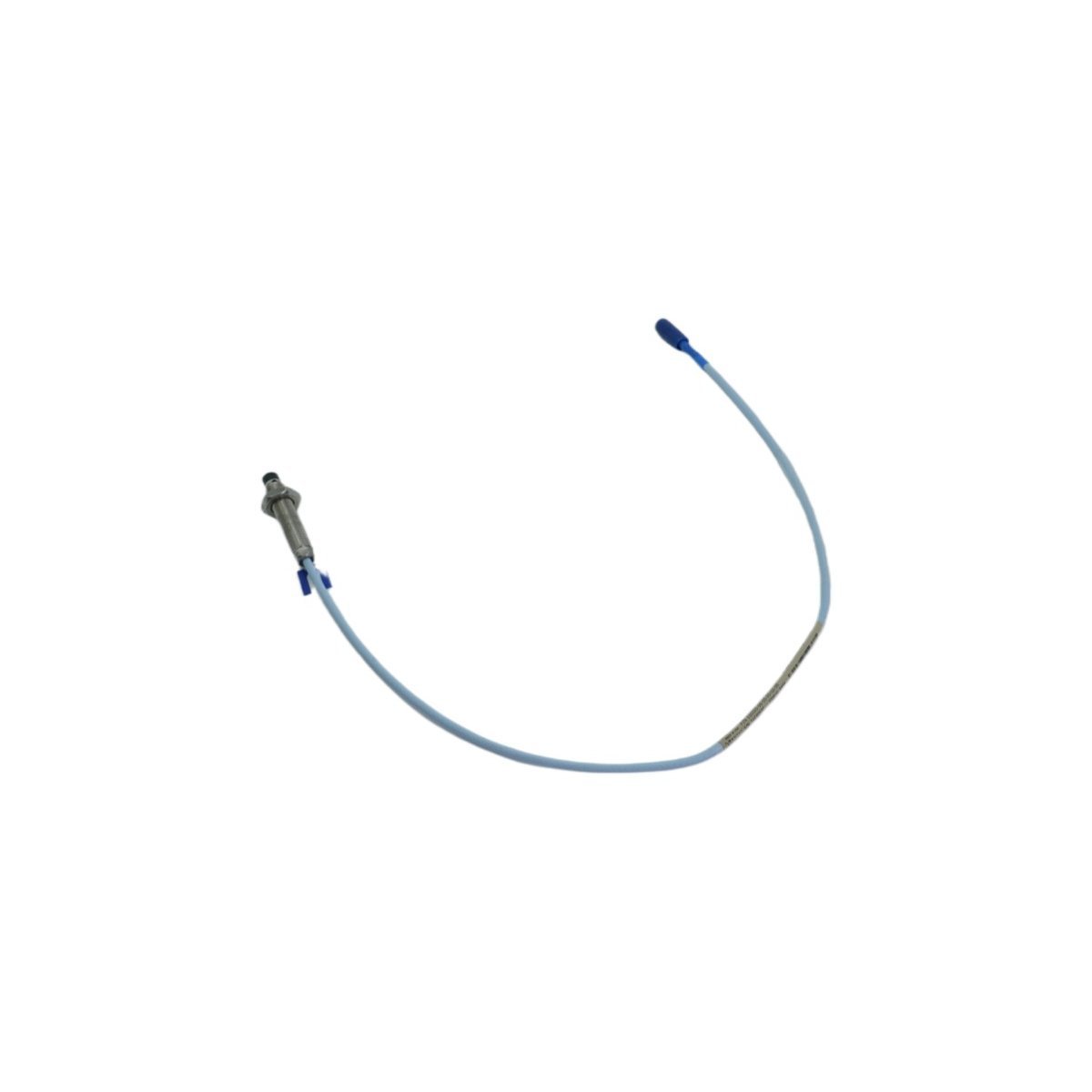

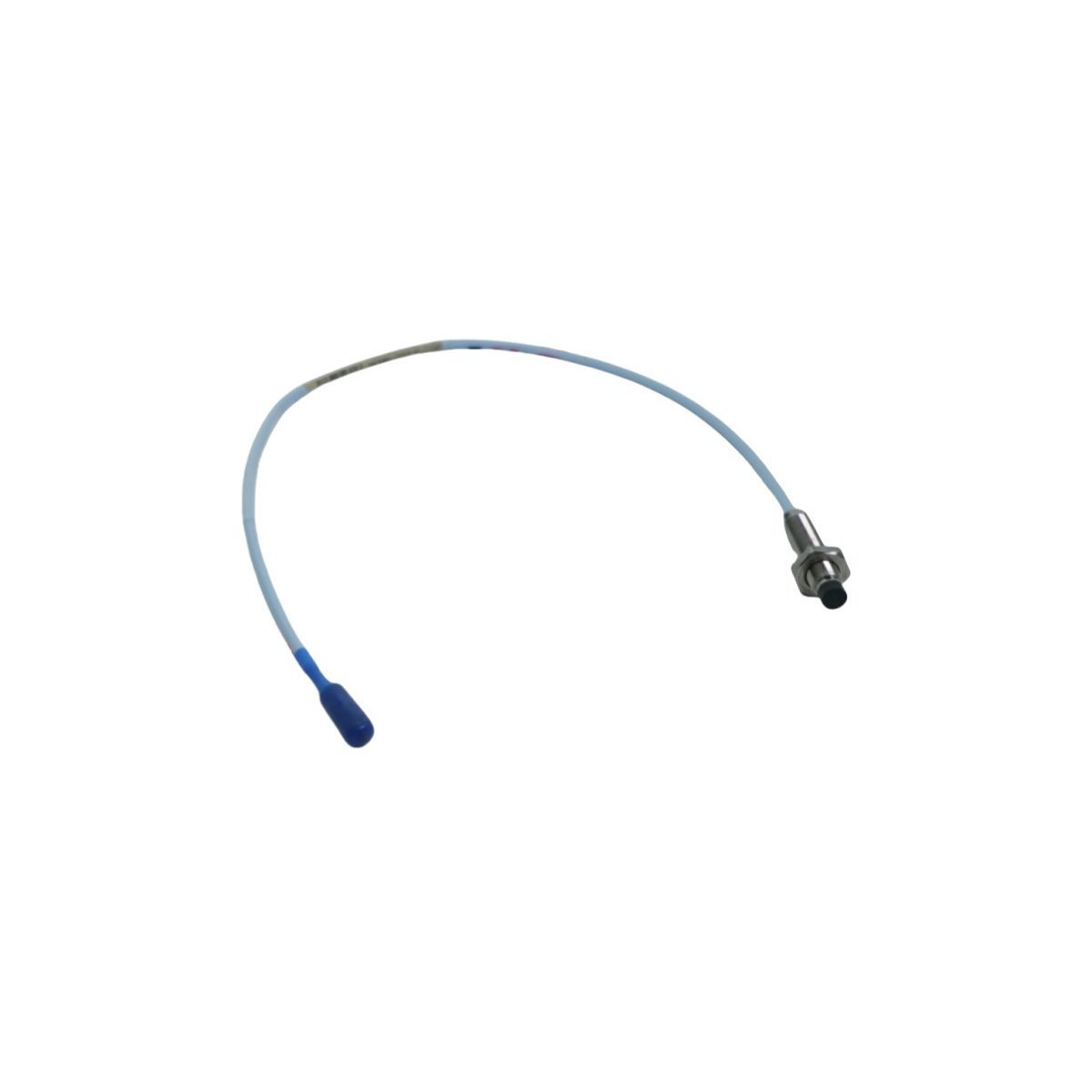

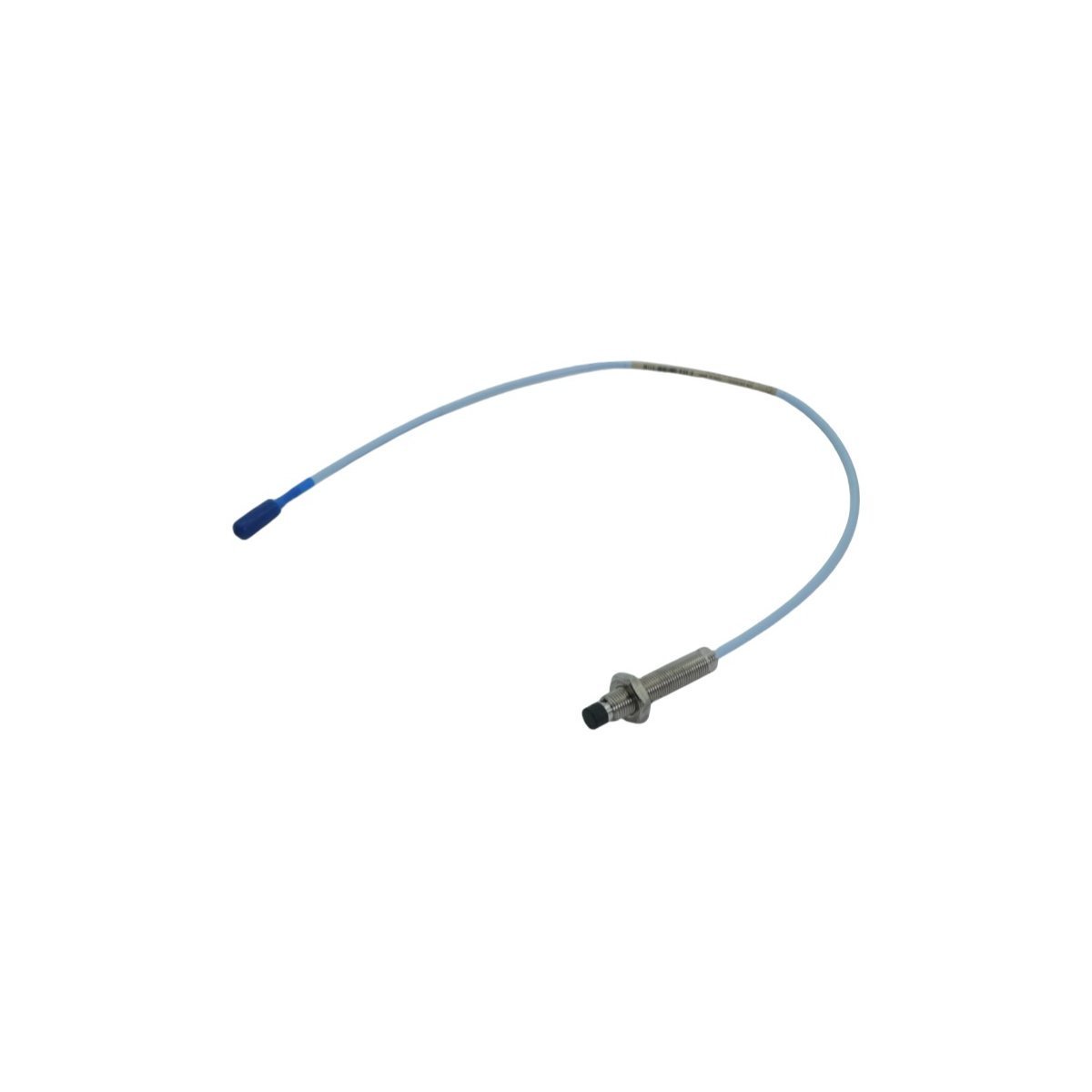

Bently Nevada 330103-00-05-90-02-00 3300 XL 8mm Proximity Probe

Overview

The 330103-00-05-90-02-00 is a high-performance 8mm proximity probe belonging to the Bently Nevada 3300 XL series. This transducer is a critical component of the 3300 XL Proximity Transducer System, designed to measure static (position) and dynamic (vibration) distance between the probe tip and a target made of 4140 steel. It is engineered for extreme industrial environments, providing high-resolution eddy current measurements for steam and gas turbines, centrifugal compressors, and pumps.

Detailed Specifications (Parsed Code)

The part number 330103-00-05-90-02-00 defines the following physical and electrical configuration:

Operational Capabilities

The 330103-00-05-90-02-00 features a Gold-plated ClickLoc™ connector that prevents moisture ingress and provides a secure, vibration-resistant link to the extension cable. The 3300 XL system is designed to be backwards compatible with non-XL 3300 series components, though maximum performance is achieved when used as a complete XL system. The integrated 316 stainless steel armor provides superior protection against physical abrasion and chemical exposure in demanding oil and gas applications.

Technical FAQ

What is the measuring range of this 8mm probe?

When used with a 3300 XL Proximitor® Sensor, the linear range is 2.0 mm (80 mils), starting from a standoff distance of approximately 0.25 mm (10 mils).

Can this probe be used without an extension cable?

Since this is a 9.0 meter version (-90), it is designed to connect directly to a 3300 XL Proximitor® Sensor configured for a 9-meter total system length. No additional extension cable is required for this specific configuration.
