Bently Nevada 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe Transducer

Bently Nevada 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probes

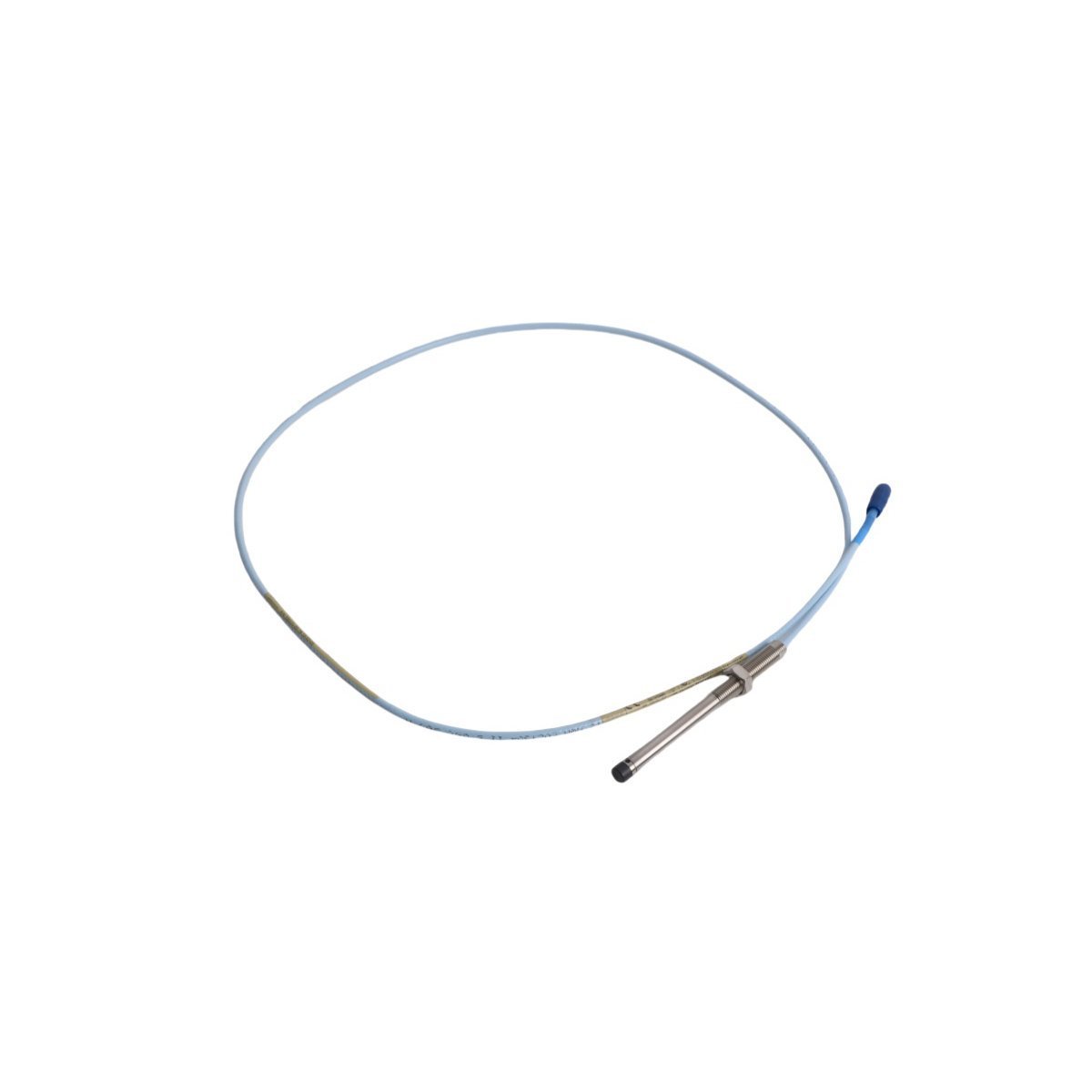

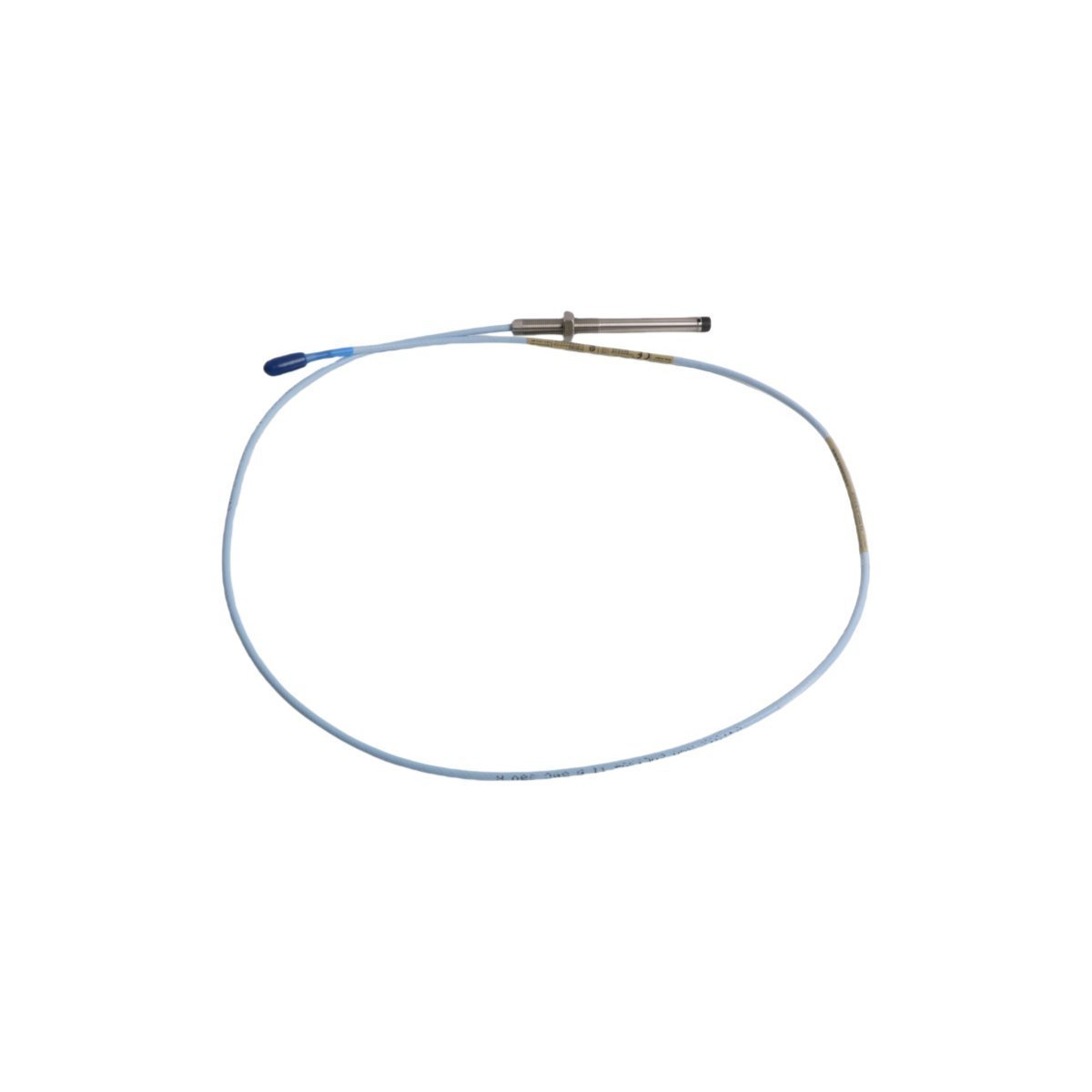

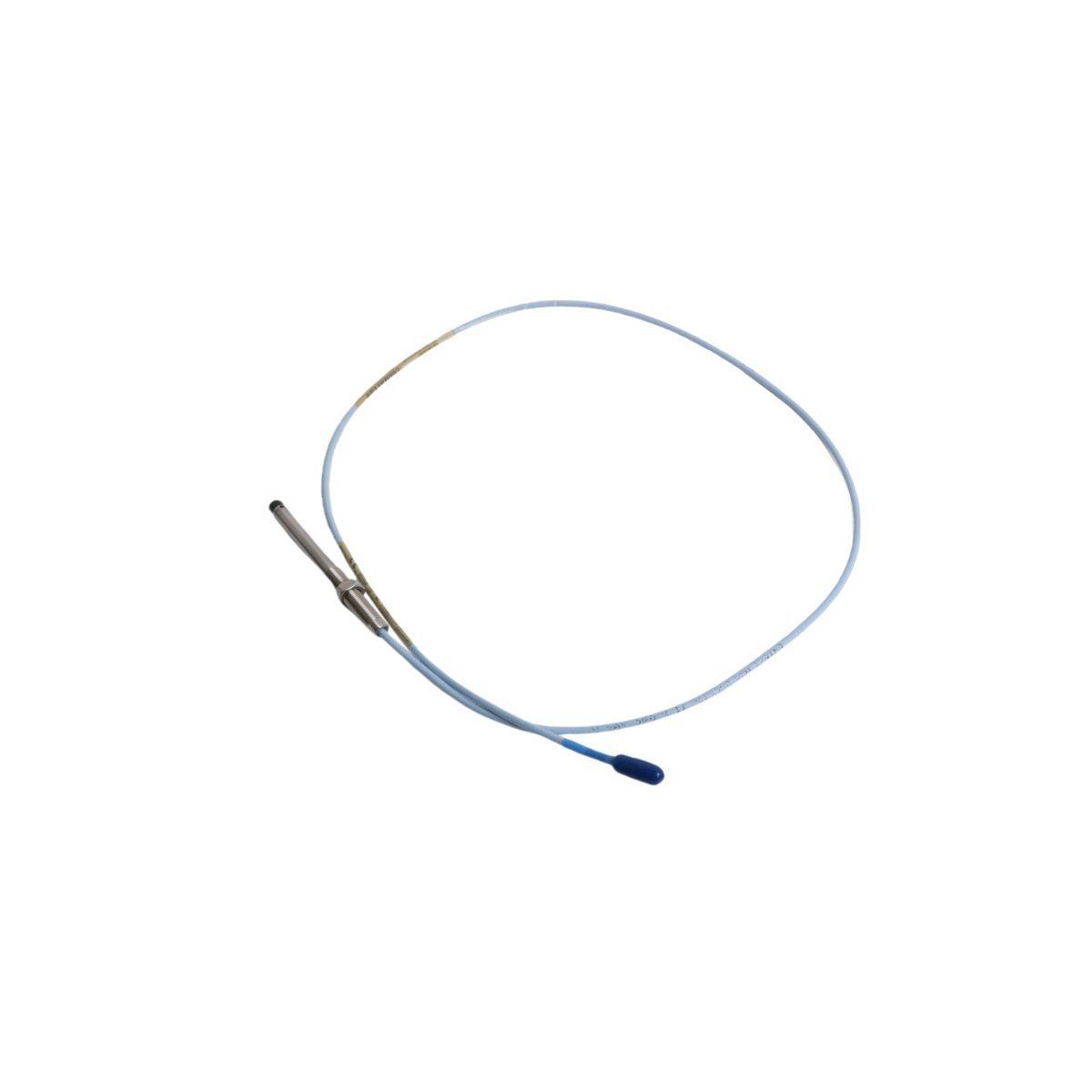

The Bently Nevada 330101-25-44-10-02-05, also cataloged as the 330101 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for contactless shaft position and vibration measurements within TSI (Turbine Supervisory Instrumentation) platforms.

Hardware Specifications

Eddy-Current Transducer Scaling and Signal Behavior

Engineers design the 330101 eddy-current probe to maintain strict linear scale factor integrity across the target voltage domain. The transducer generates an RF magnetic field around the probe tip, inducing eddy currents inside the target rotor shaft. Thus, physical clearance changes directly modulate the high-frequency probe impedance, which the Proximitor converts into a normalized -24 VDC linear voltage output.

Technicians perform gap voltage validation during installation to establish target bias. Centering the gap voltage at approximately -10 VDC positions the transducer dead-center within its 80 mil (2.0 mm) linear measurement zone. Because high-density rotor dynamics induce rapid spatial shifts, the sensor maintains cross-talk suppression and thermal stability to prevent signal distortion across adjacent shafts or high-temperature bearing housing zones.

Frequently Asked Questions

Q: What installation procedures verify correct probe gap voltage during field setup?

A: Field engineers connect a calibrated digital multimeter across the raw output terminals of the associated Proximitor Sensor while holding -24 VDC power. Adjusting the mechanical thread depth until the multimeter reads exactly -10 VDC sets the probe precisely at the center of its 2.0 mm linear range.

Q: How does cable armor integration affect signal grounding and mechanical routing?

A: The stainless steel armor provides crush resistance along conduit paths while leaving the internal coaxial conductor shield isolated. Installers must ground the cable shielding at the Proximitor end only to avoid ground loops across the machine train structure.

Field Installation Guidelines

Installers must strictly adhere to physical clearance and mounting rules during field setup. Maintain a minimum unthreaded target clearance area of 30 mm (1.2 in) diameter around the probe tip to prevent electrical cross-talk and side-wall interference from adjacent housing steel.

When threading the probe into a bearing housing, engage at least 5 full threads to guarantee mechanical rigidity under dynamic vibration load. Torque the mounting jam nut to 8.5 N-m (75 in-lb) maximum to avoid strip damage to the probe casing.

Route the 25 ft armored cable away from high-voltage AC motor lines or variable frequency drive conduits. Secure cable runs using isolated conduit clamps every 300 mm to suppress mechanical whip and cable fatigue under continuous operational vibration.
