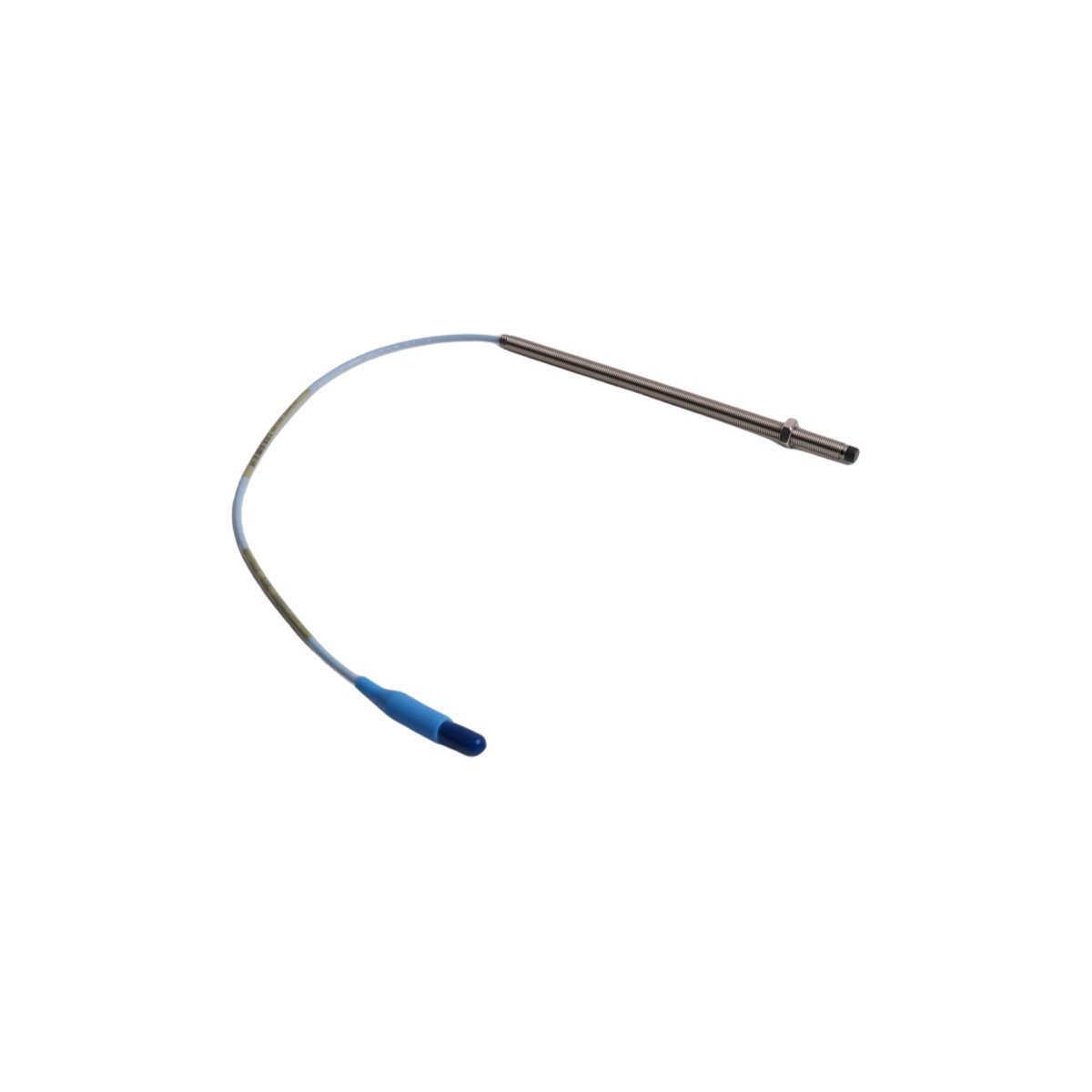

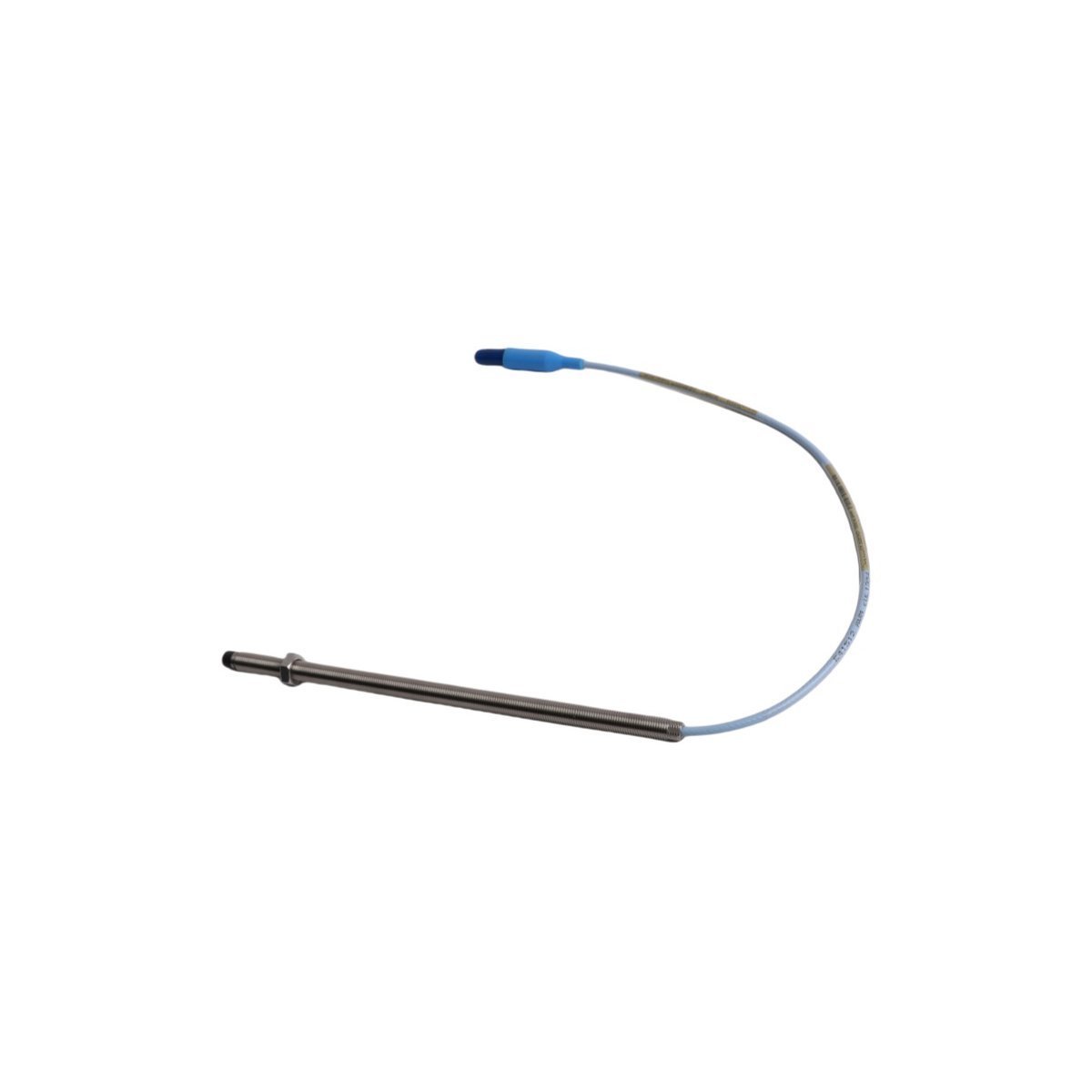

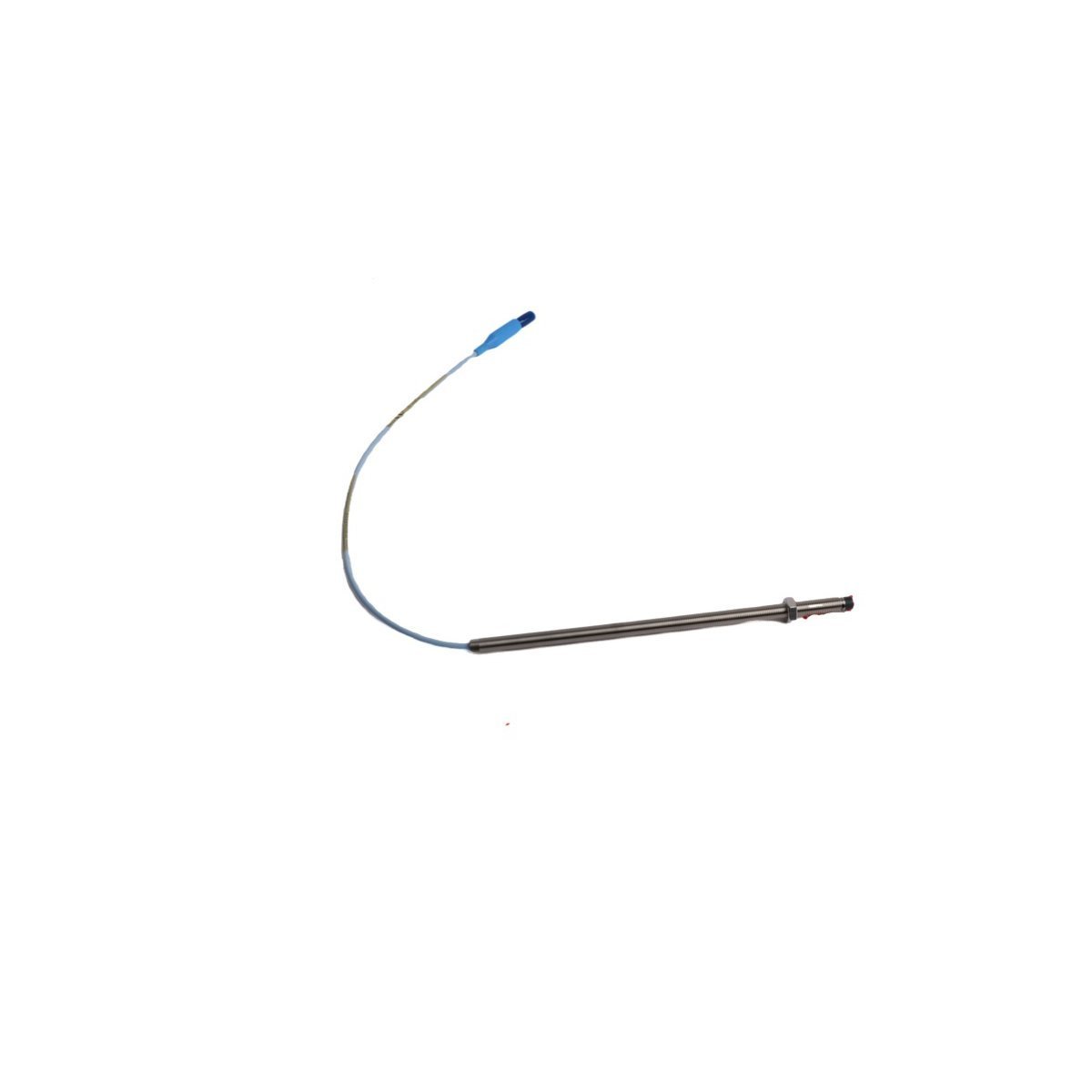

The Bently Nevada model 330101-00-85-05-01-05 is an 8 mm eddy-current proximity probe from the 3300 XL series. It features a permanently attached 8.5-meter FluidLoc® cable and an M10 × 1.0 mounting thread. This probe measures relative shaft displacement in rotating machinery with high accuracy and stability.
It must be used with a compatible 3300 XL 8 mm Proximitor® (e.g., 3300/05-XX-XX) to form a complete transducer system. The probe delivers a standard output of 7.87 V/mm (200 mV/mil) over a linear range of 2.0 mm (80 mils).
Key Technical Specifications
- Model Number: 330101-00-85-05-01-05
- Product Type: 3300 XL 8 mm Proximity Probe
- Cable Length: 8.5 meters (per model suffix “85”)
- Cable Type: FluidLoc® (oil-resistant, prevents fluid migration)
- Thread Size: M10 × 1.0
- Active Tip Diameter: 8 mm
- Linear Range: 0–2.0 mm (0–80 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Case Length: ≥85 mm (standard for this configuration)
- Connector: Gold-plated brass ClickLoc® with positive retention
- Operating Temperature:
- Probe tip: –51°C to +177°C
- Cable: –40°C to +85°C
- EMI/RFI Immunity: High—supports installation in fiberglass enclosures
- Compliance: CE, CSA, ATEX, IECEx (in certified system configurations)
- API 670 Compliant: Yes
- Weight: 0.1 kg
- Packaged Dimensions: Approx. 660 × 15 × 13 mm (coiled)
- Country of Origin: USA
- Status: Active product
- Minimum Order Quantity: 1
- HS Code: 8537101190
Typical Applications
This probe is ideal for turbines, compressors, pumps, and motors where long cable runs are required. The 8.5-meter FluidLoc® cable eliminates the need for extension cables in many installations, reducing connection points and potential failure modes. Its robust design ensures reliable performance in oil-lubricated or humid environments.
Because of its noise immunity and compact size, the probe integrates easily into DIN-rail or panel-mounted monitoring systems. It supports both machinery protection and condition monitoring strategies per API 670 guidelines.
