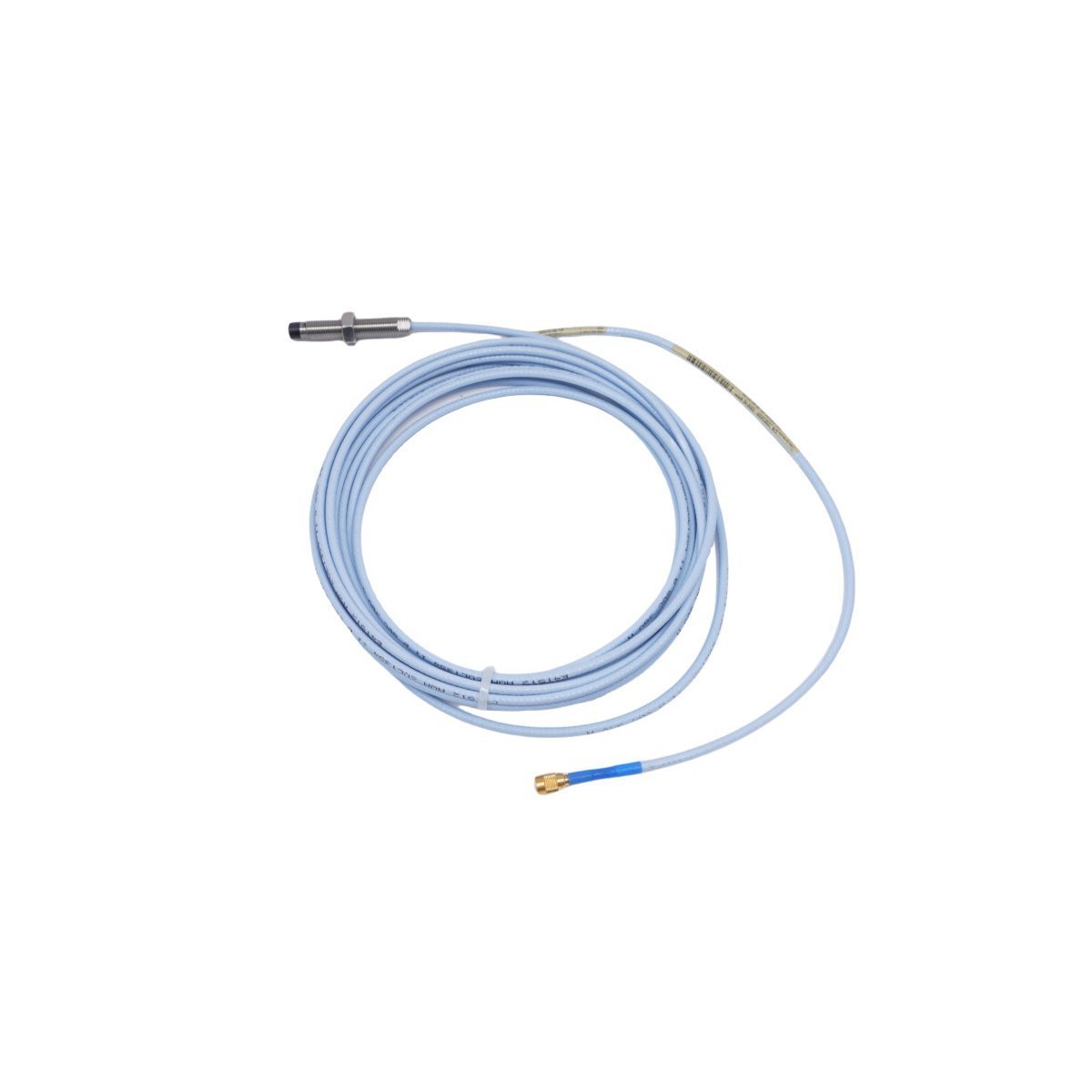

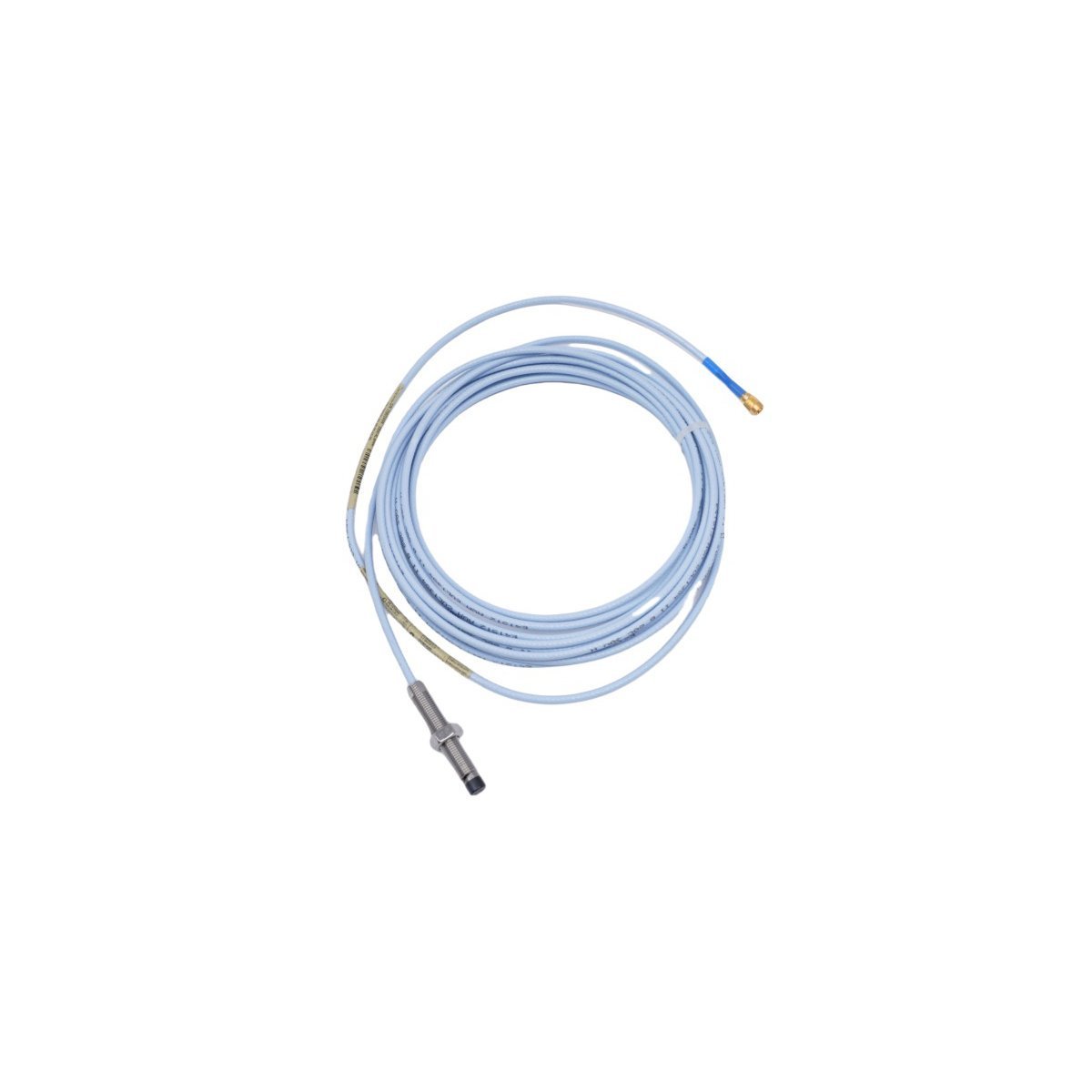

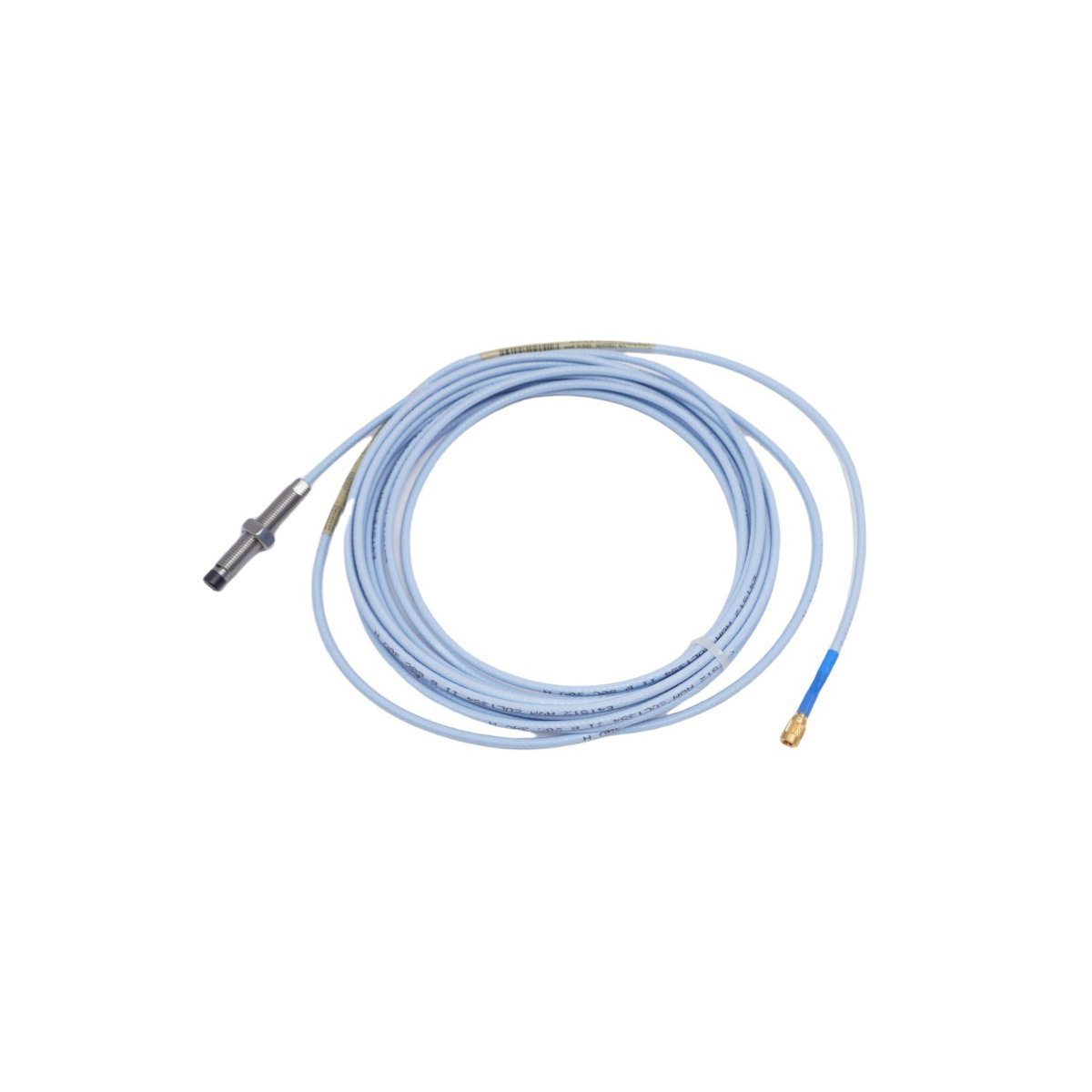

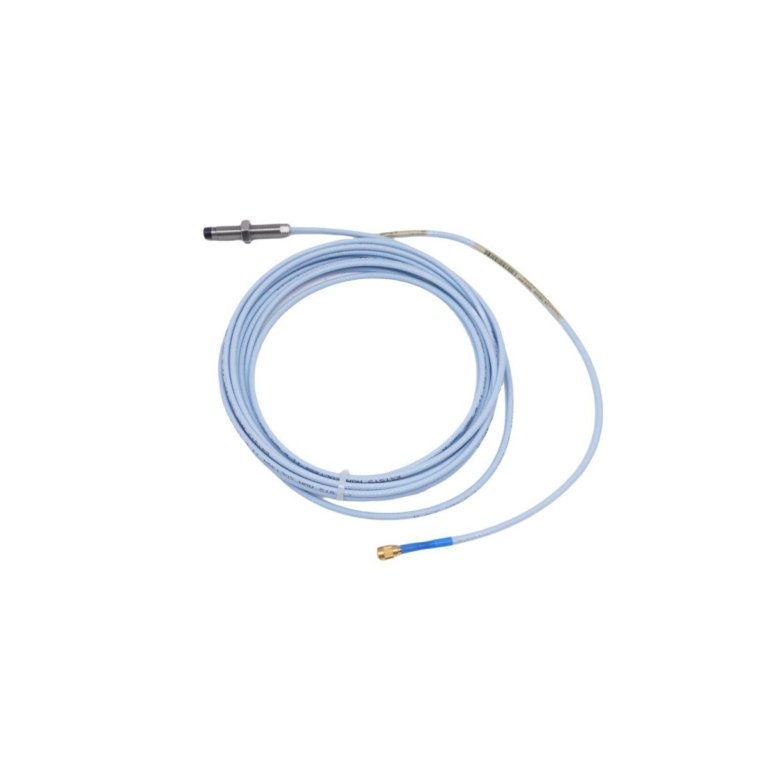

The Bently Nevada model 330101-00-20-90-02-05 is an 8 mm eddy-current proximity probe from the 3300 XL series. It integrates a permanently attached 2.0-meter FluidLoc® cable and features an M10 × 1.0 mounting thread. This probe accurately measures relative shaft displacement in rotating machinery under demanding industrial conditions.
It requires pairing with a compatible 3300 XL 8 mm Proximitor® (e.g., 3300/05-XX-XX) to form a complete transducer system. The probe delivers a standard sensitivity of 7.87 V/mm (200 mV/mil) across a linear range of 2.0 mm (80 mils).
Key mechanical enhancements include TipLoc® molded tip construction and CableLoc® strain relief. Together, they provide high resistance to vibration, thermal cycling, and cable pull forces—up to 330 N (75 lbf)—without compromising signal integrity.
Key Technical Specifications
- Model Number: 330101-00-20-90-02-05
- Product Type: 3300 XL 8 mm Proximity Probe
- Cable Length: 2.0 meters (per suffix “20”)
- Cable Type: FluidLoc® (oil-resistant, prevents fluid wicking)
- Mounting Thread: M10 × 1.0
- Active Tip Diameter: 8 mm
- Linear Range: 0–2.0 mm (0–80 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Case Length: ≥90 mm (indicated by “90” in model)
- Connector: Gold-plated ClickLoc® with audible click-lock
- Torque Requirement: Finger-tight only; no tools needed
- Operating Temperature:
- Probe tip: –51°C to +177°C
- Cable: –40°C to +85°C
- EMI/RFI Immunity: High—suitable for use near drives and VFDs
- Compliance: API 670, CE, CSA, ATEX, IECEx (in certified systems)
- Weight: 0.06 kg
- Packaged Dimensions: Approx. 1120 × 15 × 13 mm (coiled)
- Country of Origin: USA
- Status: Active product
- Minimum Order Quantity: 1
- HS Code: 8537101190
Typical Applications
This probe is well suited for steam turbines, centrifugal compressors, gearboxes, and large motors. Its short 2.0 m cable is ideal for panel-mounted Proximitors located near the machine bearing housing. The ruggedized design ensures long-term stability in high-vibration or oil-splash environments.
Because it uses the standardized 3300 XL interface, it integrates seamlessly into existing Bently Nevada monitoring systems without requiring hardware changes.
