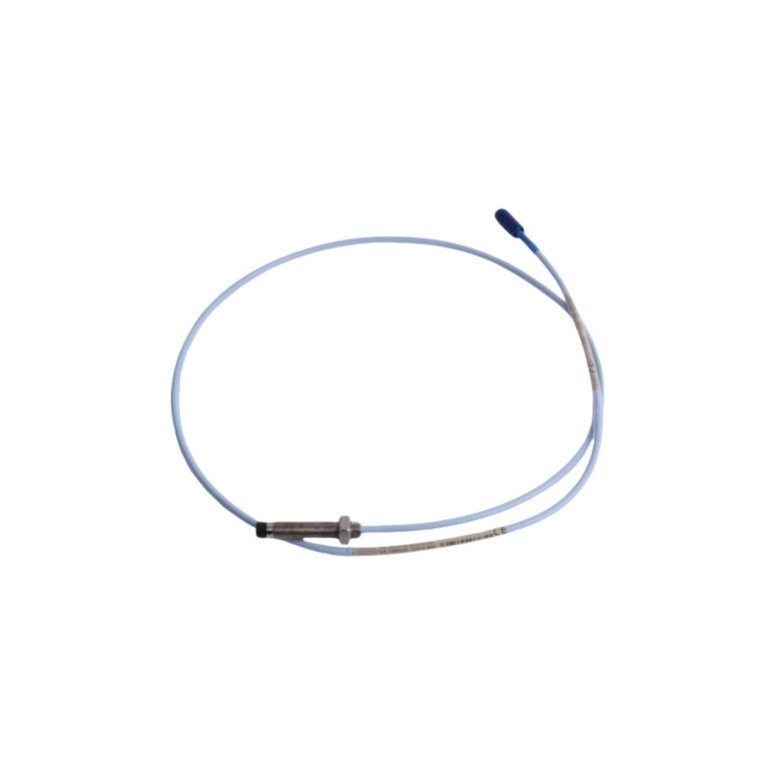

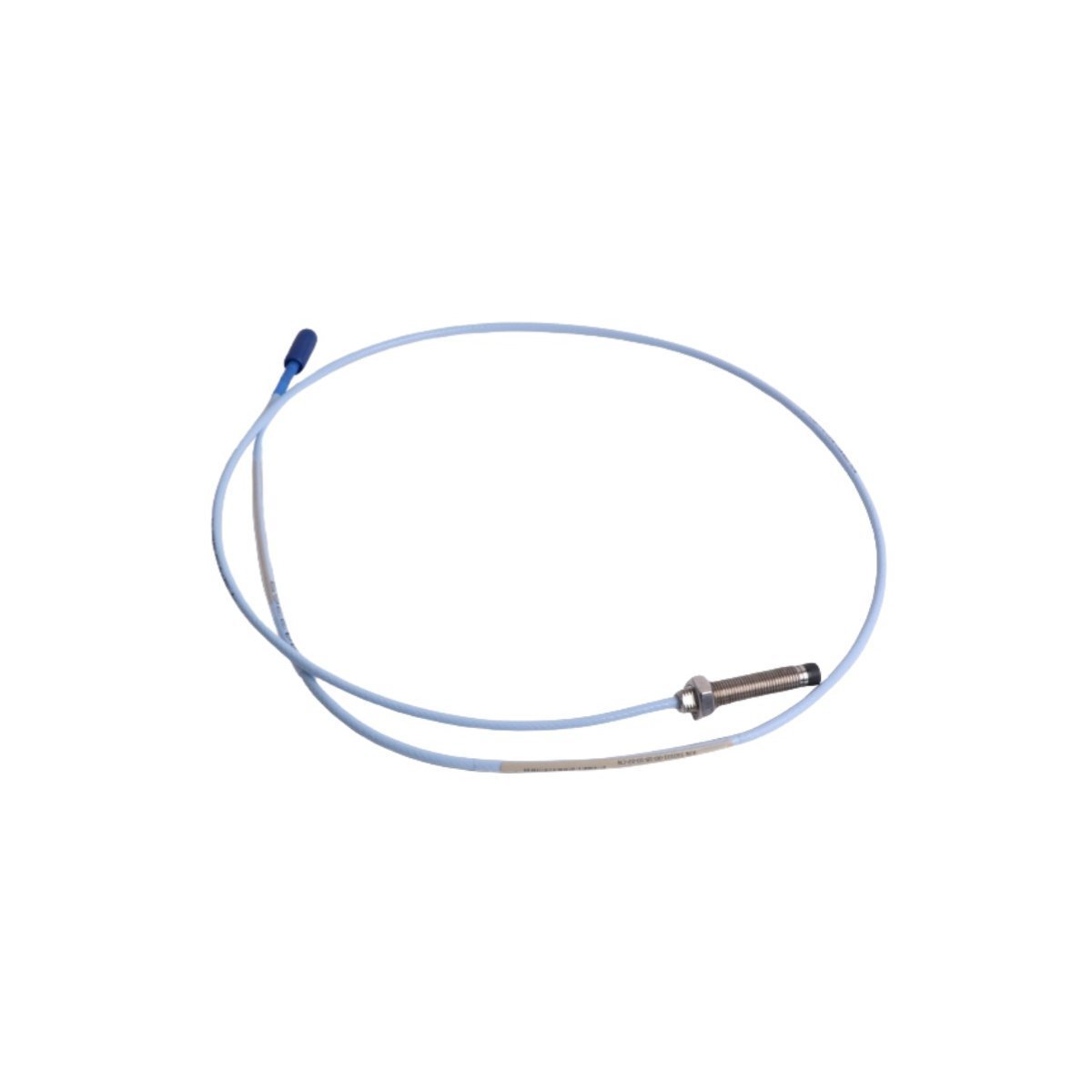

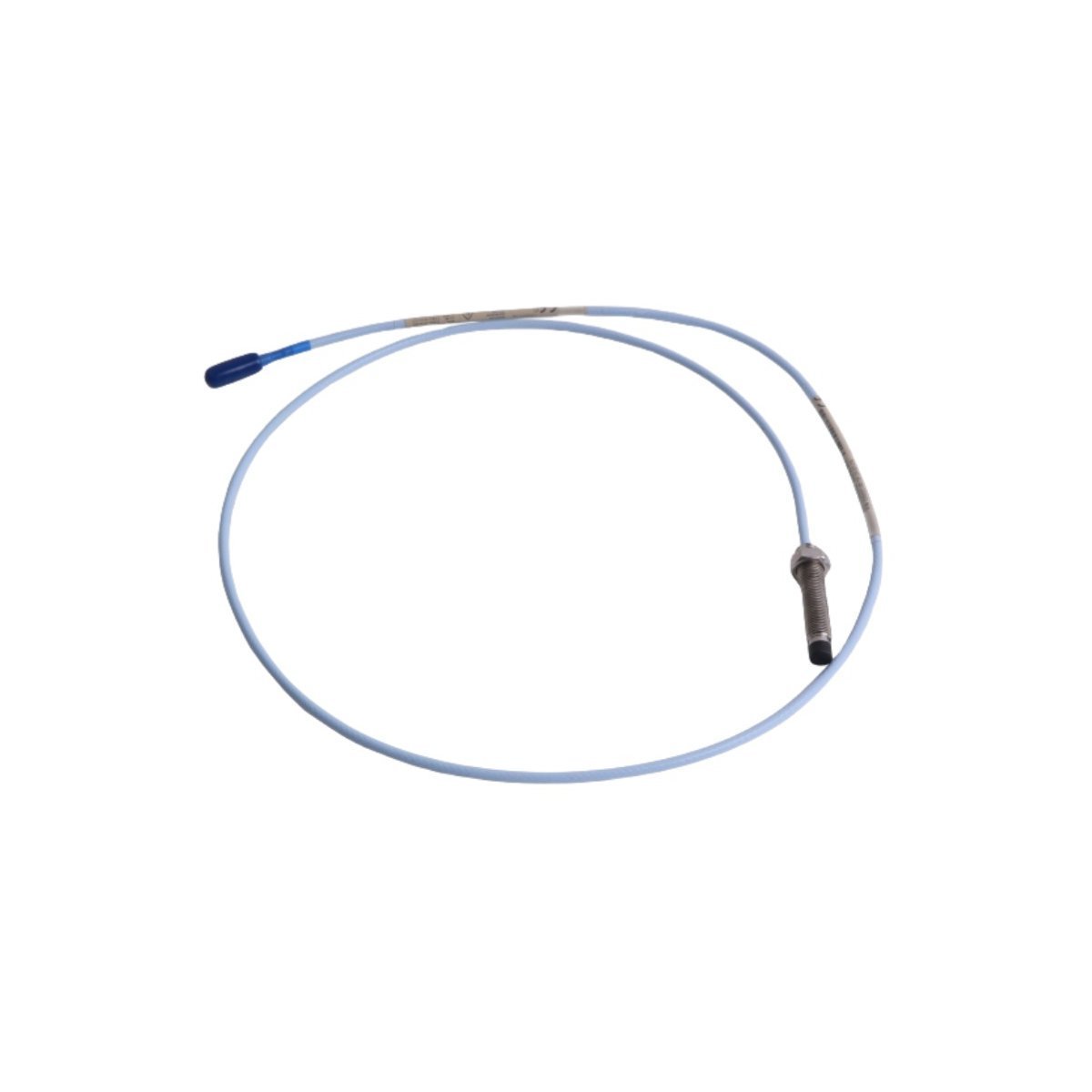

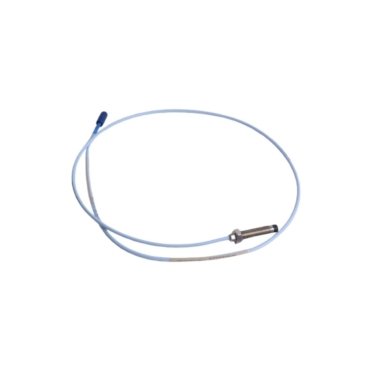

The Bently Nevada 330101-00-80-20-02-05 belongs to the 3300 XL 8mm Proximity Transducer System, a cornerstone in industrial machinery protection. This eddy current sensor measures the physical gap between the probe tip and a conductive target, converting this distance into a proportional electrical signal. It serves as a vital tool for monitoring shaft vibration and position in high-speed rotating equipment, enabling automated machinery protection and predictive maintenance data collection.
Advanced Physical Configuration
- Mounting Thread: 3/8-24 UNF imperial thread for standard industrial housings.
- Unthreaded Length: 8.0 inches (approximately 203 mm).
- Overall Case Length: 2.0 inches (approximately 51 mm).
- Total Cable Length: 2.0 meters (6.6 feet).
- Connector Protection: Miniature coaxial ClickLoc connector with a standard cable.
- Agency Approvals: Includes standard European (CE) and other international certifications for hazardous and industrial environments.
Technical Performance Standards
- Linear Range: 2.0 mm (80 mils), typically beginning at 0.25 mm (10 mils) from the probe face.
- Scale Factor: 7.87 V/mm (200 mV/mil) when paired with a 3300 XL Proximitor.
- Operating Temperature: Supports a broad range from -51°C to +177°C (-60°F to +351°F).
- Durability: The probe tip is molded from polyphenylene sulfide (PPS), providing excellent resistance to moisture and chemical ingress.
