Technical Specifications Summary
| Specification | Details |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Series | 3300 XL 8 mm |
| Mounting Thread | 3/8-24 UNF-2A |
| Frequency Response | 0 Hz to 10 kHz |
| Target Material | AISI 4140 Steel (Standard) |
| Resistance | 3.3 to 7.7 ohms (Center to Outer) |
| Net Weight | 0.20 kg |

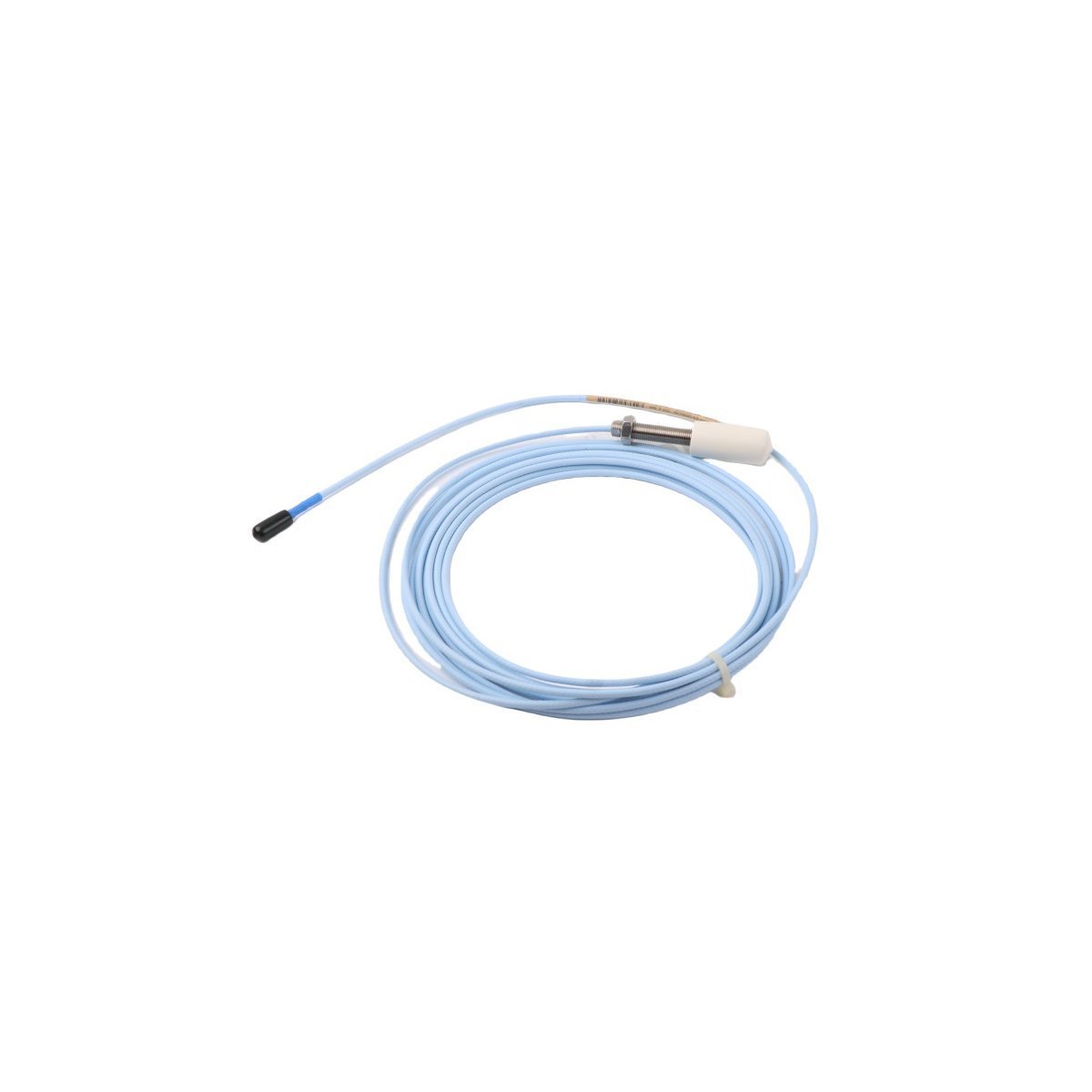

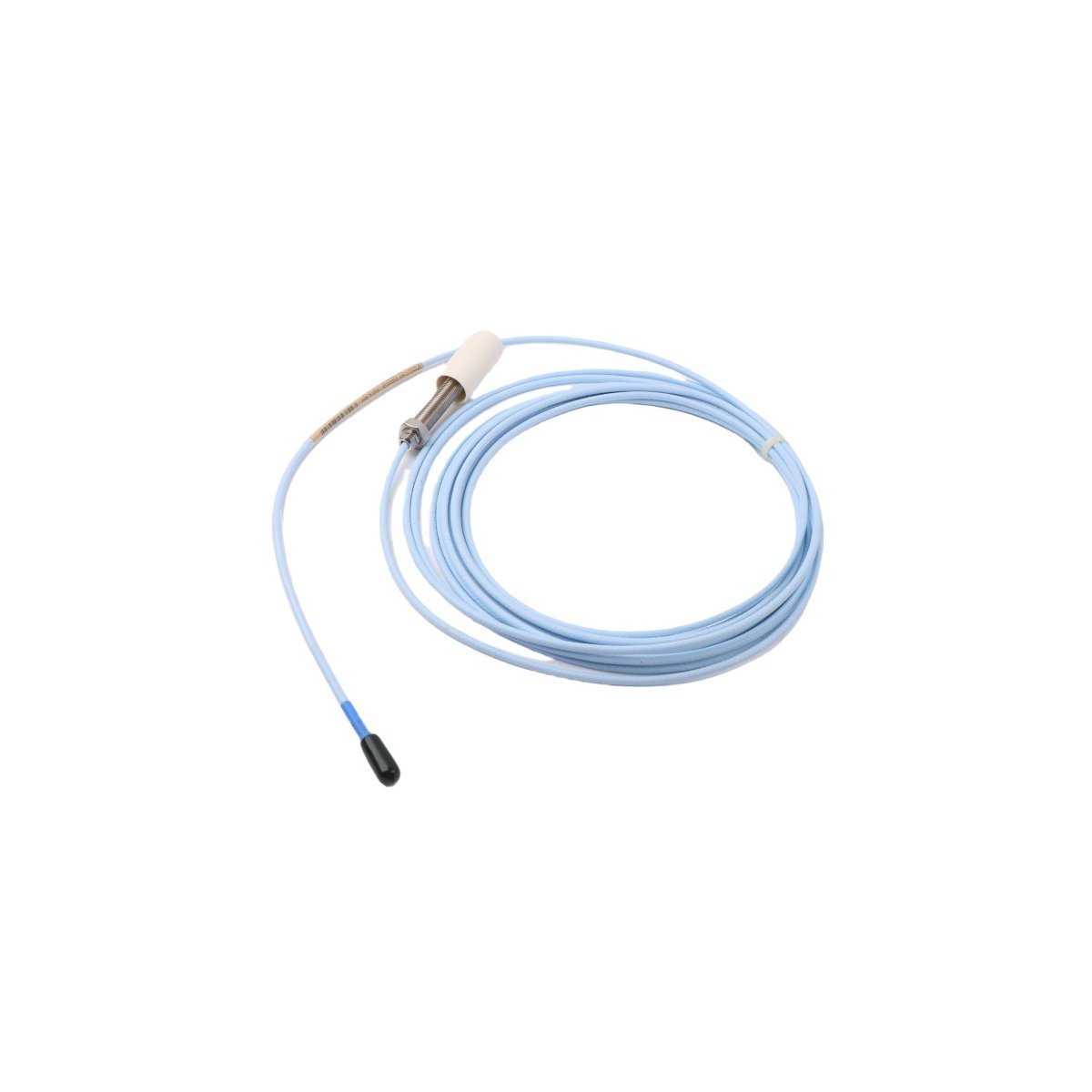

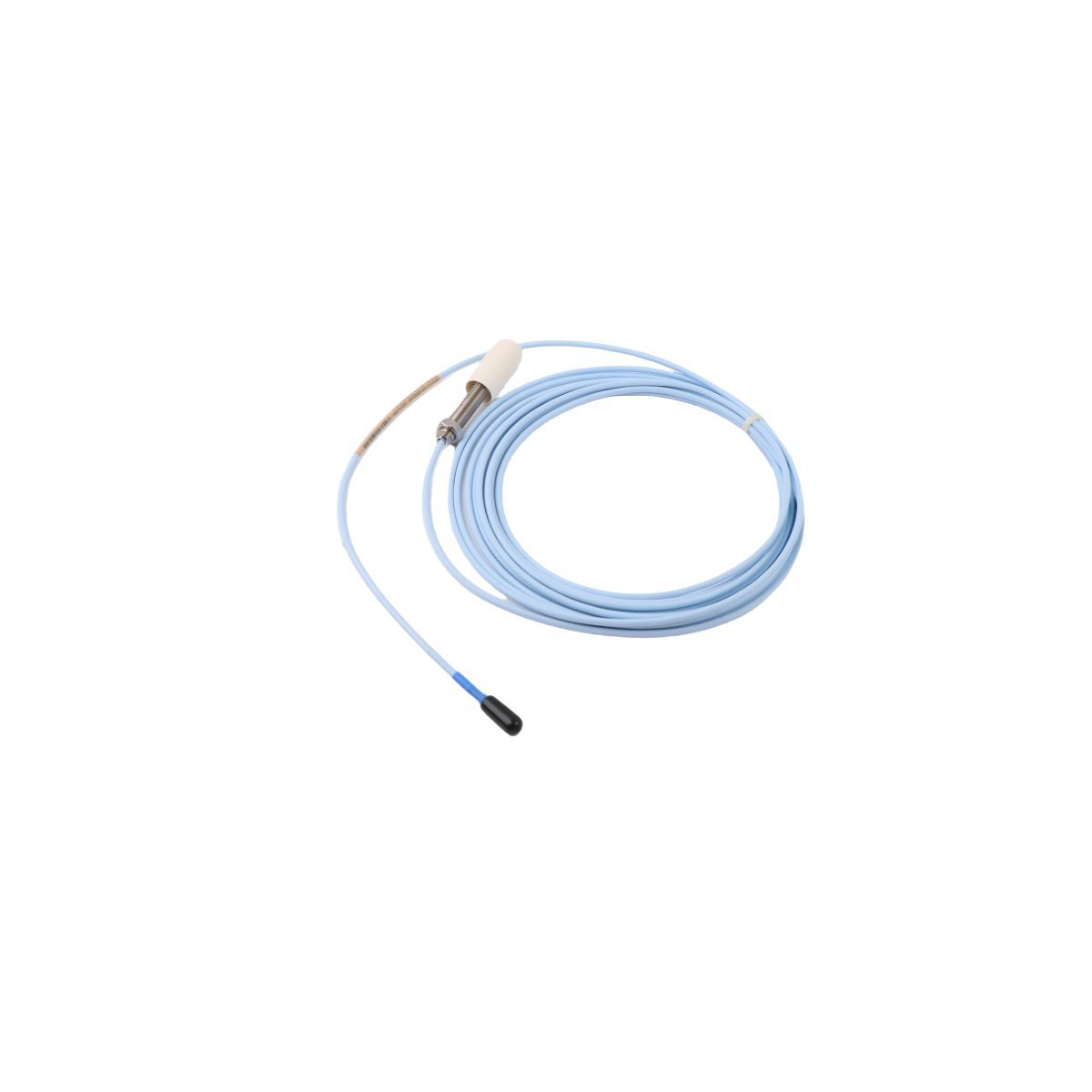

The Bently Nevada 330101-00-30-50-02-00 is a high-precision, non-contact proximity probe from the 3300 XL series. This transducer utilizes eddy current technology to monitor the health of rotating machinery. By measuring the distance between the probe tip and a conductive target, it tracks shaft vibration and axial position in real time. Because it captures minute mechanical changes, it serves as a critical component in predictive maintenance and machinery protection systems.
Technical Configuration
The specific model number 330101-00-30-50-02-00 describes a customized physical build. These parameters ensure the sensor fits specialized machine housings and mounting brackets:
- Unthreaded Length: 0.0 inches (fully threaded case).
- Overall Case Length: 3.0 inches.
- Total Length: 5.0 meters (16.4 feet).
- Connector Type: Miniature coaxial ClickLoc connector with connector protector.
- Agency Approval: Standard Multiple Approvals (CSA, ATEX, IECEx).
WordPress Product Short Description
The Bently Nevada 330101-00-30-50-02-00 is a 3300 XL 8mm proximity probe with a fully threaded 3.0-inch case and 5.0-meter cable. Designed for non-contact vibration and position monitoring, this rugged transducer provides laboratory-grade precision for turbines, compressors, and high-speed industrial machinery.
