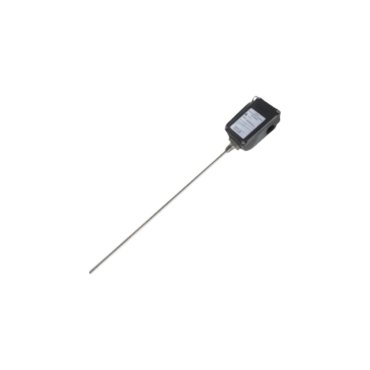

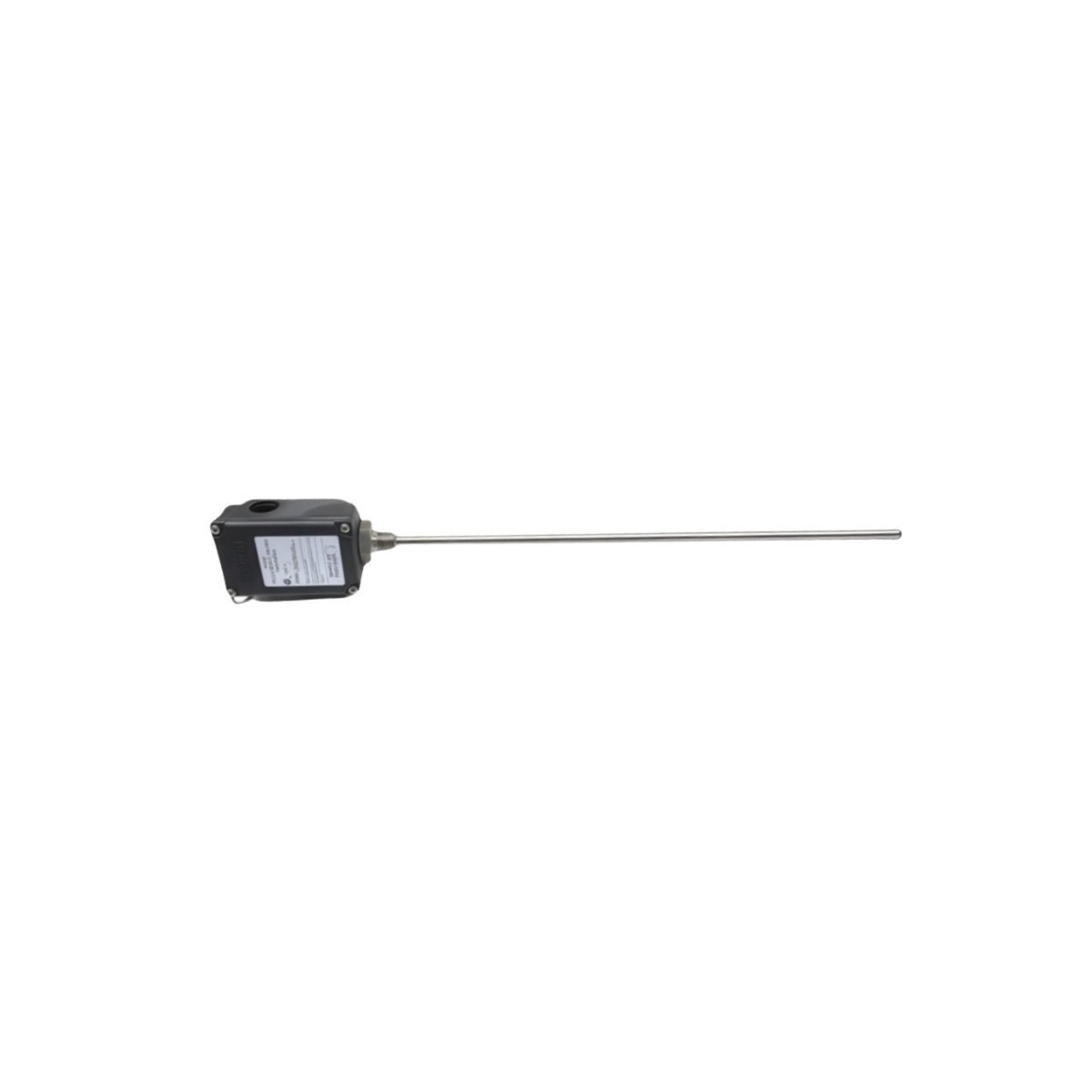

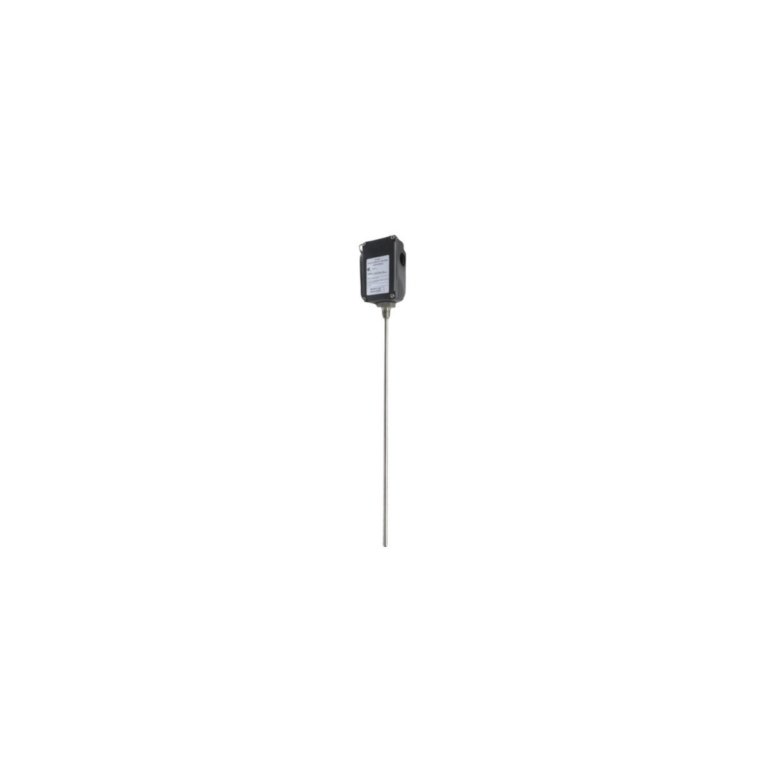

The Bently Nevada 32000-16-05-08-070-03-02 is a specialized explosion-proof housing assembly. It provides a robust protective enclosure for proximity probes used in critical machinery monitoring. This assembly allows for external adjustment of the probe’s gap while the machine is running. By shielding the sensor and its connections from harsh environments, it ensures consistent vibration and position measurements. Consequently, it maintains the integrity of the monitoring signal in hazardous industrial areas.
Technical Configuration Details
- Model Number: 32000-16-05-08-070-03-02
- Housing Material: Aluminum (Standard)
- Probe Option: 1/4-28 or 3/8-24 threads
- Conduit Outlet: 3/4-14 NPT
- Probe Penetration: 7.0 inches (070 option)
- Agency Approvals: CSA/NRTL/C, ATEX, IECEx
- Protection Rating: IP66 / Type 4X
- Weight: 1.2 kg
- Dimensions: 30.02 cm x 12.0 cm x 9.14 cm
Installation and Design Features
This housing assembly features a “sleeved” design that facilitates easy probe replacement. Maintenance teams can access the probe without disassembling the entire mounting hardware. Moreover, the aluminum construction offers excellent corrosion resistance in outdoor or chemical environments. The assembly includes a liquid-tight seal to prevent oil or process fluids from leaking out. Furthermore, the internal cable management prevents mechanical strain on the probe lead.
Industrial Applications
Heavy-duty industrial sectors utilize this assembly for Turbine Supervisory Instrumentation (TSI). It is frequently installed on large steam turbines, centrifugal compressors, and gearbox housings. The explosion-proof rating makes it suitable for oil and gas refineries and petrochemical plants. Additionally, it serves a critical role in power generation facilities by protecting vibration sensors from steam and high temperatures. These assemblies ensure safety in Class I, Division 1 and Zone 1 environments.
Maintenance and Reliability
The 32000 series reduces maintenance downtime through its innovative adjustment mechanism. Operators can fine-tune the sensor gap via the external housing cap. This feature eliminates the need to halt production for sensor recalibration. Because the housing is brand new and built to API 670 standards, it offers maximum service life. Using this assembly significantly lowers the risk of signal loss due to environmental contamination or physical damage.
