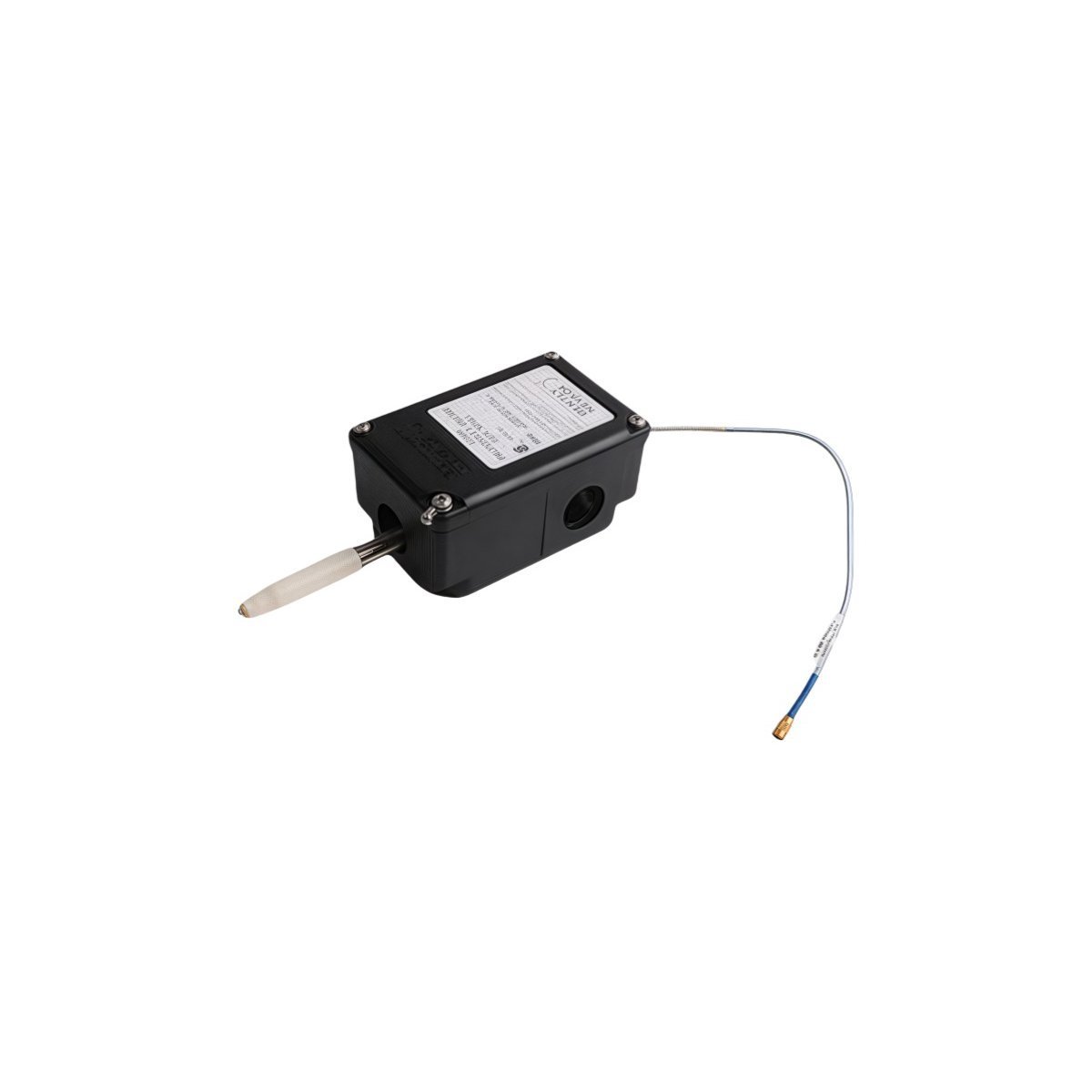

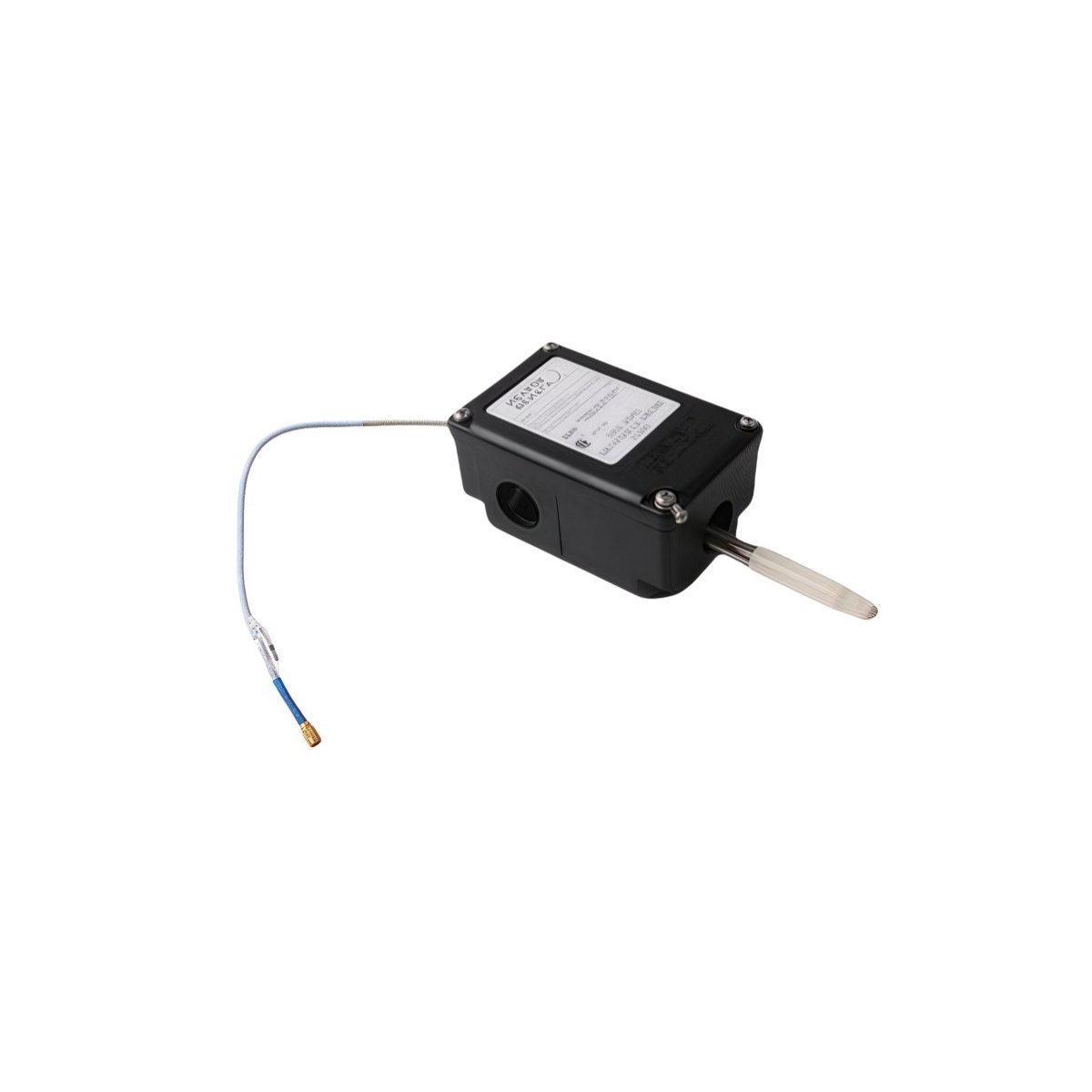

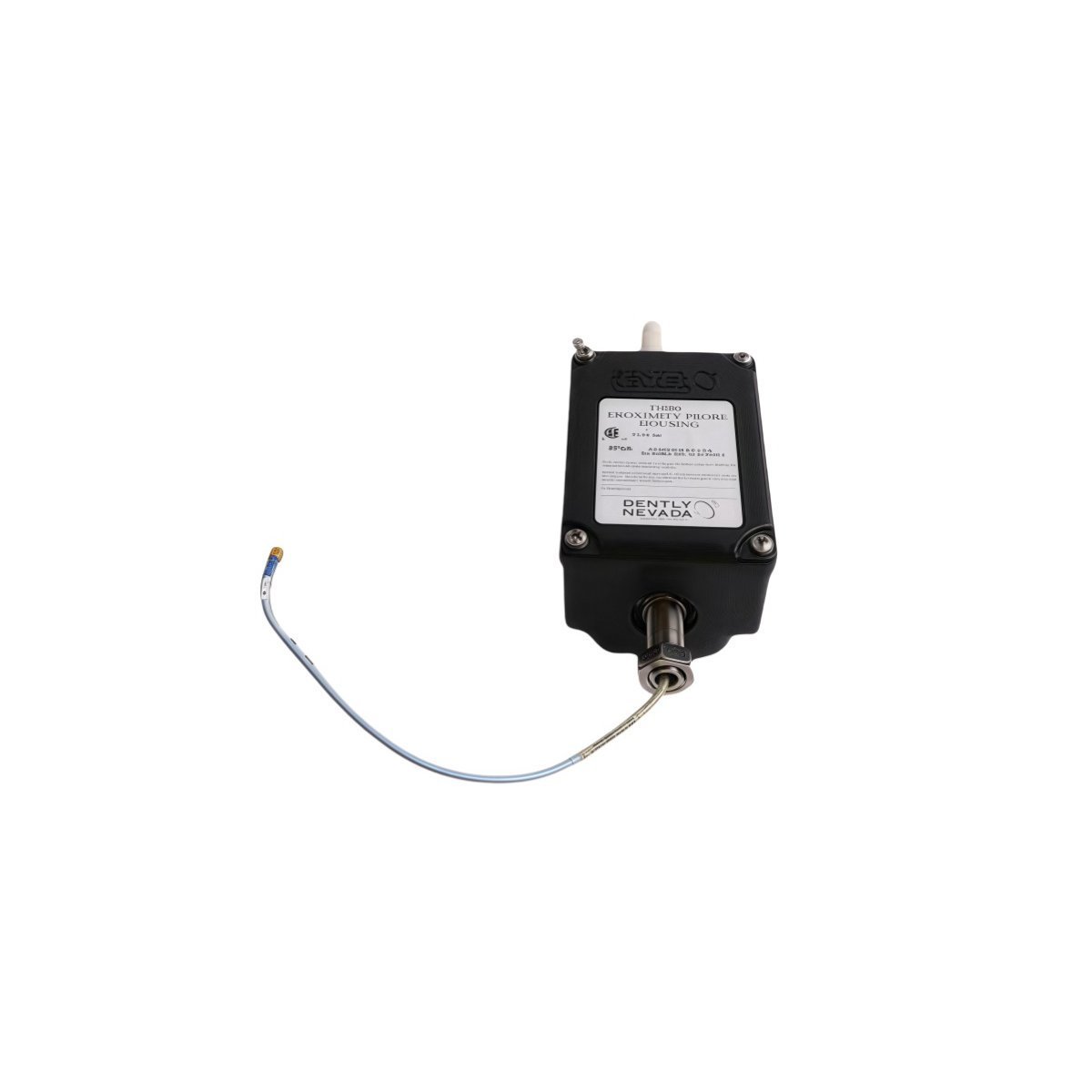

The Bently Nevada 31000-28-05-15-042-06-02 serves as a protective enclosure for proximity transducers in industrial environments. This assembly enables external probe access without requiring machine casing removal. Technicians can perform precise gap adjustments or replace sensors during active operations. This design minimizes maintenance downtime while protecting internal machine components from environmental exposure.
Technical Configuration and Materials
This specific model utilizes a glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic housing. Conductive fibers within the material enhance structural integrity and chemical resistance. The internal sleeve and external fasteners consist of high-grade stainless steel to prevent corrosion. The unit maintains an IP66 and CSA Type 4X rating against moisture and dust.
- Probe Penetration: 4.2 inches (106.7 mm)
- Mounting Thread: 3/4-14 NPT
- Conduit Connection: 3/4-14 NPT with reducer and plugs
- Operating Temperature: –51 °C to +105 °C
- Compliance Standards: API 670 certified for machinery protection
- Integrated Sensor: 3300 XL 8 mm proximity probe (0.5 m cable)
Primary Industrial Applications
Engineers deploy this housing assembly for Turbine Supervisory Instrumentation (TSI) systems. It facilitates radial vibration monitoring and Keyphasor speed measurements on critical assets. Typical installations include steam turbines, centrifugal compressors, and heavy-duty gearboxes. The explosion-proof rating allows for safe operation in hazardous petroleum and power generation facilities.
Operational Advantages
The housing supports intrinsically safe installations when used with approved barriers. Its external gapping mechanism ensures accurate sensor positioning for reliable data collection. The robust construction survives high-vibration environments without degrading signal quality. Stainless steel hardware reduces the risk of mechanical binding over long service periods.
