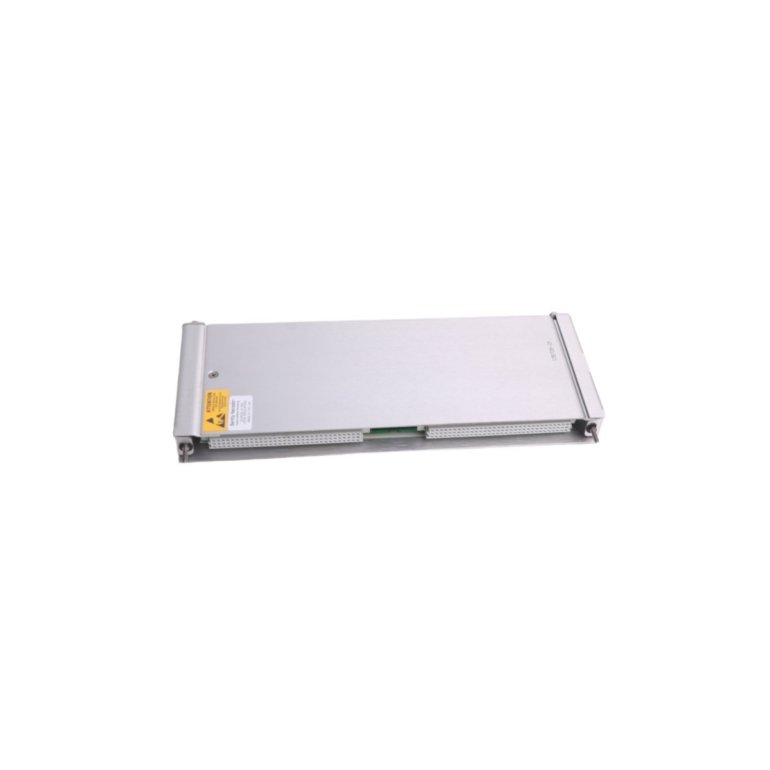

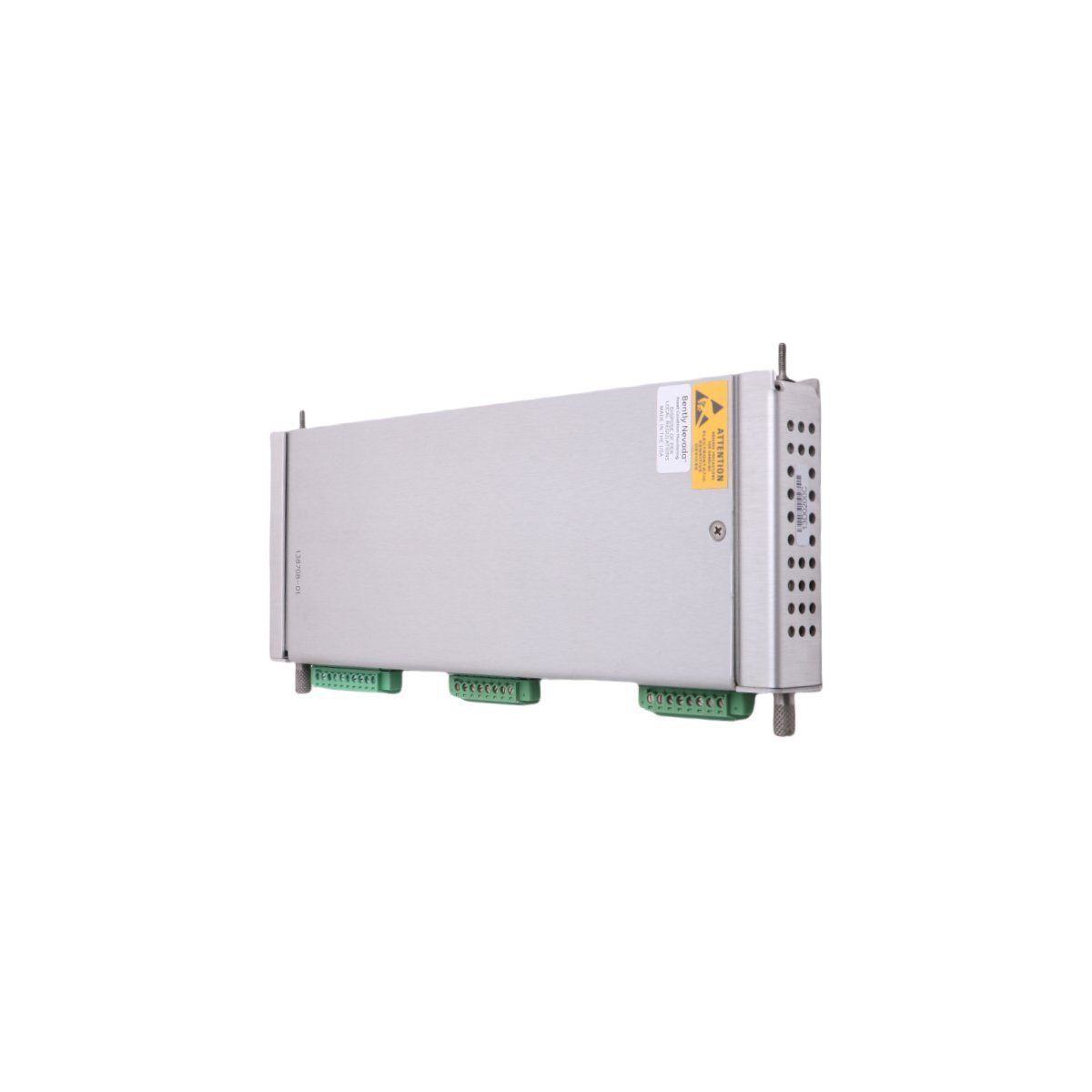

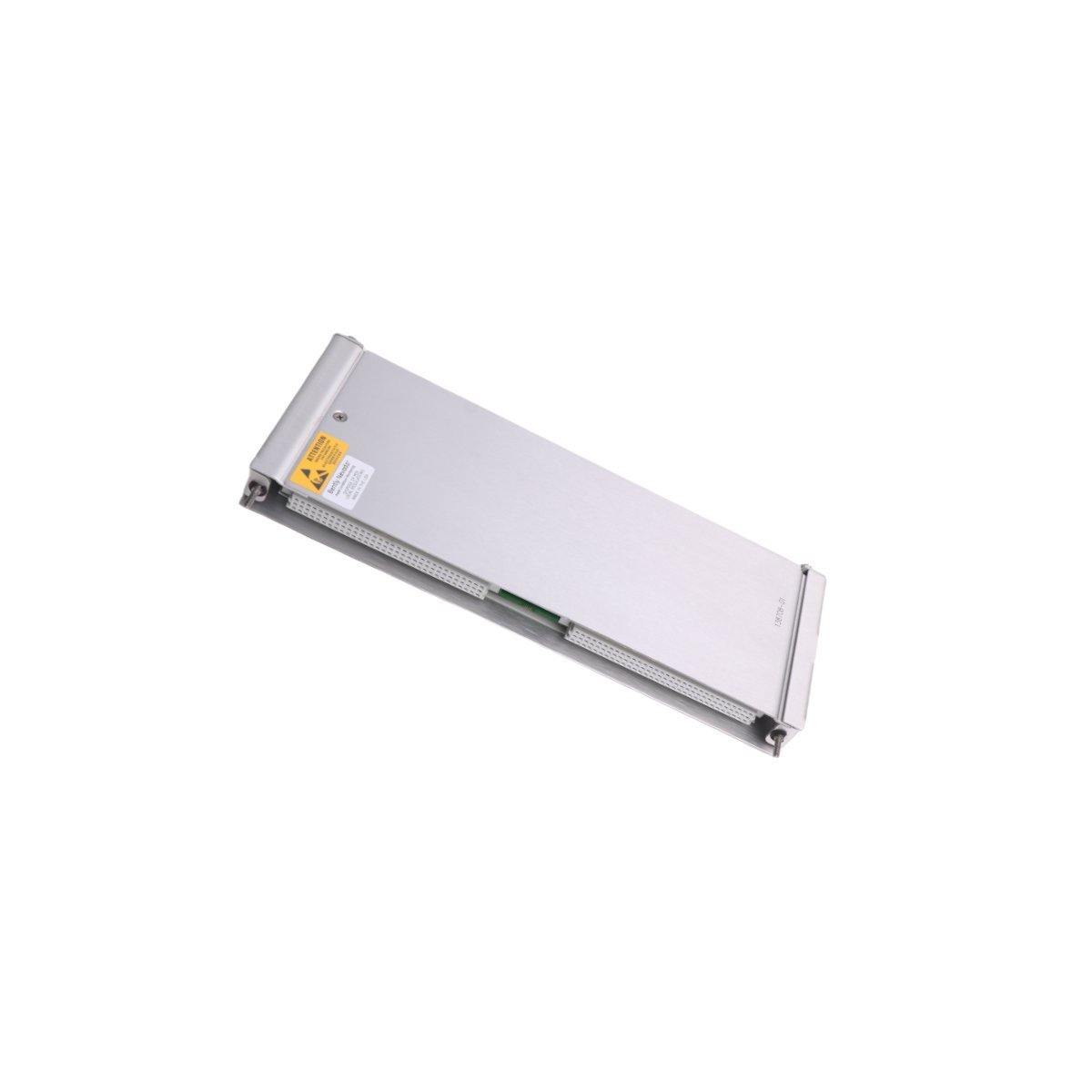

Technical Specifications
| Feature | Details |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 138708-01 |
| Module Type | Proximity Input I/O (Shaft Absolute) |
| System Compatibility | 3500/42M Proximitor Seismic Monitor |
| Termination Type | Internal Terminations |
| Input Support | Proximity Probes and Seismic Transducers |
| Operating Temperature | -30°C to +65°C |
| Weight | 0.4 kg |
| Dimensions | 2.5 x 11.2 x 24.2 cm |
Applications in Heavy Industry
Reliability engineers typically deploy the 138708-01 in power generation and petrochemical facilities. It is especially effective for monitoring large steam turbines, gas turbines, and centrifugal compressors. By providing shaft absolute data, the module helps operators distinguish between housing-related vibration and internal rotor issues. This diagnostic clarity is essential for making informed decisions during machine startups or load changes. Furthermore, the module facilitates predictive maintenance strategies that extend equipment lifespan and reduce unplanned outages.
Core Engineering Advantages
Integrating the 138708-01 module into a protection framework offers several performance benefits:
- Accurate Radial Displacement: Captures precise shaft motion data to prevent catastrophic mechanical contact.
- Simplified Wiring: Internal termination blocks reduce the need for external junction hardware.
- Seamless 3500 Integration: Fully compatible with Bently Nevada’s standard machinery protection software.
- Environmental Resilience: Built to withstand the high-vibration and thermally variable environments of turbine decks.
