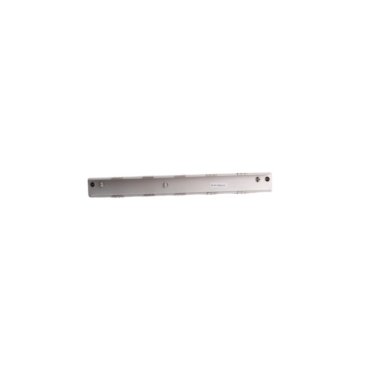

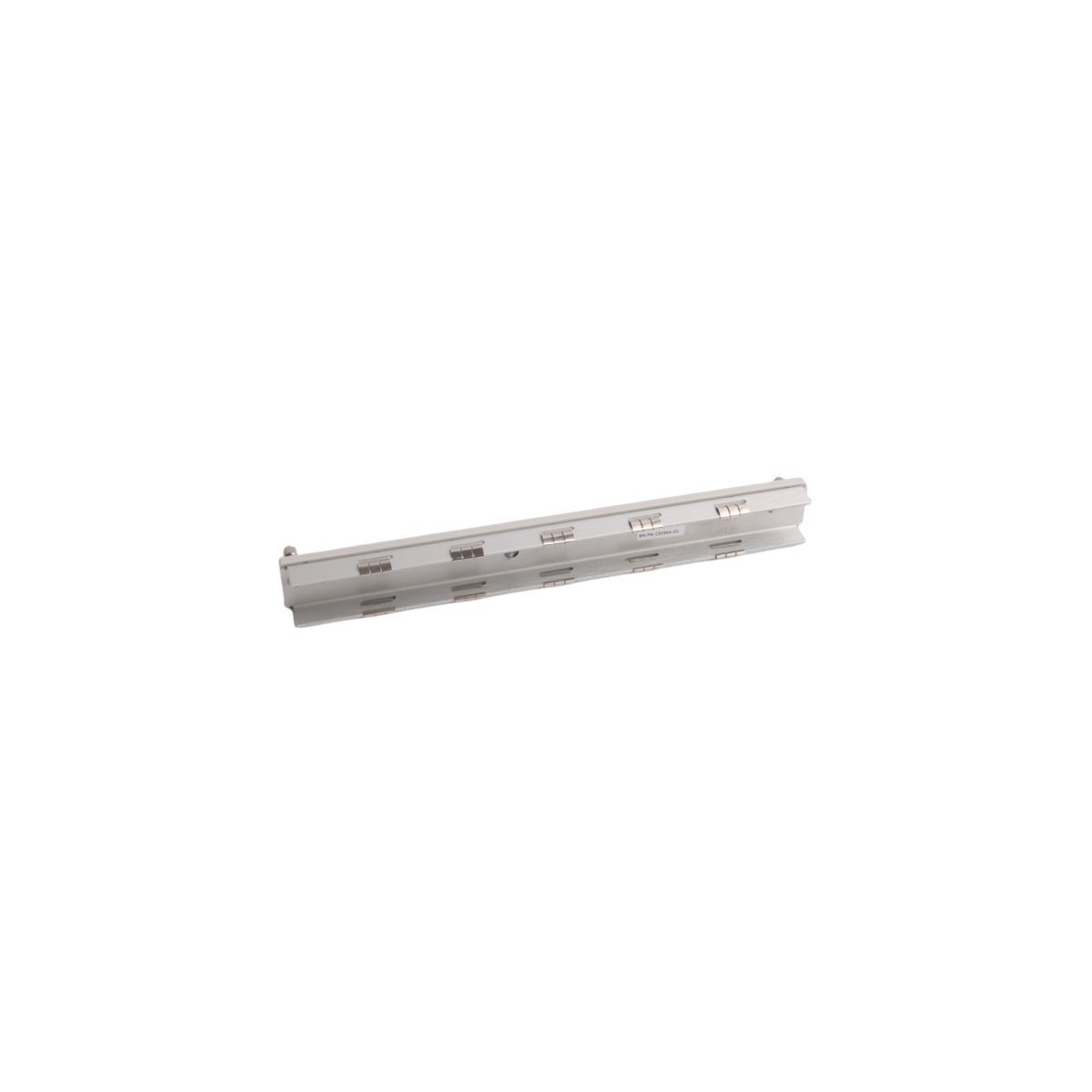

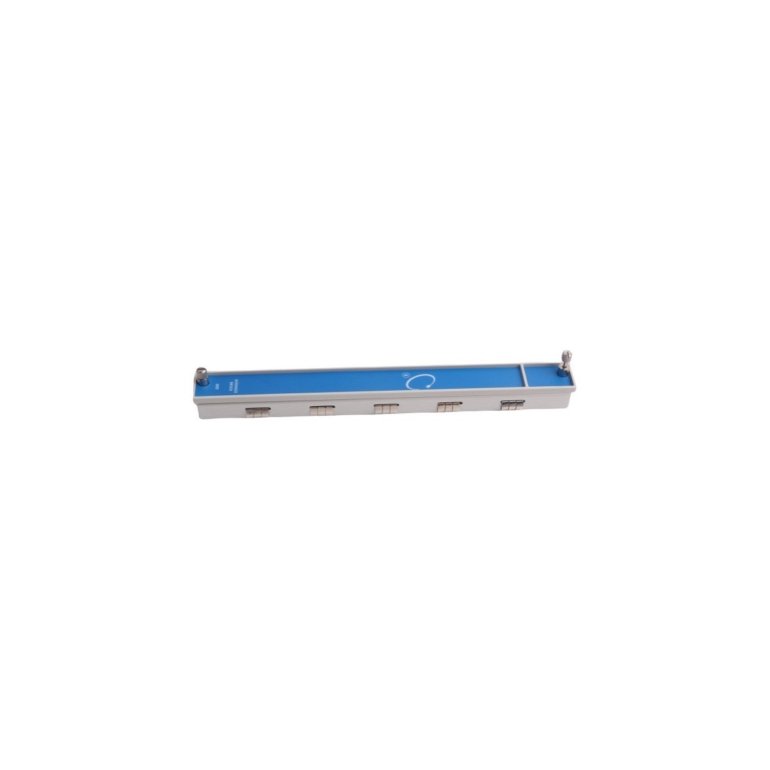

Bently Nevada 130944-01 128275-01 Blank Plate

Technical Specifications

System Future-Proofing and Maintenance

Installing blank plates like the 130944-01 is a best practice for future system scalability. These plates keep the reserved slots clean and ready for future expansion modules, such as additional vibration or temperature monitors. Because the 3500 system often operates in harsh climates, the plate is designed to withstand a wide temperature range without warping. It also helps the rack meet specific ingress protection requirements by sealing the front or rear openings of the chassis.

Key Functional Benefits

The use of the 128275-01 blanking assembly provides several advantages for facility managers:

• Optimized Thermal Management: Directs cooling air across active components to prevent thermal throttling.
• Backplane Safety: Shields sensitive pin connectors from environmental contaminants and physical damage.
• Professional Aesthetics: Provides a clean, finished appearance for the control cabinet.
• Rapid Installation: Standardized dimensions allow for quick placement or removal during system upgrades.

Durable Design and Environmental Shielding

Engineers manufacture these blank plates from high-grade aluminum to provide a lightweight yet robust barrier. The 130944-01 protects the internal backplane from dust, debris, and accidental contact which could cause electrical shorts. Furthermore, using these plates helps maintain the electromagnetic interference (EMI) shielding integrity of the rack. This protection is necessary in high-voltage environments like power plant turbine decks or industrial compressor stations. The plate installs easily using standard captive screws, providing a secure fit that resists industrial vibrations.
