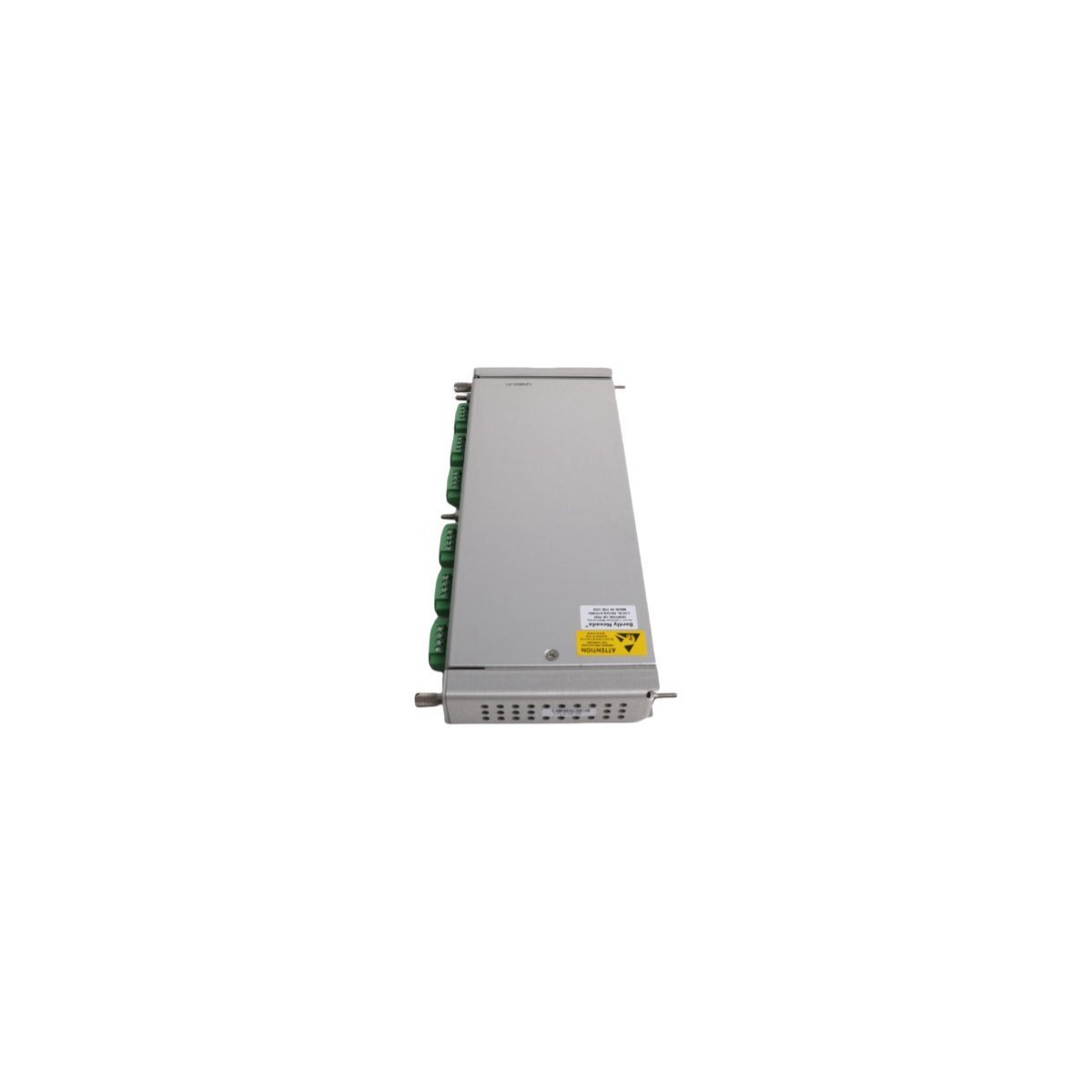

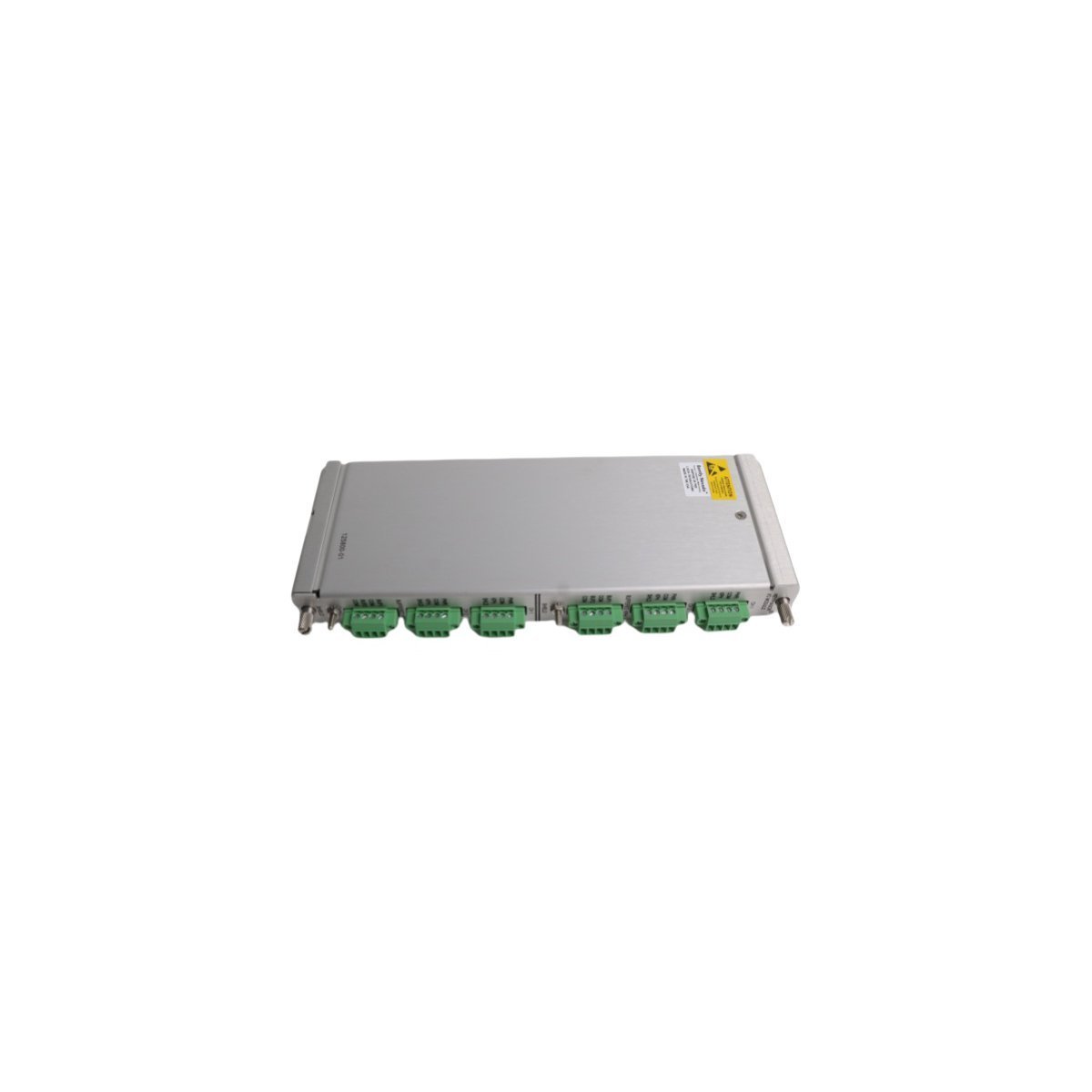

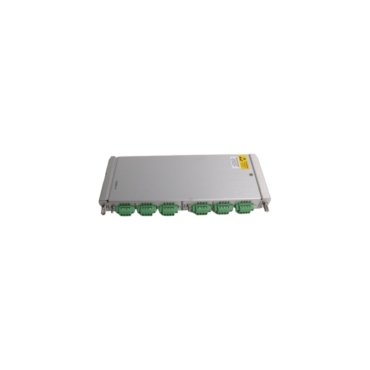

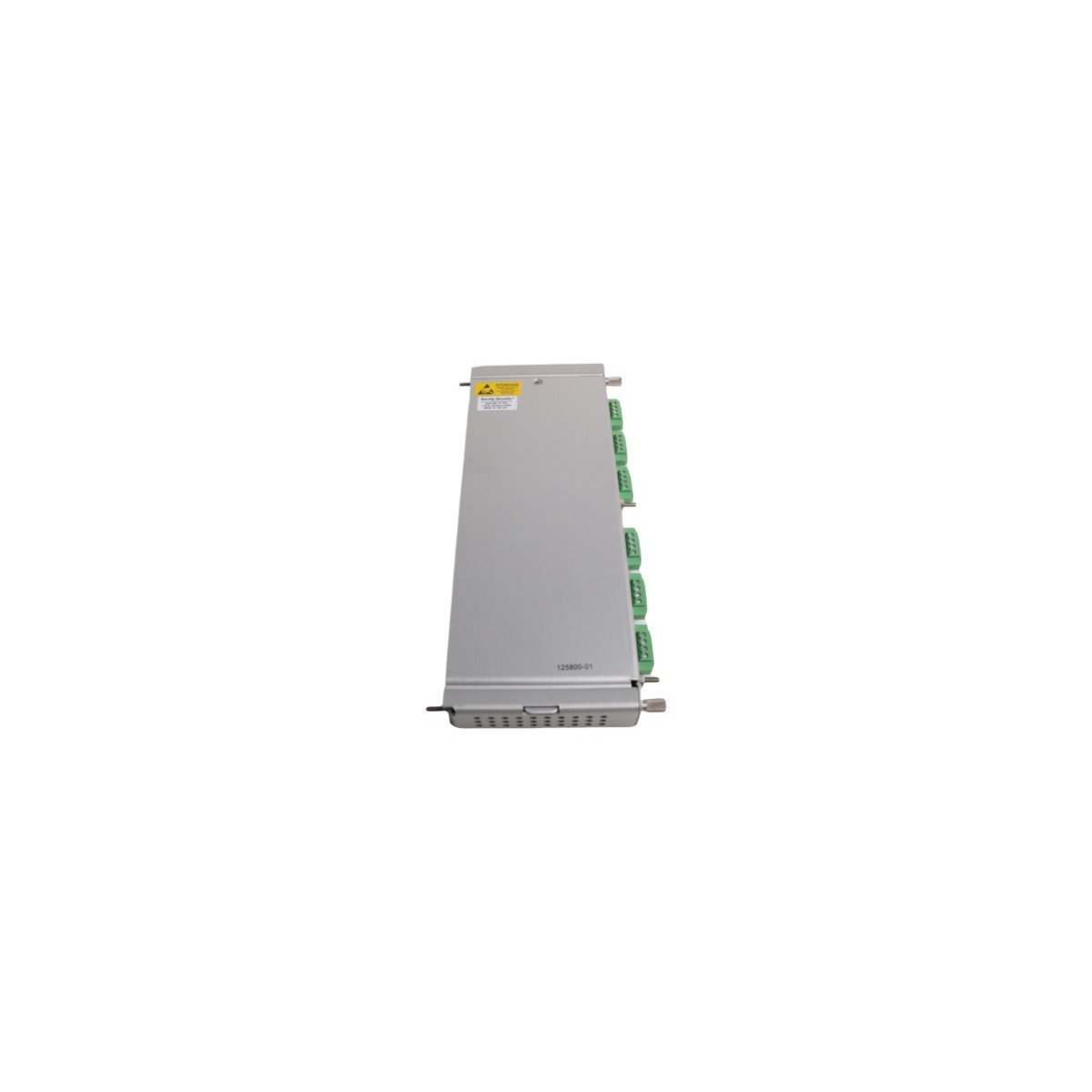

Bently Nevada 125800-01 Keyphasor I/O Module

The Bently Nevada 125800-01 acts as a critical interface component within the 3500 series machinery protection system. This Keyphasor I/O module processes pulse signals from proximity probes or magnetic pickups to provide essential timing data for rotating equipment. By generating a once-per-turn reference signal, the module allows the system to calculate precise shaft speed and vector parameters, such as 1X vibration amplitude and phase. Consequently, reliability engineers depend on this data to diagnose mechanical imbalances and track transient machinery behavior during startup and shutdown sequences.

Core Technical Specifications

The 125800-01 is designed for high-density rack installations and features an internal termination architecture. The following table highlights the essential physical and operational data:

Advanced Data Management and Connectivity

This module specifically supports communication processors like the TDI (Transient Data Interface), facilitating advanced data management across industrial networks. Because the 125800-01 utilizes proprietary Bently Nevada protocols, it ensures seamless interoperability with TDXnet and DDIX architectures. The internal termination design simplifies the field wiring process by allowing direct connection to the module’s terminal blocks without requiring external interface boards. Furthermore, this streamlined setup reduces the total footprint of the monitoring hardware, making it an excellent choice for offshore platforms or compact control rooms.

Operational Benefits for Asset Protection

The 125800-01 enhances system reliability through its robust electrical isolation and enhanced signal processing algorithms. It effectively filters out electronic noise, ensuring that only genuine timing pulses reach the processor. Moreover, the module’s ability to provide multi-channel phase references allows for the synchronized monitoring of complex multi-train machinery. By integrating this Keyphasor I/O solution, industrial operators achieve superior machinery diagnostic capabilities, which directly translates to reduced maintenance costs and extended equipment life cycles in power generation and petrochemical sectors.
