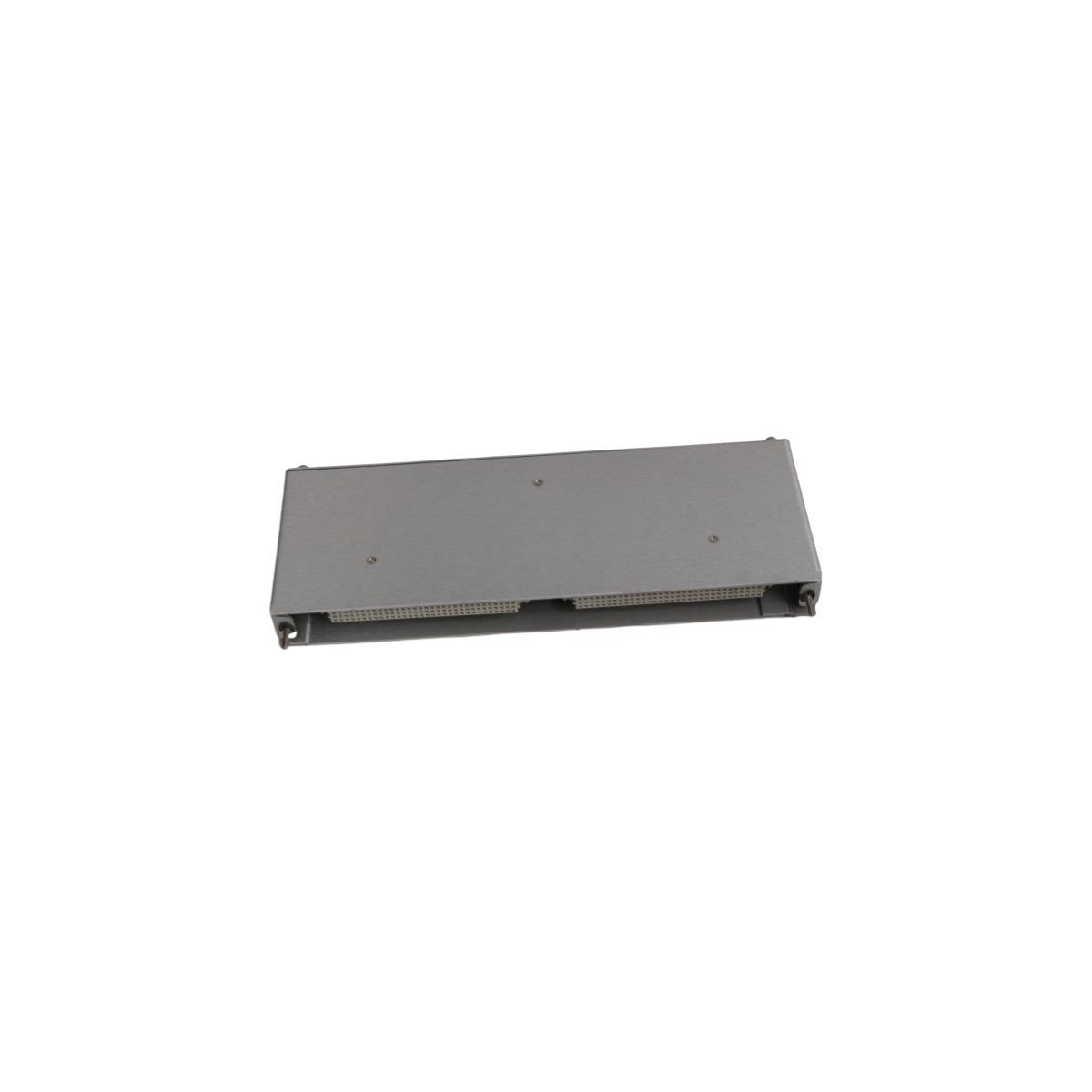

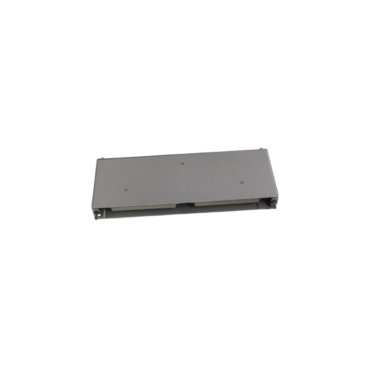

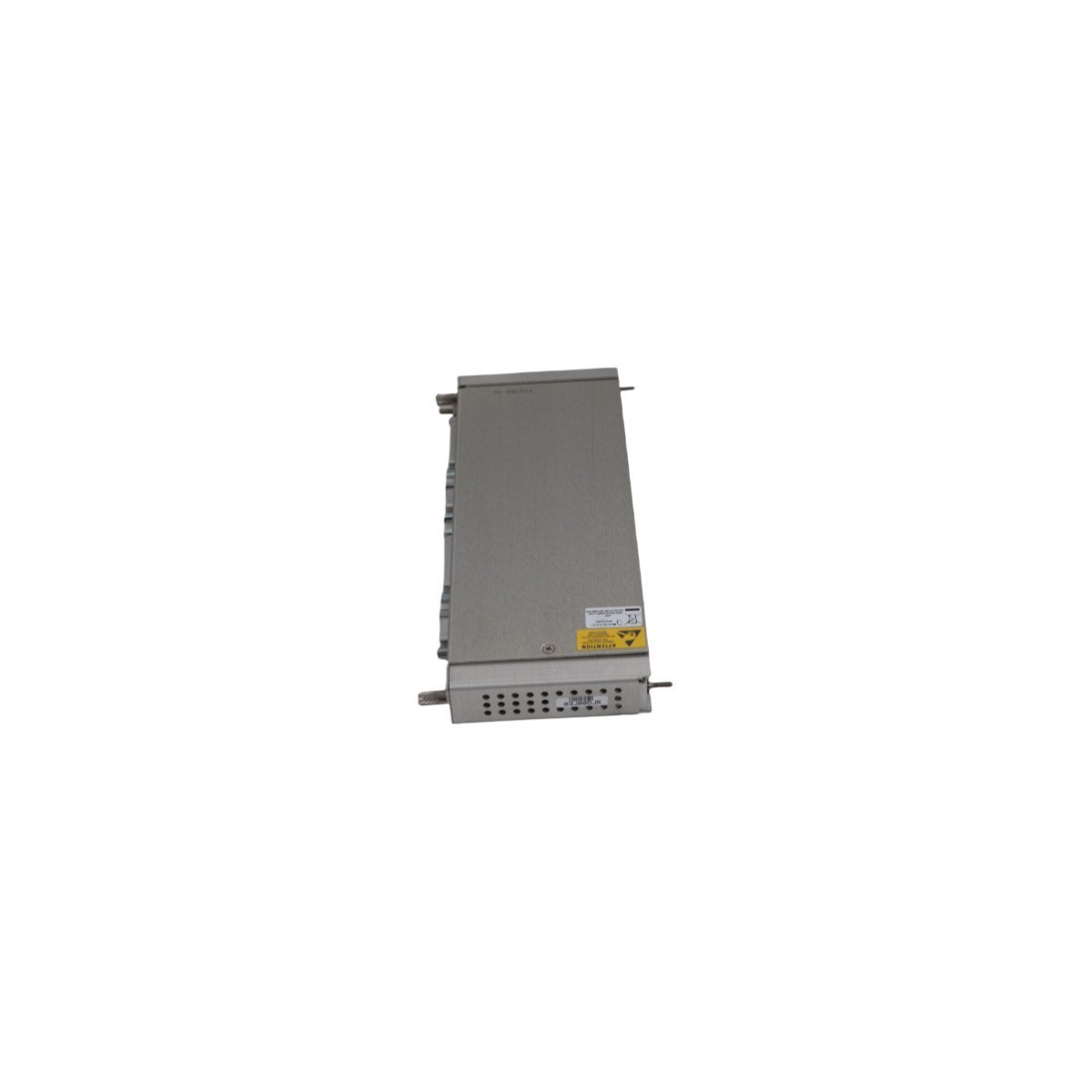

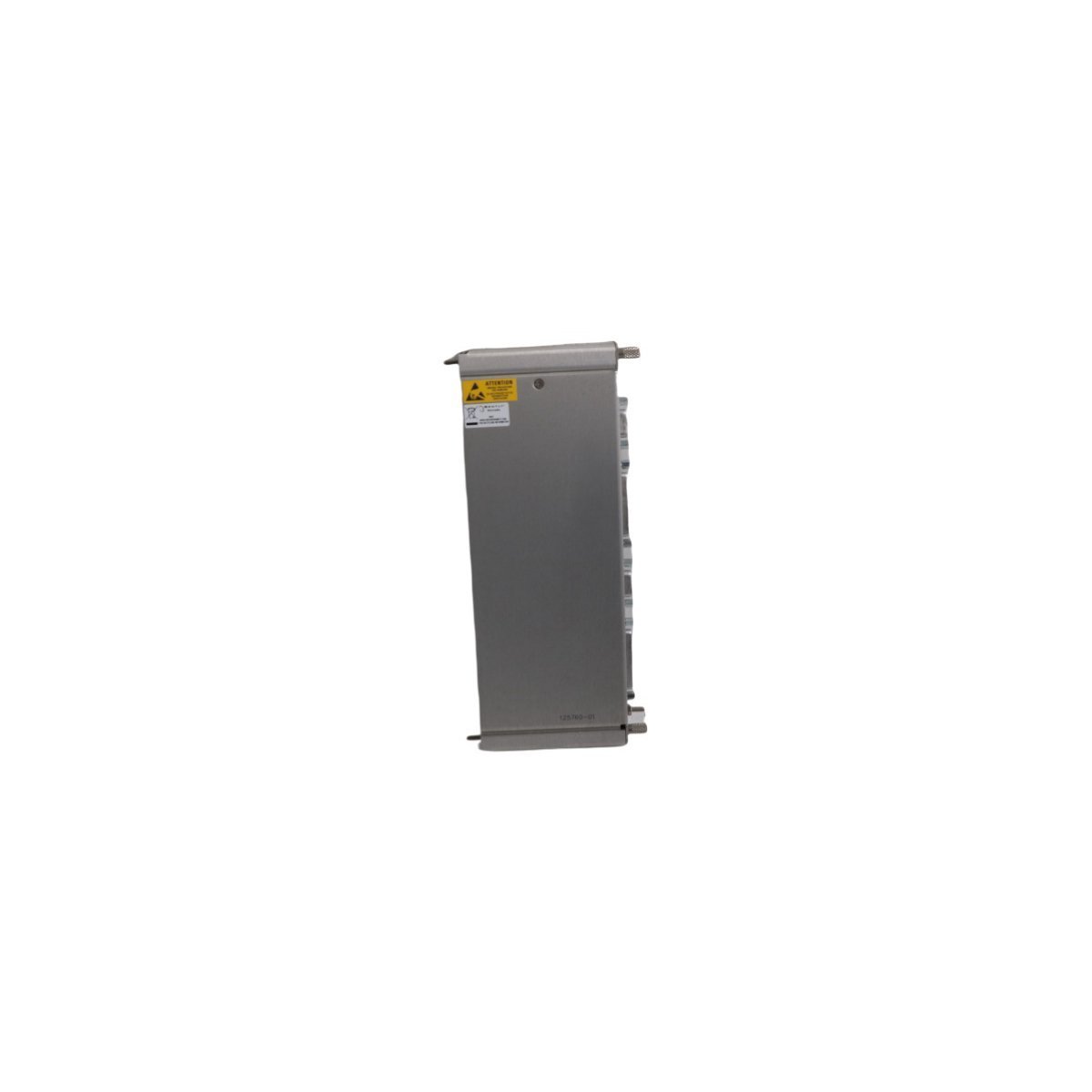

Bently Nevada 125760-01 Data Manager I/O Module

This I/O module features a streamlined, low-profile design optimized for backplane integration. The following table details the primary physical and operational parameters:

The Bently Nevada 125760-01 serves as a specialized Data Manager I/O interface for the 3500 Machinery Protection System. This module facilitates the vital link between internal monitor racks and external condition monitoring software, enabling the acquisition of high-resolution vibration and status data. By acting as the physical connection point for communication processors, the 125760-01 ensures that critical asset information reaches plant operators without delay. This capability allows for sophisticated transient data collection and steady-state monitoring, which is essential for protecting large-scale rotating equipment in the power generation and oil and gas sectors.

Advanced Processor Compatibility

The 125760-01 architecture provides broad compatibility with various Bently Nevada communication processors, including the TDXnet, TDIX, and DDIX interfaces. This flexibility allows the module to support diverse proprietary protocols while maintaining high-speed throughput for real-time process control. Furthermore, the unit supports Ethernet-based communication routing, which simplifies the integration of the 3500 rack into modern industrial plant networks. Because the hardware uses industrial-grade components, it maintains signal accuracy even when subjected to the thermal and electrical stress common in industrial control rooms.

Installation and System Maintenance

Engineers typically install the 125760-01 in the rear of the 3500 rack at Slot 1, directly interfacing with the primary Rack Interface Module (RIM). This strategic placement minimizes internal cabling and reduces the complexity of the rack’s electrical architecture. The lightweight and compact form factor simplifies the replacement of legacy units during routine maintenance intervals, effectively reducing potential system downtime. By implementing this authentic I/O module, facilities ensure seamless data synchronization across their TSI infrastructure, ultimately enhancing the safety and operational efficiency of their critical machinery.
