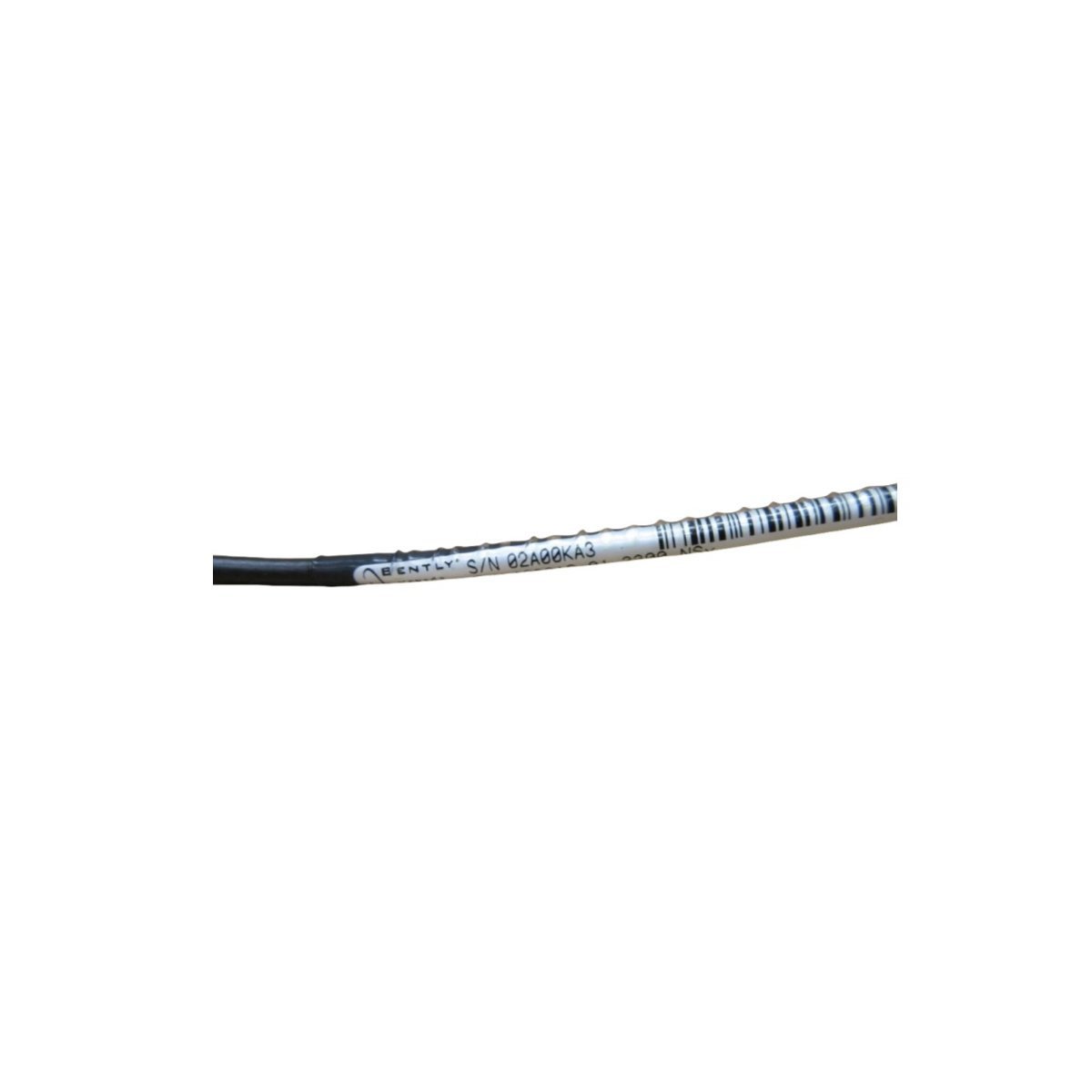

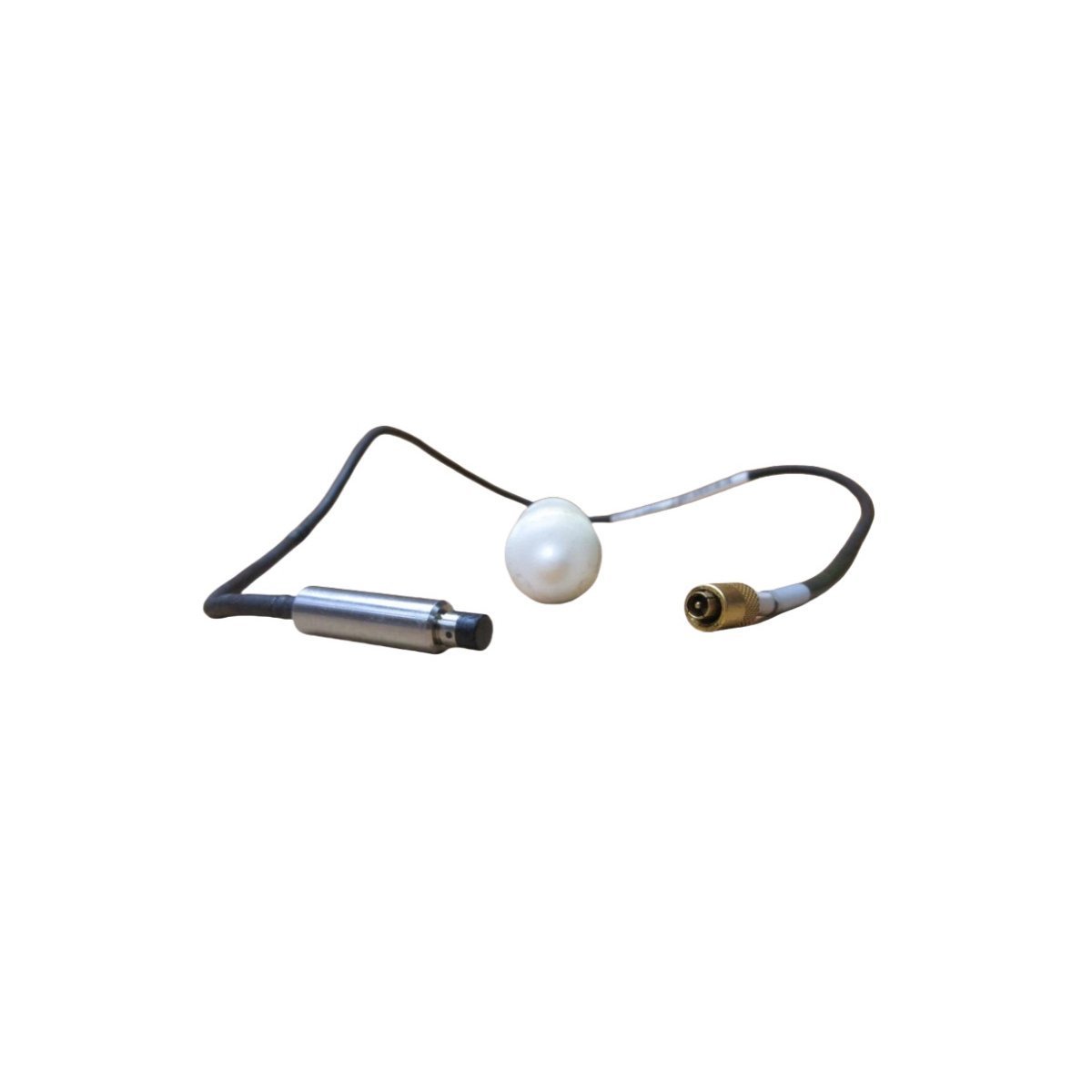

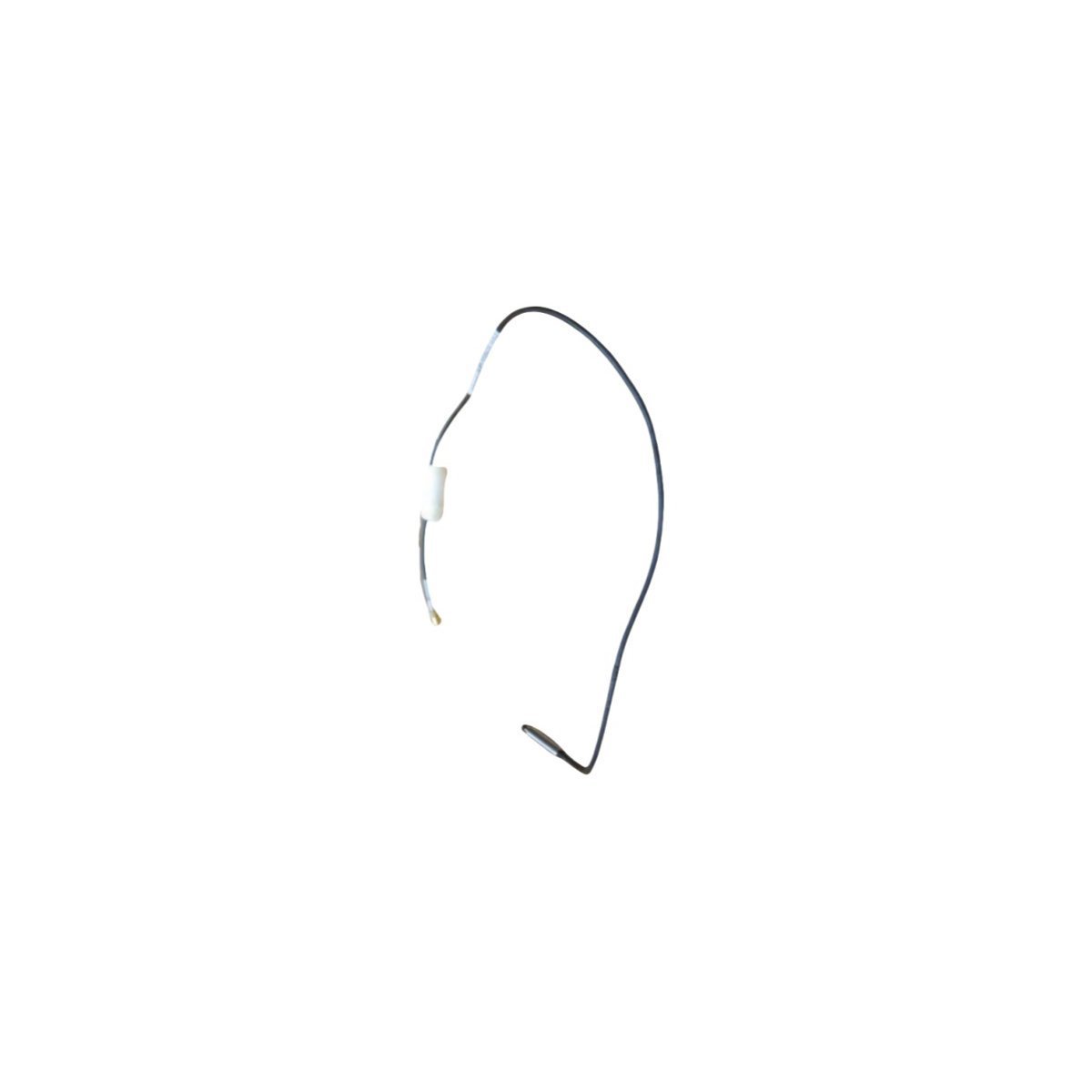

The Bently Nevada 123616-01 serves as a high-performance signal processing unit within the 3300 XL NSv (Narrow Side View) Transducer System. This device functions as a critical communication bridge for proximity probes in confined industrial spaces. It produces a high-frequency radio frequency (RF) signal to monitor shaft movement and converts eddy current fluctuations into a precise voltage output. Engineers specifically select this sensor for environments where standard 8mm probes encounter physical space restrictions or suffer from side-view metal interference.
Precision Signal Processing and Construction
Technical integrity defines the core of the 123616-01 design. The sensor contains advanced electronics that transform physical mechanical displacement into a linear voltage signal. Its compact physical profile facilitates high-density mounting within industrial control cabinets. Additionally, the internal circuitry offers robust immunity against radio frequency interference (RFI). This shielding maintains signal precision even when technicians install the unit near high-voltage machinery or wireless communication hardware. The sensor also features full encapsulation to repel moisture and resist heavy vibration, which guarantees a long operational life in rigorous plant settings.
Key Technical Specifications
The 123616-01 operates optimally when paired with 3300 XL NSv probes and extension cables. It delivers high-resolution data for both dynamic vibration analysis and static axial position monitoring.
- Model Number: 123616-01
- System Series: 3300 XL NSv
- Linear Range: 1.5 mm (60 mils) typical
- Output Signal: -200 mV/mil (7.87 V/mm) scale factor
- Mounting Options: Standard 35mm DIN rail or panel mounting
- Housing Material: Durable Polyphenylene sulfide (PPS) and aluminum
- Temperature Range: -35°C to +85°C (-31°F to +185°F)
- Safety Compliance: ATEX, IECEx, and North American hazardous area ratings
