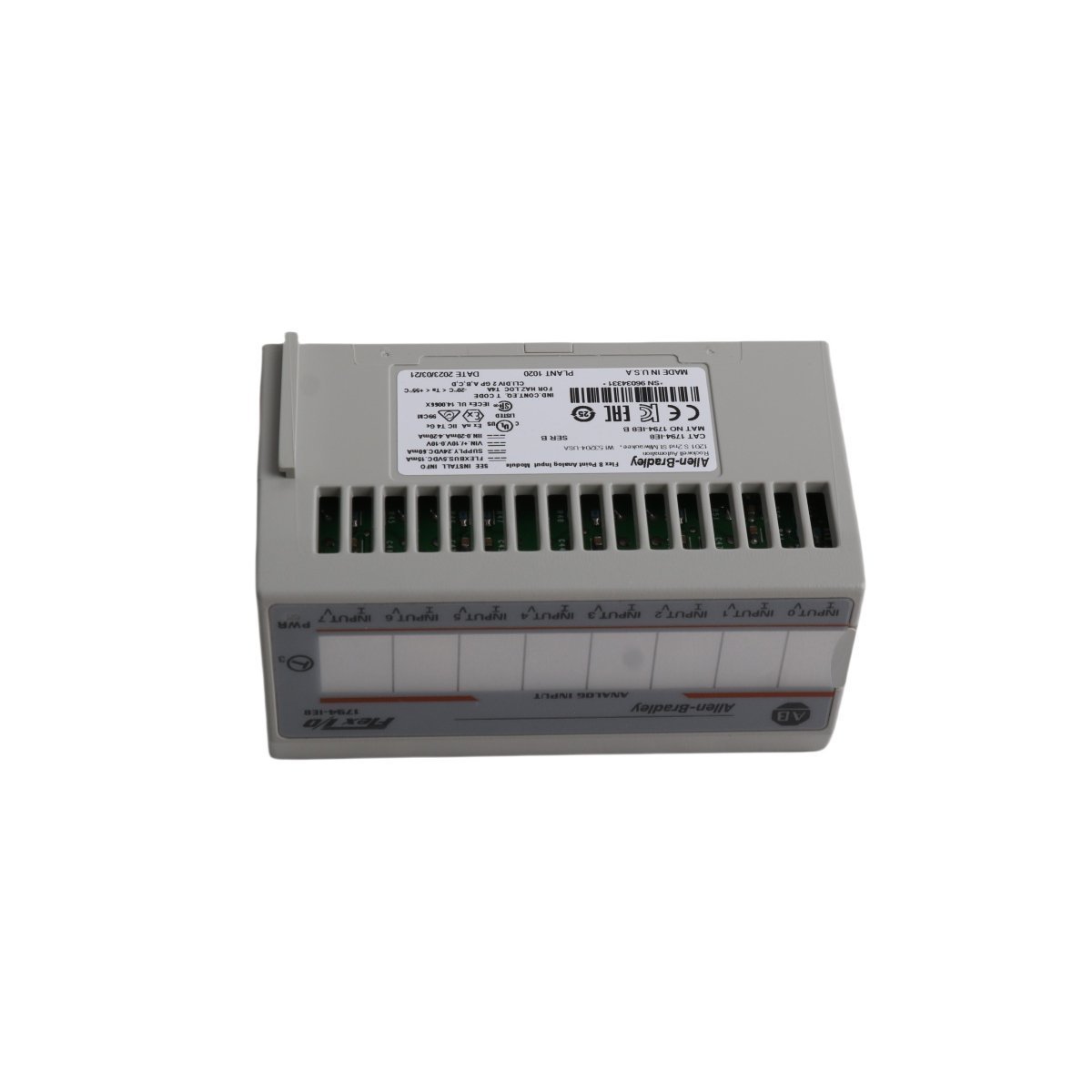

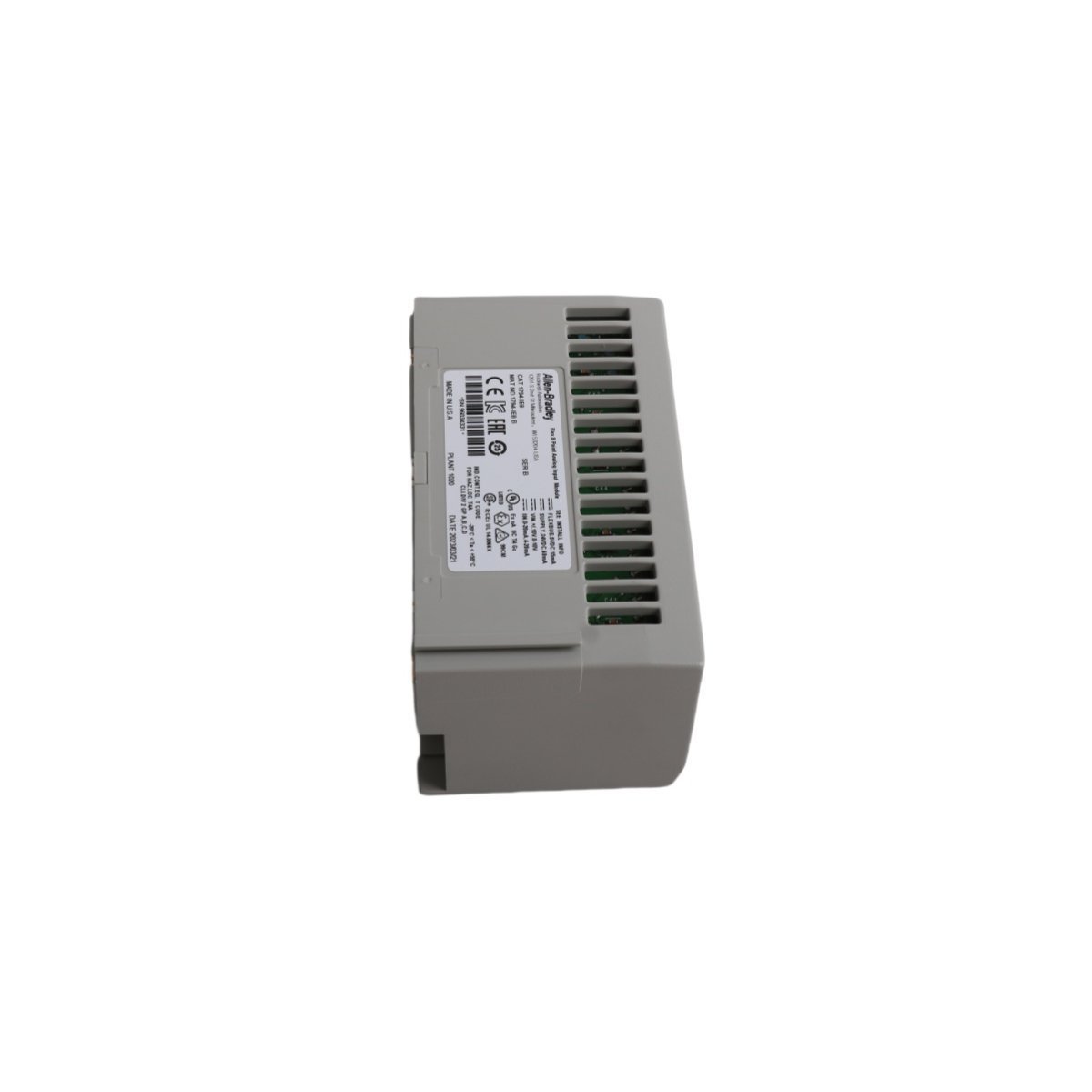

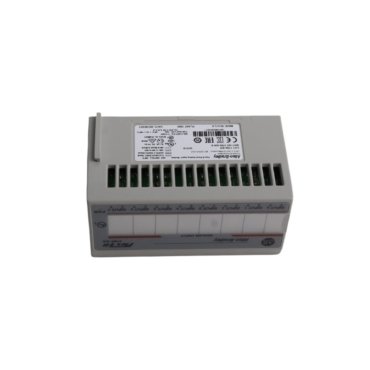

The Allen-Bradley 1794-IE8 is a high-density analog input module designed for the FLEX I/O distributed platform. This module allows industrial control systems to interface with up to eight single-ended analog field devices, such as pressure transmitters, flow meters, and temperature sensors. By converting continuous current or voltage signals into digital data, the 1794-IE8 enables precise monitoring and control within a programmable logic controller (PLC) environment.
Technical Specifications
| Feature | Detailed Specification |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model Number | 1794-IE8 |
| Module Type | Analog Input (8-Point) |
| Input Signals | 0-20mA, 4-20mA, 0-10V DC, ±10V DC |
| Resolution | 12-bit (Unipolar), 11-bit + Sign (Bipolar) |
| Conversion Rate | 256 μs (All Channels) |
| Accuracy | 0.20% Full Scale at 25°C |
| External Power | 24V DC (Range: 10.5-31.2V DC) |
| Dimensions | 9.3 x 5.0 x 5.5 cm |
| Operating Temperature | -20°C to 55°C |
Key Technical Characteristics
- Rapid Signal Conversion: The module features an exceptionally fast conversion rate of 256 microseconds for all eight channels. This ensures that the control system receives high-frequency updates, which is essential for maintaining accuracy in fast-acting process loops.
- Hot-Swap Capability: A primary advantage of the 1794-IE8 is its support for Removal and Insertion Under Power (RIUP). Maintenance teams can replace a faulty module without powering down the entire system or interrupting the network, effectively maximizing plant uptime.
- Distributed I/O Efficiency: The module integrates seamlessly with FLEX I/O adapters for Ethernet/IP, ControlNet, and DeviceNet. This allows users to place the I/O closer to the field sensors, reducing the cost and complexity of long-distance analog cable runs.
- Precision Measurement: With 12-bit resolution and low thermal drift, the 1794-IE8 maintains signal integrity even in fluctuating environmental conditions. The module provides highly stable data for critical process variables, ensuring consistent manufacturing quality.
