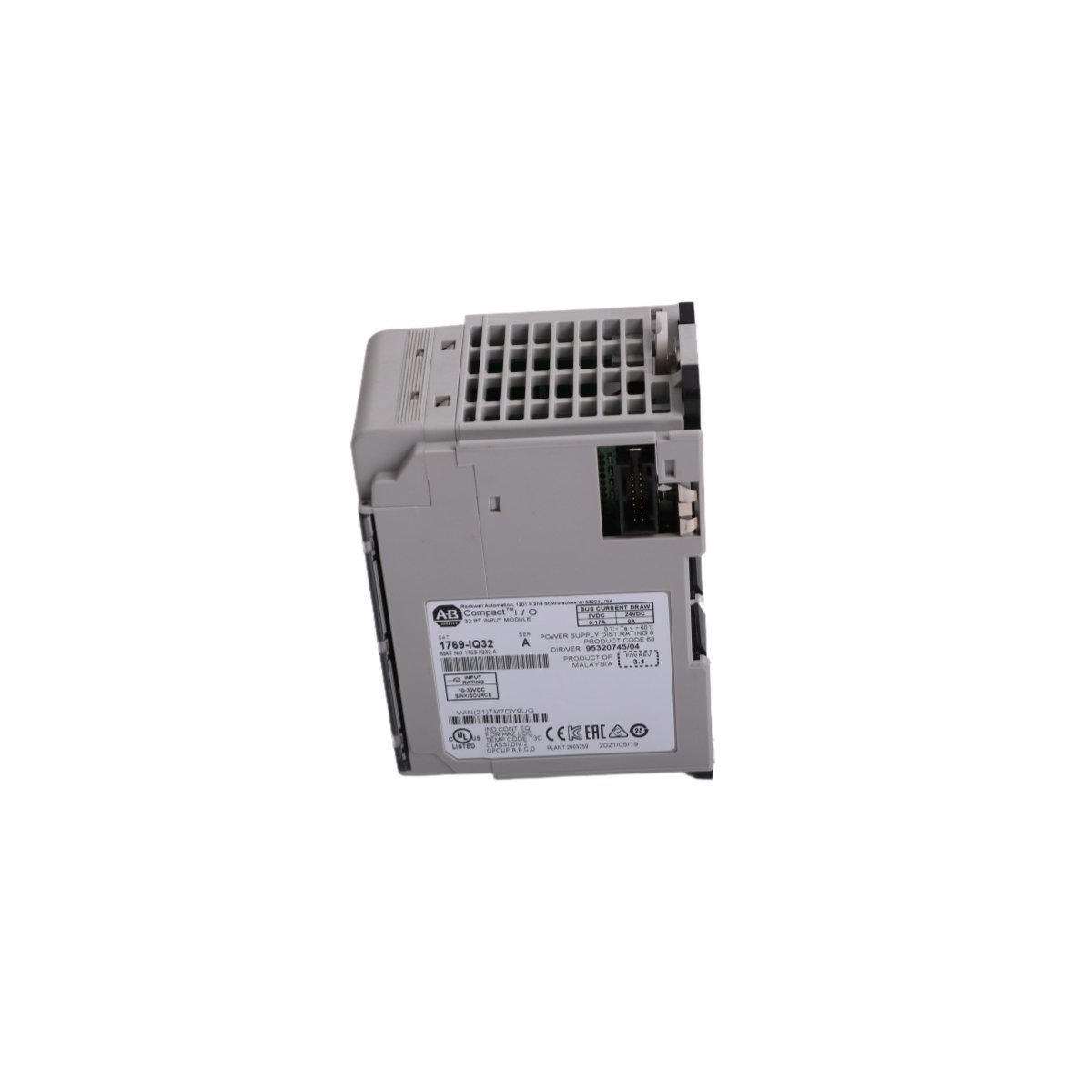

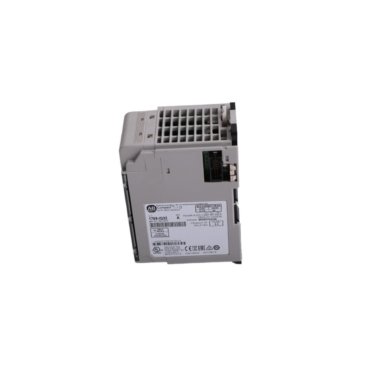

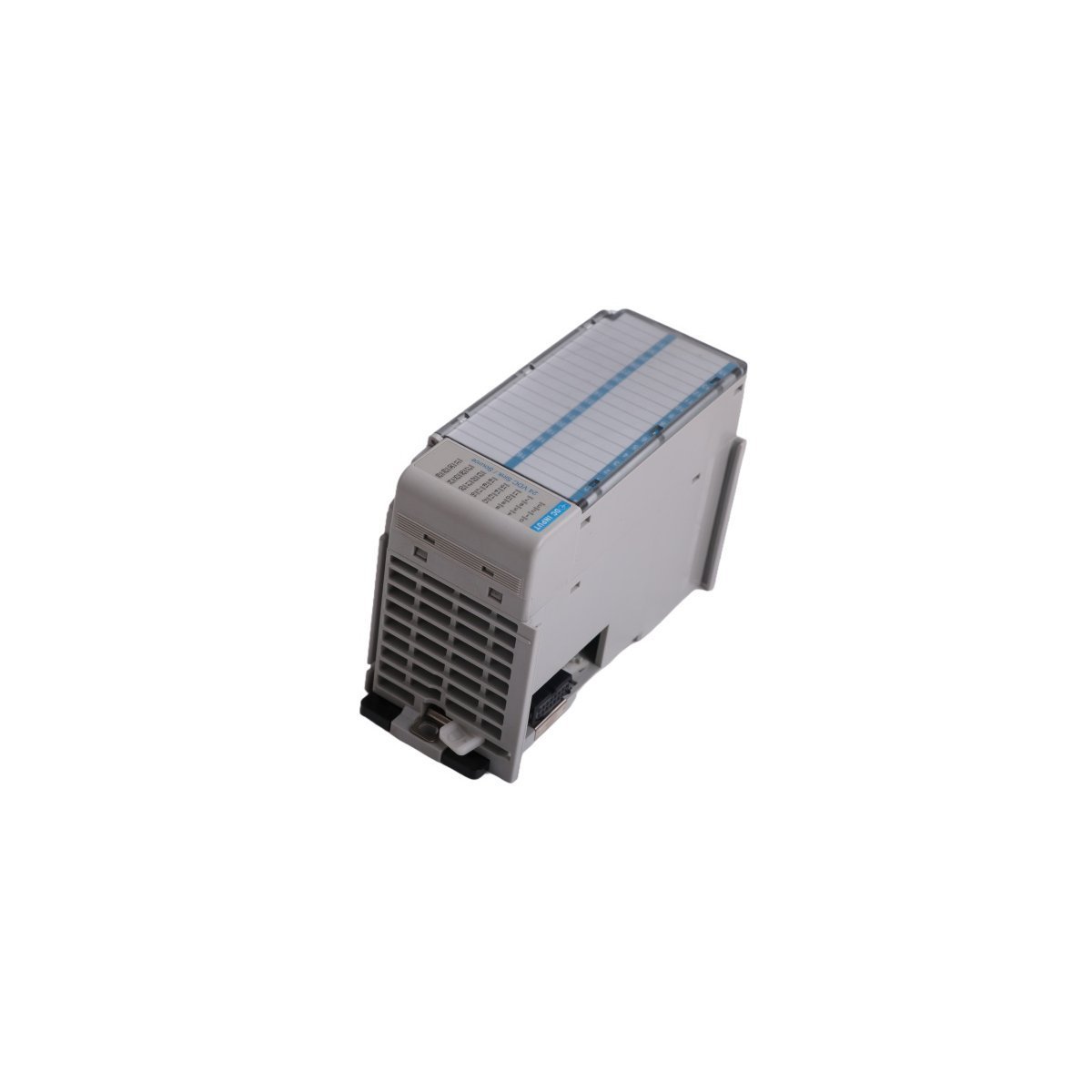

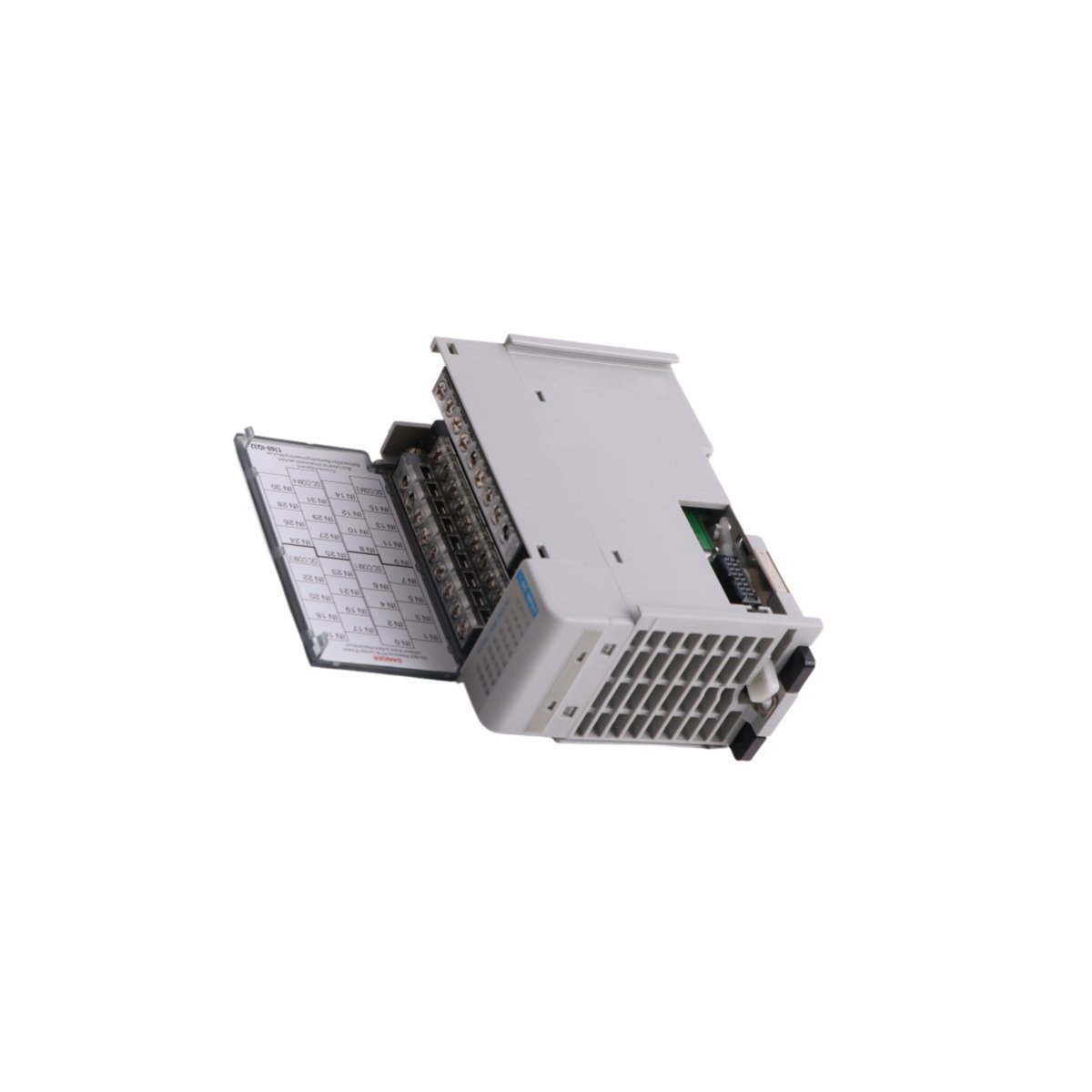

Allen-Bradley 1769-IQ32 Compact I/O Module

The Allen-Bradley 1769-IQ32 serves as a high-channel solution for CompactLogix and MicroLogix 1500 systems. This module provides 32 distinct input points within a single compact footprint. Furthermore, it supports both sinking and sourcing wiring configurations for maximum flexibility. This versatility allows the module to interface with various industrial sensors and switches. Engineers typically deploy this unit to save valuable cabinet space. Consequently, it handles large-scale digital monitoring tasks with high efficiency.

System Configuration and Power Requirements

Proper placement remains critical for the performance of the 1769-IQ32 module. Users must install the unit within eight slots of the system power supply. This restriction ensures the module receives adequate bus power for all 32 channels. Additionally, the hardware features group-to-group isolation to prevent electrical interference. This design protects the internal logic circuits from external field voltage spikes. Therefore, the module maintains high signal integrity in noisy industrial environments.

Rugged Design for Industrial Applications

Rockwell Automation built this module to withstand demanding manufacturing conditions. The 1769-IQ32 operates reliably in temperatures ranging from 0 to 60°C. Moreover, the unit features a vibration-resistant housing suitable for heavy machinery applications. It supports both DIN rail and direct panel mounting for diverse installation needs. The open-style enclosure aids in natural thermal dissipation during continuous operation. These characteristics make it a dependable choice for global automation projects.

Technical Specifications
