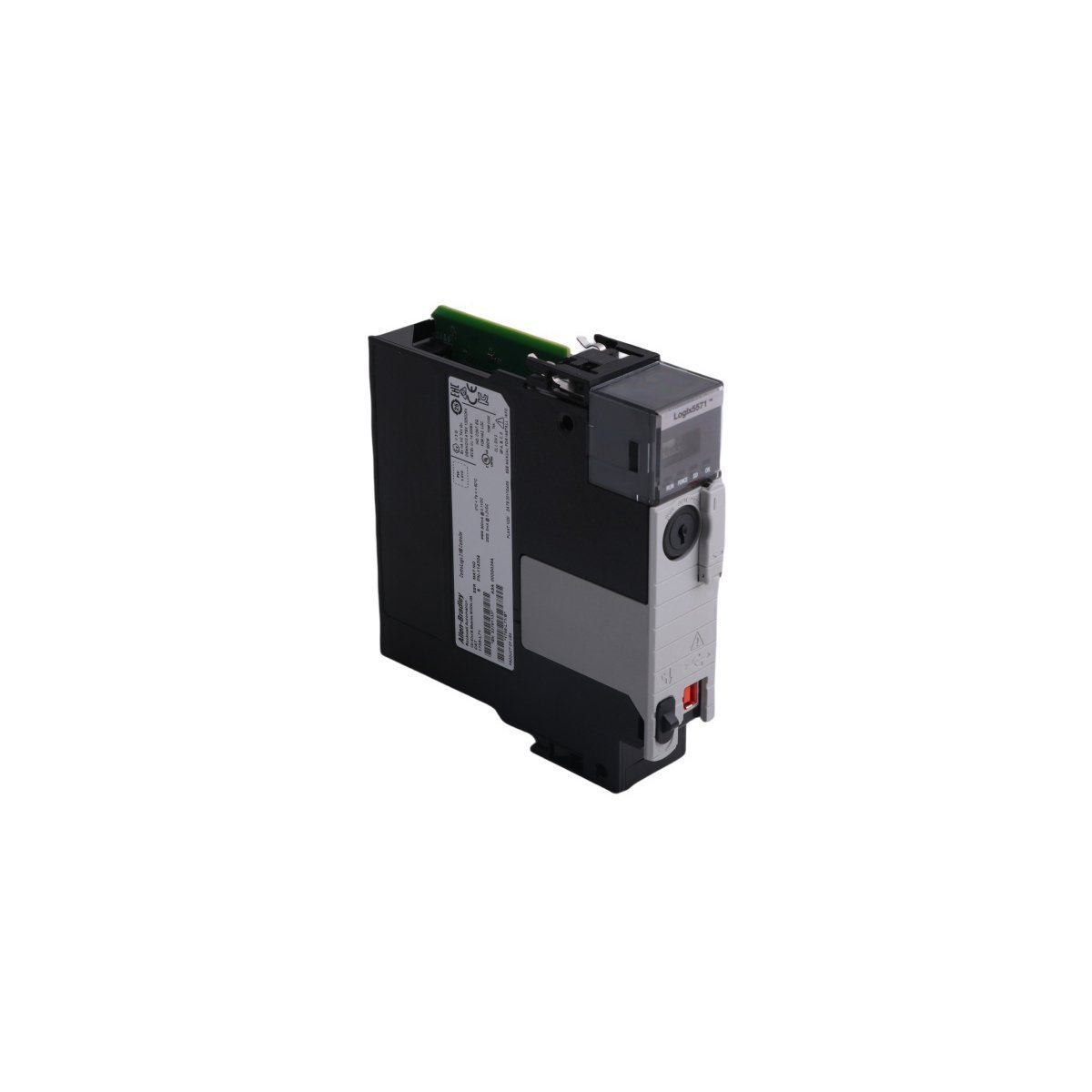

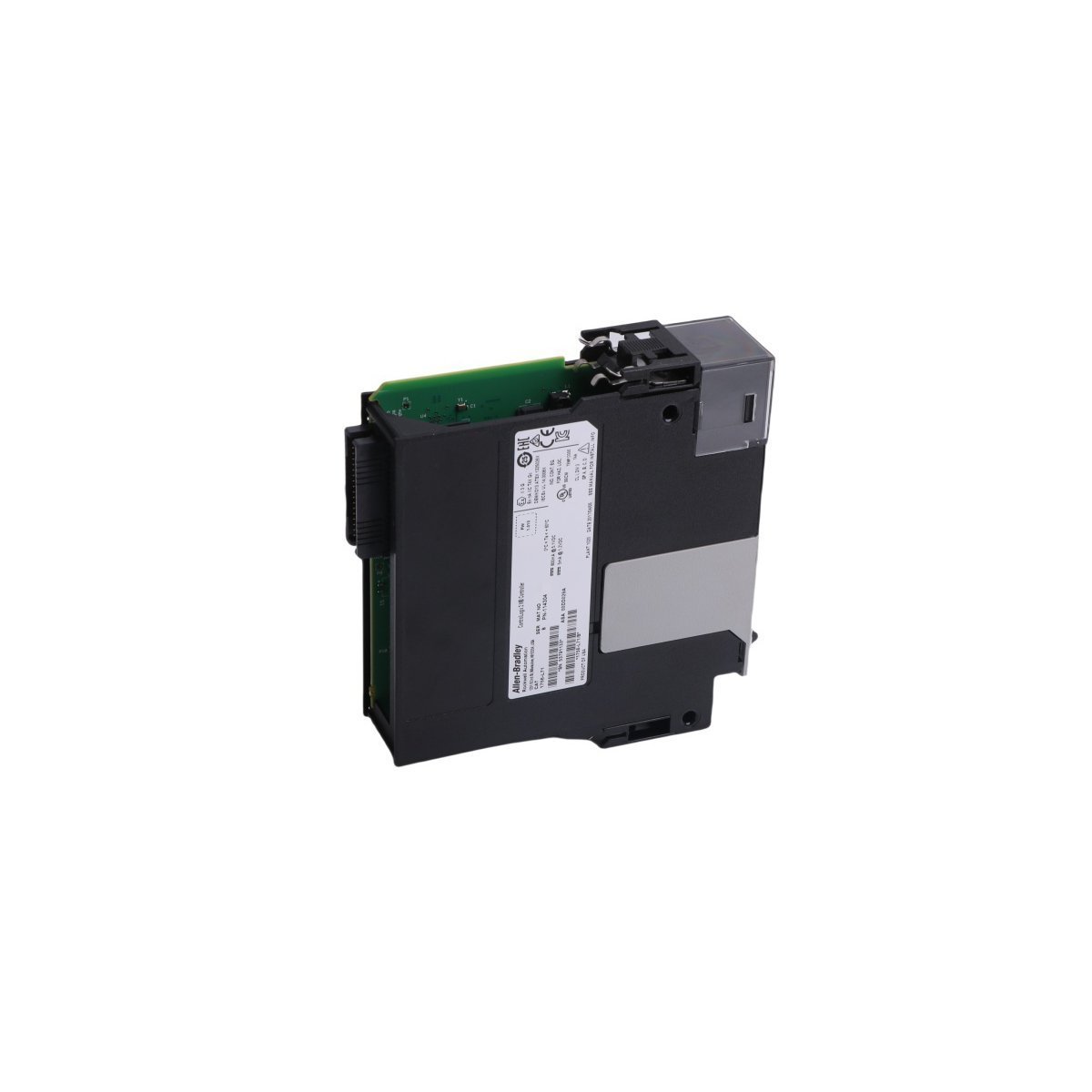

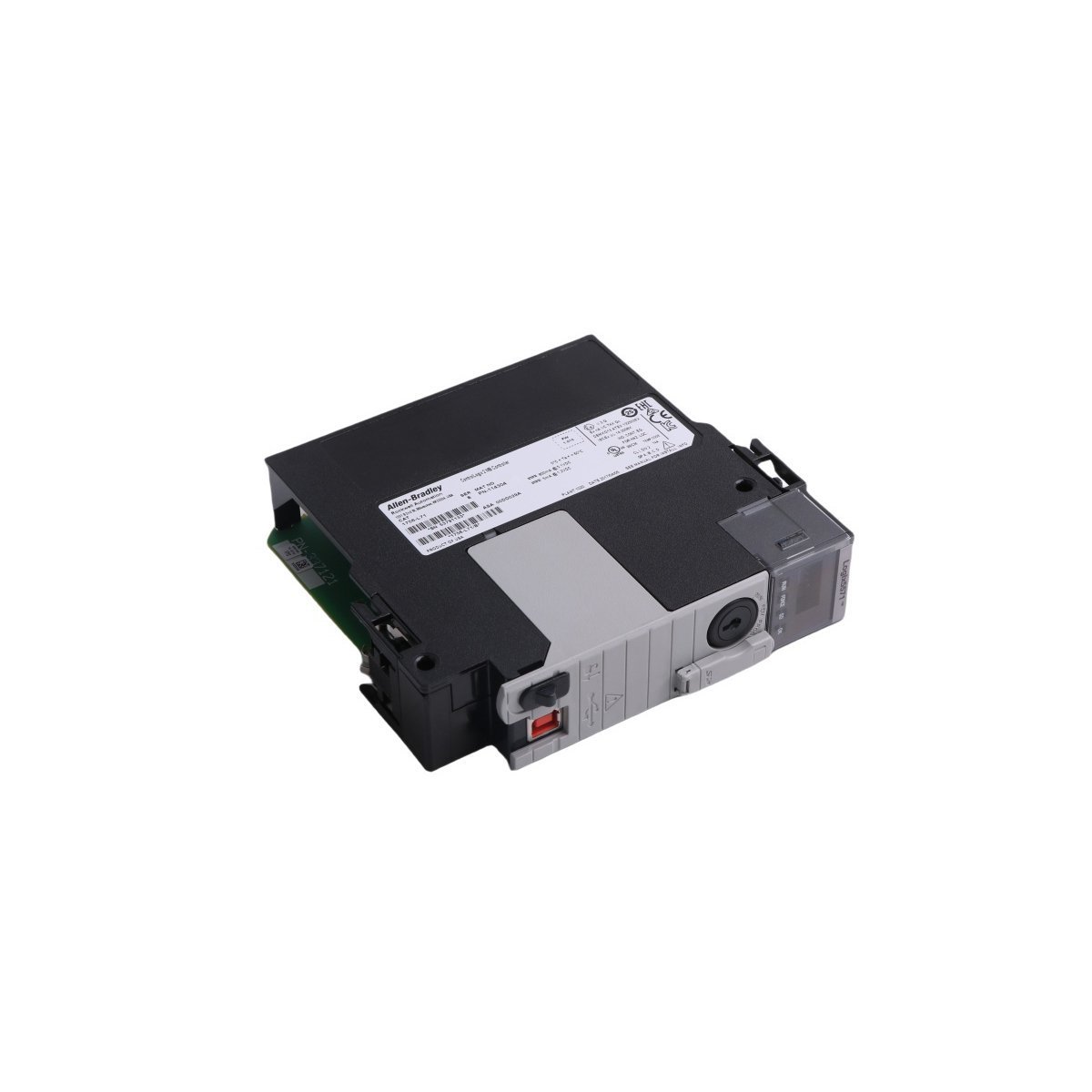

Allen-Bradley 1756-L71S Controllogix Controller

The Allen-Bradley 1756-L71S is a specialized GuardLogix 5570 controller engineered for high-integrity industrial safety applications. As a member of the Logix5000 family, this processor provides a unified control engine that manages both safety and standard logic within a single chassis. To achieve SIL 3, PLe, or Category 4 safety ratings, the 1756-L71S requires a 1756-L7SP safety partner module. Once paired, the primary controller automatically configures the safety partner. This feature accelerates commissioning and ensures rigorous cross-checking of all safety-critical data.

Memory Capacity and Processing Power

This controller features a robust memory architecture to handle complex automation tasks. It provides 2MB of standard user memory and 1MB of dedicated safety memory. Additionally, the unit manages up to 0.98MB of I/O memory, allowing it to support massive I/O configurations including 128,000 digital and 4,000 analog points. For non-volatile storage, the 1756-L71S includes a 1GB Secure Digital (SD) card, though users can upgrade this to 2GB if needed. These resources allow the processor to execute high-speed motion control and complex logic simultaneously without performance degradation.

Technical Specifications

Versatile Networking and Diagnostics

The 1756-L71S supports a wide array of industrial communication protocols through optional interface modules. Engineers can deploy the controller on EtherNet/IP, ControlNet, and DeviceNet networks. The system manages up to 500 controller connections, making it ideal for distributed control architectures. Furthermore, the integrated front-panel display provides real-time diagnostic information. This display helps maintenance teams identify faults or runtime statuses quickly. While safety routines require Relay Ladder Logic (RLL), standard tasks support multiple languages including Structured Text and Function Block Diagrams.

Operation and Environment

The GuardLogix 5570 series excels in environments requiring maximum reliability. The 1756-L71S operates efficiently with a thermal dissipation of 8.5 BTU/hr, minimizing heat buildup in control cabinets. Users should note that while this model offers superior safety integration, it does not support full controller redundancy. It remains a top-tier choice for automotive assembly, material handling, and process industries where personnel protection and equipment safety are primary operational goals.
