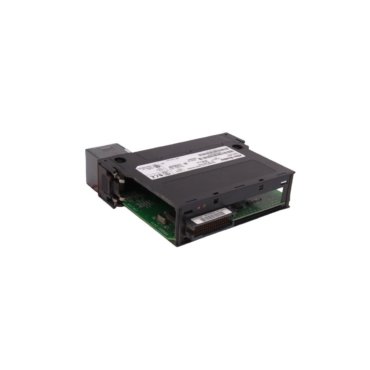

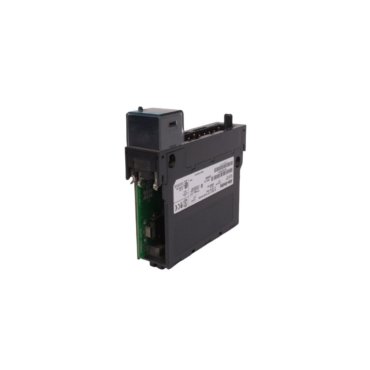

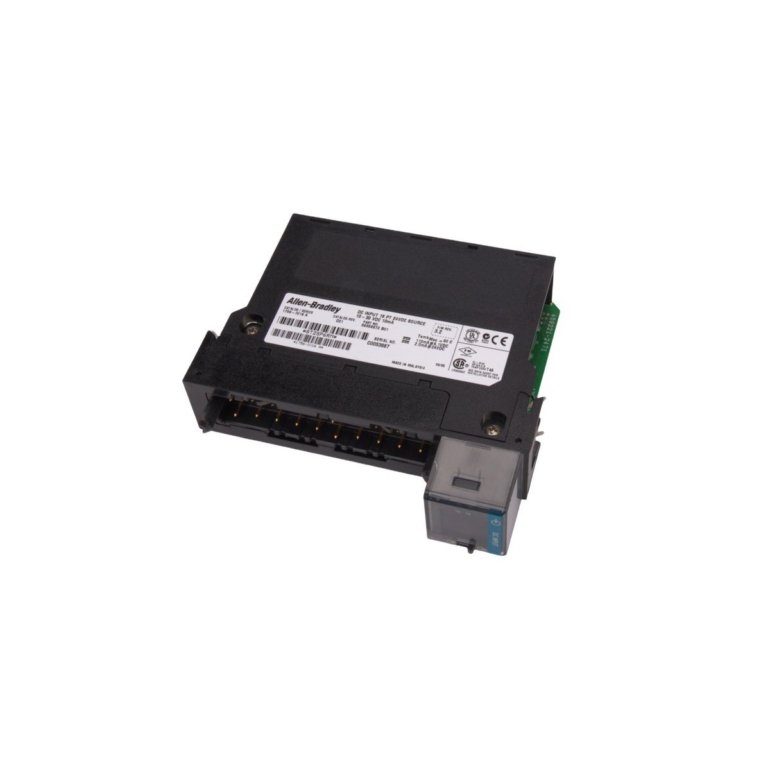

Allen-Bradley 1756-IV16 Digital Input Module

The Allen-Bradley 1756-IV16 serves as a high-performance discrete interface for the ControlLogix platform. This module features 16 sourcing input channels, organized into two isolated groups of eight. Unlike sinking modules, a sourcing input module provides a return path for devices that switch the negative side of the DC power supply. Consequently, this configuration allows for seamless integration with a variety of industrial sensors and switches operating within a 10–30V DC range.

Signal Processing and Filtering

• Nominal Input Voltage: 24V DC
• Voltage Category: 12/24V DC Sourcing
• Operating Voltage Range: 10–30V DC
• Input Current (Min): 2.0 mA @ 10V DC
• Input Current (Max): 10 mA @ 30V DC
• Maximum Input Impedance: 3.2 kΩ @ 30V DC
• Isolation Voltage: 250V (continuous)

Thermal Performance and Power Management

• Backplane Current (5.1V): 100 mA
• Backplane Current (24V): 3 mA
• Power Dissipation: 5.1 Watts maximum
• Inrush Current: 250 mA
• Operating Temperature: 0°C to 60°C (32°F to 140°F)

System Integration and Maintenance

This module occupies a single slot in any 1756 ControlLogix chassis and supports “Removal and Insertion Under Power” (RIUP). This capability allows technicians to replace the module during active operations, significantly reducing system downtime. For field wiring, the module requires a separately ordered Removable Terminal Block (RTB), such as the 1756-TBNH (caged clamp) or the 1756-TBSH (spring clamp). Once installed, the module integrates directly with Studio 5000 Logix Designer for straightforward tag mapping and diagnostics.
