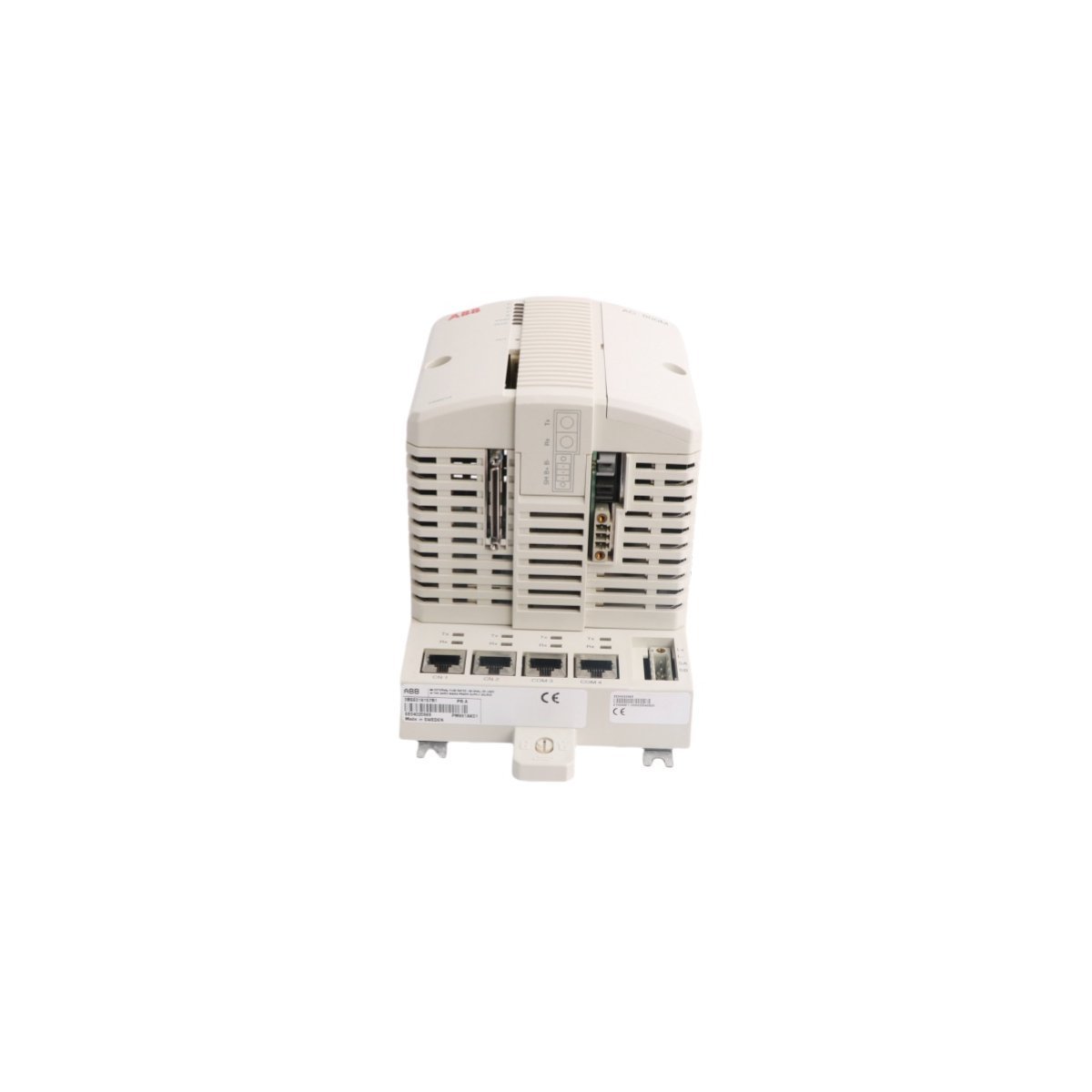

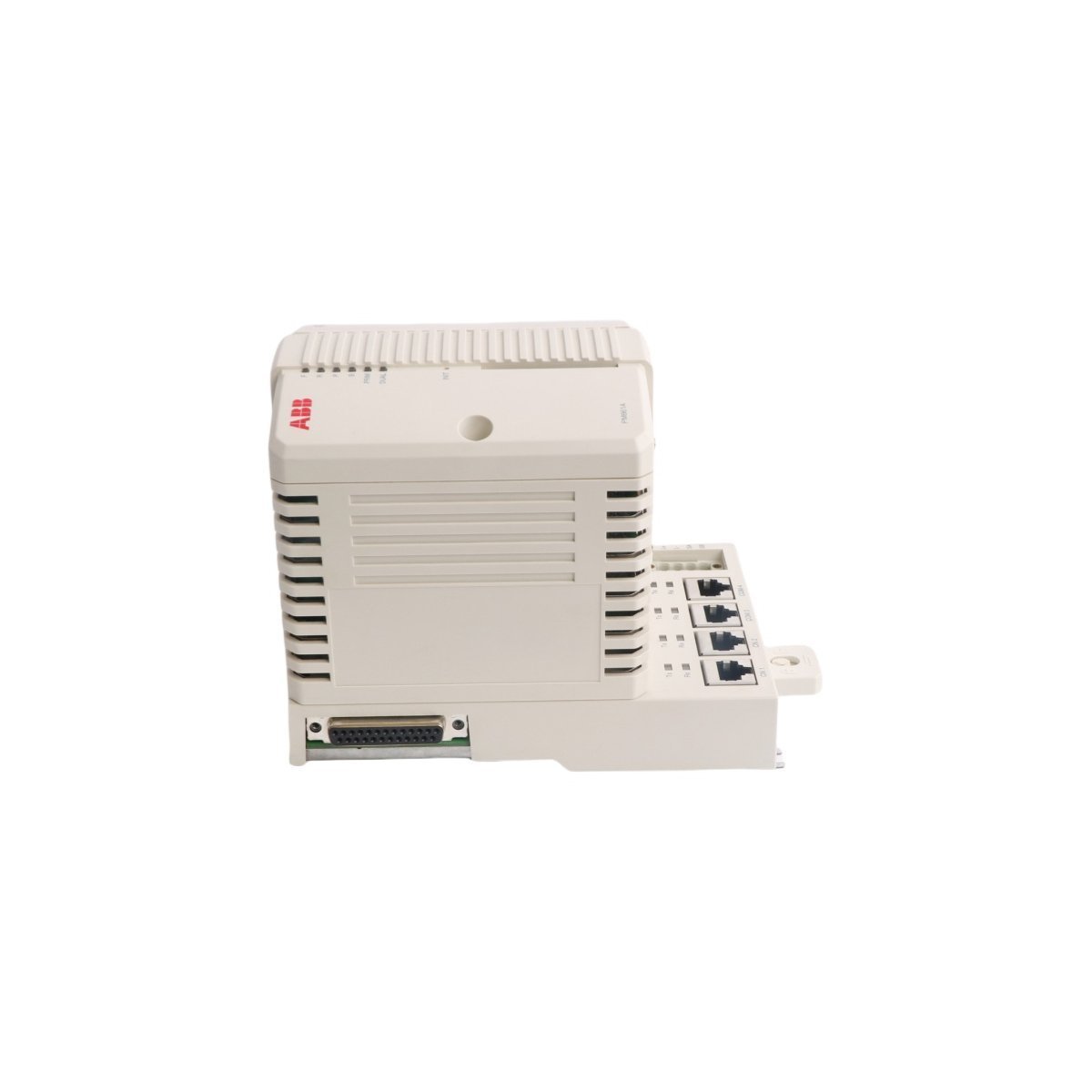

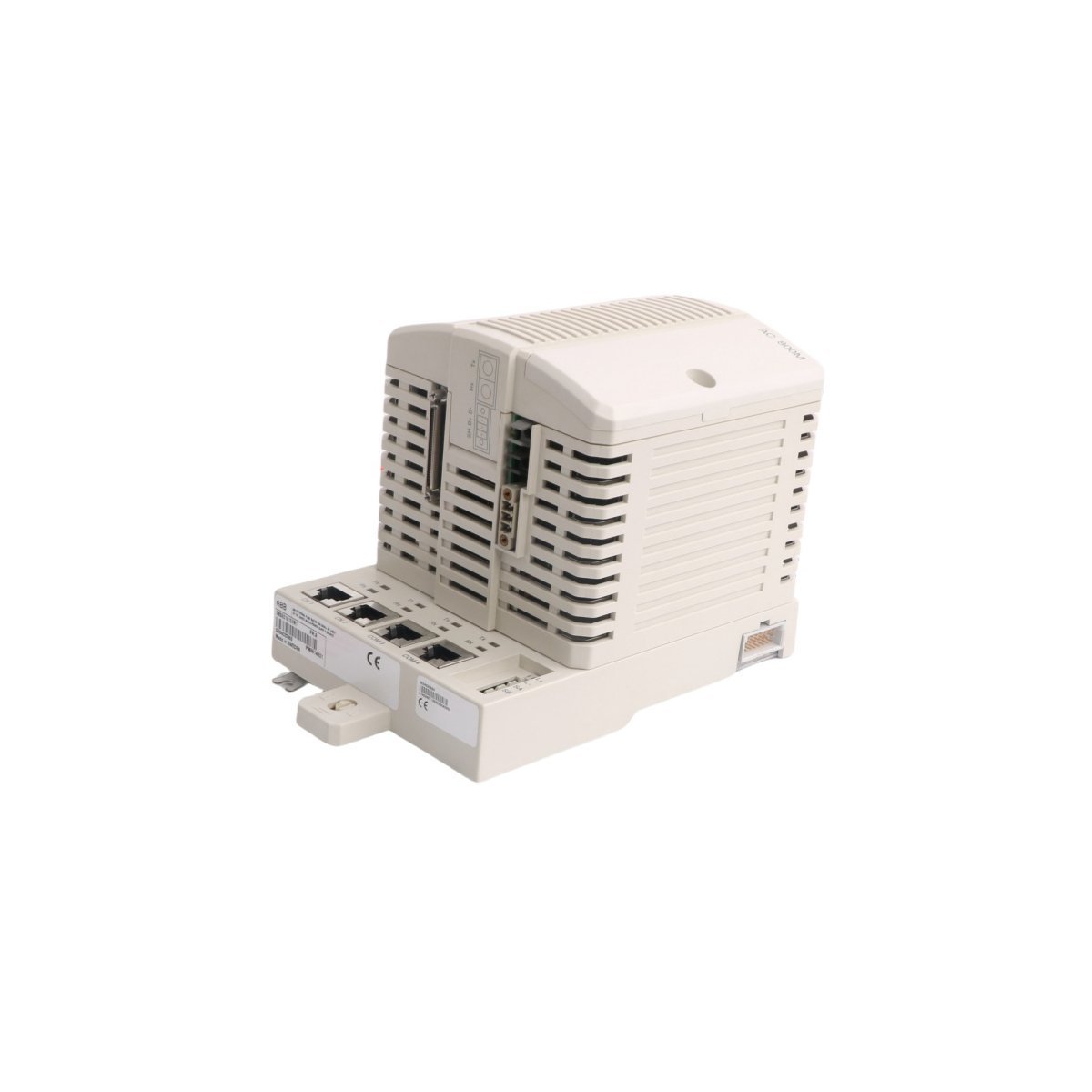

ABB PM861AK01 3BSE018157R1 Processor Unit Kit

The ABB PM861AK01 (Order Code: 3BSE018157R1) serves as a core computational engine for the 800xA system. This unit integrates a powerful microprocessor with high-speed RAM to manage complex automation logic. Furthermore, the internal real-time clock ensures precise synchronization across the distributed network. The controller maintains high availability for critical infrastructure through optimized instruction execution. It acts as the primary brain for modern industrial control strategies.

Communication and Connectivity Features

This processor kit offers diverse networking options to facilitate seamless data exchange between field devices.

• Ethernet Integration: Dual RJ45 ports (CN1 and CN2) provide redundant network connections.
• Serial Interfaces: Two dedicated serial ports (COM3 and COM4) handle auxiliary device communication.
• Specialized Ports: The isolated COM4 port simplifies local configuration and tool connection.
• Modern Standards: Integrated RS-232C support allows for versatile modem control signals.
• Network Identity: Every unit contains a unique hardware address for secure Ethernet identification.

System Redundancy and Reliability

Engineers designed the 3BSE018157R1 to eliminate single points of failure in hazardous environments. The hardware supports full CPU redundancy to maintain operation during component maintenance. Additionally, it extends this protection to the CEX-Bus and S800 I/O communication interfaces. The rugged IP20-rated housing protects internal circuits from dust and minor physical contact. Consequently, the processor delivers stable performance in demanding power generation and chemical processing plants.

Installation and Mechanical Design

• Diagnostics: Front-facing LED indicators provide immediate status and health feedback.
• Storage Options: A built-in CompactFlash interface manages firmware and historical data storage.
• Safety Controls: The manual INIT push button enables safe system resets during commissioning.
• EMC Compliance: Full certification ensures stable operation near high-voltage electrical equipment.

Technical Specification Overview
