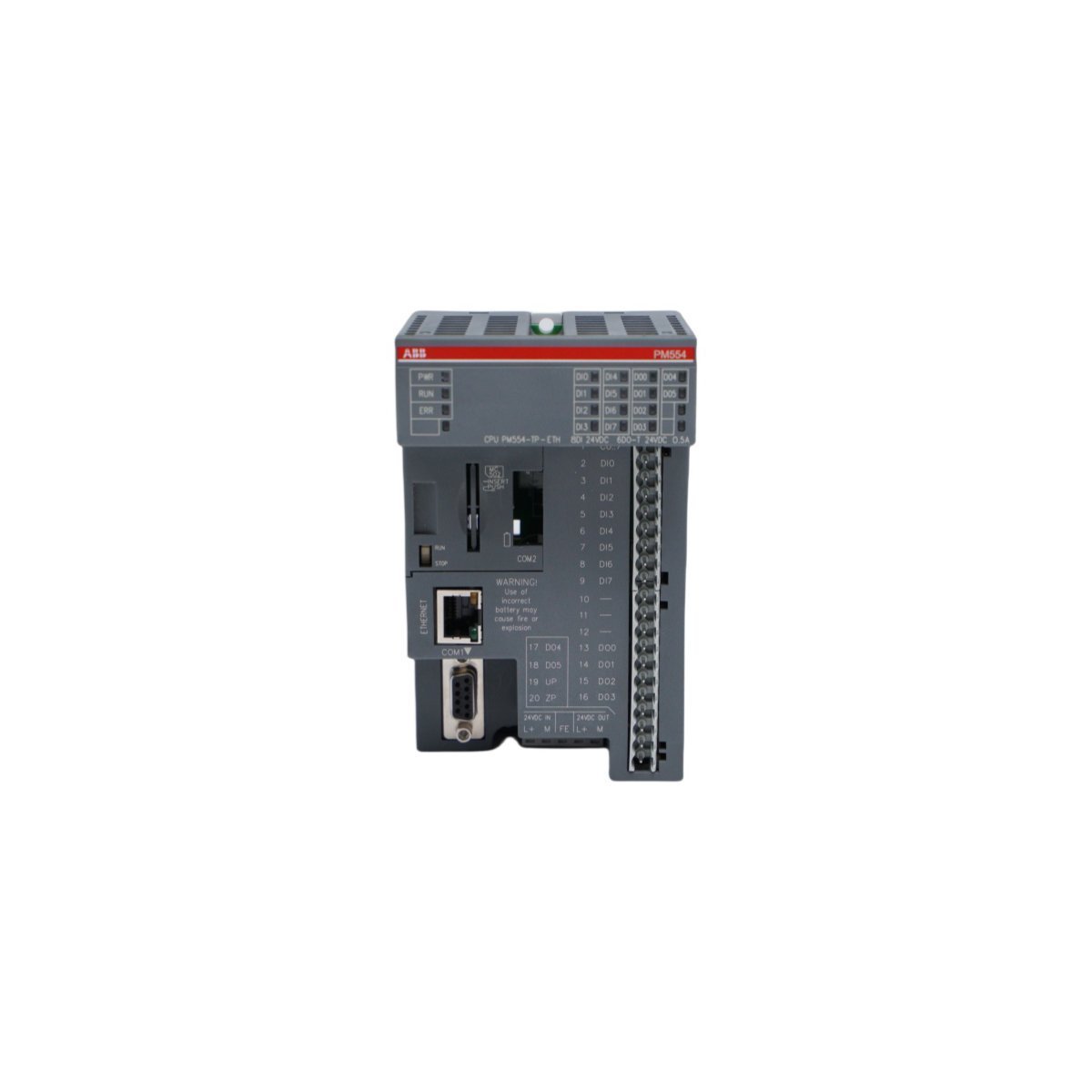

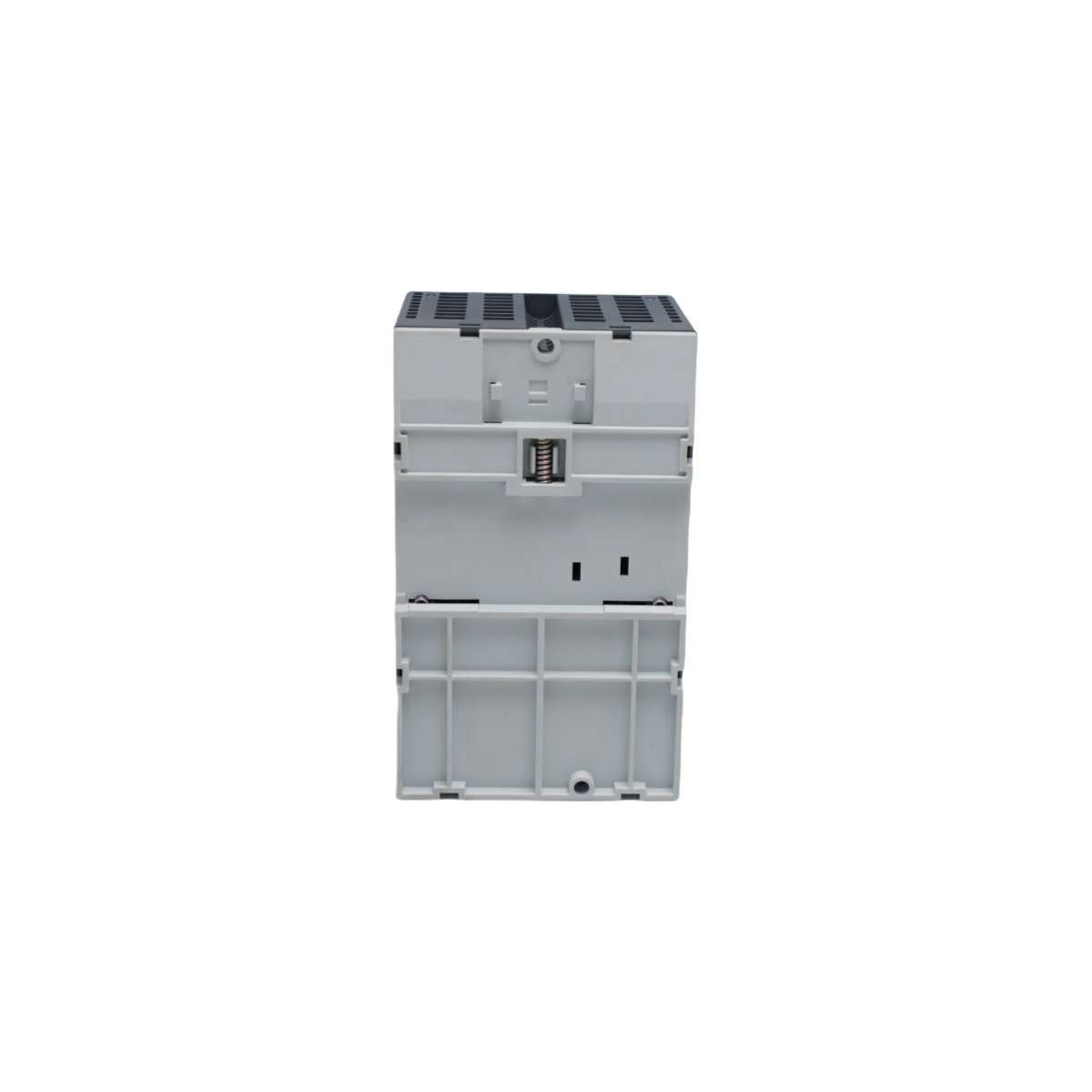

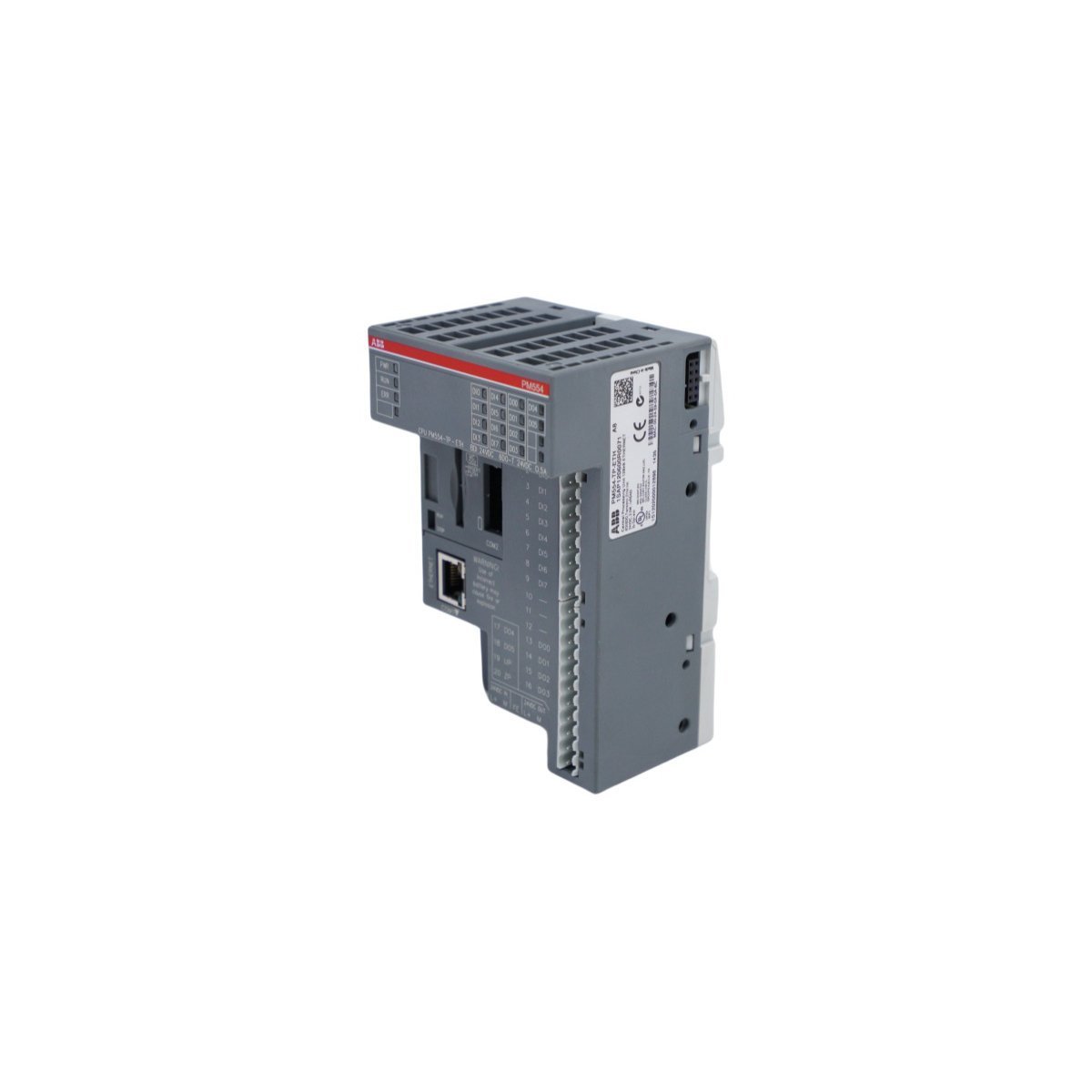

The ABB PM564-TP-ETH (Order Code: 1SAP120900R0071) is a compact yet powerful Central Processing Unit belonging to the AC500-eCo entry-level PLC family. This controller is engineered to provide a cost-effective solution for small-scale automation requirements without compromising on communication capabilities or processing speed. It is specifically designed for integration within the Advant OCS and 800xA control architectures, offering a reliable bridge between field devices and higher-level management systems.
Technical Specifications and Capabilities
The PM564-TP-ETH module features an integrated Ethernet interface, facilitating high-speed data exchange and remote access. Its hardware architecture is optimized for DIN-rail mounting and industrial longevity.
- Processing Unit: High-speed CPU with 128 KB Program Memory.
- Onboard I/O: 6 Digital Inputs (24V DC) and 6 Transistor Outputs.
- Analog Integration: 2 Analog Inputs and 1 Analog Output (Voltage/Current configurable).
- Communication: 1 RJ45 Ethernet port supporting TCP/IP, Modbus TCP, and HTTP protocols; 1 RS485 serial interface.
- Expansion: Supports up to 10 additional I/O modules for system scaling.
- Power Supply: 24V DC nominal operating voltage.
- Environmental Rating: IP20 protection class with a robust operating temperature range.
Primary Applications
- Factory Automation: Control of small machinery, conveyor systems, and packaging lines.
- Building Infrastructure: Management of HVAC systems, lighting control, and energy monitoring.
- Energy Management: Integration with power meters and distributed energy resources via Modbus.
- Water Treatment: Small-scale pumping stations and filtration system monitoring.
Key Functional Advantages
- Unified Engineering: Programmed using the Automation Builder software (based on CODESYS), allowing for seamless migration to larger AC500 CPUs if system requirements grow.
- Embedded Ethernet: Eliminates the need for separate communication couplers, reducing both the physical footprint and total system cost.
- Ruggedized Design: Manufactured in Sweden to meet high quality-control standards, ensuring high Mean Time Between Failures (MTBF) in industrial environments.
- Data Handling: Onboard memory for data logging and battery-free retentive data storage, ensuring process continuity during power cycles.
