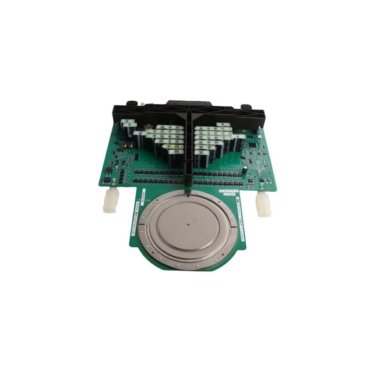

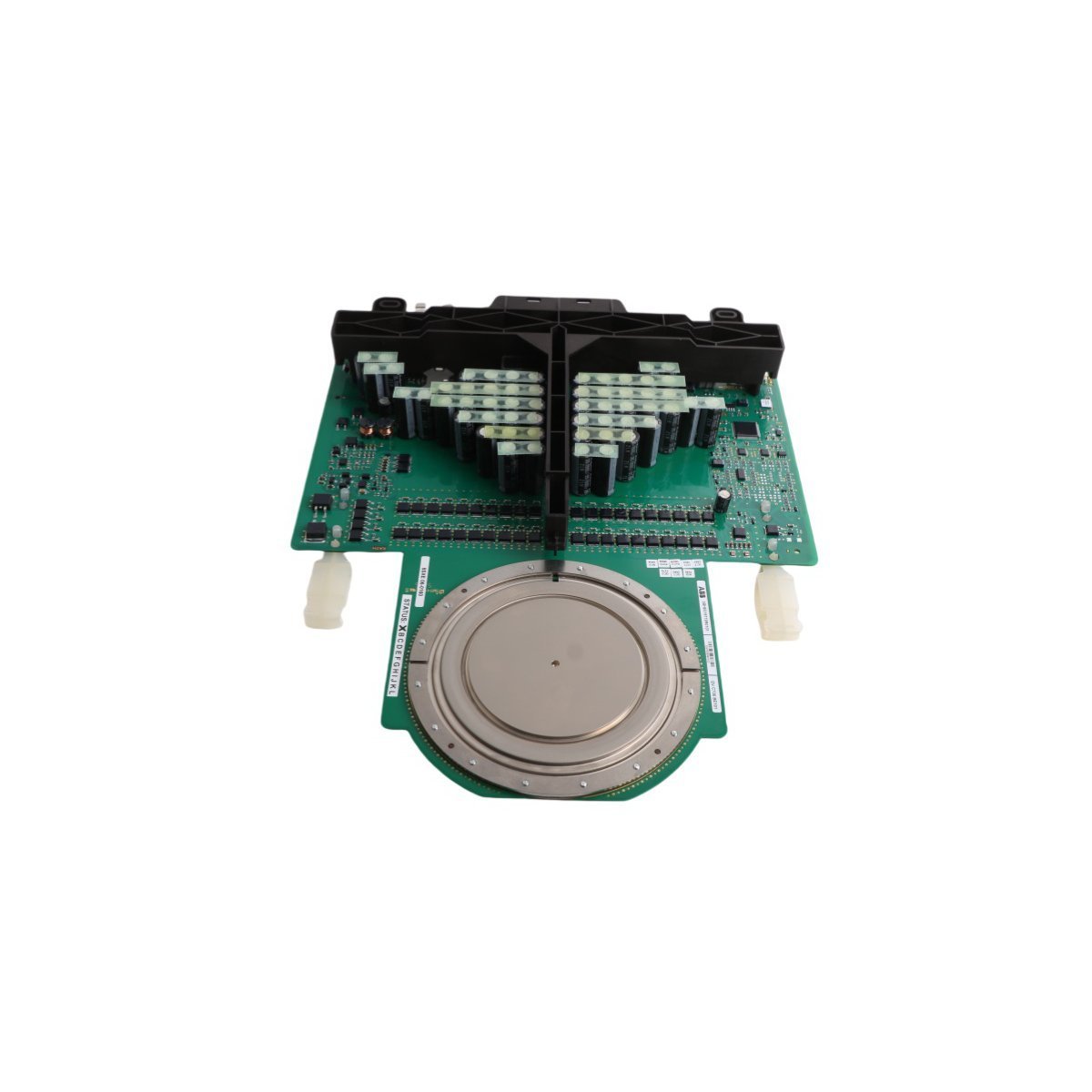

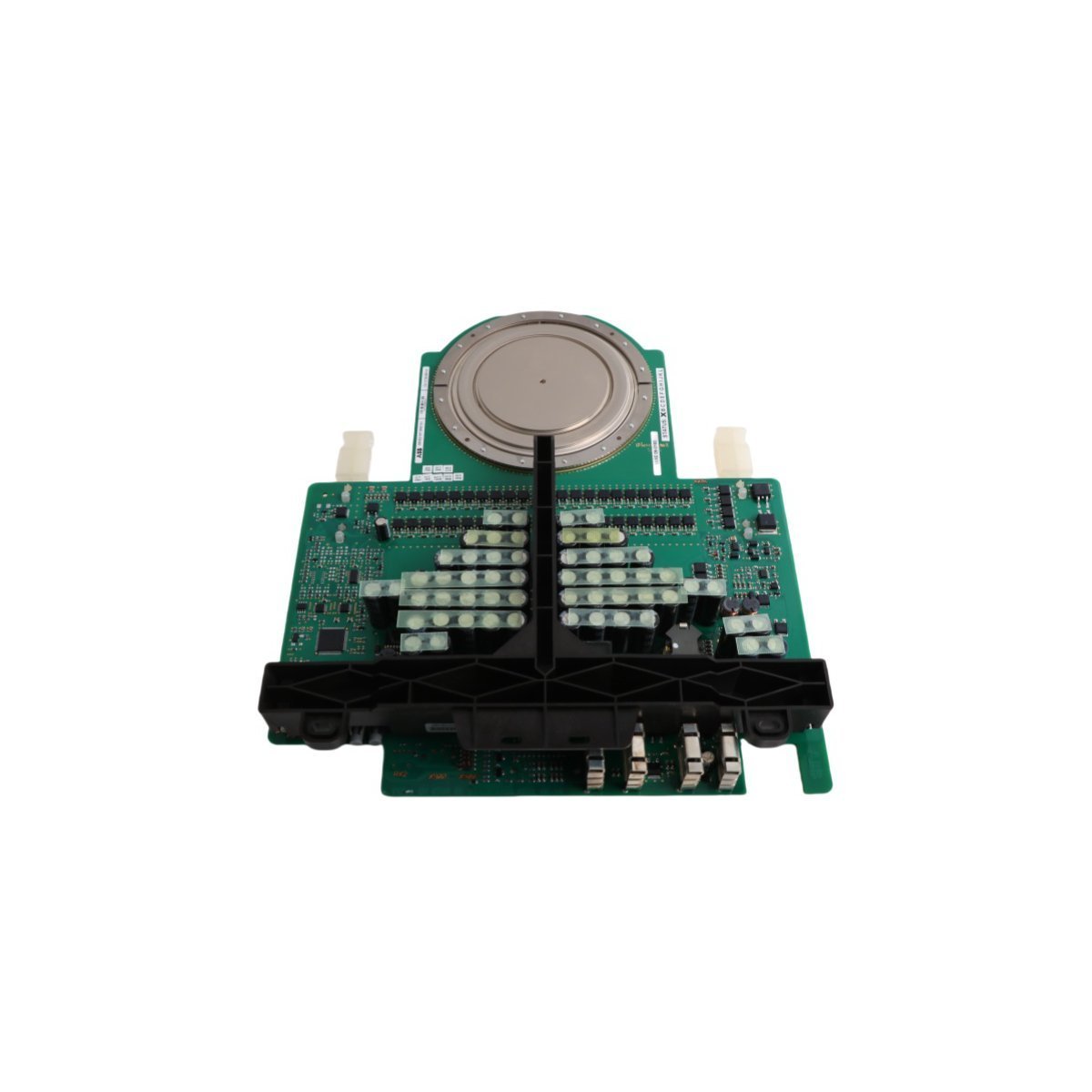

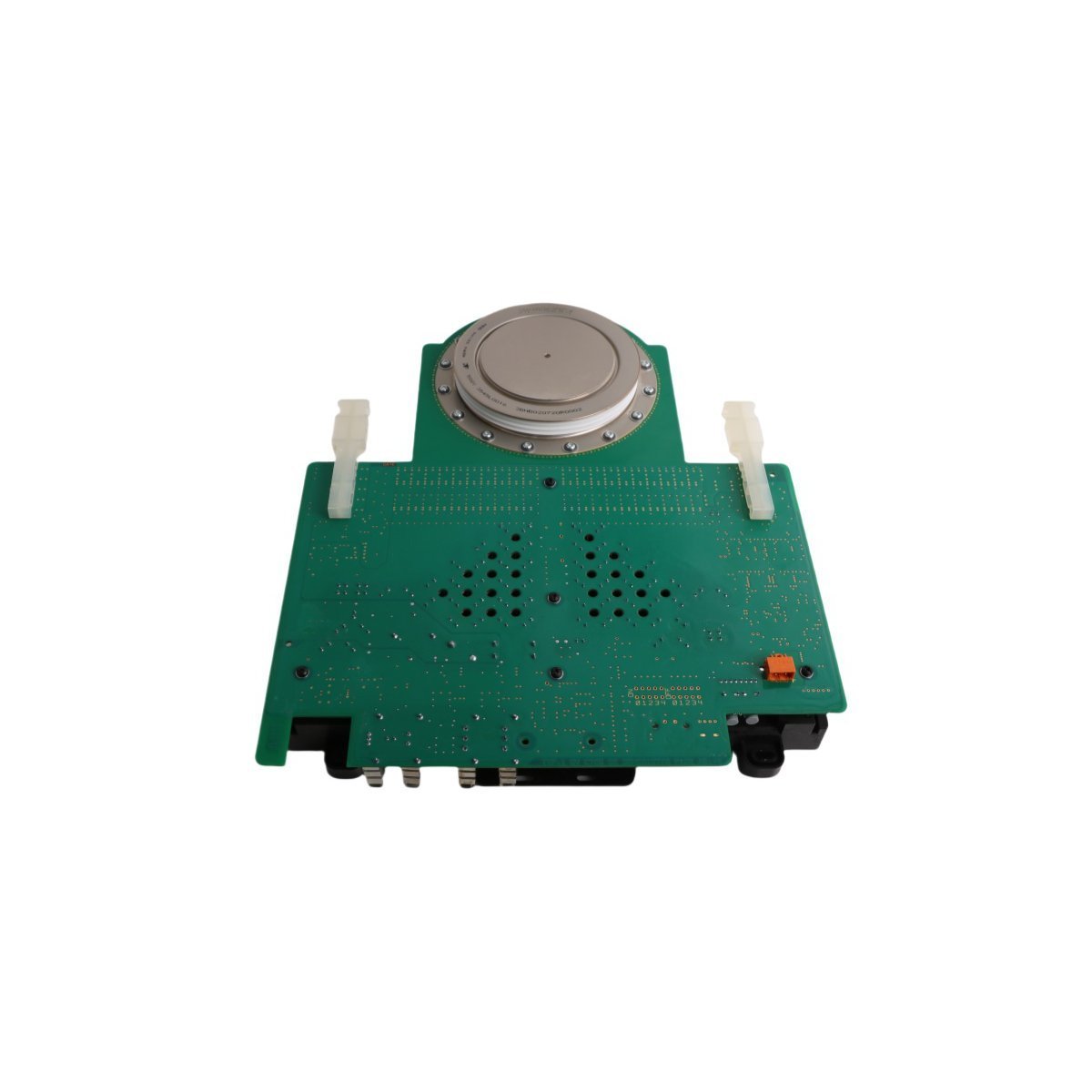

ABB 3BHB020720R0002 5SHY3545L0016 IGCT Module

The ABB 5SHY3545L0016 operates as a high-power Integrated Gate-Commutated Thyristor (IGCT) module. This component pairs with the 3BHB020720R0002 controller to manage medium-voltage power conversion tasks. It provides efficient switching for demanding industrial applications such as HVDC transmission and variable speed drives. Because the module leverages advanced semiconductor architecture, it maintains high power density within a compact frame. Furthermore, it delivers reliable performance in environments requiring rapid, high-current switching. Plant operators utilize this unit to improve the energy efficiency of their motor control systems.

Precision Power Control and Thermal Efficiency

This IGCT module facilitates precise electrical control through its unique gate-driver integration. It supports high-frequency switching while minimizing energy losses during the transition phases. The device handles significant current loads, making it suitable for heavy-duty renewable energy converters and traction equipment. Additionally, the rugged design ensures stability under varying thermal conditions. The press-pack construction allows for effective heat transfer when mounted correctly within a cooling assembly. Consequently, systems benefit from increased uptime and lower long-term maintenance requirements. It serves as an essential upgrade for aging power electronic infrastructure.

Technical Performance Characteristics

• Voltage Capacity: Engineered for robust blocking voltages in high-power conversion scenarios.
• Switching Precision: Optimized for fast, reliable commutation during high-frequency cycles.
• Current Management: Capable of handling substantial current surges in industrial networks.
• Isolation Quality: Features high RMS isolation to ensure maximum operational safety.
• Thermal Design: Optimized for efficient heat dissipation within high-density cabinet layouts.
• System Compatibility: Designed for seamless integration with ABB ACS drive platforms.

Technical Specifications Table

Industrial Utility and Lifecycle Support

Modern energy and manufacturing sectors rely on the 5SHY3545L0016 for their critical power management. The module features an intuitive configuration that simplifies commissioning for field technicians. Its modular design allows for efficient replacement during scheduled maintenance windows. By utilizing genuine ABB hardware, firms guarantee that their power electronics adhere to international safety standards. This stability reduces harmonic interference in power networks and protects connected downstream equipment. Ultimately, this module provides the performance levels necessary for sustaining high-availability industrial production.
