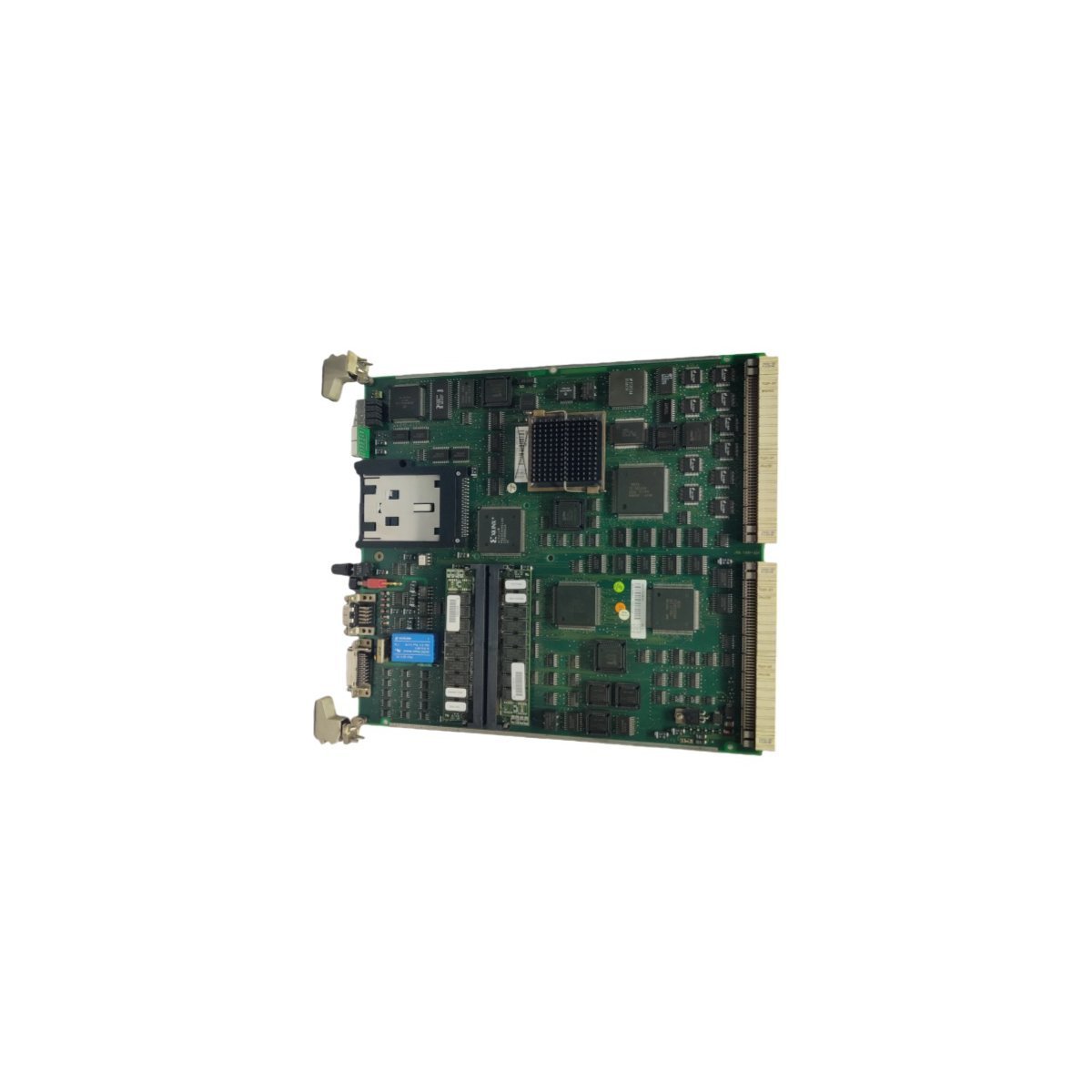

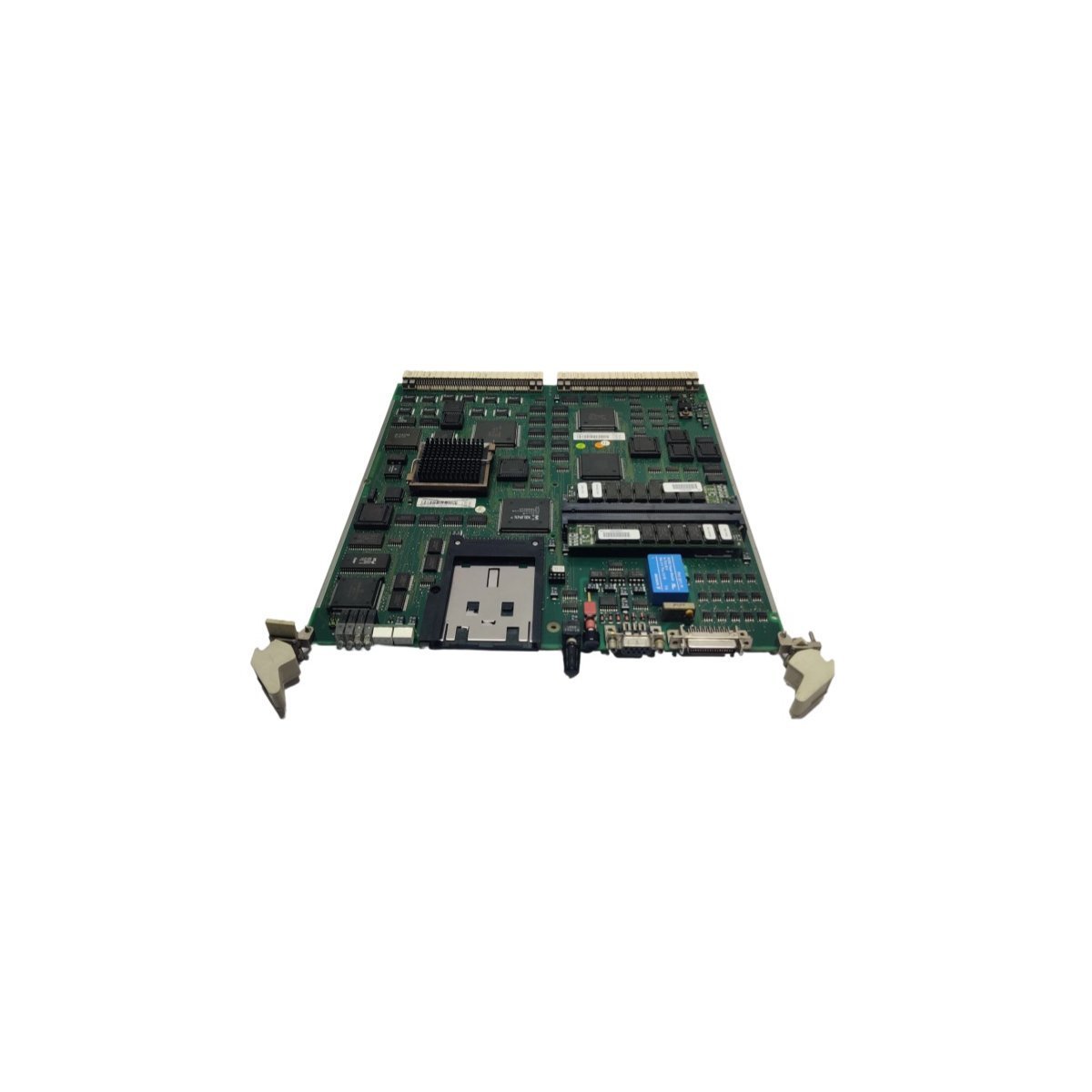

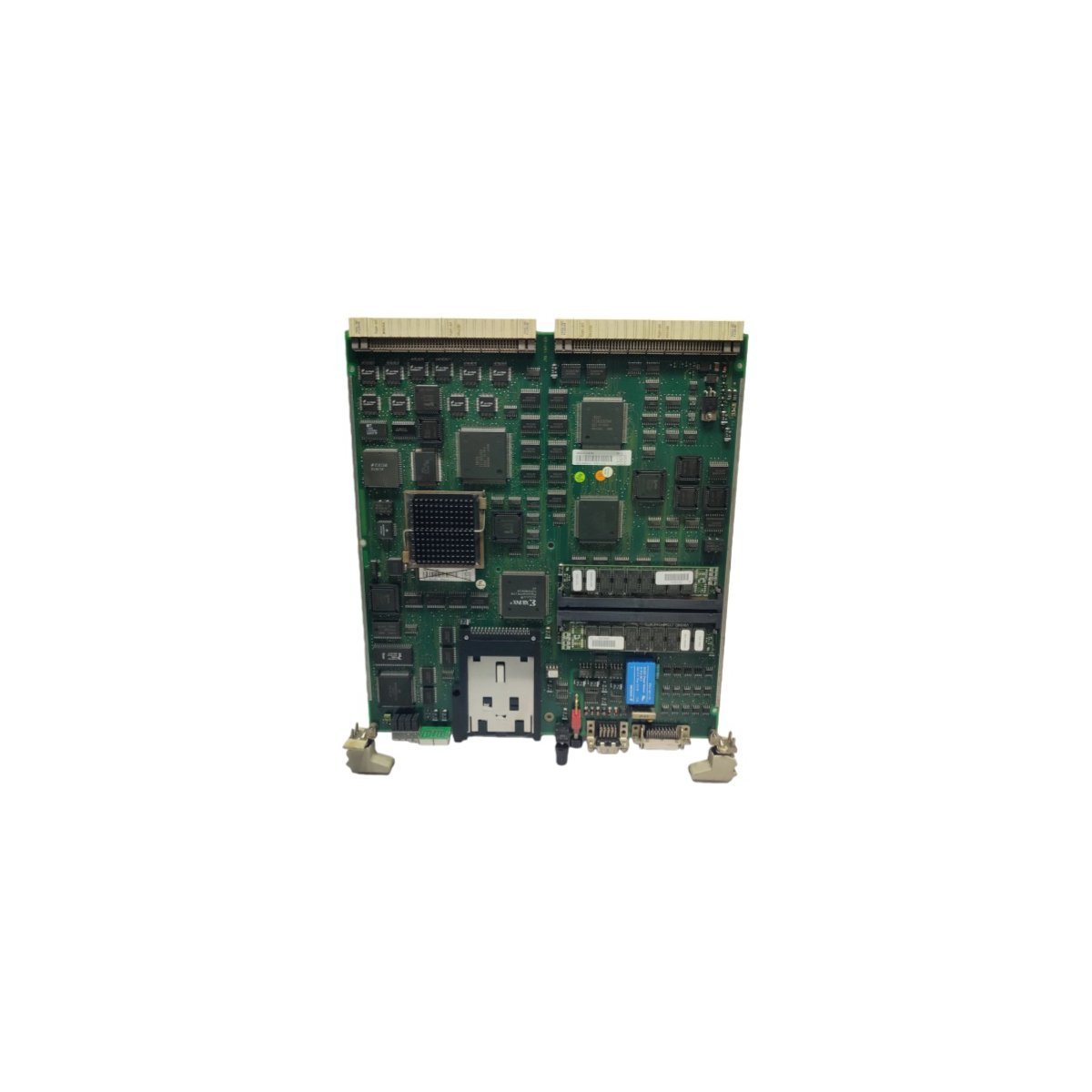

ABB PM511V16 3BSE011181R1 Processor Module

The ABB PM511V16 (Order Number: 3BSE011181R1) serves as a high-performance central processor for the Advant OCS AC400 series. This module executes complex control logic within distributed control systems. It utilizes a Motorola 68040 processor architecture to ensure real-time command processing. Furthermore, the unit features 16 MB of dynamic RAM with ECC protection to guarantee data integrity. Engineers rely on this module for demanding automation tasks in continuous process industries.

Technical Capabilities and Memory

• Processor Performance: 25 MHz clock speed for consistent task execution.
• Memory Capacity: 16 MB onboard RAM with Error Correcting Code support.
• Expansion Flexibility: Dual SIMM slots allow for field-configurable memory adjustments.
• Marine Certification: Available in a conformal coated version for extreme environments.
• System Integration: Operates as the primary controller for complex I/O coordination.

Environmental Reliability and Deployment

Industrial environments often impose harsh conditions on control hardware. The PM511V16 features robust physical protection against corrosion and moisture. Consequently, it maintains high availability in power generation and chemical processing facilities. The module simplifies system maintenance by utilizing standard memory switch settings. Its durable construction ensures stable performance throughout extended operational lifecycles. Moreover, the unit integrates seamlessly into existing AC400 infrastructure to minimize downtime during upgrades.

Technical Specification Overview
