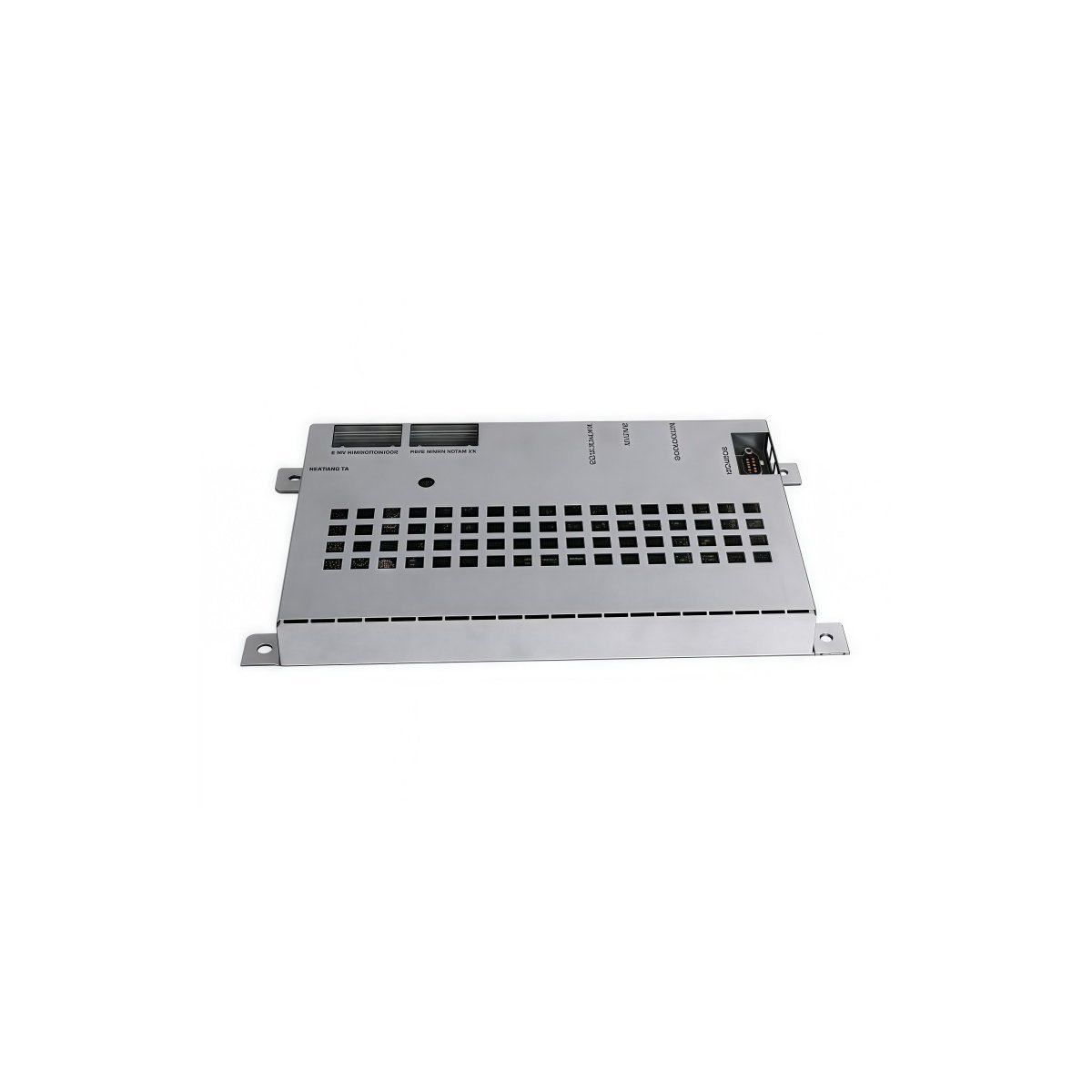

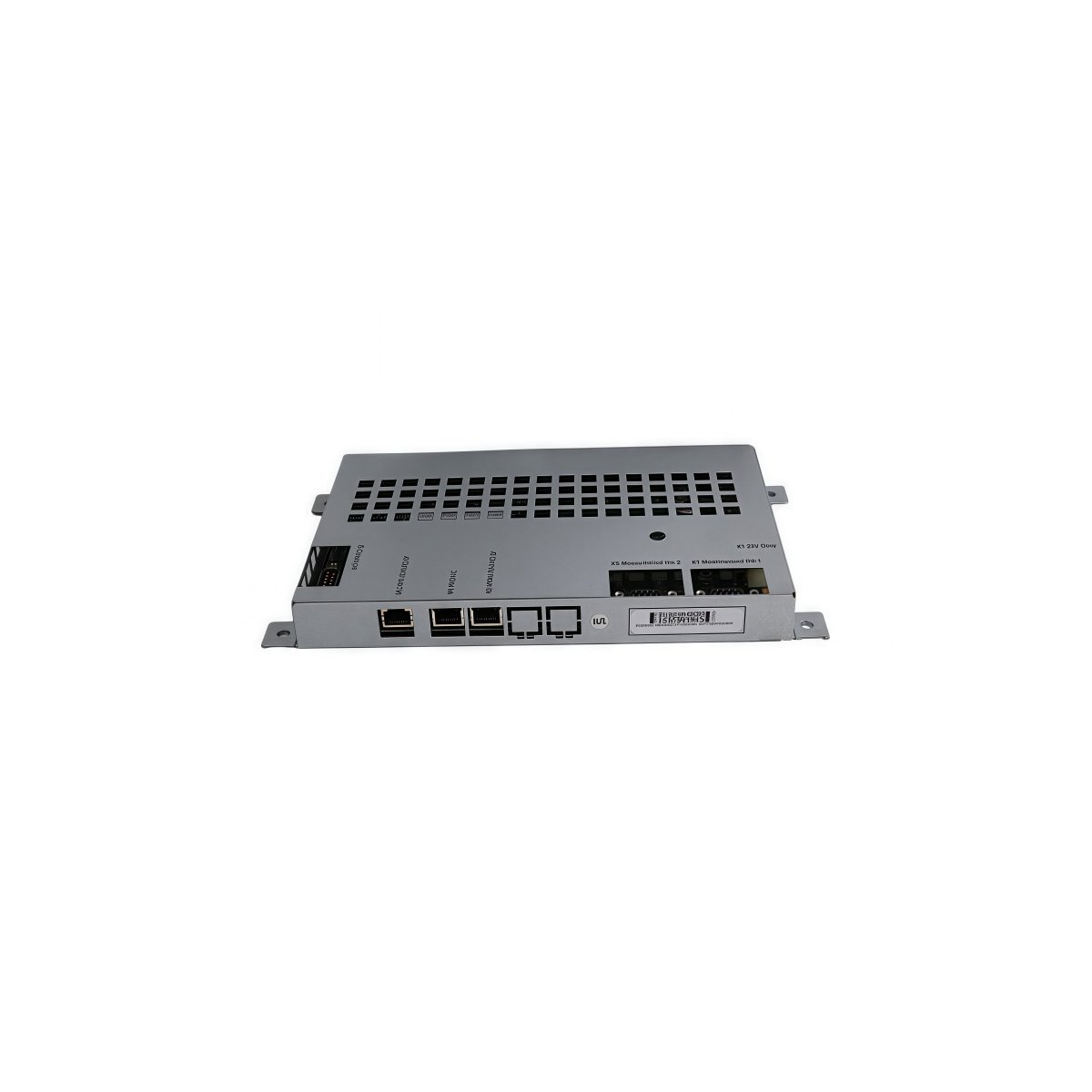

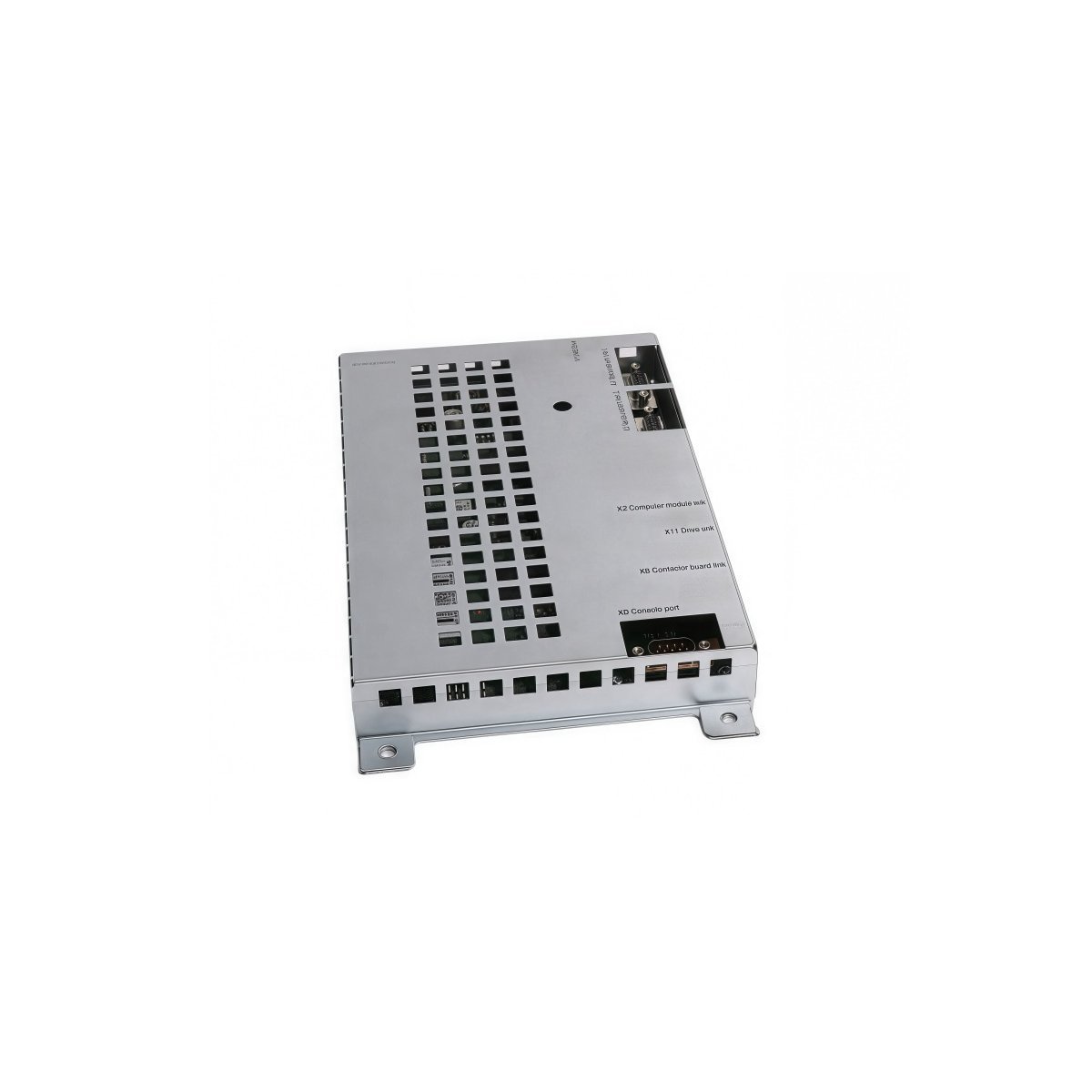

ABB DSQC 668 | 3HAC029157-001 | IRC5 Drive System Network Unit

Overview

The DSQC 668 (Part Number 3HAC029157-001) is a fundamental communication component within the ABB IRC5 industrial robot controller. Functioning as a high-speed network unit, it facilitates seamless data exchange between the main computer and the drive modules. This unit is critical for maintaining synchronized motion control across multiple axes, ensuring that the robot’s kinetic operations remain fluid and precise. The 3HAC029157-001 is engineered to withstand the electromagnetic interference typically found in dense industrial environments.

Technical Specifications

• Manufacturer: ABB Robotics
• Model: DSQC 668
• Global Part Number: 3HAC029157-001
• System Compatibility: IRC5 Controller M2004 and later versions
• Component Type: Network Communication Unit / Drive Bus Interface
• Communication Protocol: Ethernet-based drive bus
• Input Voltage: 24 V DC (standard internal supply)
• Operating Temperature: 0 °C to +52 °C (+32 °F to +125.6 °F)
• Mounting: Rack-mounted within the IRC5 control cabinet
• Diagnostics: Front-facing LED status indicators for power and bus activity
• Weight: 0.85 Kg

Maintenance and Diagnostics

The DSQC 668 is a non-serviceable module; if communication errors persist after verifying cabling, a unit replacement is usually required. In IRC5 systems, a failure in the 3HAC029157-001 typically results in a “Drive System Communication Error” on the FlexPendant, preventing the motors from engaging. When installing a replacement, ensure the firmware version matches the existing system parameters to maintain synchronization with the drive train.

FAQ

Q: Does the DSQC 668 require specific software configuration?

A: No, the DSQC 668 is a hardware interface. Once installed in an IRC5 system, the controller automatically recognizes the unit via the internal bus, though a system restart is required.

Q: Can this unit be used in the older S4C+ controllers?

A: No, the 3HAC029157-001 is specifically designed for the IRC5 hardware architecture and is not compatible with S4C or S4C+ series.
