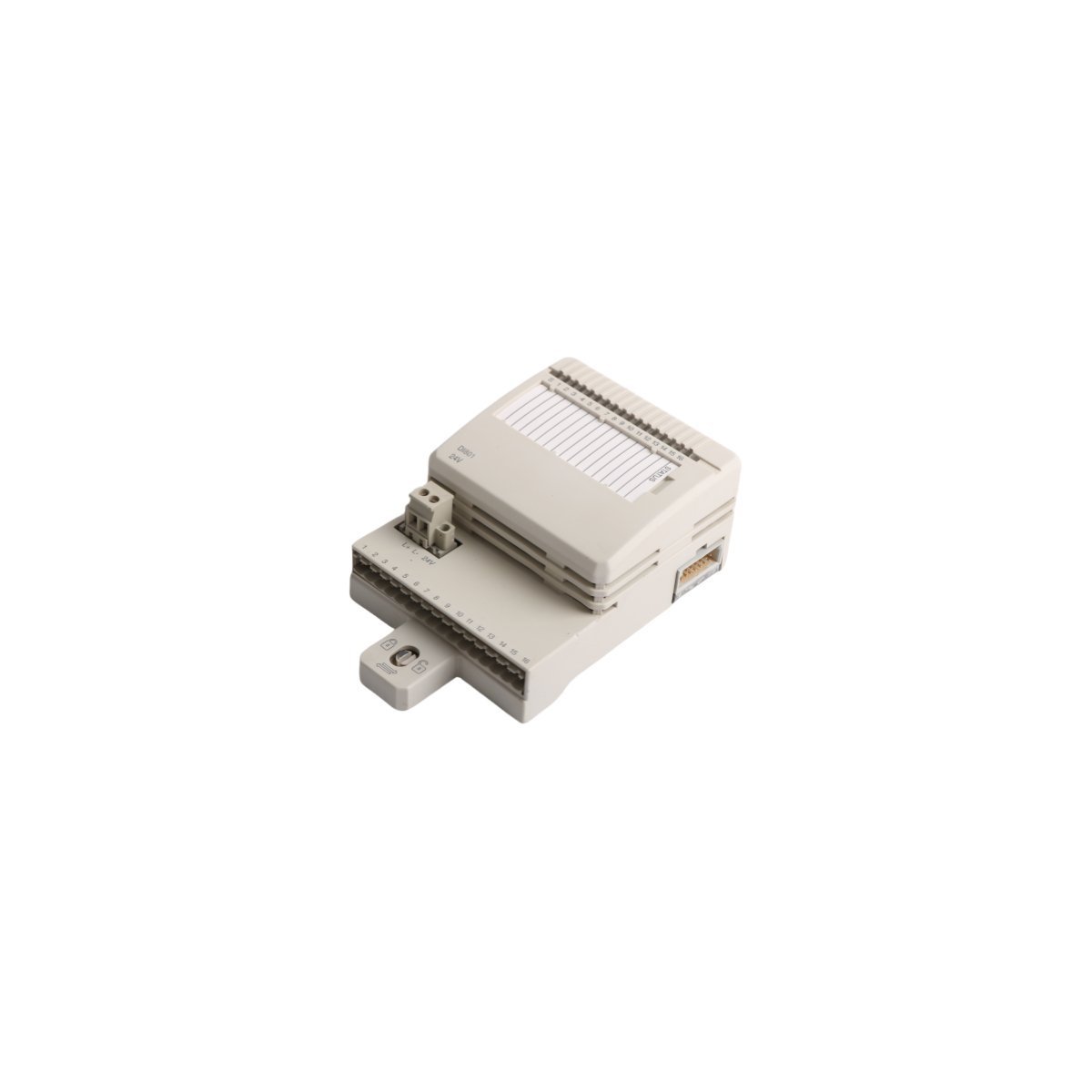

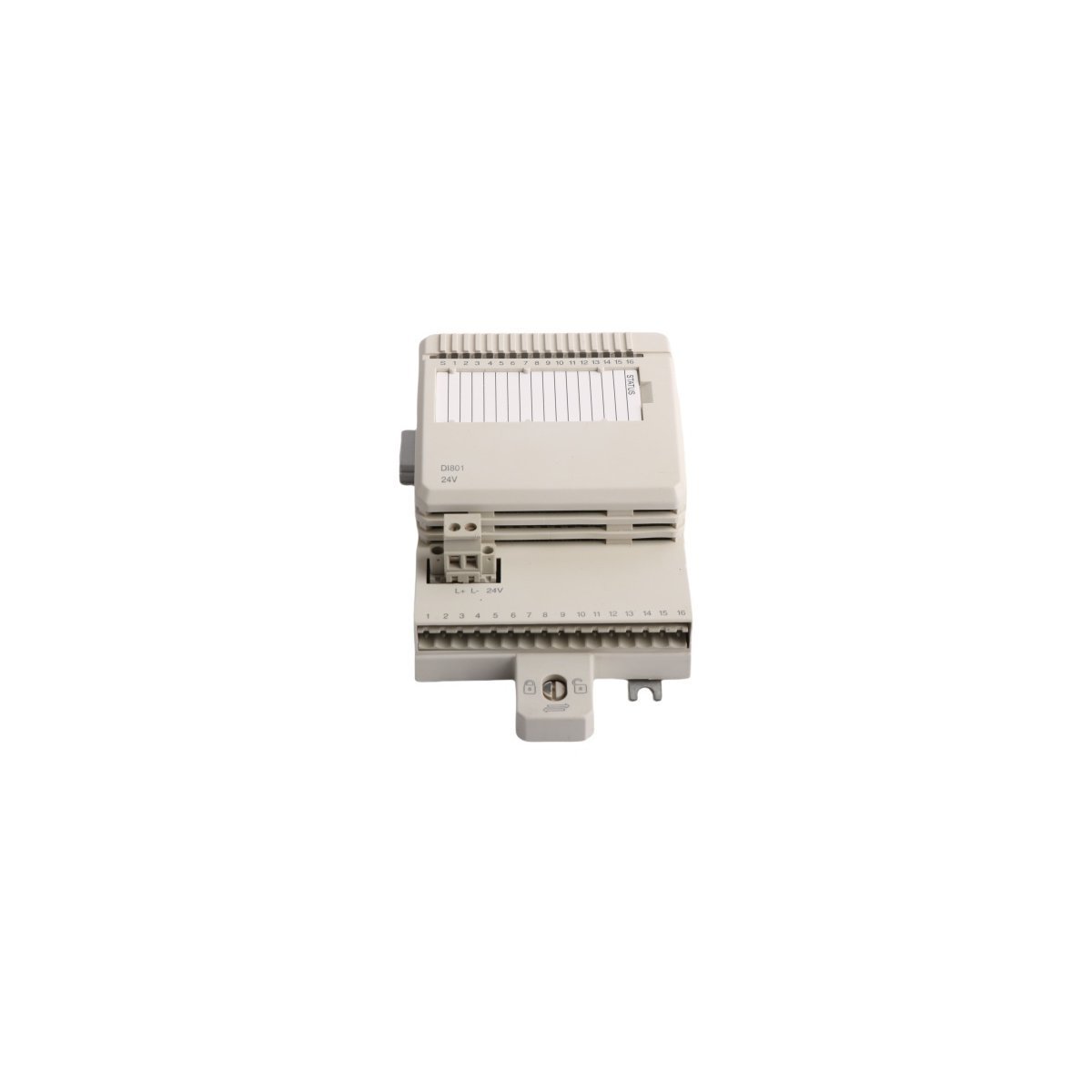

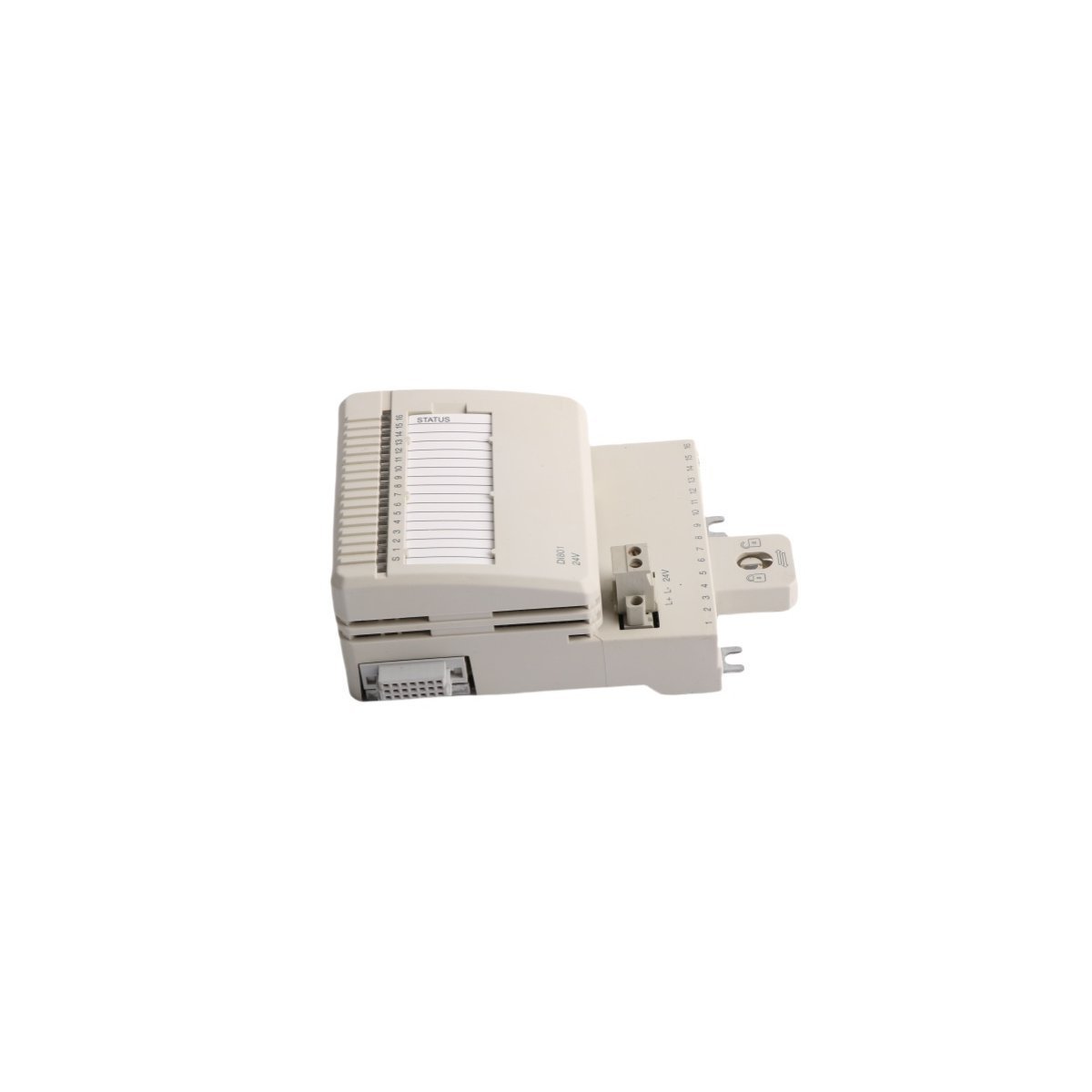

ABB DI801 3BSE020508R1 Digital Input Module

The ABB DI801 3BSE020508R1 is a high-density digital input module specifically engineered for the S800 I/O station. This 16-channel unit interfaces 24 V DC field signals with the process controller. It processes binary signals from switches, sensors, and contacts to provide real-time status updates for industrial automation systems. The hardware utilizes a single isolated group for all 16 channels, which simplifies wiring while maintaining high signal integrity.

Technical Performance and Safeguards

This module prioritizes hardware protection and signal accuracy in noisy industrial environments. Every channel includes dedicated circuitry to ensure long-term reliability.

• Input Voltage Range: 18 V DC to 30 V DC (24 V DC nominal)
• Current Consumption: 6 mA at 24 V DC per channel
• Isolation: Full galvanic optical isolation between field signals and the system logic
• Protection Features: Integrated EMC filtering and current-limiting components
• Status Monitoring: Individual LED indicators for each channel on the front panel
• Specialized Supervision: The 16th channel serves a dual purpose by monitoring the power supply status of the entire input group

Industrial Application and Integration

The DI801 module is a staple in Distributed Control Systems (DCS) such as ABB Ability System 800xA. It excels in environments where precision and uptime are critical. Typical deployment scenarios include:

• Process Automation: Monitoring valve positions and motor starter contacts.
• Safety Systems: Relaying status from emergency stop circuits and limit switches.
• Power Utilities: Integrating auxiliary contacts from circuit breakers and protection relays.
• Manufacturing: Tracking assembly line sensor data and equipment interlocks.

Mechanical Design and Maintenance

ABB manufactured the DI801 with a compact footprint to maximize cabinet space efficiency. The module easily snaps onto a terminal base, allowing for rapid replacement without disturbing the field wiring. This “hot-swap” capability reduces maintenance downtime. Furthermore, the robust Swedish engineering ensures the unit handles thermal stress and vibration during continuous 24/7 operation.
