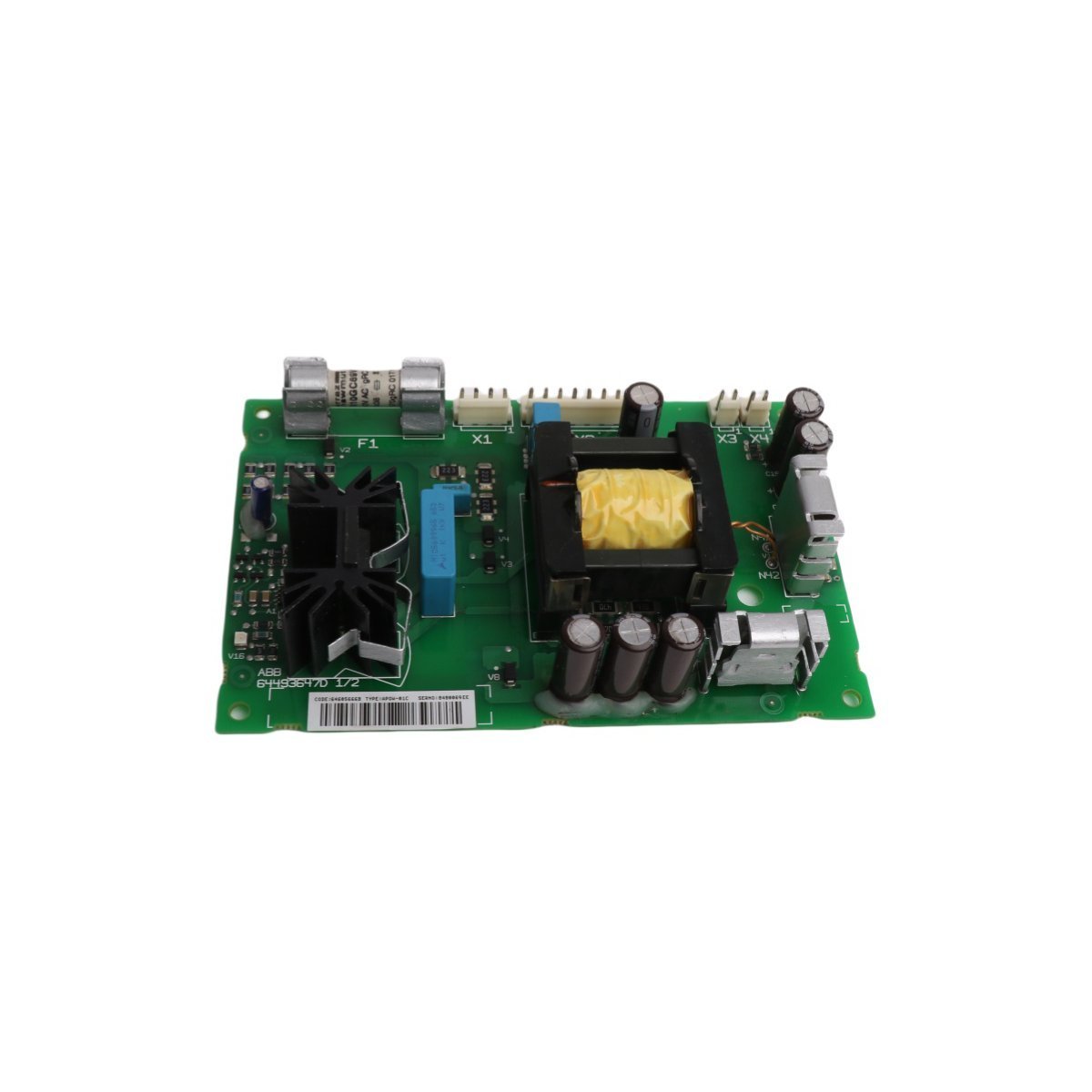

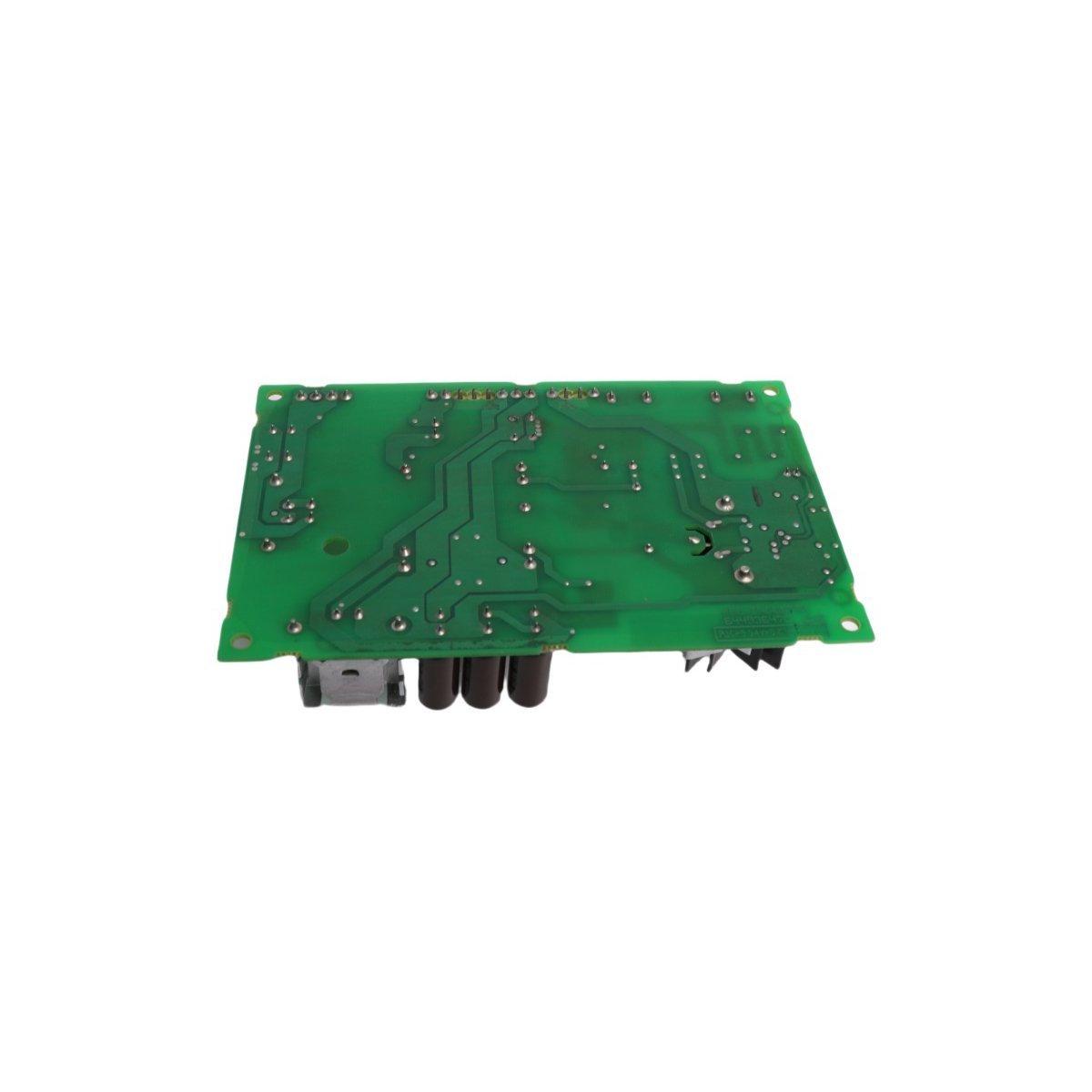

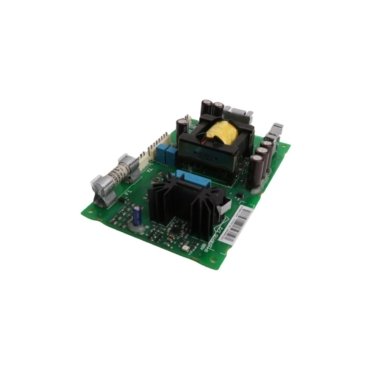

ABB APOW-01C Power Supply Board

The ABB APOW-01C functions as a high-efficiency power conversion module for Advant OCS and 800xA control systems. This board converts fluctuating industrial DC inputs into a stabilized 24V DC output. It maintains a strict voltage tolerance of ±1% to protect sensitive logic components from power instability. Furthermore, the unit features specialized conformal coating for enhanced protection against moisture and contaminants. This makes the APOW-01C an essential component for sustaining reliable controller operation in diverse process environments.

Operational Capabilities

This module accommodates a broad input range from 18V to 32V DC. Consequently, the power supply remains stable even during significant battery voltage drops or line fluctuations. The board achieves an energy conversion efficiency of at least 85%. This high efficiency minimizes heat dissipation within the control cabinet. Additionally, the unit provides a continuous current capacity of 1.5A to drive PLCs and sensor arrays. Such performance ensures that the automation hardware receives consistent energy without thermal derating.

Technical Specifications

• Brand: ABB
• Model: APOW-01C
• Product Series: Advant OCS / 800xA
• Module Type: Power Supply Board (Coated)
• Output Voltage: 24V DC (Main) / Optional 5V & 12V
• Input Range: 18 – 32V DC
• Power Rating: 20 – 30 Watts
• Net Weight: 0.9 kg
• Unit Dimensions: 3.5 x 14.7 x 13.5 cm
• Manufacturing Origin: Sweden

Safety and Protection Features

ABB integrates multiple hardware-level safeguards into the APOW-01C architecture. The board includes an automatic overvoltage cutoff that triggers at levels exceeding 35V. Moreover, an undervoltage lockout prevents system brownouts by disabling the output below 15V. These features prevent cascading failures in the event of a primary power surge. The module also resists industrial-grade vibrations and mechanical shocks. Therefore, it maintains structural integrity and electrical contact in heavy-duty manufacturing zones.

Integration and Maintenance

The compact form factor of the APOW-01C allows for high-density mounting in small control panels. It features standardized connectors for rapid installation and modular replacement. Maintenance teams can easily swap boards without extensive rewiring during service intervals. Furthermore, the unit supports 24/7 continuous operation in harsh industrial temperature ranges. This reliability helps facilities reduce unplanned downtime and lower total ownership costs. The board remains a preferred choice for power distribution in both discrete and process automation.
