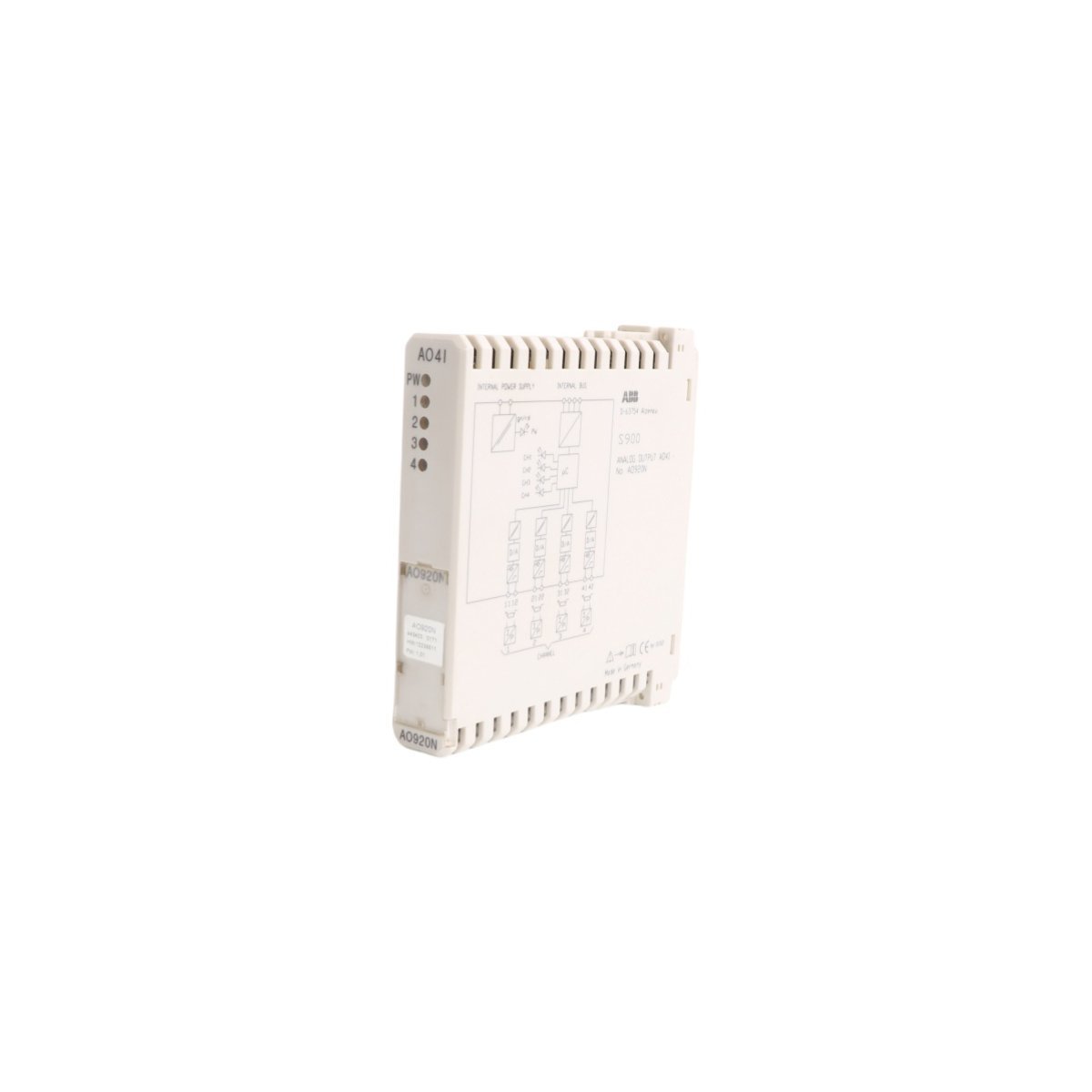

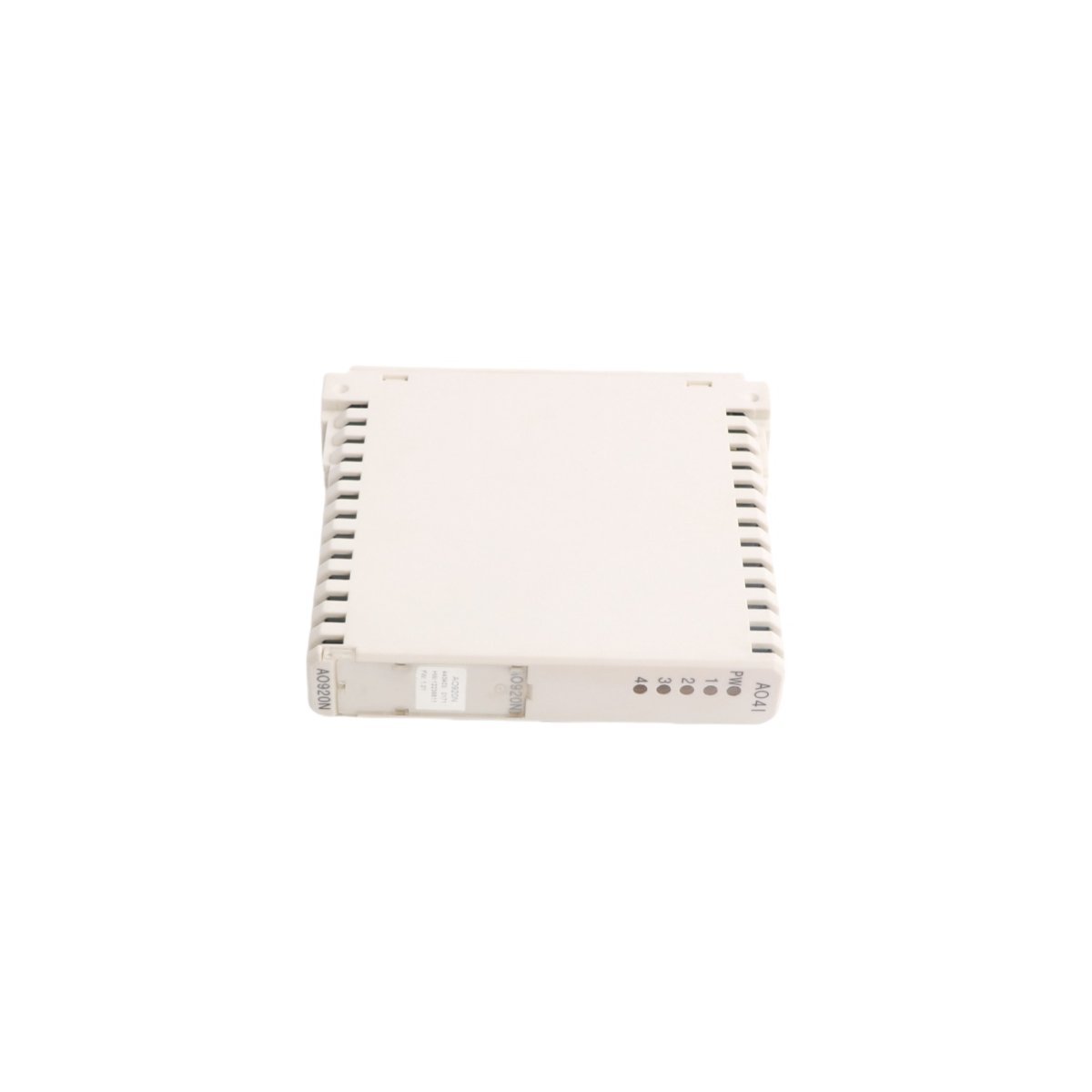

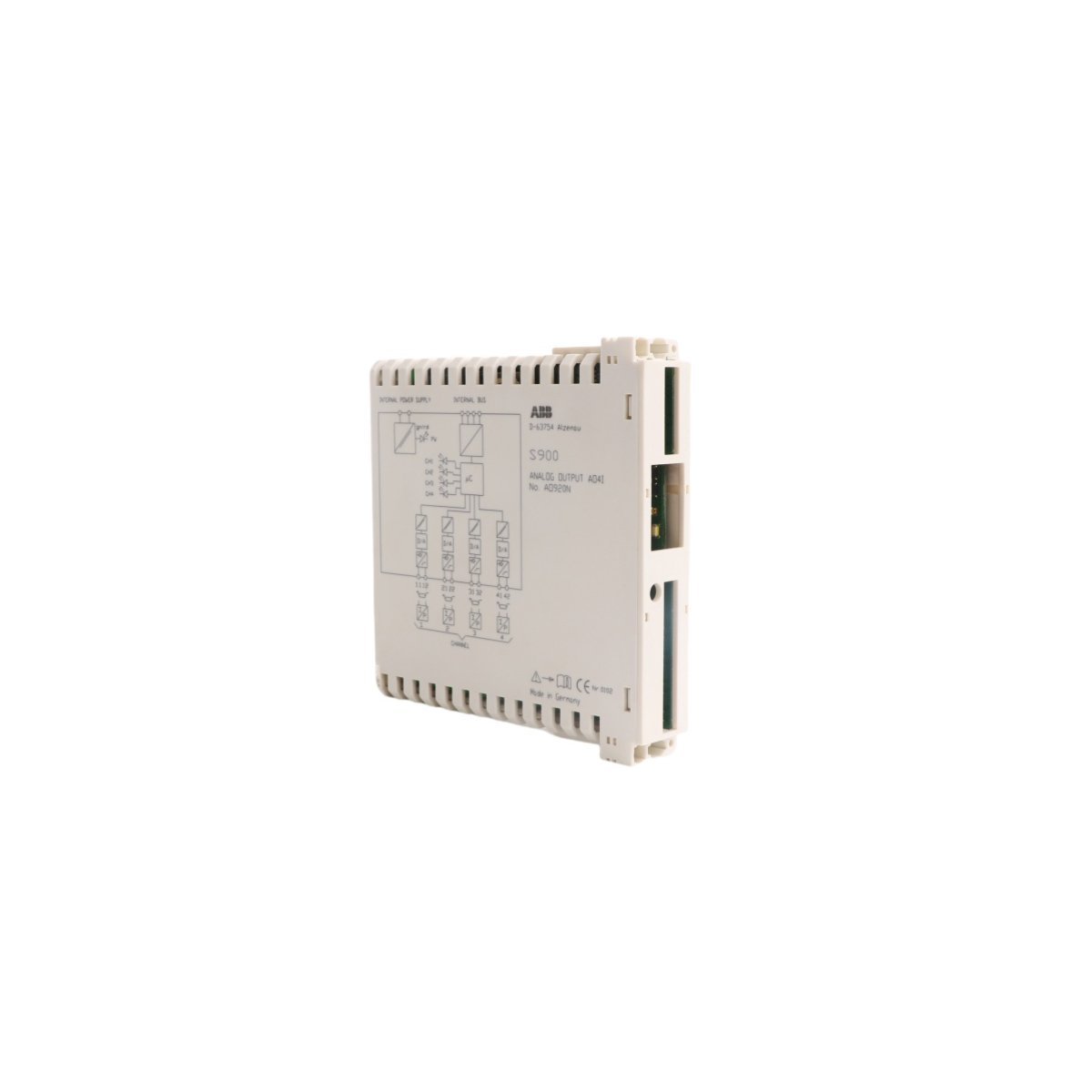

The ABB AO920N (3KDE175533L9200) functions as a high-integrity component within the S900 I/O system. This module converts digital controller commands into precise analog current signals. It effectively drives field devices such as control valves and positioners. High-level galvanic isolation protects the internal system logic from field-side electrical disturbances. Consequently, the module ensures stable loop control in complex Distributed Control Systems (DCS).
Core Technical Characteristics
This unit supports the industry-standard 4-20 mA current output range. It maintains high accuracy levels within ±1% of the full-scale value. The hardware operates on a standard 24 V DC supply voltage. An impressive 1000 V AC isolation rating provides superior protection against ground loops. Furthermore, the module features a fast response time of 10 milliseconds or less. This speed allows for real-time adjustments in highly dynamic industrial processes.
Environmental and Physical Design
ABB engineers designed the AO920N for extreme durability in hazardous areas. The IP20-rated enclosure prevents ingress from solid objects. It operates reliably in temperatures ranging from -25°C to +60°C. Its compact dimensions allow for high-density mounting on standard rails. The module weighs only 0.12 kg, minimizing the mechanical load on the cabinet structure. Sweden serves as the country of origin for this precision-manufactured hardware.
Connectivity and Integration
Integration into existing networks occurs seamlessly via professional communication protocols. The module utilizes terminal block connections for secure and easy field wiring. Advanced diagnostics help operators identify faults quickly to reduce system downtime. It complies with major international safety standards including CE and UL certifications. This module remains a primary choice for engineers seeking long-term reliability in DCS environments.
Technical Summary
- Manufacturer: ABB
- Model: AO920N
- Part Number: 3KDE175533L9200
- I/O Family: S900 System
- Output Signal: 4-20 mA Analog
- Isolation Voltage: 1000 V AC
- Weight: 0.12 kg
- Operating Temperature: -25°C to +60°C
- Dimensions: 20 x 105 x 110 mm
