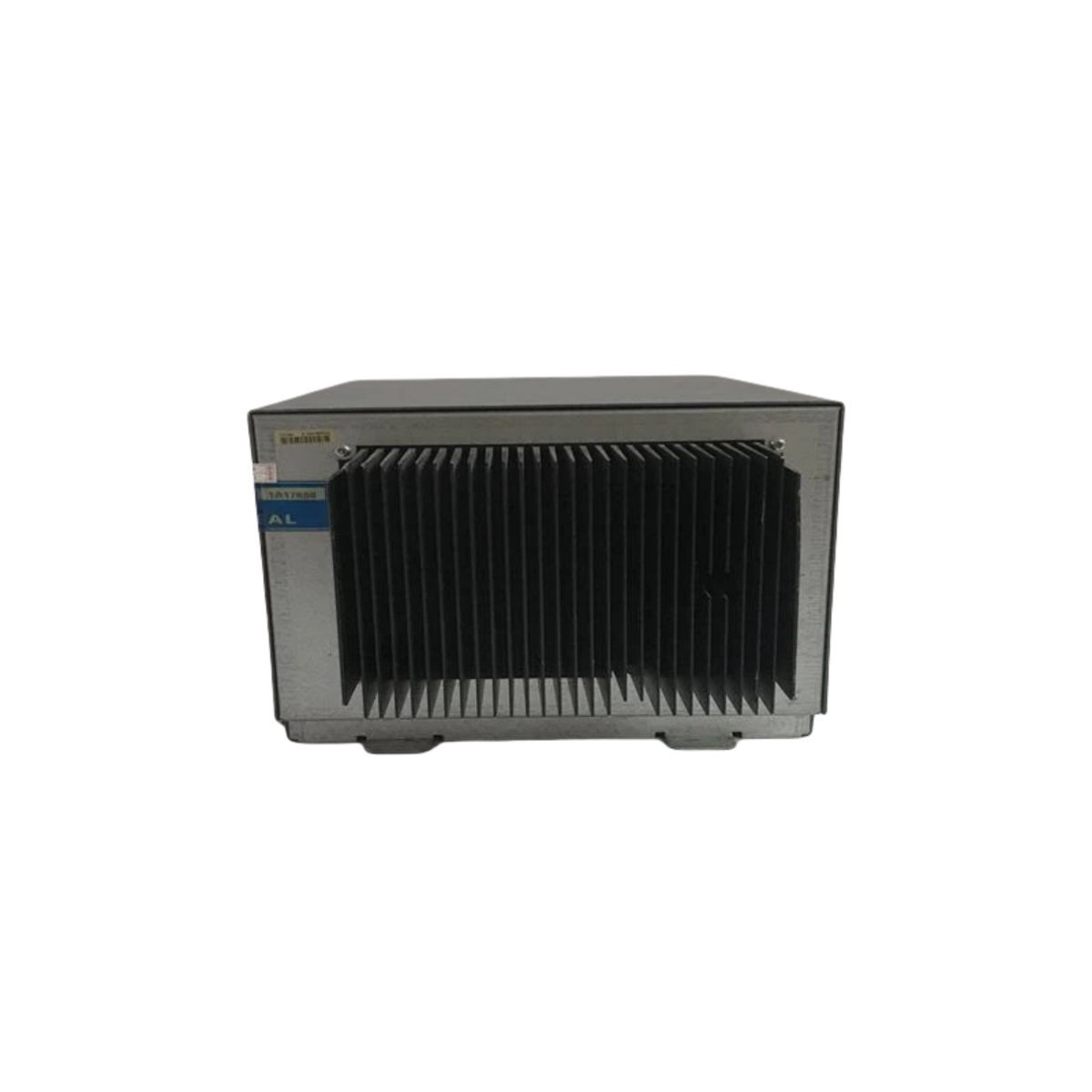

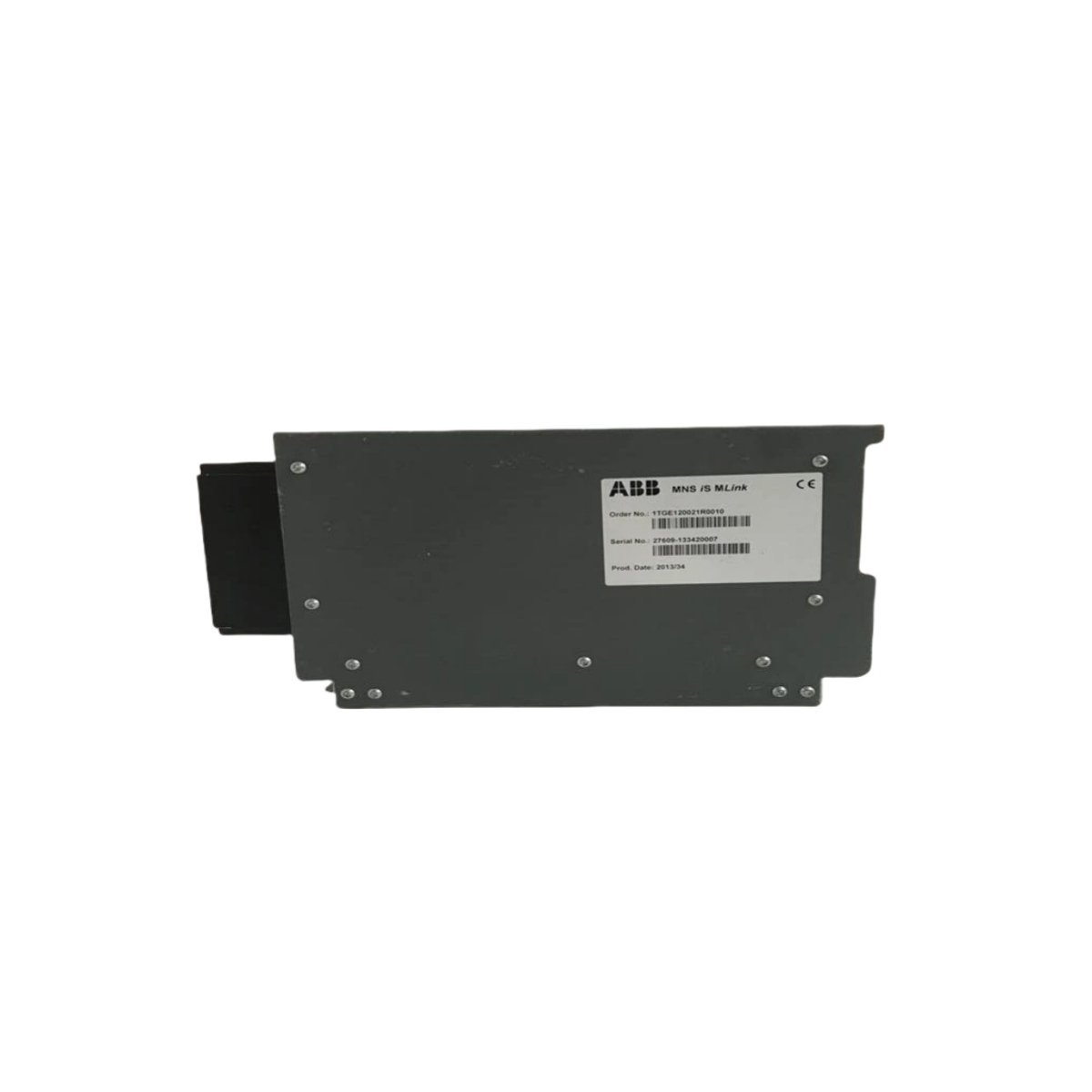

The ABB 1TGE120021R0010 functions as a high-performance communication gateway within the MLink hardware ecosystem. This module provides a critical data bridge between field-level instrumentation and centralized control architectures. By utilizing MLink Hardware Version 2, the gateway optimizes signal processing across complex automated networks. It converts disparate fieldbus data into standardized formats for real-time monitoring. Consequently, this device enhances system transparency and operational response times in industrial plants.
Technical Specifications
| Attribute | Detail |
| Manufacturer | ABB |
| Model Number | PCD530 A102 |
| Order Code | 1TGE120021R0010 |
| Hardware Version | MLink V2 |
| Protocol Support | Modbus TCP/RTU, Profibus, PROFINET IO |
| Internal Protocol | Modbus TCP |
| Weight | 3.0 kg |
| Dimensions | 24.5 x 18.5 x 8 cm |
| Origin | Sweden |
Multi-Protocol Integration
This gateway offers exceptional flexibility by supporting several industry-standard communication protocols. It handles Modbus RTU, Modbus TCP, Profibus, and PROFINET IO simultaneously. This broad compatibility allows users to integrate legacy equipment with modern DCS platforms easily. Internally, the module relies on Modbus TCP to maintain high-speed data consistency. Furthermore, the fieldbus interface provides stable connections to Profibus-certified sensors and actuators. Such versatility makes it a cornerstone for unified automation infrastructures.
Industrial Durability and Design
ABB engineered the PCD530 A102 for the most demanding factory environments. The module features a robust housing that resists mechanical stress and electrical interference. Its 3kg mass reflects a heavy-duty build quality suitable for long-term deployment. Additionally, the compact dimensions allow for efficient installation within standard control cabinets. This gateway operates reliably in process industries where uptime remains the top priority.
Network Efficiency and Scalability
The 1TGE120021R0010 streamlines data flow to prevent network congestion during peak loads. It manages multiple data streams without compromising signal integrity. Moreover, the plug-and-play architecture simplifies the expansion of existing automation segments. Maintenance teams can configure the gateway quickly using standard ABB software tools. Therefore, this module reduces the total cost of ownership for large-scale industrial networks.
