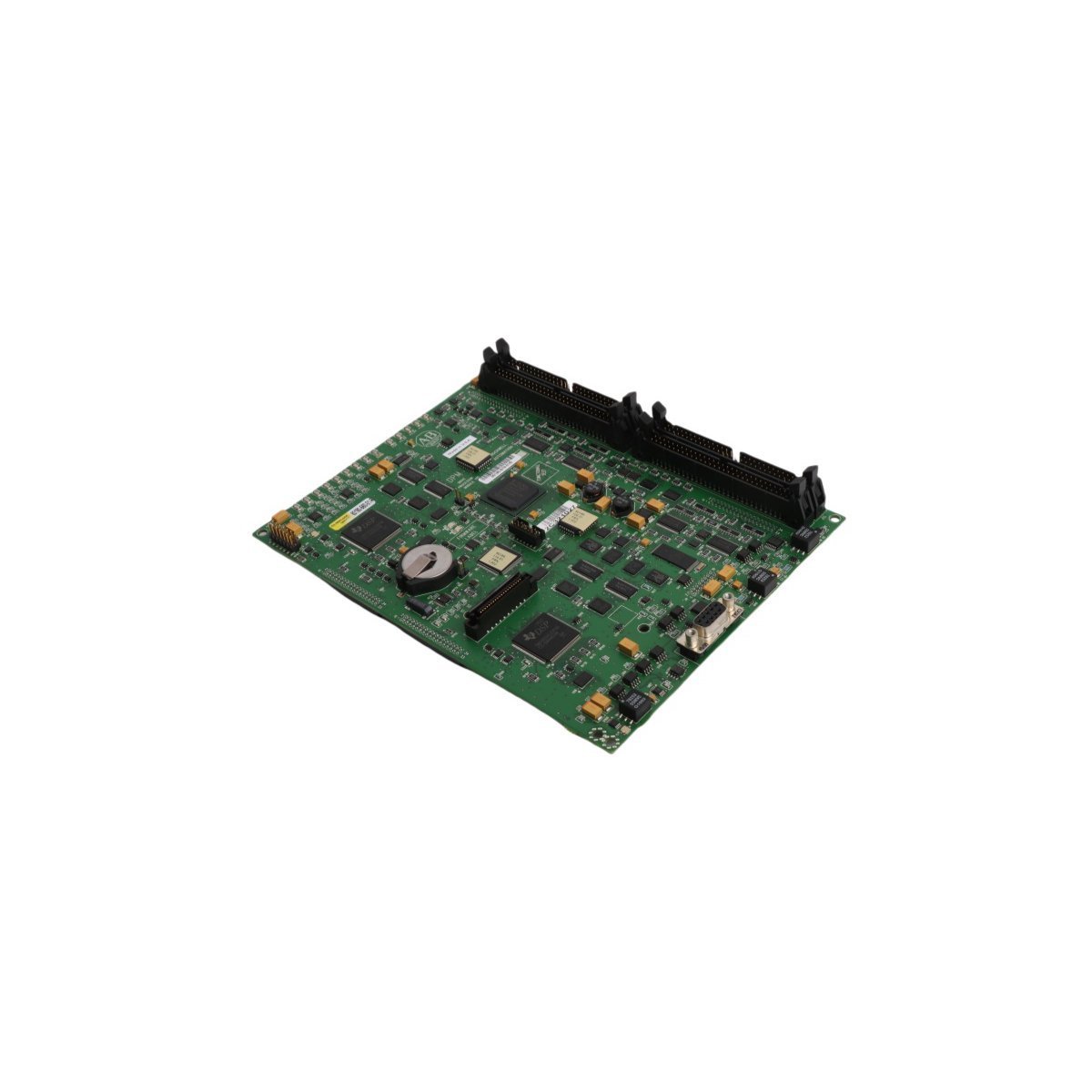

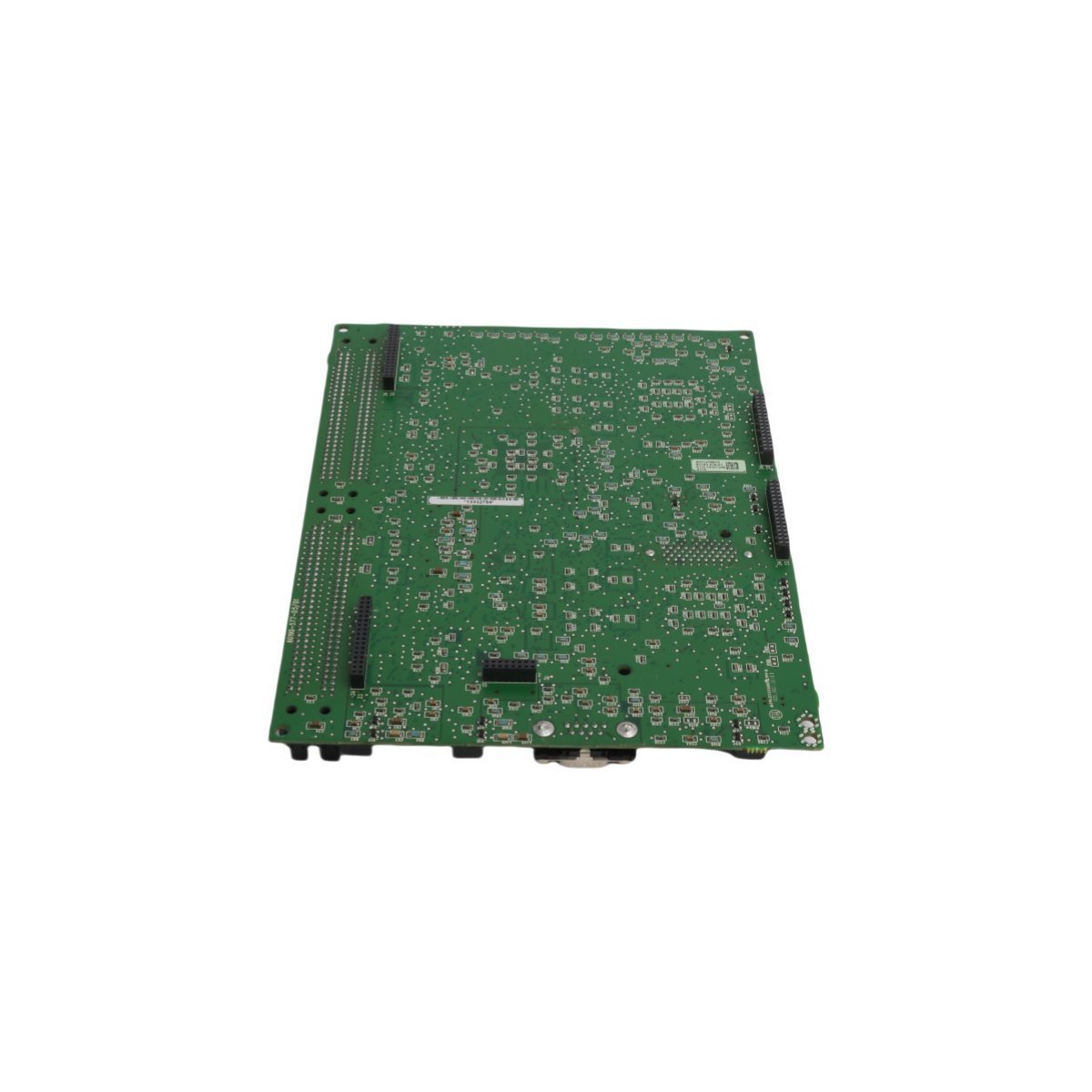

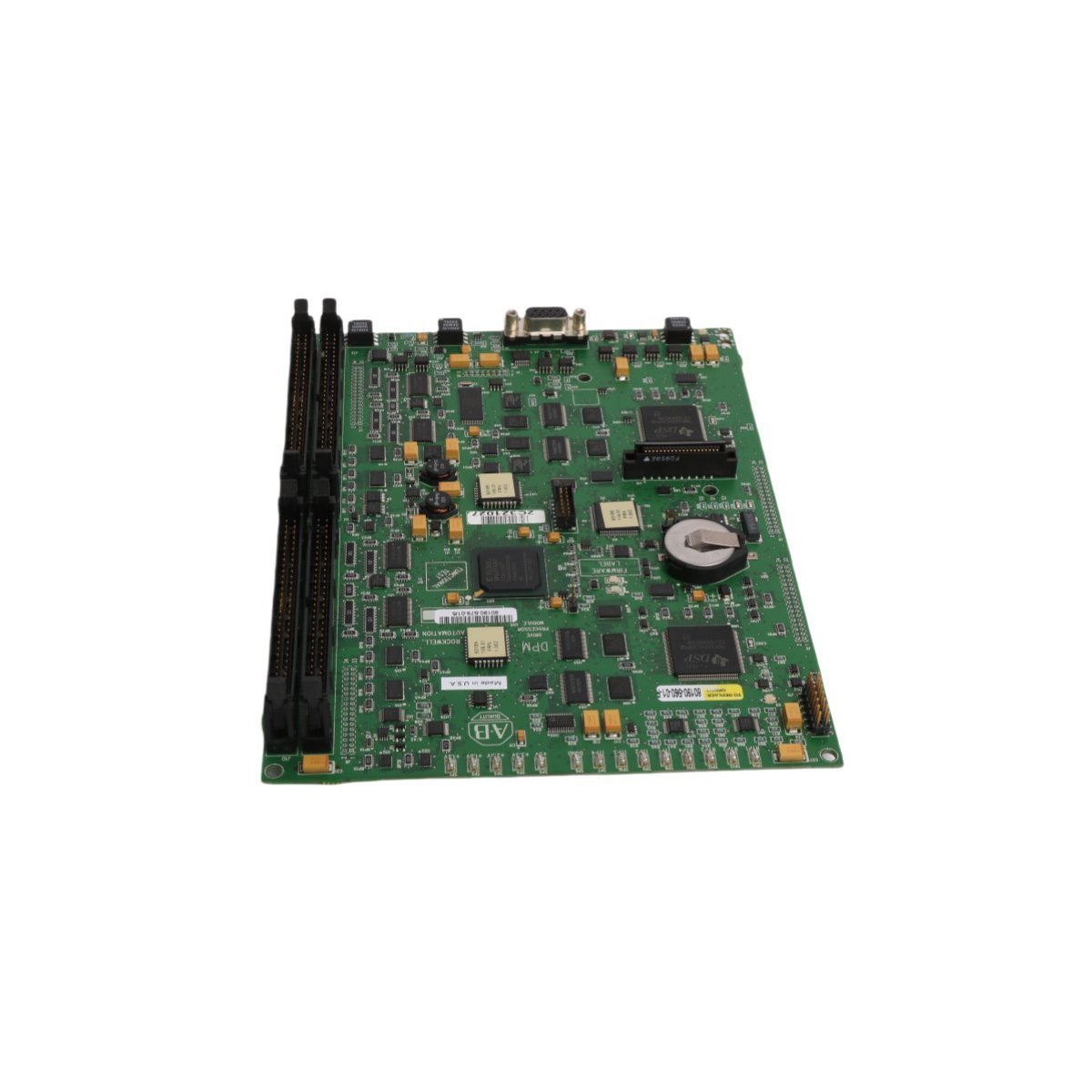

80190-560-01-R Allen Bradley Motion Control Circuit Board Module

Product Description

The Allen Bradley 80190-560-01-R acts as a high-precision analog control board designed for integrated servo drive systems. This PC board executes complex motion control algorithms to manage motor speed, torque, and positioning with micro-level accuracy. It serves as the primary intelligence layer within the drive, interfacing directly with feedback devices to ensure deterministic performance in high-speed manufacturing environments.

Technical Specifications

This control board features a compact architecture designed for high-density electrical cabinet installations.

Engineering Advantages

• High-Response Motion Regulation: The 80190-560-01-R processes analog signals with minimal latency, allowing the servo system to react instantly to load changes. This capability maintains steady-state accuracy in demanding applications like CNC machining and synchronized conveyor systems.
• Rugged Thermal Architecture: This board incorporates an advanced thermal management layout that dissipates heat efficiently across the PCB surface. Consequently, the module maintains peak performance during continuous heavy-duty cycles without risk of thermal throttling.
• Enhanced Signal Integrity: To combat electromagnetic interference (EMI) typical of industrial environments, the circuit design utilizes multi-layer shielding and filtered I/O paths. These features prevent signal corruption from nearby high-voltage switchgear or motors.
• Streamlined Diagnostics: Integrated software hooks allow for rapid system health checks. Technicians can access real-time performance data through the control network, which facilitates predictive maintenance and significantly reduces mean time to repair (MTTR).
• Versatile Feedback Support: The board interfaces with a wide variety of motor types and encoder feedback devices. This versatility enables system integrators to deploy the 80190-560-01-R across diverse platforms, from automotive assembly to precision packaging.
• 100% Brand New Condition: We supply only original, factory-sealed Allen Bradley hardware. Choosing new original components ensures full compliance with manufacturer safety standards and provides the maximum operational lifespan for mission-critical automation.

FAQs

What specific servo series does the 80190-560-01-R support?

This PC board typically functions within specific legacy and active high-performance servo drive families from Rockwell Automation. Please verify your drive’s chassis part number to ensure exact firmware and hardware compatibility.

Does this board require specialized cooling?

While the board features efficient thermal traces, it relies on the airflow provided by the servo drive enclosure. Ensure that the drive’s internal fans operate correctly and that the 19.1 x 18.8 cm footprint has adequate clearance.

Is this module compatible with Ethernet-based control?

Yes, the 80190-560-01-R integrates into modern control architectures via compatible Ethernet bridge modules or routers, enabling centralized management through standard PLC programming environments.
