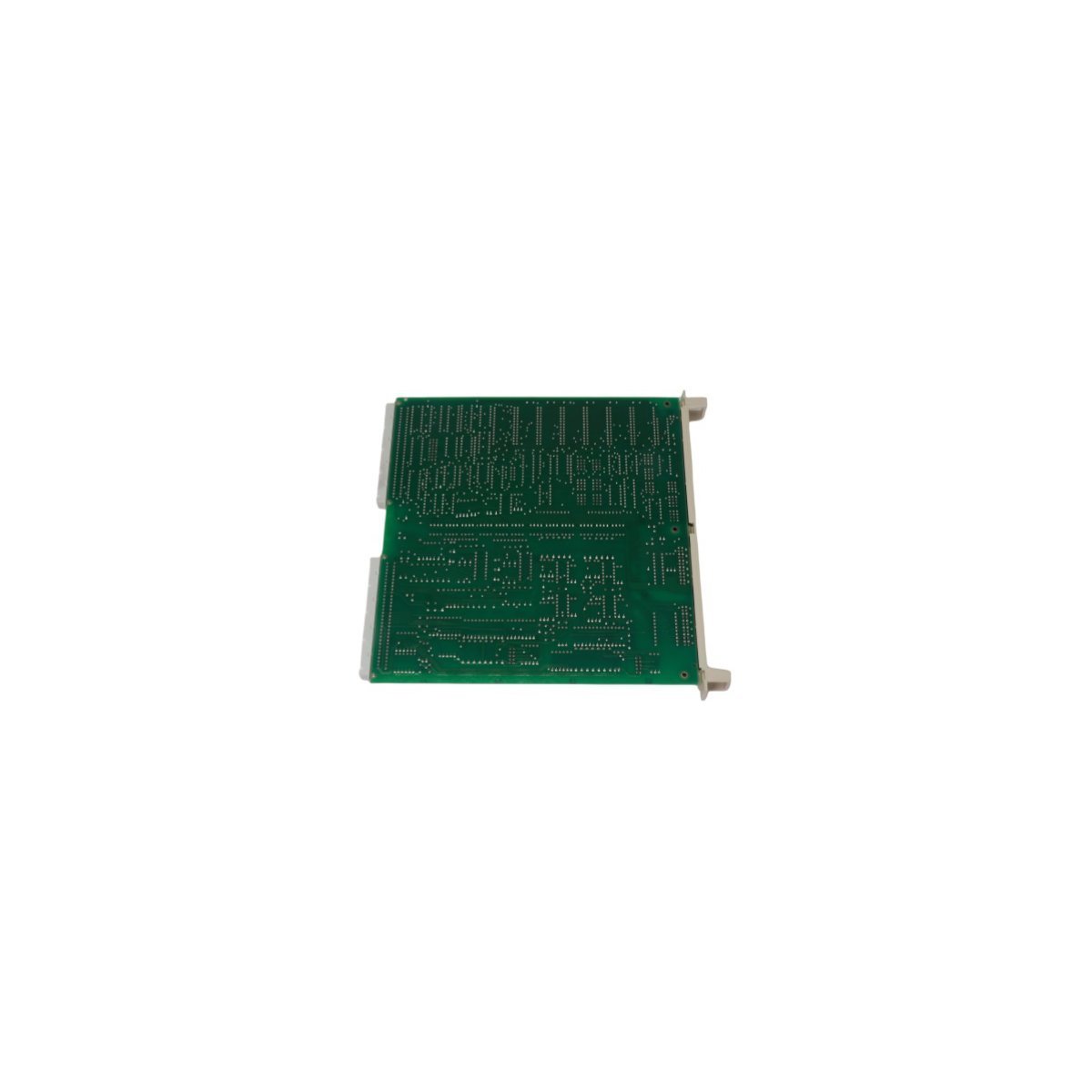

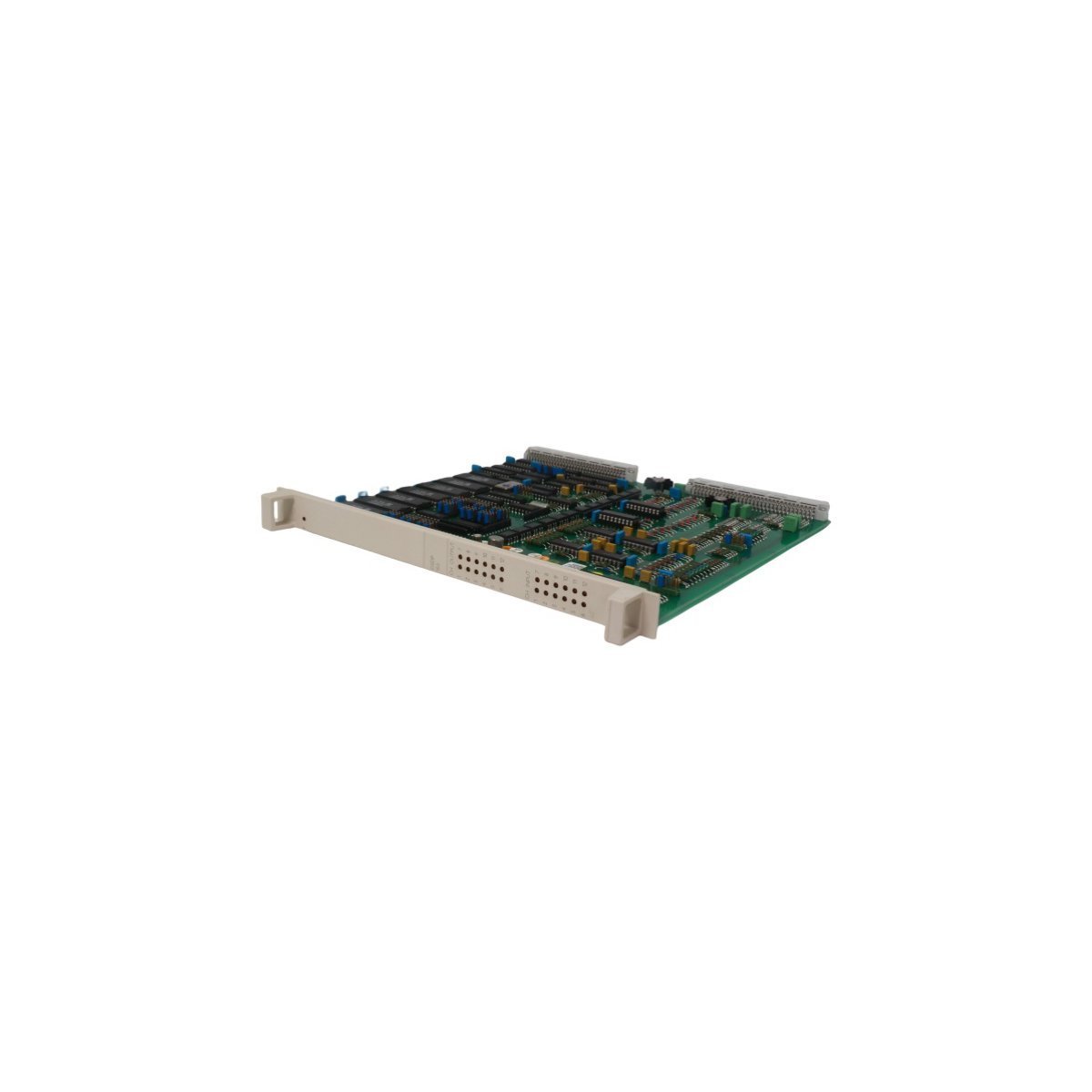

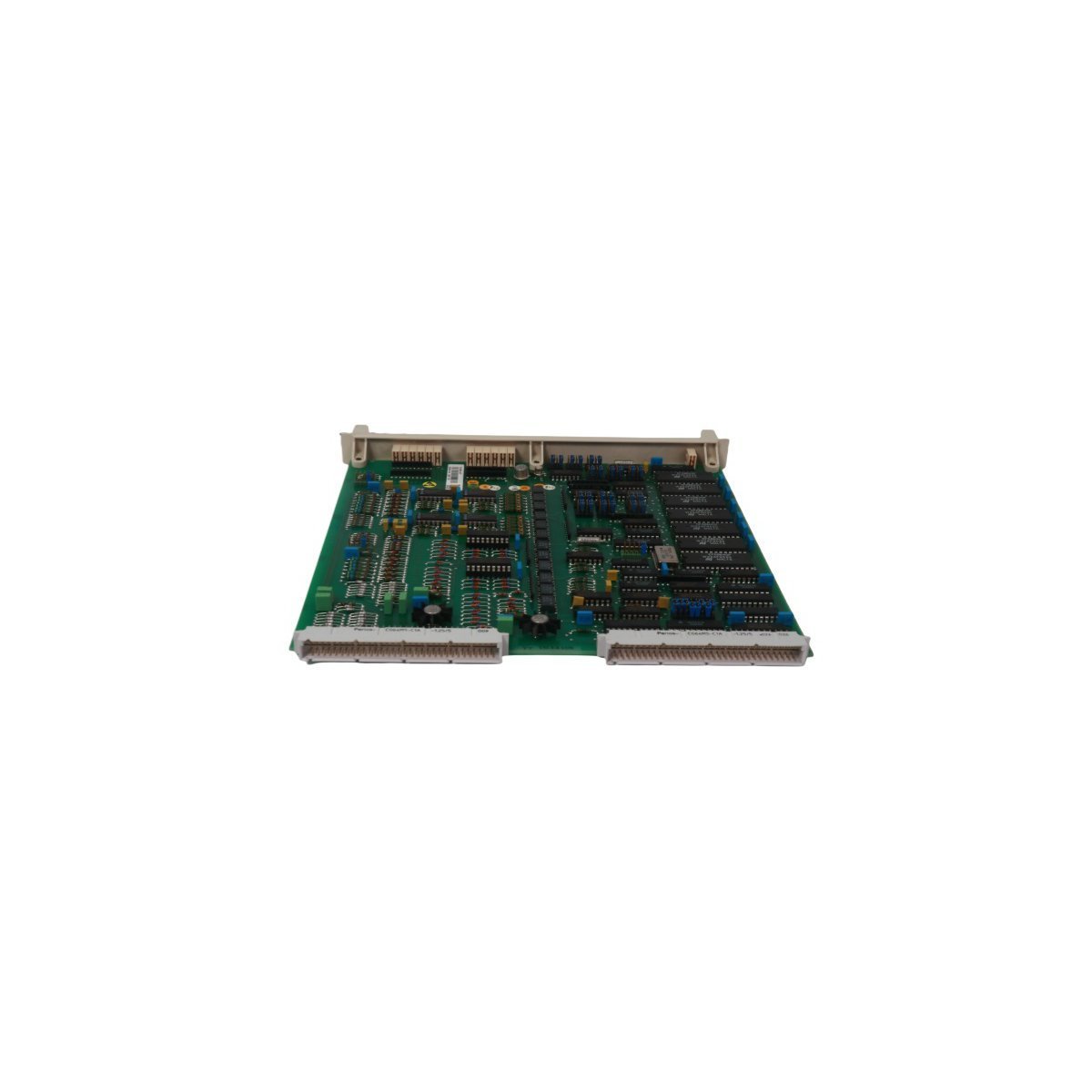

57160001-GF ABB DSDP150 MasterPiece Process Pulse Counter Module

Brief Product Description

The ABB DSDP150 57160001-GF decodes high-frequency pulse trains from industrial encoders to measure rotational speed and shaft displacement. This specialized MasterPiece board ensures reliable motion feedback inside complex distributed control networks.

Functional Description of the DSDP150 Processing Module

The ABB DSDP150 57160001-GF pulse encoder input module serves as a dedicated high-speed processing unit within the classic MasterPiece control system architecture. This module interfaces directly with incremental pulse encoders to monitor rotational vectors on industrial drivetrain machinery. Because automated heavy machinery demands real-time velocity calculations, this hardware converts raw sensor pulse trains into stable speed measurements.

The board accepts high-frequency digital inputs from differential or single-ended encoder channels to determine shaft direction and displacement. Consequently, the host controller can calculate exact positioning profiles for heavy industrial rollers, cranes, and turbine assemblies. Internal hardware registers handle rapid counting sequences independently, preventing processor overload on the main rack controller board.

Furthermore, integrated optocouplers isolate the sensitive logic circuitry from field-side electrical interference and voltage surges. This robust galvanic isolation ensures signal clarity and prevents data corruption during high-frequency pulse operations. The board communicates continuously across the master backplane to deliver synchronous velocity values to the operational program.

For complete control topology mapping, operators can view our ABB DCS System Components or check our MasterPiece Classic Series Catalog. Technical guidelines regarding standardized pulse-counting telemetry are available on the International Electrotechnical Commission (IEC) digital database.

Industrial Applications for ABB DSDP150

• High-speed industrial motor velocity tracking
• MasterPiece classic DCS infrastructure expansions
• Position monitoring for automated heavy material handling
• Web tension control systems in paper and steel mills

Product Specifications for 57160001-GF

• Brand Name: ABB
• Model Designation: DSDP150
• Order Number (Part Code): 57160001-GF
• Module Classification: Pulse Encoder Input Board
• Product Line Affiliation: MasterPiece System / DCS
• Current Component Status: Active Support
• Country of Manufacture: Sweden

Hardware and Mechanical Profiles

• Signal Interface Channels: Multiple high-frequency encoder pulse inputs
• Net Product Weight: 0.38 kg
• Physical Dimensions: 2.1 cm x 25.0 cm x 24.5 cm
• Customs Commodity Code (HS Code): 8537101190
• Minimum Order Quantity: 1 unit
