3BHE028761R2004 GDC806 A2004 ABB UNITROL DCS Control Board

ABB 3BHE028761R2004 GDC806 A2004 UNITROL Control Board Module

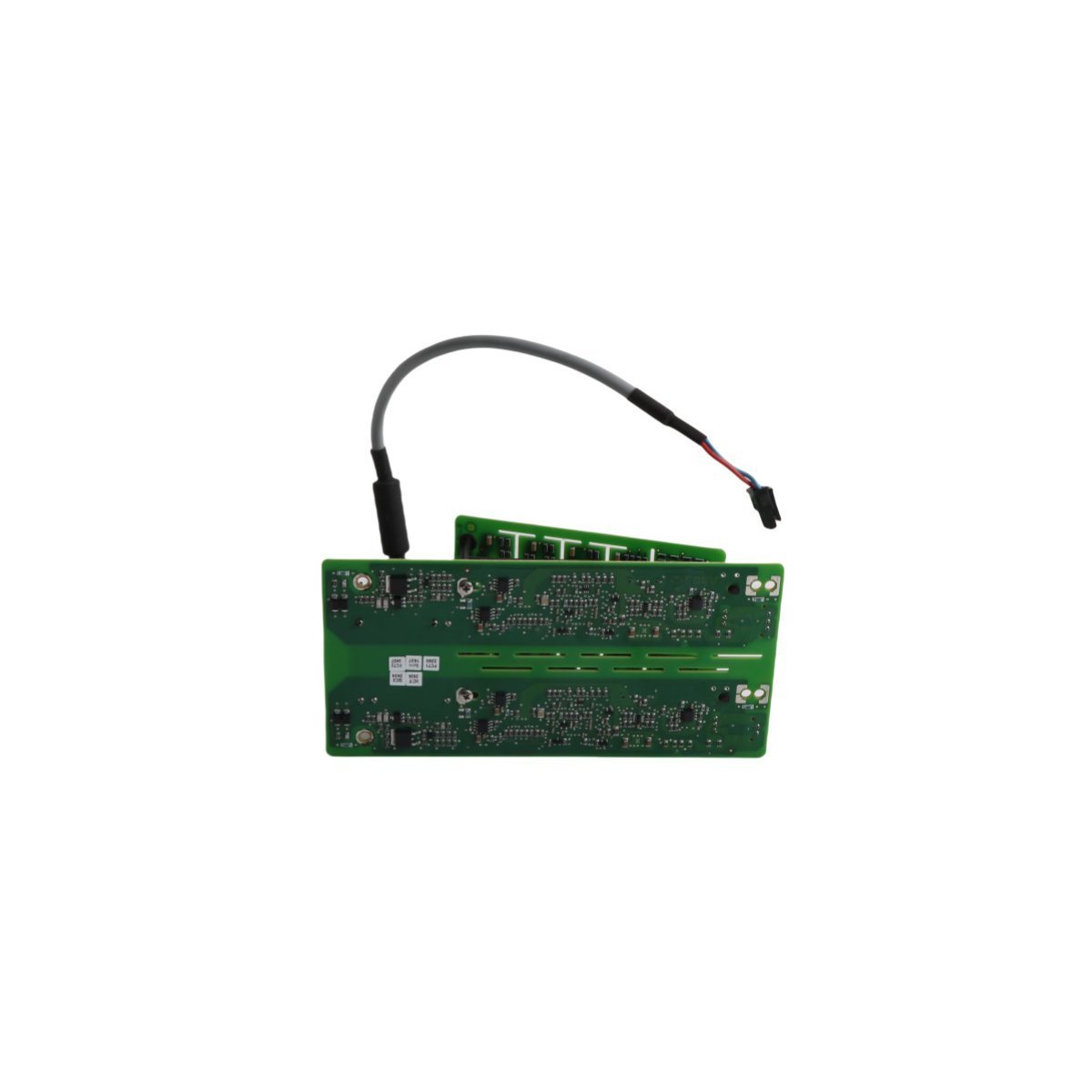

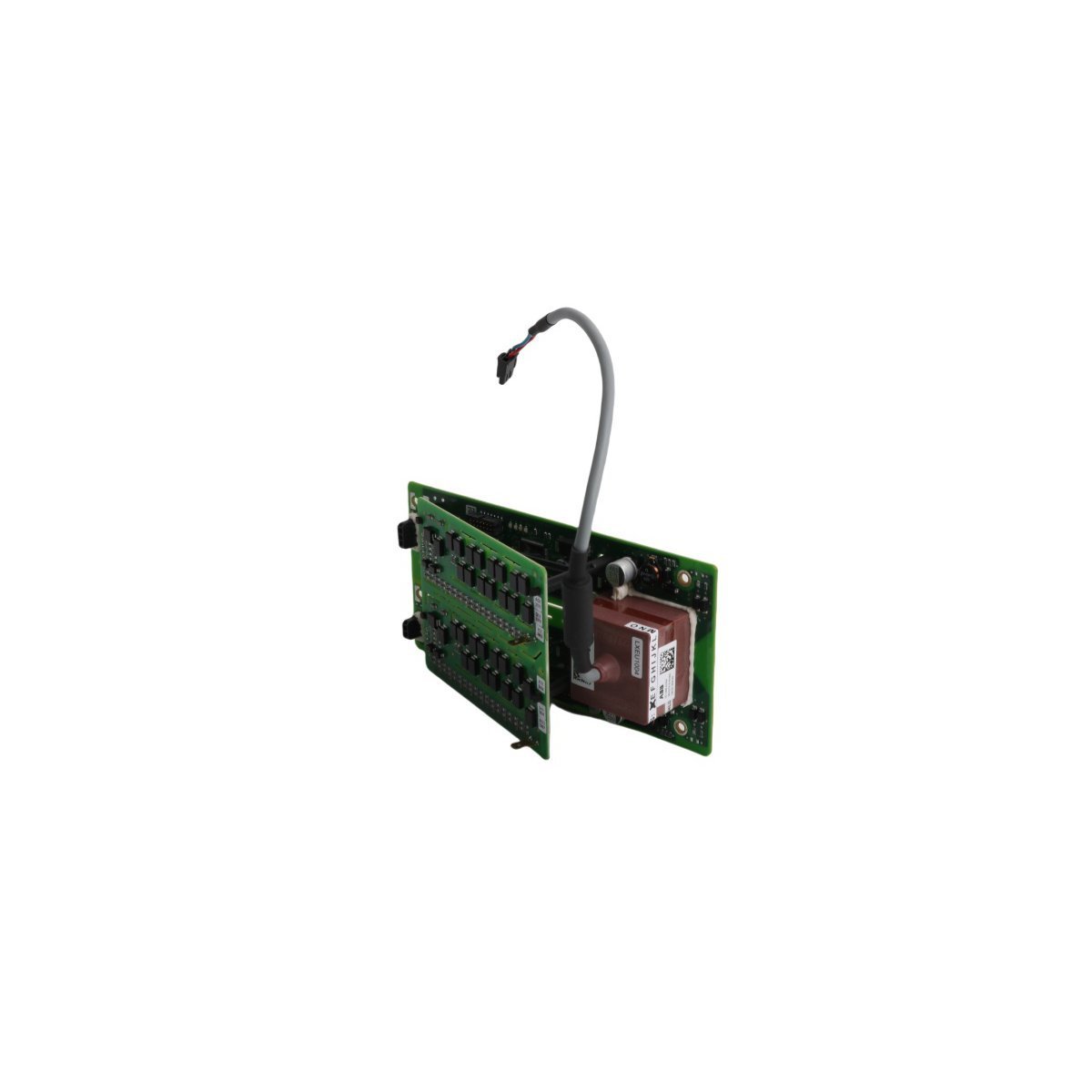

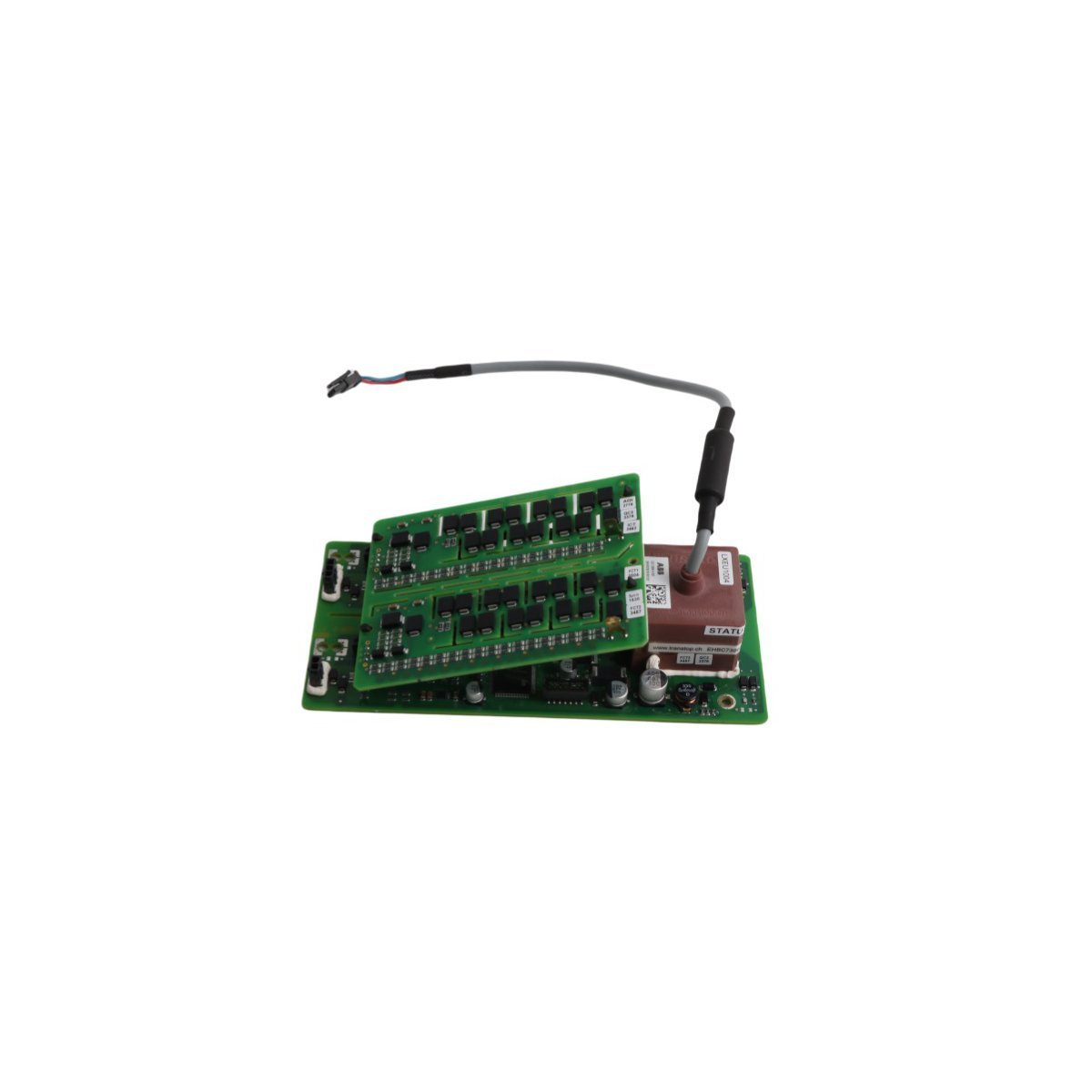

The ABB 3BHE028761R2004 GDC806 A2004, also cataloged as the 3BHE028761R2004 Control Board Module, operates as a dedicated hardware component for direct signal execution and excitation control processing within UNITROL DCS platforms. The unit processes digital control commands and interfaces directly with system communication links, while embedded logic elements coordinate real-time control routines without introducing instruction delays.

Hardware Specifications

Deterministic Network Routing and Backplane Bus Velocity

The board leverages high backplane bus communication velocity to transmit real-time telemetry across internal system racks. Active firmware flash compatibility allows engineers to field-upgrade software layers without replacing underlying circuit hardware. When operating within complex DCS loops, the board interfaces through Ethernet networks to establish deterministic data routing. This architectural integration reduces cycle latencies, maintains deterministic network behavior, and prevents packet collisions during continuous high-speed data transmission.

Frequently Asked Questions

Q: How do technicians update firmware on the 3BHE028761R2004 GDC806 A2004 board during routine maintenance?

A: Operators execute firmware updates via dedicated flashing utilities over the primary Ethernet network port, while built-in memory checks verify image integrity prior to hardware execution.

Q: Does the control board module support hot-swapping inside an energized DCS rack chassis?

A: No, engineers must remove system backplane power prior to module extraction, because unseating live pin connections can cause electrical arcs and corrupt active control communication lines.

Q: How does the unit preserve signal integrity across noisy high-voltage excitation environments?

A: Integrated galvanic isolation circuits decouple external field interface channels from internal backplane logic, which suppresses common-mode noise and prevents ground loops from disrupting signal paths.

Field Installation Guidelines

Mount the board securely into its assigned slot within the rack chassis, ensuring that card edge connectors seat fully into the backplane bus. Connect all grounding conductors directly to the main cabinet Earth busbar using short, heavy-gauge copper braids to minimize high-frequency noise. Route sensitive signal cables through separate metal conduits away from high-power excitation busbars, and terminate shield drains at a single grounding point to avoid ground loops. Ensure unobstructed air circulation around the card cage to prevent heat accumulation during continuous duty.
