Product Overview

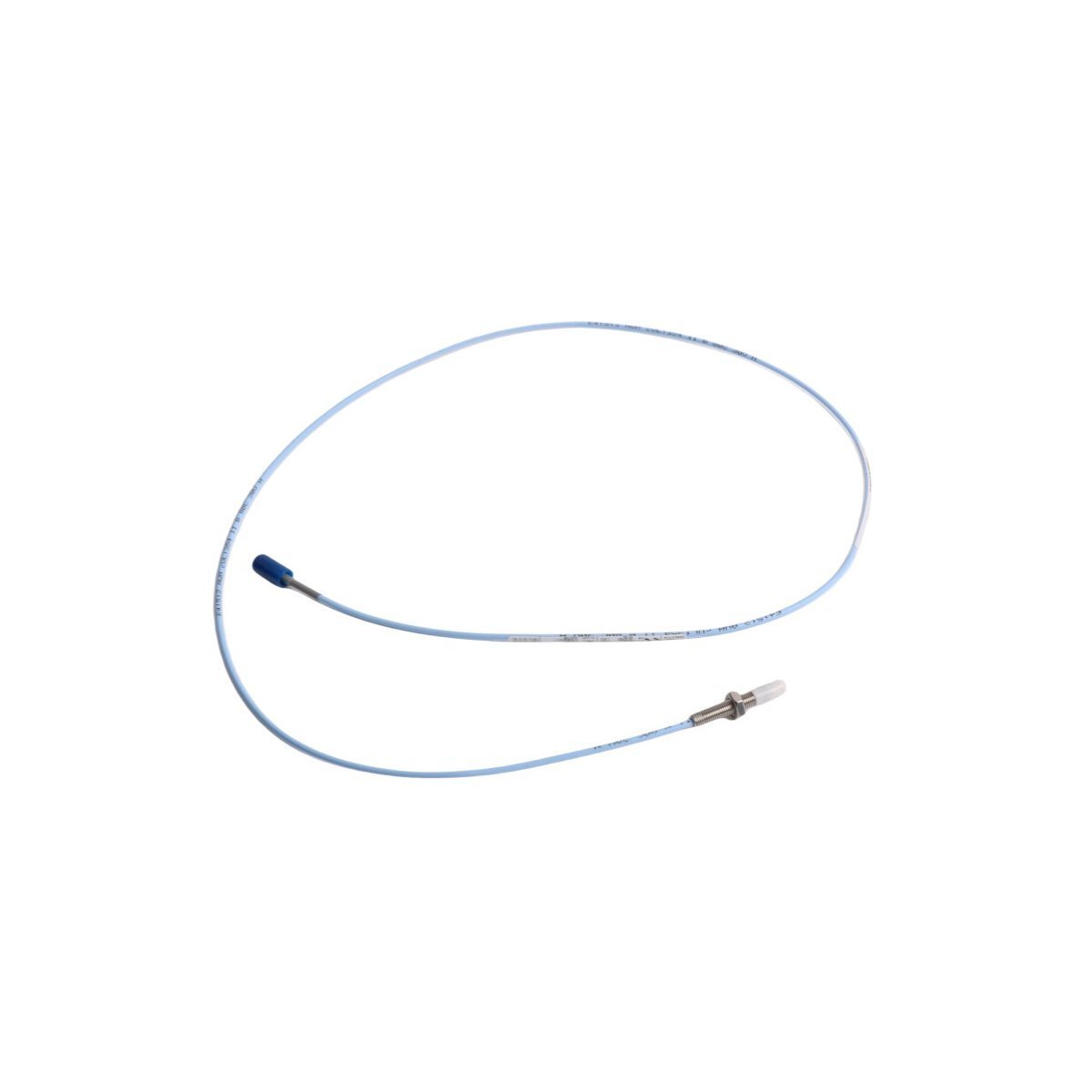

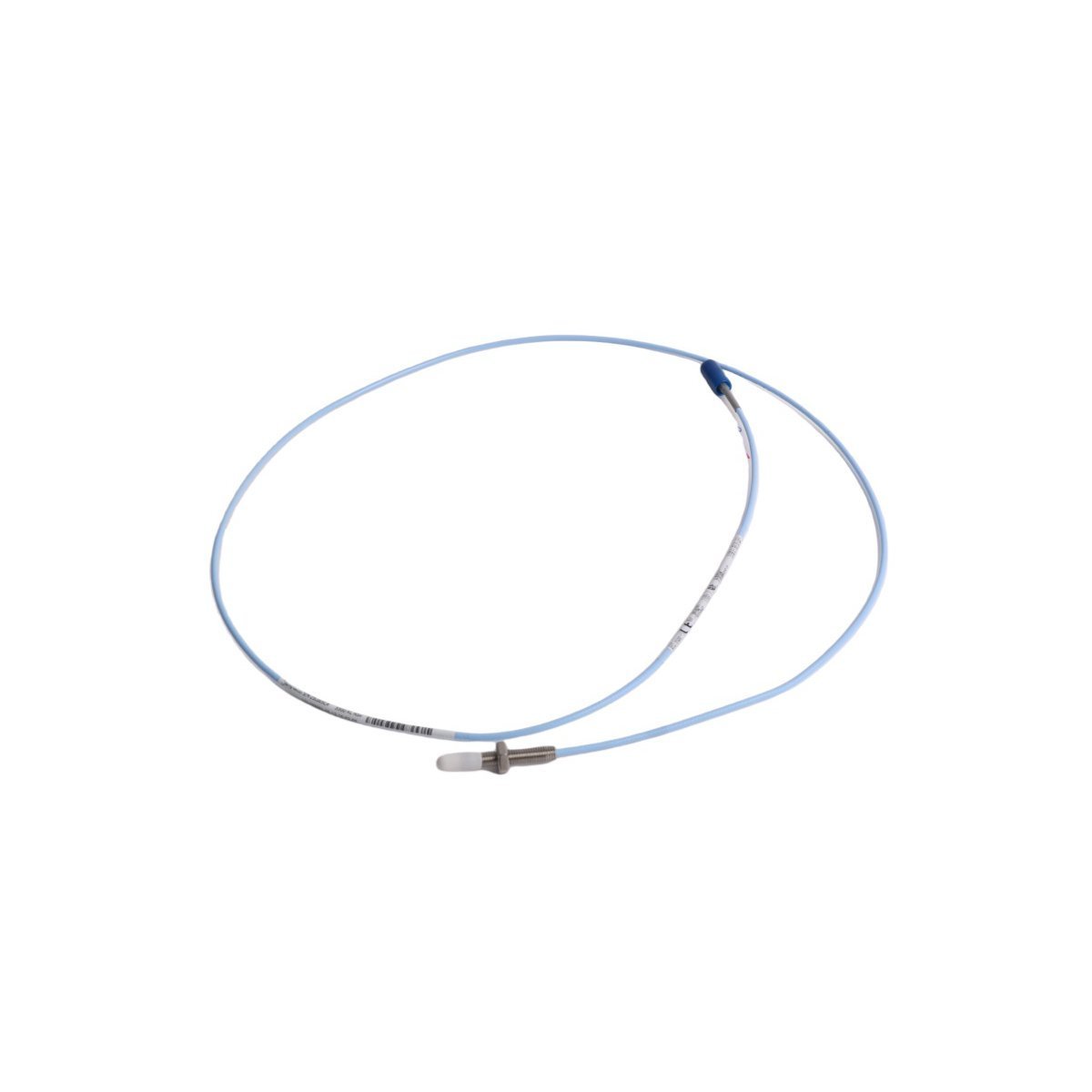

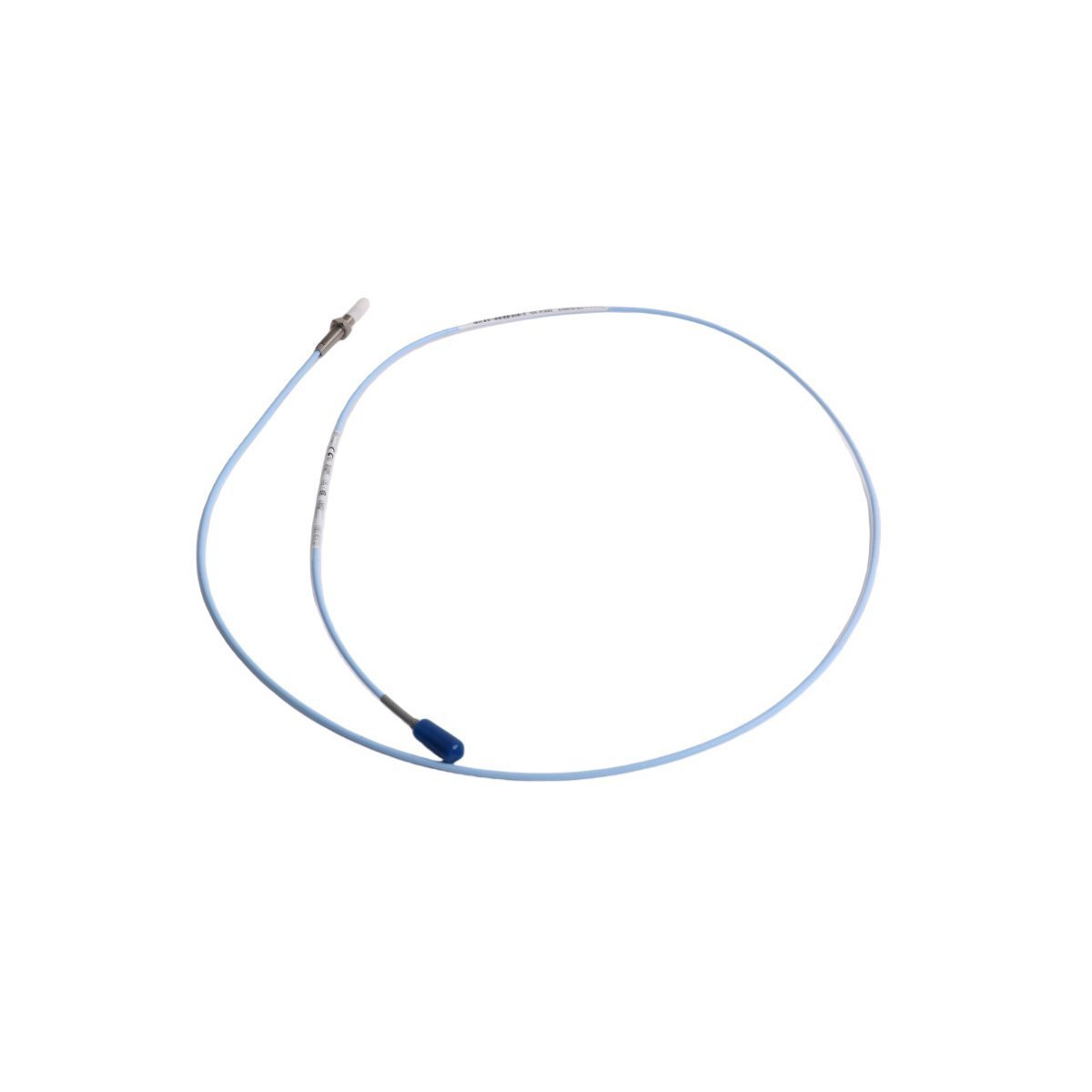

The Bently Nevada 330901-00-12-70-01-05 is a compact eddy-current proximity sensor engineered for small-shaft machinery. It accurately measures static and dynamic distances in tight-clearance locations where standard probes cannot fit.
Functional Description
This proximity probe operates as the primary sensing element within a 3300 XL NSv Transducer System. The device emits a high-frequency magnetic field to observe a target area, tracking minute changes in eddy currents caused by shaft movement. Consequently, the sensor translates physical gaps into precise voltage changes, allowing the connected monitor to calculate exact vibration levels. Because the probe tip utilizes a specialized small-diameter build, it remains highly accurate when measuring targets smaller than 51 mm (2 inches) or operating within counterbore restrictions.
Technical Characteristics
Space-Saving Geometry: Fits into restricted sideview, rearview, or counterbore profiles due to its specialized slim tip design.
Integrated Cabling: Eliminates intermediate connection points by using a continuous 7.0-meter unarmored cable.
Miniature Interconnects: Employs a secure Miniature ClickLoc coaxial connector to maintain reliable signal path transmission.
Enhanced Sensitivity: Delivers excellent eddy-current feedback on smaller target surfaces without interference from surrounding walls.
Rigid Construction: Withstands demanding chemical and temperature exposures typical of compressor casings.
Product Specifications
| Attribute | Specification Details |
| Manufacturer | Bently Nevada |
| Model Number | 330901-00-12-70-01-05 |
| Transducer System | 3300 NSv Series |
| Thread Type | 1/4-28 UNF thread profile |
| Total Case Length | 1.2 inches |
| Hardware Configuration | Unarmored cable with Miniature ClickLoc connector |
| System Cable Length | 7.0 meters (23.0 feet) |
| Physical Net Weight | 0.14 kg |
| Outer Dimensions | 20.3 cm x 22.0 cm x 3.5 cm |
| Country of Origin | United States (USA) |
Industrial Applications
Plant operators specify this compact transducer assembly for narrow-clearance machinery monitoring applications. It integrates directly into standard industrial vibration monitoring programs.
Small centrifugal and axial process gas compressors
Commercial and industrial refrigeration compressor setups
Radial vibration monitoring on narrow fluid-film bearing surfaces
Axial shaft position tracking inside tight gearboxes
Phase reference tracking using Keyphasor timing mechanisms
